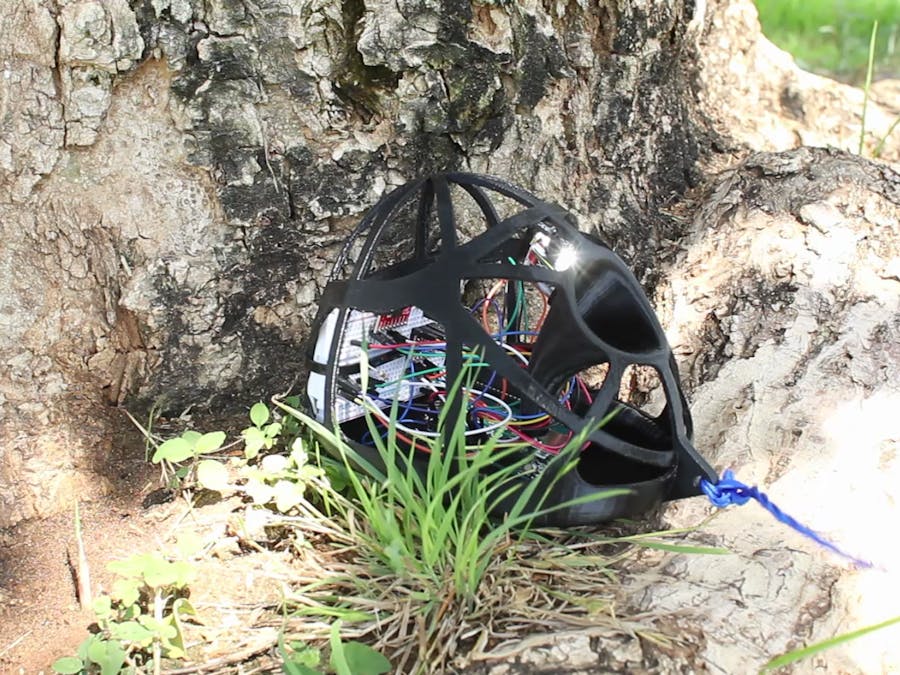

34five Arduino Pet

34five is an electronic pet that reacts to acceleration.

IntermediateShowcase (no instructions)4 hours932
34five Arduino Pet

Things used in this project

Hardware components

USB-A to B Cable
USB-A to B Cable
×1
Jumper wires (generic)
Jumper wires (generic)
×1
Arduino UNO & Genuino UNO
Arduino UNO & Genuino UNO
×1
SparkFun Triple Axis Accelerometer Breakout - ADXL345
SparkFun Triple Axis Accelerometer Breakout - ADXL345
×1
Breadboard (generic)
Breadboard (generic)
×1
9V to Barrel Jack Connector
9V to Barrel Jack Connector
×1
General Purpose Transistor NPN
General Purpose Transistor NPN
×1
SparkFun Mini Speaker - PC Mount 12mm 2.048kHz
×1
Resistor 1k ohm
Resistor 1k ohm
×1
9V battery (generic)
9V battery (generic)
×1
Male/Male Jumper Wires
×1

Software apps and online services

https://circuito.io/
Click on the link to go to the pre-defined parts selection for this project on circuito.io

Hand tools and fabrication machines

3D Printer (generic)
3D Printer (generic)

Story

Read more

Custom parts and enclosures

3D print the body

We designed a 3D printed body that fits the different organs of the 34five Arduino pet perfectly.

You can use the attached .STL file and print it or you can design it in your own style, as you wish.

Schematics

34five Schematic

Code

34five code

C/C++
No preview (download only).
