This project creatively repurposes a dash cam into a retro gaming console, combining playability and educational value. It serves as an entry-level embedded development tutorial, offering hands-on experience in hardware integration, firmware design, and system optimization. The open-source nature of the project makes it accessible for beginners to learn and for enthusiasts to replicate or modify.
2. System ArchitectureThe system comprises two custom-designed circuit boards (highlighted in the diagram) and leverages the dash cam’s existing display. Key components include:
Wireless Controller:Battery-powered with charging circuitry, automatic power switching, and low-power management.
Button input detection and wireless communication (e.g., Bluetooth) with the main control board.
Preserves the dash cam’s original functionality while integrating a display switch to toggle between the dash cam’s feed and the gaming interface.
Implements a file system for game storage (e.g., ROMs).
Includes a user interface for game file management (import/export/debug).
Wireless communication with the controller.
LCD driver adaptation and NES emulator porting.

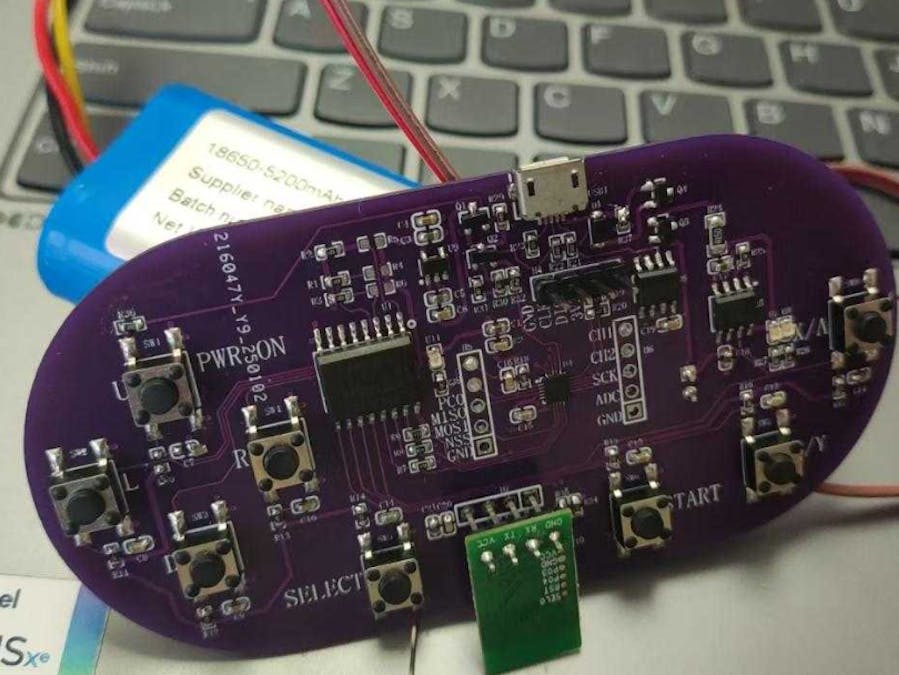

3. Wireless Controller DesignHardware:Power management: Li-ion battery charging (TP4056), power path switching, and low-power standby mode.
Button matrix for input detection.
Bluetooth/Wi-Fi module (e.g., ESP32-C3 or nRF24L01).
Software:Firmware for button scanning, wireless protocol handling, and power state control.
Core Features:
Display Switching: A physical/software switch to alternate between dash cam mode and gaming mode.
File System: FAT32 or LittleFS for storing game ROMs and user data.
Wireless Communication: Bluetooth pairing with the controller.
LCD Driver: Reverse-engineering the dash cam’s display interface (e.g., SPI/RGB).
NES Emulation: Porting open-source NES emulators (e.g., NESBox or QuickNES) to the PY32F403 MCU.
Integrate the control board into the dash cam’s housing.
Securely mount the modified device in the vehicle.
Test gameplay functionality while ensuring the dash cam’s core features remain operational.
The project successfully transforms a dash cam into a retro gaming console, with open-source hardware/software and detailed documentation for replication. Current limitations and future enhancements include:
Dual-Mode Switch: Develop a seamless hardware/software toggle to switch between dash cam and gaming modes without rebooting.
GUI Enhancement: Add a user-friendly menu for game selection, settings, and save/load states.
Power Optimization: Implement sleep modes to reduce idle power consumption.
Multiplayer Support: Enable wireless multiplayer via additional controllers.
By sharing this project, we aim to inspire embedded developers to explore creative hardware reuse and contribute to the open-source community. Let’s keep retro gaming alive—one dash cam at a time!
