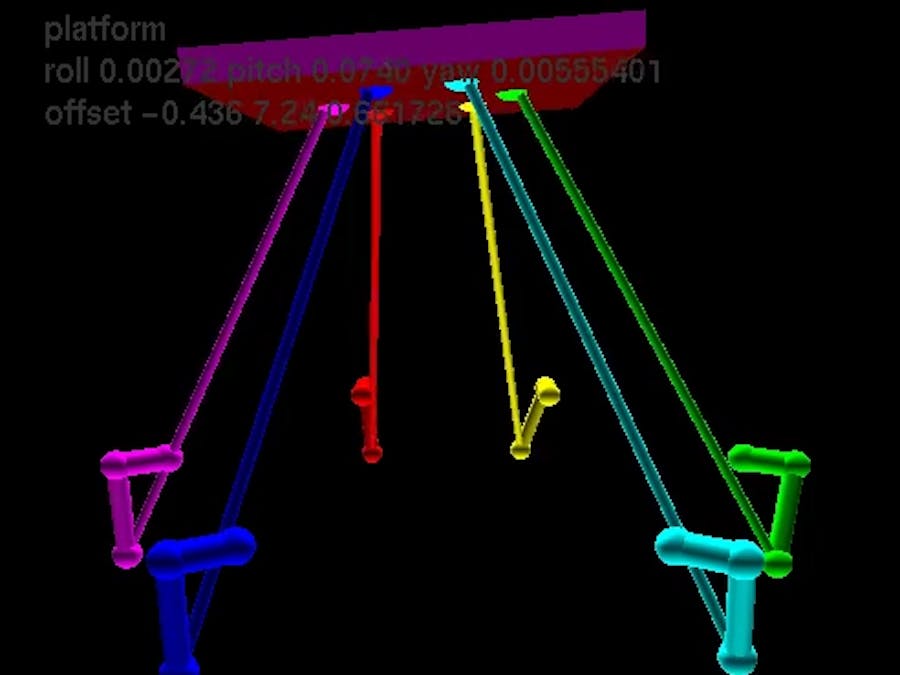

stewart

#include <Servo.h>
#include <BasicLinearAlgebra.h>

#define ARM_LENGTH	 2.0
#define LEG_LENGTH	 9.0

#define P0x -1.430
#define P0y  0.976
#define P1x -1.432
#define P1y -1.000
#define P2x -0.137
#define P2y -1.743
#define P3x  1.577
#define P3y -0.752
#define P4x  1.582
#define P4y  0.740
#define P5x -0.130
#define P5y  1.726

#define B0x -5.40268
#define B0y  2.60979
#define B1x -5.40268
#define B1y -2.60979
#define B2x  0.441194
#define B2y -5.98376
#define B3x  4.96149
#define B3y -3.37396
#define B4x  4.96149
#define B4y  3.37396
#define B5x  0.441194
#define B5y  5.98376

typedef struct {
  double x;
  double y;
} pos_s;

class Platform {
  public:
  Platform() {
    pitch = 0;
    roll  = 0;
    yaw   = 0;
    dx    = 0;
    dy    = 0;
    dz    = 0;
    pos[0].x = P0x; pos[0].y = P0y;
    pos[1].x = P1x; pos[1].y = P1y;
    pos[2].x = P2x; pos[2].y = P2y;
    pos[3].x = P3x; pos[3].y = P3y;
    pos[4].x = P4x; pos[4].y = P4y;
    pos[5].x = P5x; pos[5].y = P5y;
  }
  double pitch;
  double roll;
  double yaw;
  double dx;
  double dy;
  double dz;
  pos_s pos[6];
};

class Base {
  public:
  Base() {
    pos[0].x = B0x; pos[0].y = B0y;
    pos[1].x = B1x; pos[1].y = B1y;
    pos[2].x = B2x; pos[2].y = B2y;
    pos[3].x = B3x; pos[3].y = B3y;
    pos[4].x = B4x; pos[4].y = B4y;
    pos[5].x = B5x; pos[5].y = B5y;
  }
  pos_s pos[6];
};

#define NUM_SERVOS 6
Servo myServo[NUM_SERVOS];

Platform myPlatform;
Base myBase;

double h0;


// x-axis
static BLA::Matrix<4,4> rotatePitch(double r)
{
  BLA::Matrix<4,4> mtx = {
    1.0,     0.0,    0.0,        0.0,
    0.0,     cos(r), -sin(r),    0.0,
    0.0,     sin(r),  cos(r),    0.0,
    0.0,     0.0,     0.0,       1.0
  };
  return mtx;
}

// y-axis
static BLA::Matrix<4,4> rotateRoll(double r)
{
  BLA::Matrix<4,4> mtx = {
    cos(r),  0.0, sin(r), 0.0,
    0.0,     1.0, 0.0,    0.0,
    -sin(r), 0.0, cos(r), 0.0,
    0.0,     0.0, 0.0,    1.0
  };
  return mtx;
}

// z-axis
static BLA::Matrix<4,4> rotateYaw(double r)
{
  BLA::Matrix<4,4> mtx = {
    cos(r),  -sin(r), 0.0, 0.0,
    sin(r),   cos(r), 0.0, 0.0,
    0.0,      0.0,    1.0, 0.0,
    0.0,      0.0,    0.0, 1.0
  };
  return mtx;
}

static double length(BLA::Matrix<4> v)
{
  return sqrt((v(0) * v(0)) +
                  (v(1) * v(1)) +
                  (v(2) * v(2)));
}

#define R2D(r) ((r / M_PI) * 180.0)

double alpha[6] = {180.0, 0.0, 180.0, 0.0, 180.0, 0.180};
double incr[8];
double pincr;

static void update_alpha()
{

  BLA::Matrix<4,4> pRot = rotatePitch(myPlatform.pitch);
  BLA::Matrix<4,4> rRot = rotatePitch(myPlatform.roll);
  BLA::Matrix<4,4> yRot = rotatePitch(myPlatform.yaw);
  BLA::Matrix<4,4> cRot = pRot * rRot * yRot;

  //double alpha_stage[6];
  bool is_valid = true;

  for (int i = 0; i < NUM_SERVOS; i++) {
    // Eq 3
    BLA::Matrix<4> P = {myPlatform.dx,myPlatform.dy + h0,
                        myPlatform.dz, 1.0};
    BLA::Matrix<4> B = {myBase.pos[i].x,myBase.pos[i].y,
                         0.0, 1.0};
    BLA::Matrix<4> deltaPB = P - B;

    // Eq 9
    double beta = (i & 1) ? (M_PI/6.0) : (-M_PI/6.0);


    double l = length (deltaPB);
    print("l = "); println(l);

    double L  =
      (l * l) - ((LEG_LENGTH * LEG_LENGTH) -
                 (ARM_LENGTH * ARM_LENGTH));

    double M  = 2.0 * ARM_LENGTH * deltaPB(1);
    double N  = 2.0 * ARM_LENGTH *
      (deltaPB(0) * cos (beta) + deltaPB(2) * sin (beta));
    N = -fabs (N);
    double arg = L / sqrt ((M * M) + (N * N));
    //Serial.println(arg);
    double alphaX = asin (arg) - atan2 (N, M);
    if (isnan (alphaX)) {
      is_valid = false;
      Serial.println(i);
      Serial.println(" boom");
      break;
    }
    else {
      alpha[i] = R2D((i&1) ? -alphaX : alphaX);
      Serial.println(alpha[i]);
    }

#if 0
  if (!is_valid) {
  Serial.println("boom");

  //  for (int i = 0; i < servos.size (); i++)
  //    servos[i]->alpha = alpha_stage[i];
  }
  #endif
  }
}

bool run_loop = true;

void
setup() {
  Serial.begin(115200); // Any baud rate should work
  Serial.println("Hello Arduino\n");

  myServo[0].attach( 11);
  myServo[1].attach( 10);
  myServo[2].attach( 9);
  myServo[3].attach( 6);
  myServo[4].attach( 5);
  myServo[5].attach( 3);

  h0 = 0.0;					// Eq 10
  for (int i = 0; i < 6; i++) {
    incr[i] = ((double)random(-1000, 1000))/500.0;
    double xp = myPlatform.pos[i].x;
    double yp = myPlatform.pos[i].y;
    double xb = myBase.pos[i].x;
    double yb = myBase.pos[i].y;
    h0 += sqrt (pow (LEG_LENGTH, 2.0) +
		   pow (ARM_LENGTH, 2.0) -
		  (pow ((xp - xb), 2.0) +
		   pow ((yp - yb), 2.0)));
  }
  h0 /= 6.0;
  update_alpha ();
  pincr = ((double)random(1000))/10000.0;
}

void
loop() {

if (run_loop) {
  for(int i=0; i< NUM_SERVOS; i++) {
    //Serial.println(alpha[i]);

    myServo[i].write( alpha[i]);
  }
  myPlatform.yaw += pincr;
  //Serial.println("yaw ");
  //Serial.println(myPlatform.yaw);
  //Serial.println("\n");
  //Serial.println("\n");
  if (myPlatform.yaw > 10.0) {
    pincr = -pincr;
    myPlatform.yaw = 10.0;
  }
  else if (myPlatform.yaw < -10.0) {
    pincr = -pincr;
    myPlatform.yaw = -10.0;
 }
 update_alpha();
 delay( 2);
 run_loop = false;
}

#if 0
      alpha[i] += incr[i];
      if (alpha[i] > 180.0) {
        incr[i] = -incr[i];
        alpha[i] = 180.0;
      }
      if (alpha[i] < 0.0) {
        incr[i] = -incr[i];
        alpha[i] = 0.0;
      }
#endif
  }




#if 0
  for (int a = 0; a<15; a++) {
    for(int i=0; i< NUM_SERVOS; i++) {
      myServo[i].write( random( 0, 181));
      delay( 2);
    }
    delay( 150);
  }

  for( int i=0; i<NUM_SERVOS; i++)  {
    myServo[i].write( 0); // set to horn rotated left
  }
  delay( 1000);

  for( int a=0; a<3; a++) {
    for( int r=0; r<=180; r++) {     // move horns right
      for( int i=0; i<NUM_SERVOS; i++)  {
        myServo[i].write( r);
      }
      delay( 6);
    }
    for( int r=180; r>=0; r--) {
      for( int i=0; i<NUM_SERVOS; i++) { //horns left
        myServo[i].write( r);
      }
      delay( 6);
    }
  }
#endif
