TOF Water tank sensor on KNX

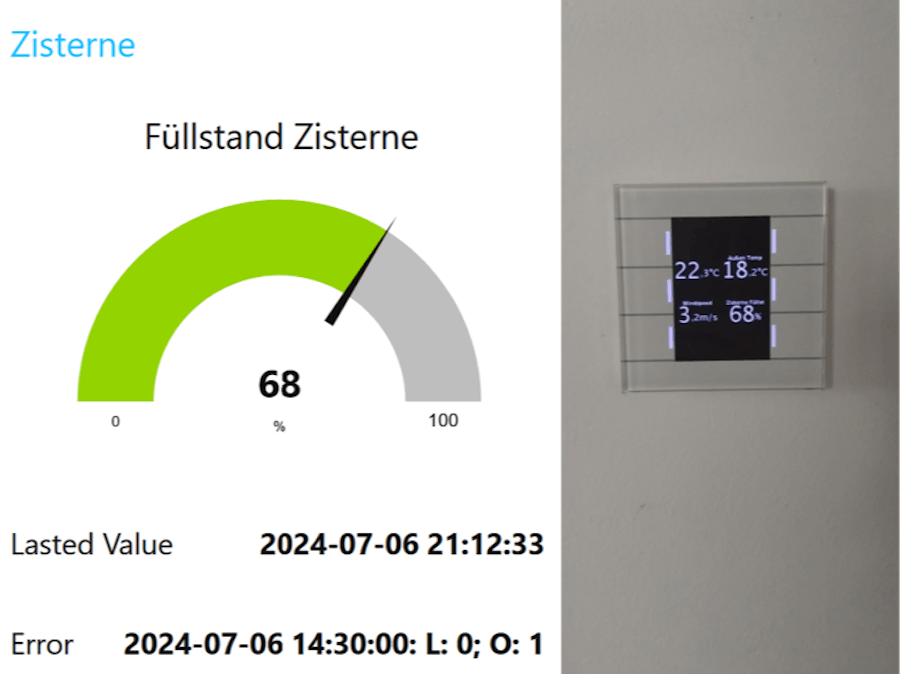

Show water tank level on your home visu and node red using the KNX home bus system driven by Siemens KNX bus coppler and ESP32c3 supermini

IntermediateFull instructions provided24 hours330
TOF Water tank sensor on KNX

Things used in this project

Hardware components

ESP32c3
×1
Fermion: VL53L3CX ToF Distance Ranging Sensor (Breakout)
DFRobot Fermion: VL53L3CX ToF Distance Ranging Sensor (Breakout)
×1
Siemens-KNX 5WG11172AB12 Bus cuppler
×1

Software apps and online services

Node-RED
Node-RED
PlatformIO IDE
PlatformIO IDE

Hand tools and fabrication machines

3D Printer (generic)
3D Printer (generic)

Story

Read more

Custom parts and enclosures

Sensor Protection

A Water Tank is a harsch environment so I had to create an enclosure. This should get improved. So far corrosion on the sensor has been my biggest issue

Sketchfab still processing.

Schematics

Schmeatics

Code

ESP32c3 Code in Platformio

Arduino
I2C Communication between ESP and VL530X,
#include <Arduino.h>
#include <KnxTpUart.h>
#include <Wire.h>
#include <VL53L0X.h>
#include <Smoothed.h>

#define DEBUG_Serial

#define LEDPIN 8
#define GPIO_AS_GND 4
#define SDA_PIN 6
#define SCL_PIN 7

#define HOME_ADRESS "7.1.1"
#define VALUE_Adress "6/4/8"
#define ERROR_Adress "6/4/9"

#define BASE_Interval 1000  //1sec
#define VALUES_Smoothed 10
#define SEC_PER_TX 30 // multiply base intervall
#define MAX_DISTANCE_VALUE 3000 // Max Distance is < 3000mm

KnxTpUart knx(&Serial0, HOME_ADRESS);
unsigned long previousMillis = 0;
VL53L0X sensor;
uint16_t measurementValue = 0;
Smoothed <int> sValue;
uint8_t count = 0;
bool initBool = true;
bool success = false;
uint8_t sensorTimeout = 0;
uint8_t sensorOutOfRange = 0;


void maintainKnxSerial()
{
  if (Serial0.available() > 0) {
    KnxTpUartSerialEventType eType = knx.serialEvent();
    if (eType == KNX_TELEGRAM) {
      KnxTelegram* telegram = knx.getReceivedTelegram();

      String target =
        String(0 + telegram->getTargetMainGroup()) + "/" +
        String(0 + telegram->getTargetMiddleGroup()) + "/" +
        String(0 + telegram->getTargetSubGroup());

      Serial.println(target);

      if (telegram->getCommand() == KNX_COMMAND_READ) {
        // Answer to Read
        if (target == ERROR_Adress) {
          knx.groupAnswer14ByteText(ERROR_Adress, "Read Answer");
          digitalWrite(LEDPIN,!digitalRead(LEDPIN));
          #ifdef DEBUG_Serial
            Serial.println("KNX Read Command");
          #endif
        }
      } else if (telegram->getCommand() == KNX_COMMAND_WRITE) {
        // Write commands
        if (target == ERROR_Adress) {
          digitalWrite(LEDPIN,!digitalRead(LEDPIN));

          #ifdef DEBUG_Serial
            Serial.println("KNX Write Command");
          #endif
        }
      }
    }
  }
}

void setup()
{
  pinMode(LEDPIN, OUTPUT);
  digitalWrite(LEDPIN, LOW);// ON at start --> LED Low active
  pinMode(GPIO_AS_GND,OUTPUT);
  digitalWrite(GPIO_AS_GND,LOW);

  #ifdef DEBUG_Serial
    Serial.begin(460800);
    Serial.println("Booting...");
  #endif

  Serial0.begin(19200,SERIAL_8E1,-1,-1);

  knx.uartReset();
  knx.addListenGroupAddress(ERROR_Adress);
  delay(300);
  knx.groupWrite14ByteText(ERROR_Adress, "KNX Start");
  #ifdef DEBUG_Serial
    Serial.println("KNX Start");
  #endif

  Wire.setPins(SDA_PIN, SCL_PIN);
  Wire.begin();
  sensor.setTimeout(500);
  if (!sensor.init())
  {
    uint8_t counter = 0;
    while (initBool){

      if (sensor.init())
      {
        initBool = false;
      }else
      {
        #ifdef DEBUG_Serial
          Serial.println("Init Error");
        #endif
        delay(200);
        knx.groupWrite14ByteText(ERROR_Adress, "Init Err");

        counter++;
        if (counter > 10)
        {
          digitalWrite(LEDPIN, true);
          delay(500);
          digitalWrite(LEDPIN, false);
          delay(500);
          digitalWrite(LEDPIN, true);
          delay(500);
          digitalWrite(LEDPIN, false);
          delay(500);
          digitalWrite(LEDPIN, true);
          delay(500);
          digitalWrite(LEDPIN, false);
          delay(500);
          digitalWrite(LEDPIN, true);
          delay(500);
          digitalWrite(LEDPIN, false);
          delay(500);
          digitalWrite(LEDPIN, true);
          delay(500);
          digitalWrite(LEDPIN, false);
          ESP.restart();
        }

        delay(BASE_Interval * SEC_PER_TX);
      }
    }
  }

  sensor.setSignalRateLimit(0.1);
  sensor.setVcselPulsePeriod(VL53L0X::VcselPeriodPreRange, 18);
  sensor.setVcselPulsePeriod(VL53L0X::VcselPeriodFinalRange, 14);

  sValue.begin(SMOOTHED_EXPONENTIAL, VALUES_Smoothed);

  digitalWrite(LEDPIN, true);
  knx.groupWrite14ByteText(ERROR_Adress, "Init Done");

}

void loop()
{
  if(millis() - previousMillis > BASE_Interval)
  {
    previousMillis = millis();
    count++;
    digitalWrite(LEDPIN, !digitalRead(LEDPIN));
    measurementValue = sensor.readRangeSingleMillimeters();

    if (sensor.timeoutOccurred())
    {
      sensorTimeout++;
      digitalWrite(LEDPIN, false);
      #ifdef DEBUG_Serial
          Serial.println("Timeout Sensor");
      #endif
    }else
    {
      if (measurementValue > MAX_DISTANCE_VALUE)
      {
        sensorOutOfRange++;
        digitalWrite(LEDPIN, false);
        #ifdef DEBUG_Serial
            Serial.printf("Sensor Out of Range, Value: %d \n", measurementValue);
        #endif

      }else
      {
        sValue.add((int)measurementValue);
        #ifdef DEBUG_Serial
            Serial.printf("Value: %d , Filtered: %d \n", (int)measurementValue, sValue.get());
        #endif
      }
    }

    if (count >= SEC_PER_TX)
    {
      if ((sensorTimeout != 0)||(sensorOutOfRange != 0))
      {
        String s = "L: " + String(sensorTimeout) + "; O: " + String(sensorOutOfRange);
        success = knx.groupWrite14ByteText(ERROR_Adress, s);
        sensorTimeout = 0;
        sensorOutOfRange = 0;
      }
      if(count > (sensorOutOfRange + sensorTimeout))
      {
        success = knx.groupWrite2ByteInt(VALUE_Adress, sValue.get());
      }
      count = 0;
    }
  }
  maintainKnxSerial();

}
