Smart Home Alarm System

This system rings the alarm , turns on the light and it also sends a Good Morning message to the user as soon as sunlight falls on sensor.

IntermediateFull instructions provided824

Things used in this project

Hardware components

Bolt IoT Bolt WiFi Module

LDR, 5 Mohm

Buzzer

LED (generic)

Jumper wires (generic)

Breadboard (generic)

Resistor 330 ohm

Software apps and online services

Bolt IoT Bolt Cloud

Bolt IoT Android App

Twilio SMS Messaging API

Snappy Ubuntu Core

Story

1. INTRODUCTION

The project basically has 4 major objectives: (A) Reading the value from the sensor (B) Sending the SMS to the user (C) Switching ON the LED (D) Switching ON the Alarm(buzzer).

The sunlight falls on the LDR sensor which is places outside. LDR reads the value in every 10 seconds of gap. As soon as the reading is taken it is compared with the limiting value of the sensor. When the sensor value is less that the limit the LED and the Alarm does not switch on. Whereas when the value is greater than the limiting value then a SMS is send to the user saying "Wake Up .Good Morning have a great day ahead". This leads to the switching ON the LED(light) and Alarm(buzzer).

2. DEMONSTRATION

Check out this video for further working of the device

3. ALERT NOTIFICATION VIA SMS

4. CODE

Firstly create a file named as confy.py as shown in the image and then secondly make a file named as smart_alarm.py then write the code given below in the image.

Below is the code for the program smart_alarm.py and confy.py

1 / 3 • confy.py

5. OUTPUT

The output should be as follows:

1 / 2 • When the sun shines

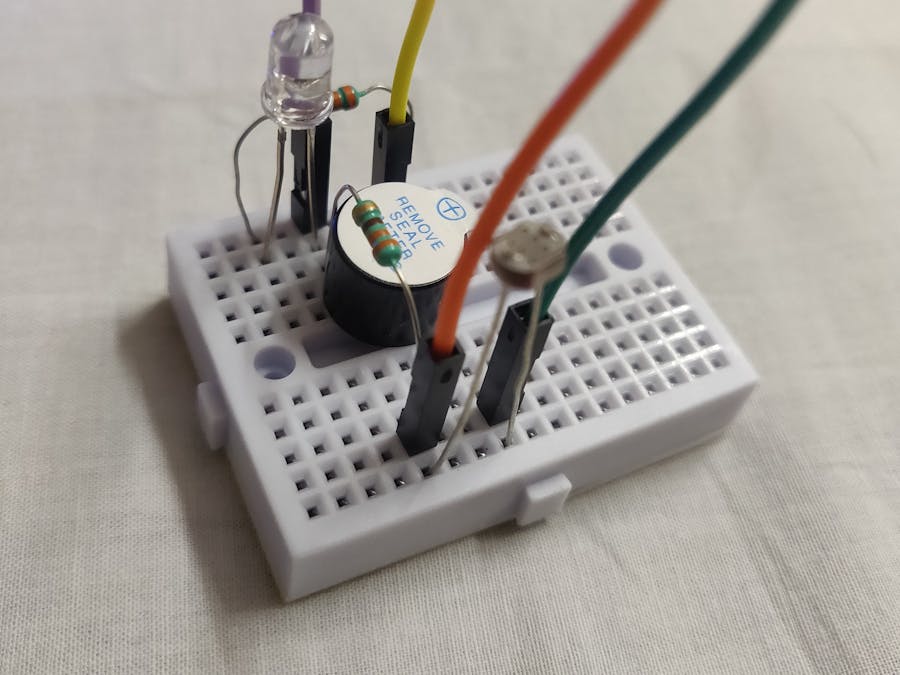

6. IMAGES

1 / 3

Code

import confy, json, time
from boltiot import Bolt,Sms

limit = 400

mybolt = Bolt(confy.API_KEY, confy.DEVICE_ID)
sms = Sms(confy.SID, confy.AUTH_TOKEN, confy.TO_NUMBER, confy.FROM_NUMBER)
while True:
  print("Reading Sensor Value")
  response = mybolt.analogRead('A0')
  data = json.loads(response)
  print("Sensor Value is : " +str(data['value']))
  try:
    sensor_value = int(data['value'])
    if sensor_value > limit:
      print("Making a request to Twilio to send SMS")
      response = sms.send_sms("Wake UP. GOOD MORNING Have a great day ahead")
      print("Switching ON the lights")
      print("Switching ON the alarm")
      mybolt.digitalWrite('1','HIGH')
      print("Response recieved from Twilio is: "+str(response))
      print("Status of the SMS at twilio is: "+str(response.status))
    else:
      print("There is still night")
      print("Do not send the message through Twilio")
      print("Do not turn ON the lights")
      print("Do not turn ON the alarm")
      mybolt.digitalWrite('1','LOW')
  except Exception as e:
      print("Error occured.Below are the details")
      print(e)
  time.sleep(10)

Credits

Chirag Gupta

1 project • 0 followers

Thanks to Pranav Pai Vernekar..
