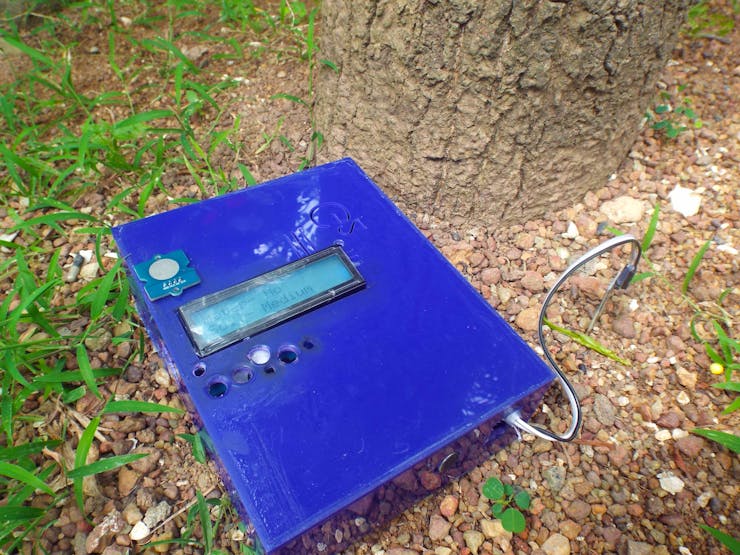

Things used in this project

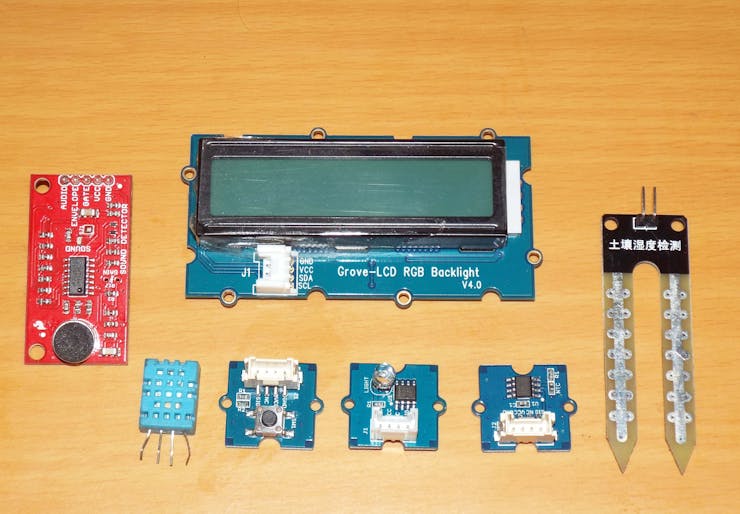

Hardware components:
Ardgen 101
Arduino 101 & Genuino 101
×1
101020014 201
SeeedStudio Grove - Light Sensor
×1
386 00
DHT11 Temperature & Humidity Sensor
×1

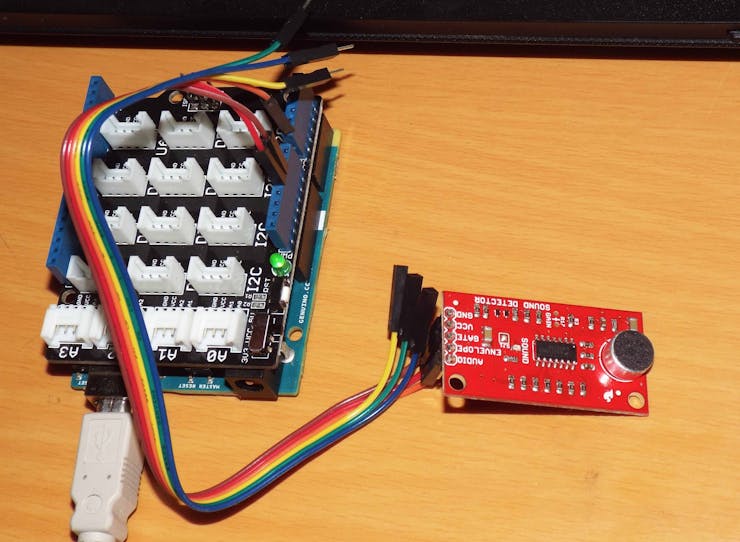

Sparkfun Sound Detector
×1

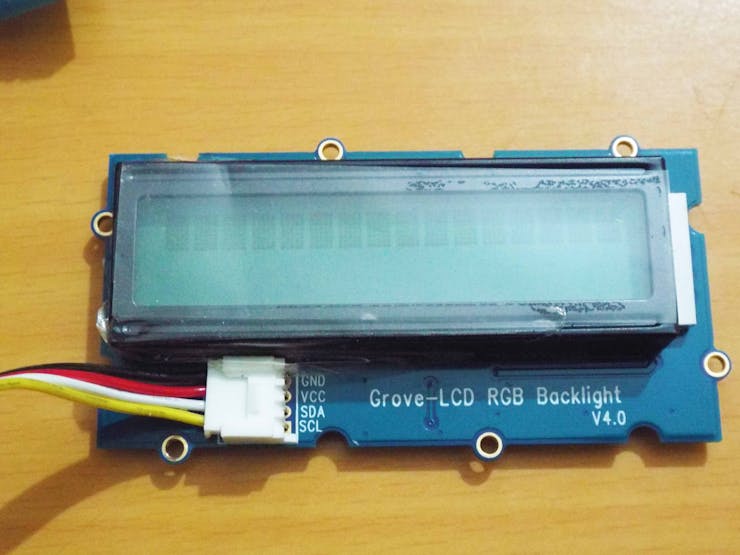

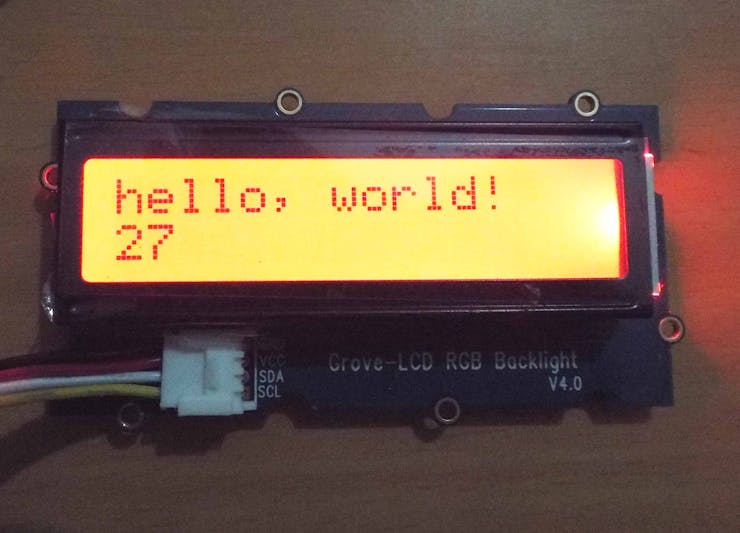

SeeedStudio Grove LCD
×1
13637 01
SparkFun Soil Moisture Sensor (with Screw Terminals)
×1
SeeedStudio Grove Button
×1
SeeedStudio Grove universal cables
×1
Ojyc6a5jtrgslqwc5j7gw9ti

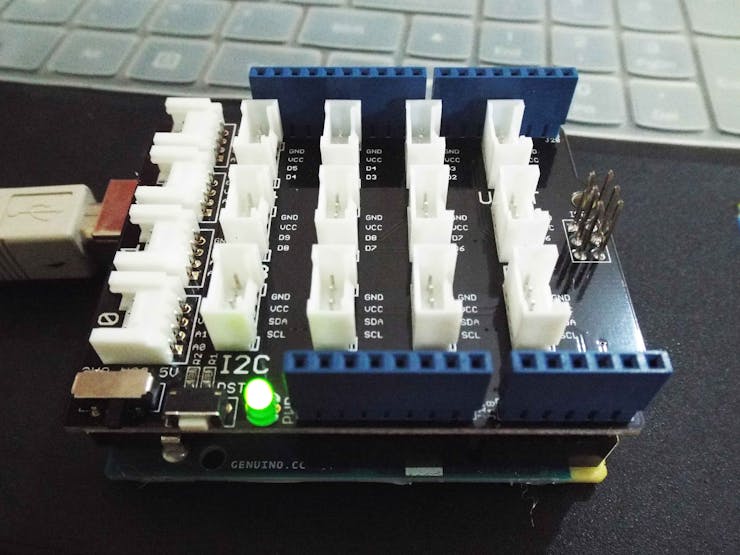

SeeedStudio Base Shield V2
×1
Software apps and online services:
Ide web
Arduino IDE

Code

Basic_1.inoArduino
 #include <Adafruit_Sensor.h>
#include "DHT.h"         //include DHT library
#define DHTPIN 3         //define as DHTPIN the Pin 3 used to connect the Sensor
#define DHTTYPE DHT11    //define the sensor used(DHT11)
#define light A0
#define noise A1
#define moist A2
#define button 8
DHT dht(DHTPIN, DHTTYPE);//create an instance of DHT
#include <Wire.h>
#include "rgb_lcd.h"
#include "math.h"

rgb_lcd lcd;

const int colorR = 0;
const int colorG = 30;
const int colorB = 55;

int page = 0;

void setup()
{
    // set up the LCD's number of columns and rows:
    Serial.begin(9600);
    lcd.begin(16, 2);
    dht.begin();
    lcd.setRGB(colorR, colorG, colorB);
    pinMode(light,INPUT);
    pinMode(noise,INPUT);
    pinMode(button,INPUT);
    pinMode (2,OUTPUT);
    pinMode (A3,OUTPUT);
    digitalWrite(2,HIGH);
    digitalWrite(A3,OUTPUT);
    pinMode (1,OUTPUT);
}

void loop()
{
    while (page == 0){
      first_page();
      if (digitalRead(button) == 1)
         page++;
    }
    delay(500);
    while (page == 1){
      second_page();
      if (digitalRead(button) == 1)
          page++;
    }
    delay(500);

    while (page == 2){
      third_page();
      if (digitalRead(button) == 1)
          page = 0;
    }

    delay(500);

}

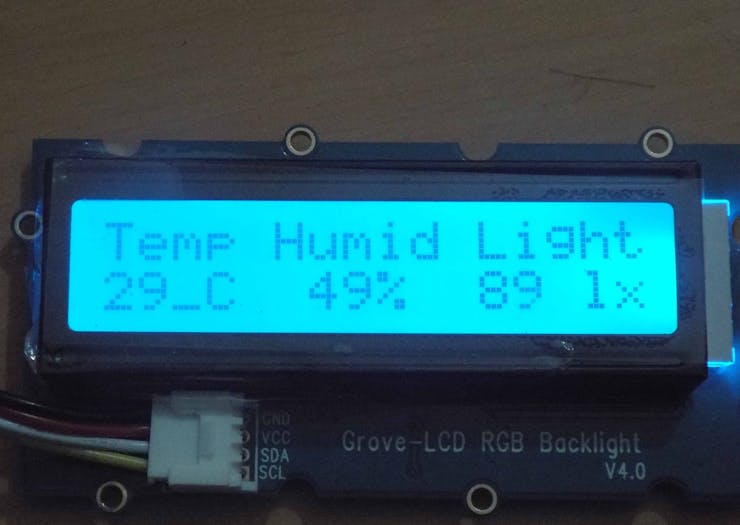

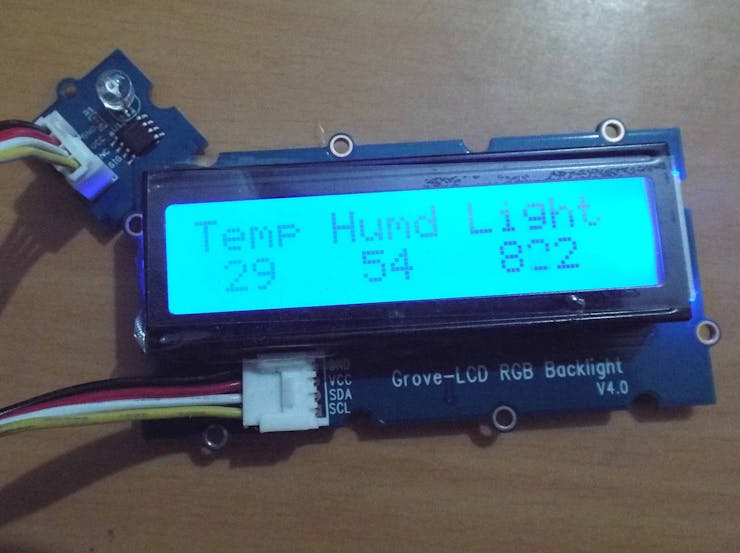

void first_page(){

  int h = dht.readHumidity();    // reading Humidity
    int t = dht.readTemperature();
    int light_l = 0;

    for (int x=0; x<50;x++){
      light_l = light_l + analogRead(light);
      delay(2);
    }

    light_l = light_l/50;
    lcd.setCursor(12, 1);
    lcd.print("  lx");
    lcd.setCursor(0, 0);
    lcd.print("Temp ");
    lcd.setCursor(0, 1);
    lcd.print(t);
    lcd.setCursor(2, 1);
    lcd.print("_C ");

    lcd.setCursor(5, 0);
    lcd.print("Humid");
    lcd.setCursor(6, 1);
    lcd.print(h);
    lcd.setCursor(8, 1);
    lcd.print("%");

    lcd.setCursor(11, 0);
    lcd.print("Light");
    lcd.setCursor(11, 1);
    lcd.print(light_l);

}
void second_page(){

    int sound = 0;
    for(int x = 0;x<10;x++){
          sound = sound + analogRead(noise);
    }
    sound = sound/10;
    double dB = 20*(log10(10*sound)) ;
    lcd.setCursor(0, 0);
    lcd.print("Noise           ");
    lcd.setCursor(0, 1);
    lcd.print(dB);
    lcd.setCursor(5, 1);
    lcd.print("            ");
    delay(100);

}

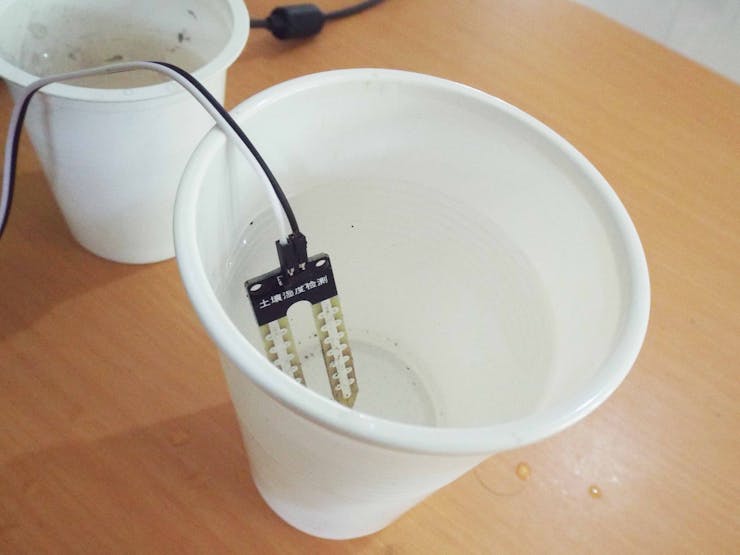

void third_page(){
  int moist_s = 0;

  for (int y = 0; y<100 ; y++){
    moist_s = moist_s + analogRead(moist);
    delay(2);
  }

  moist_s = moist_s/100;
  lcd.setCursor(0,0);
  lcd.print("Water- ");
  lcd.setCursor(0,1);
  lcd.print("Soil- ");

  lcd.setCursor(6,1);
  if(moist_s>900) lcd.print("Dry    ");
  else if(moist_s>650) lcd.print("Medium");
  else lcd.print("High   ");

  lcd.setCursor(7,0);
  if(moist_s>750) lcd.print("No      ");
  else if(moist_s>600) lcd.print("Distill ");
  else if(moist_s>500) lcd.print("Drinking");
  else if(moist_s>350) lcd.print("Fish    ");
  else lcd.print("Polluted");

}

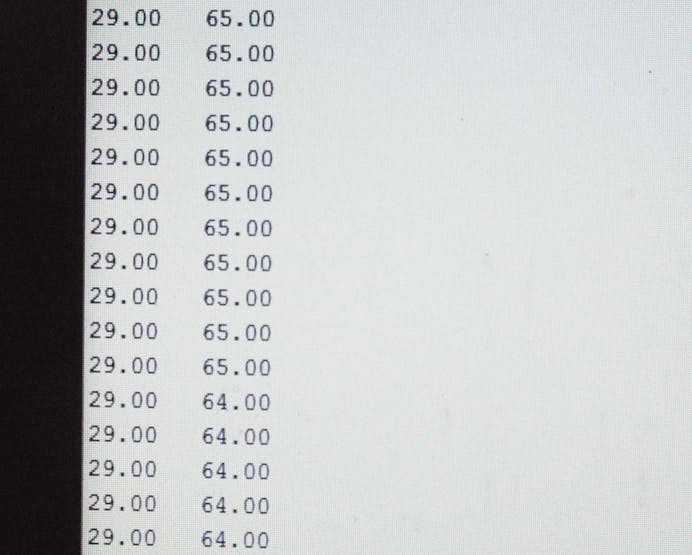

DHT11.inoArduino
// DHT11 Temperature and Humidity Sensors Example
 #include <Adafruit_Sensor.h>
#include "DHT.h"         //include DHT library
#define DHTPIN 3         //define as DHTPIN the Pin 3 used to connect the Sensor
#define DHTTYPE DHT11    //define the sensor used(DHT11)
DHT dht(DHTPIN, DHTTYPE);//create an instance of DHT
/*setup*/
void setup() {
  Serial.begin(9600);    //initialize the Serial communication
  delay(6000);           //wait 6 seconds
  Serial.println("Temperature and Humidity test!");//print on Serial monitor
  Serial.println("T(C) \tH(%)");                   //print on Serial monitor
  dht.begin();           //initialize the Serial communication
}
/*loop*/
void loop() {

  float h = dht.readHumidity();    // reading Humidity
  float t = dht.readTemperature(); // read Temperature as Celsius (the default)
  // check if any reads failed and exit early (to try again).
    if (isnan(h) || isnan(t)) {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }
  Serial.print(t, 2);    //print the temperature
  Serial.print("\t");
  Serial.println(h, 2);  //print the humidity
  delay(500);           //wait 2 seconds
}
Kalman.hC/C++
/* Copyright (C) 2012 Kristian Lauszus, TKJ Electronics. All rights reserved.

 This software may be distributed and modified under the terms of the GNU
 General Public License version 2 (GPL2) as published by the Free Software
 Foundation and appearing in the file GPL2.TXT included in the packaging of
 this file. Please note that GPL2 Section 2[b] requires that all works based
 on this software must also be made publicly available under the terms of
 the GPL2 ("Copyleft").

 Contact information
 -------------------

 Kristian Lauszus, TKJ Electronics
 Web      :  http://www.tkjelectronics.com
 e-mail   :  kristianl@tkjelectronics.com
 */

#ifndef _Kalman_h
#define _Kalman_h

class Kalman {
public:
    Kalman() {
        /* We will set the variables like so, these can also be tuned by the user */
        Q_angle = 0.01;//0.001
        Q_bias = 0.0001;//0.003
        R_measure = 0.11;//0.03

        angle = 0; // Reset the angle
        bias = 0; // Reset bias

        P[0][0] = 0; // Since we assume that the bias is 0 and we know the starting angle (use setAngle), the error covariance matrix is set like so - see: http://en.wikipedia.org/wiki/Kalman_filter#Example_application.2C_technical
        P[0][1] = 0;
        P[1][0] = 0;
        P[1][1] = 0;
    };
    // The angle should be in degrees and the rate should be in degrees per second and the delta time in seconds
    double getAngle(double newAngle, double newRate, double dt) {
        // KasBot V2  -  Kalman filter module - http://www.x-firm.com/?page_id=145
        // Modified by Kristian Lauszus
        // See my blog post for more information: http://blog.tkjelectronics.dk/2012/09/a-practical-approach-to-kalman-filter-and-how-to-implement-it

        // Discrete Kalman filter time update equations - Time Update ("Predict")
        // Update xhat - Project the state ahead
        /* Step 1 */
        rate = newRate - bias;
        angle += dt * rate;

        // Update estimation error covariance - Project the error covariance ahead
        /* Step 2 */
        P[0][0] += dt * (dt*P[1][1] - P[0][1] - P[1][0] + Q_angle);
        P[0][1] -= dt * P[1][1];
        P[1][0] -= dt * P[1][1];
        P[1][1] += Q_bias * dt;

        // Discrete Kalman filter measurement update equations - Measurement Update ("Correct")
        // Calculate Kalman gain - Compute the Kalman gain
        /* Step 4 */
        S = P[0][0] + R_measure;
        /* Step 5 */
        K[0] = P[0][0] / S;
        K[1] = P[1][0] / S;

        // Calculate angle and bias - Update estimate with measurement zk (newAngle)
        /* Step 3 */
        y = newAngle - angle;
        /* Step 6 */
        angle += K[0] * y;
        bias += K[1] * y;

        // Calculate estimation error covariance - Update the error covariance
        /* Step 7 */
        P[0][0] -= K[0] * P[0][0];
        P[0][1] -= K[0] * P[0][1];
        P[1][0] -= K[1] * P[0][0];
        P[1][1] -= K[1] * P[0][1];

        return angle;
    };
    void setAngle(double newAngle) { angle = newAngle; }; // Used to set angle, this should be set as the starting angle
    double getRate() { return rate; }; // Return the unbiased rate

    /* These are used to tune the Kalman filter */
    void setQangle(double newQ_angle) { Q_angle = newQ_angle; };
    void setQbias(double newQ_bias) { Q_bias = newQ_bias; };
    void setRmeasure(double newR_measure) { R_measure = newR_measure; };

    double getQangle() { return Q_angle; };
    double getQbias() { return Q_bias; };
    double getRmeasure() { return R_measure; };

private:
    /* Kalman filter variables */
    double Q_angle; // Process noise variance for the accelerometer
    double Q_bias; // Process noise variance for the gyro bias
    double R_measure; // Measurement noise variance - this is actually the variance of the measurement noise

    double angle; // The angle calculated by the Kalman filter - part of the 2x1 state vector
    double bias; // The gyro bias calculated by the Kalman filter - part of the 2x1 state vector
    double rate; // Unbiased rate calculated from the rate and the calculated bias - you have to call getAngle to update the rate

    double P[2][2]; // Error covariance matrix - This is a 2x2 matrix
    double K[2]; // Kalman gain - This is a 2x1 vector
    double y; // Angle difference
    double S; // Estimate error
};

#endif
Final CodeArduino
#include <Adafruit_Sensor.h>
#include "DHT.h"         //include DHT library
#define DHTPIN 3         //define as DHTPIN the Pin 3 used to connect the Sensor
#define DHTTYPE DHT11    //define the sensor used(DHT11)
#define light A0
#define noise A1
#define moist A2
#define button 8
DHT dht(DHTPIN, DHTTYPE);//create an instance of DHT
#include <Wire.h>
#include "rgb_lcd.h"
#include "math.h"
#include <CurieIMU.h>
#include "Kalman.h"

Kalman kalmanX; // Create the Kalman instances
Kalman kalmanY;

float accX, accY, accZ;
float gyroX, gyroY, gyroZ;

double gyroXangle, gyroYangle;
double compAngleX, compAngleY;
double kalAngleX, kalAngleY;

rgb_lcd lcd;
uint32_t timer;

const int colorR = 0;
const int colorG = 30;
const int colorB = 55;

int page = 0;

void setup()
{
    // set up the LCD's number of columns and rows:
    Serial.begin(9600);
    lcd.begin(16, 2);
    dht.begin();
    lcd.setRGB(colorR, colorG, colorB);
    pinMode(light,INPUT);
    pinMode(noise,INPUT);
    pinMode(button,INPUT);
    pinMode (2,OUTPUT);
    pinMode (A3,OUTPUT);
    digitalWrite(2,HIGH);
    digitalWrite(A3,OUTPUT);
    pinMode (1,OUTPUT);
  CurieIMU.begin();
  CurieIMU.setAccelerometerRange(2);
  CurieIMU.setGyroRange(250);
  delay(100); // Wait for sensor to stabilize
  CurieIMU.readAccelerometerScaled(accX, accY, accZ);

  double roll  = atan2(accY,accZ) * RAD_TO_DEG;
  double pitch = atan(-accX / sqrt(accY * accY + accZ * accZ)) * RAD_TO_DEG;
  //double yaw = atan (accZ/sqrt(accX*accX + accZ*accZ)) * RAD_TO_DEG;
  kalmanX.setAngle(roll); // Set starting angle
  kalmanY.setAngle(pitch);
  gyroXangle = roll;
  gyroYangle = pitch;
}

void loop()
{
    while (page == 0){
      first_page();
      if (digitalRead(button) == 1)
         page++;
    }
    delay(500);
    while (page == 1){
      second_page();
      if (digitalRead(button) == 1)
          page++;
    }
    delay(500);

    while (page == 2){
      third_page();
      if (digitalRead(button) == 1)
          page = 0;
    }

    delay(500);

}

void first_page(){

  int h = dht.readHumidity();    // reading Humidity
    int t = dht.readTemperature();
    int light_l = 0;

    for (int x=0; x<50;x++){
      light_l = light_l + analogRead(light);
      delay(2);
    }

    light_l = light_l/50;
    lcd.setCursor(12, 1);
    lcd.print("  lx");
    lcd.setCursor(0, 0);
    lcd.print("Temp ");
    lcd.setCursor(0, 1);
    lcd.print(t);
    lcd.setCursor(2, 1);
    lcd.print("_C ");

    lcd.setCursor(5, 0);
    lcd.print("Humid");
    lcd.setCursor(6, 1);
    lcd.print(h);
    lcd.setCursor(8, 1);
    lcd.print("%");

    lcd.setCursor(11, 0);
    lcd.print("Light");
    lcd.setCursor(11, 1);
    lcd.print(light_l);

}
void second_page(){

    int sound = 0;
    for(int x = 0;x<10;x++){
          sound = sound + analogRead(noise);
    }
    sound = sound/10;
    double dB = 20*(log10(10*sound)) ;
    lcd.setCursor(0, 0);
    lcd.print("Noise ");
    lcd.setCursor(0, 1);
    lcd.print(dB,0);
    lcd.setCursor(2, 1);
    lcd.print("dB");
    lcd.setCursor(6, 0);

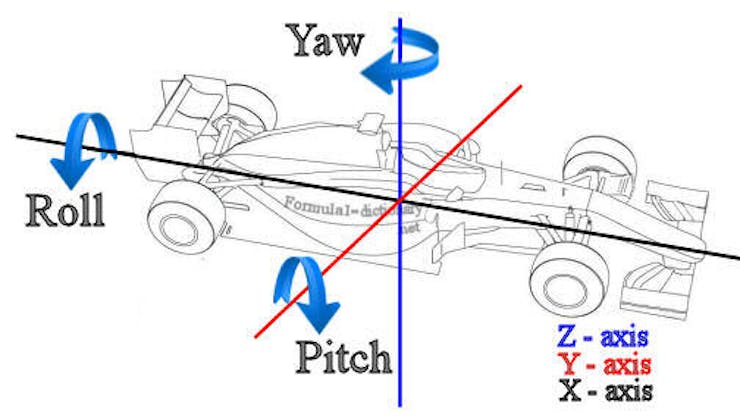

    lcd.print("Roll ");
    lcd.setCursor(11, 0);
    lcd.print("Pitch");

for (int z=0; z<10;z++){

CurieIMU.readAccelerometerScaled(accX, accY, accZ);
CurieIMU.readGyroScaled(gyroX, gyroY, gyroZ);

double dt = (double)(micros() - timer) / 1000000; // Calculate delta time
timer = micros();


double roll  = atan2(accY,accZ) * RAD_TO_DEG;
double pitch = atan(-accX / sqrt(accY * accY + accZ * accZ)) * RAD_TO_DEG;
//double yaw = atan2(accZ,sqrt(accX*accX + accZ*accZ)) * RAD_TO_DEG;


  double gyroXrate = gyroX / 131.0; // Convert to deg/s
  double gyroYrate = gyroY / 131.0; // Convert to deg/s

  if ((roll < -90 && kalAngleX > 90) || (roll > 90 && kalAngleX < -90)) {
    kalmanX.setAngle(roll);
    compAngleX = roll;
    kalAngleX = roll;
    gyroXangle = roll;
  } else
    kalAngleX = kalmanX.getAngle(roll, gyroXrate, dt); // Calculate the angle using a Kalman filter

  if (abs(kalAngleX) > 90)
    gyroYrate = -gyroYrate; // Invert rate, so it fits the restriced accelerometer reading
  kalAngleY = kalmanY.getAngle(pitch, gyroYrate, dt);

    gyroXangle += gyroXrate * dt; // Calculate gyro angle without any filter
  gyroYangle += gyroYrate * dt;
  //gyroXangle += kalmanX.getRate() * dt; // Calculate gyro angle using the unbiased rate
  //gyroYangle += kalmanY.getRate() * dt;

  compAngleX = 0.93 * (compAngleX + gyroXrate * dt) + 0.07 * roll; // Calculate the angle using a Complimentary filter
  compAngleY = 0.93 * (compAngleY + gyroYrate * dt) + 0.07 * pitch;

  if (gyroXangle < -180 || gyroXangle > 180)
    gyroXangle = kalAngleX;
  if (gyroYangle < -180 || gyroYangle > 180)
    gyroYangle = kalAngleY;

   delay(10);
}

    lcd.setCursor(10,1);
    lcd.print("  ");
    lcd.setCursor(6,1);
    lcd.print(kalAngleX,1);
    lcd.setCursor(15,1);
    lcd.print(" ");
    lcd.setCursor(12,1);
    lcd.print(kalAngleY,1);


}

void third_page(){
  int moist_s = 0;

  for (int y = 0; y<100 ; y++){
    moist_s = moist_s + analogRead(moist);
    delay(2);
  }

  moist_s = moist_s/100;
  lcd.setCursor(0,0);
  lcd.print("Water- ");
  lcd.setCursor(0,1);
  lcd.print("Soil- ");

  lcd.setCursor(6,1);
  if(moist_s>900) lcd.print("Dry       ");
  else if(moist_s>650) lcd.print("Medium");
  else lcd.print("High   ");

  lcd.setCursor(7,0);
  if(moist_s>750) lcd.print("No       ");
  else if(moist_s>600) lcd.print("Distill ");
  else if(moist_s>500) lcd.print("Drinking");
  else if(moist_s>350) lcd.print("Fish    ");
  else lcd.print("Polluted");

}

Credits

16991916 1647124851971213 843123054916158508 o r2bxaxc3mb
Chathuranga Liyanage

Undergraduate in Electronic and Telecommunication Engineering

Contact

Replications

Did you replicate this project? Share it!

I made one

Love this project? Think it could be improved? Tell us what you think!

Give feedback

Comments

Similar projects you might like

Arduino Like Function on Kinetis K82 Freedom Stupid Board
Intermediate
  • 126
  • 4

Protip

1000 of K82 Freedom Boards are collecting dust because of the hobbyist unfriendly IDE, pump up the duds with easy Arduino-like functions.

Reducing Arduino Power Consumption
Intermediate
  • 199
  • 5

Full instructions

One the most important feature of portable electronics should be long battery life. We can reduce the current drawn by several ways.

Simple Weather Station with amazing web monitoring
Intermediate
  • 1,181
  • 12

Full instructions

Do you want see from anywhere what is the temperature, pressure and humidity in your house? If yes this project will show you how to do it.

Arduinomated Car Parking with Voice Assistance in Smartphone
Intermediate
  • 802
  • 14

Full instructions

Make an assistant which tells you about how much to drive backwards without any collision through your smartphone by Arduino and 1Sheeld.

Interactive LED Table for 50€
Intermediate
  • 1,993
  • 8

Make an interactive table that displays games, audio spectrum, and animations on a 12x12 built-in LED matrix.

Temperature and humidity meter (iot)
Intermediate
  • 499
  • 4

Measuring temperature and humidity with Arduino and uploading it to the server

Sign up / LoginProjectsPlatformsTopicsContestsLiveAppsBetaFree StoreBlog
