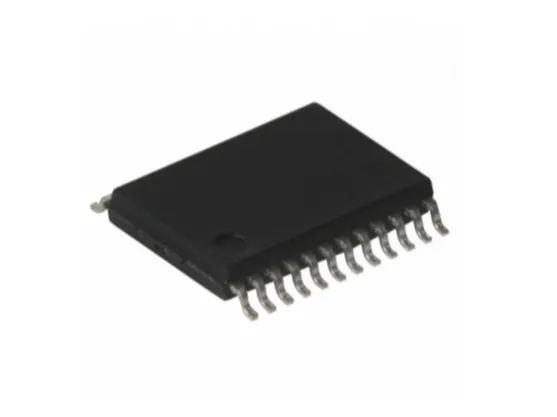

MC80F0708D-P: Budget 8051 MCU for Appliances & IoT

Hey makers, hobbyists, and embedded devs! Looking for a dirt-cheap, reliable 8-bit microcontroller that's still widely available in 2026 for quick prototypes or cost-sensitive production? The MC80F0708D-P from ABOV Semiconductor (formerly ABOV/LG Innotek lineage) is a solid drop-in for many legacy 8051 designs—enhanced core, 8KB Flash, peripherals galore, and high-drive I/O that makes it perfect for LED controllers, sensor nodes, small appliances, fan speed regulators, or basic touch/button interfaces.

This part is the Pb-free (RoHS-compliant) SOP-28 version (the "P" suffix indicates lead-free package), commonly stocked at places like Censtry, AliExpress, UTSOURCE, and secondary distributors. It's not Arduino-level beginner-friendly out of the box (no official board ecosystem), but with Keil/μVision or SDCC toolchain + a cheap USB-to-serial programmer, you can get blinking LEDs or UART debug running in minutes.

Why Pick MC80F0708D-P in 2026?

• Budget King: Often under $0.50–$1 in volume—great for mass-produced gadgets where STM32 or ESP32 would be overkill.
• 8051-Compatible but Faster: 1T architecture (executes most instructions in 1 clock cycle) vs classic 12T 8051, so up to 12× performance boost at the same MHz.
• Rich Peripherals: ADC (8/10-bit), PWM (multiple channels), UART, SPI, I²C-ish (multi-master capable serial), timers, interrupts, watchdog—enough for most appliance control.
• High-Drive GPIO: Many pins sink/source up to 20mA—directly drive LEDs, buzzers, relays, or small motors without extra transistors.
• Compact & Robust: SOP-28 package, 1.8–5.5V operation, industrial temp range available in family.

Key Specs Quick-Reference

• Core: Enhanced 8051-compatible 8-bit CPU (1T mode)
• Clock: Up to 12 MHz internal RC or external crystal
• Memory: 8 KB Flash (MTP/ISP programmable), 256 B IRAM + 128 B XRAM
• I/O: Up to 22 GPIO (high current on select pins)
• Analog: 8-channel 10-bit ADC
• Timers: 3× 16-bit timers/counters, PWM output
• Serial: UART, SPI master/slave, I²C support
• Other: Brown-out detect, power-down modes, 10+ interrupt sources
• Package: SOP-28 (D variant, Pb-free "P" suffix)
• Power: Low quiescent current, great for battery or always-on apps

Build Idea: Smart LED Dimmer / Night Light Controller

This is a beginner-to-intermediate project using the MC80F0708D-P:

Things Used

• MC80F0708D-P MCU (1×)
• 10kΩ potentiometer (for analog dimming input)
• 5–10× high-brightness LEDs (or LED strip segment)
• 330Ω current-limiting resistors
• 0.1µF decoupling caps
• 12 MHz crystal + 22pF caps (optional, or use internal RC)
• USB-to-TTL programmer (CH340/FT232 for ISP)
• Breadboard + jumper wires

Story / Why This Project?Tired of basic Arduino blinkers? Build a smooth PWM dimmer that reads analog input from a pot (via ADC), outputs PWM to LEDs, and adds debounce/button modes. It's appliance-realistic—think ceiling fan speed control or touchless night light. Code is Keil C51 style, easy to port to other 8051s.

Schematics (text description – draw in Fritzing or KiCad):

• Pin 1–28 layout from datasheet: Connect crystal to XIN/XOUT (pins ~10/11), VDD/VSS properly.
• ADC input: Pot middle to AN0 (e.g., P1.0).
• PWM out: Use Timer2 PWM on P1.x pin to LEDs via resistors.
• ISP: Connect programmer to dedicated ISP pins (usually P0.5/P0.6 + reset).

Code Snippet (Keil C example – basic ADC + PWM dimming):

#include <MC80F0708.h>  // Or your header with SFR defs

void main(void)
{
    // Init ADC, Timer2 PWM, UART for debug (optional)
    ADC_CON = 0x80;     // Enable ADC
    TMOD = 0x20;        // Timer1 mode 2 for UART if needed
    // PWM setup: Timer2 auto-reload, PWM mode
    T2CON = 0x04;       // Enable Timer2
    RCAP2L = 0x00;      // PWM duty example

    while(1)
    {
        // Read ADC on channel 0
        ADC_CON |= 0x08;               // Start conversion AN0
        while(!(ADC_CON & 0x10));      // Wait done
        uint8_t adc_val = ADC_DATA;    // 8-bit result

        // Map to PWM duty (0-255)
        PWM_DUTY = adc_val;            // Adjust PWM register

        // Simple delay or add button logic
    }
}

Build Instructions

• Flash bootloader or code via ISP programmer (ABOV provides Windows tool or use generic 8051 programmers).
• Assemble on breadboard—test ADC read via UART printf if enabled.
• Tune PWM frequency for flicker-free dimming (~1kHz+).
• Add features: Button toggle modes, sleep on idle, temperature compensation via extra sensor.

Challenges & Tips

• No native Arduino IDE support—use Keil μVision (free community edition) or SDCC for open-source.
• ISP programming: Follow ABOV manual for entry sequence (pull reset low, specific pins high).
• Debugging: Add UART TX to serial monitor—super helpful.
• Migration: Code is mostly compatible with AT89S52/ STC8/ other enhanced 8051s if you upgrade later.

This MCU shines in cost-optimized, high-volume embedded stuff—perfect for makers experimenting with "real-world" appliance firmware without breaking the bank.
