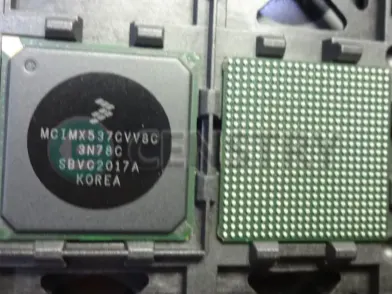

Engineering Reliability with MCIMX537 Industrial SoC

In an era of fragile consumer chips, the MCIMX537CVV8C stands as a testament to rugged engineering. Designed for harsh environments, this SoC remains the preferred choice for medical devices, factory automation, and heavy machinery.

While newer chips focus on peak burst speeds, the i.MX537 focuses on one thing: consistent survivability.

1. Thermal Resilience: -40°C to +105°C

The "CVV8C" variant is specifically binned for extreme thermal cycles. Unlike standard processors, its 800 MHz Cortex-A8 core is optimized for long-term stability, preventing the thermal throttling that often plagues high-speed chips in sealed, fanless industrial enclosures.

2. Integrated Industrial Connectivity

The MCIMX537 was built with the factory floor in mind. It integrates specialized peripherals that reduce BOM complexity and enhance reliability:

Dual CAN Bus: Essential for automotive and industrial communication (CAN2.0B).

• Dual CAN Bus: Essential for automotive and industrial communication (CAN2.0B).

Integrated Ethernet MAC: Reliable 10/100 Mbps networking.

• Integrated Ethernet MAC: Reliable 10/100 Mbps networking.

Dual Display Support: Capable of driving independent LVDS and parallel screens for complex HMI setups.

• Dual Display Support: Capable of driving independent LVDS and parallel screens for complex HMI setups.

3. Hardware-Accelerated HMI

Industrial doesn't have to mean a basic UI. With OpenGL ES 2.0 hardware acceleration and 1080p video decoding, the i.MX537 powers smooth, responsive touch interfaces for ruggedized control panels and diagnostic tools.

Technical Implementation Tips 💡

Power Sequencing: The i.MX53 series is sensitive to power-up order. Use a dedicated PMIC to ensure VDD_DIG and VDD_ANA rails ramp correctly to prevent latch-up.

• Power Sequencing: The i.MX53 series is sensitive to power-up order. Use a dedicated PMIC to ensure VDD_DIG and VDD_ANA rails ramp correctly to prevent latch-up.

DDR3 Signal Integrity: Maintain strict length matching for the memory interface. In high-EMI environments, a solid 6-layer PCB stack-up is recommended to provide clean reference planes.

• DDR3 Signal Integrity: Maintain strict length matching for the memory interface. In high-EMI environments, a solid 6-layer PCB stack-up is recommended to provide clean reference planes.

Mainline Support: A major advantage today is its mature Mainline Linux kernel support, ensuring long-term security patches for industrial products with 10+ year lifecycles.

• Mainline Support: A major advantage today is its mature Mainline Linux kernel support, ensuring long-term security patches for industrial products with 10+ year lifecycles.

Conclusion

The MCIMX537CVV8Cprovides a perfect balance of performance and survivability. For projects requiring a long lifecycle in punishing conditions, it remains a top-tier architectural choice.
