As AI vision applications evolve rapidly, users demand better image quality, stronger adaptability, and multi‑scenario support. While the standard CPI module (OV5640) is reliable in daily use, it has limitations in image detail, wide‑angle coverage, and flexibility.
To address this, we designed a USB expansion architecture that allows NeoEyes 101 to support multiple high‑performance camera modules. Through low‑level interface optimization, even on a base ESP‑S3 platform, which does not natively support multi camera input, we achieve stable compatibility and fast expansion. This makes NeoEyes 101 a vision platform that can continuously evolve.
Below is a feature comparison:
Note: OV5640 supports macro shooting. USB modules currently do not offer macro specs. If you need macro distances such as ~8 cm or ~15 cm, please choose the OV5640 version. For special needs, contact us for customization.
Additionally, OV5640 is an integrated component. Beyond hardware parameter differences, it leaves limited room for secondary development. OV5640 must be connected to the mainboard, with the main processor reading and processing raw data, which raises the technical threshold and requires low‑level drivers.
USB Module Variants

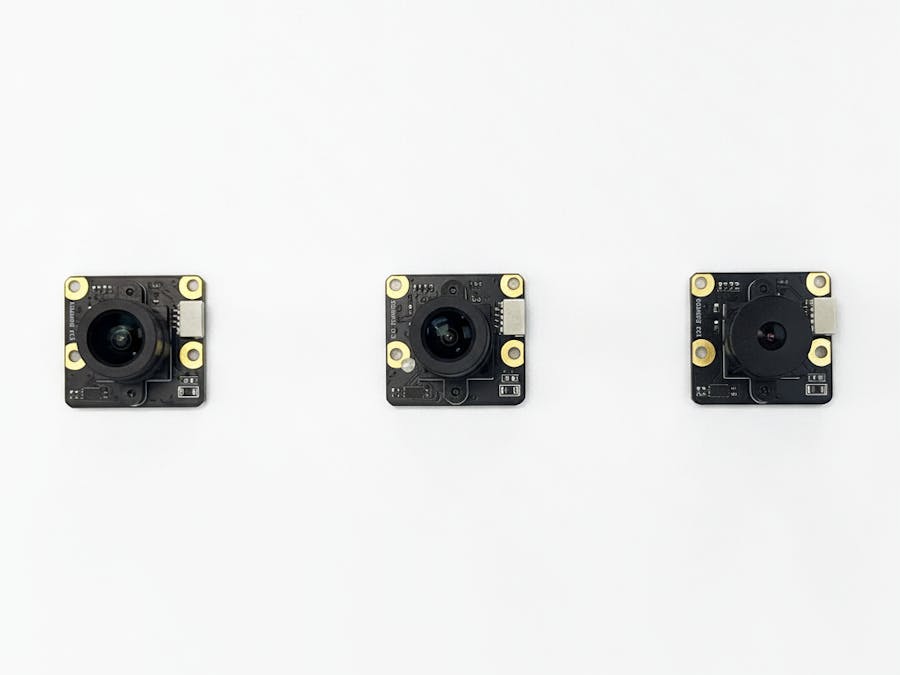

We provide three USB camera module variants to meet different scenario needs:
Note: We provide separate indoor and outdoor firmware versions tailored for USB camera modules. Choose based on your scenario needs. See below for image quality comparisons.
OV5640 vs USB Modules — Imaging ComparisonThe following shows CPI OV5640 versus USB modules under similar indoor/outdoor conditions:
From the comparisons, regardless of indoor or outdoor scenes, USB camera modules deliver better imaging than OV5640. The two lens families are tuned differently; choose based on preference.
USB Module Selection Guide- Normal shooting at longer distance → choose Standard
- Need a wider field of view → choose Wide
- Complex, large‑area monitoring at close distance → choose Ultra‑Wide
- Glass lenses instead of plastic for higher transmittance and durability; reduced chromatic aberration and distortion
- Larger pixel size (2.9×2.9μm) for better detail and low‑light performance with lower noise
- Independent ISP for more precise optimization and wider dynamic range
- Adjustable focus to suit near/long‑range scenarios
- Standardized UVC interface; developers can swap modules quickly without changing low‑level drivers; plug‑and‑play
- Customization services for hardware/firmware are availabl
- Better suited for developers who need image tuning or parameter adjustments; easier for secondary development
- Strong long‑term maintainability; customizable to fit more algorithms and application scenarios
- Separate indoor/outdoor firmware versions for smart access control, in‑vehicle monitoring, industrial recognition, and more
USB modules are not just "better cameras"; they represent NeoEyes 101's move toward openness, extensibility, and modular design. From image quality and flexibility to forward compatibility, we aim to give developers more choices and help end products perform better across diverse scenarios.
Who Should Choose USB Modules?- Users who demand higher imaging quality and clarity
- AI vision applications requiring wide‑angle/panoramic recognition
- Technical developer teams or makers who want secondary development and flexible expansion
In short, adding a USB module on top of the standard version makes your NeoEyes 101 not only to "see", but "see more clearly, and adapt more flexibly."
Join us to explore the upgraded NE101—an interchangeable-lens AI vision camera—and see what unique projects you can create.
