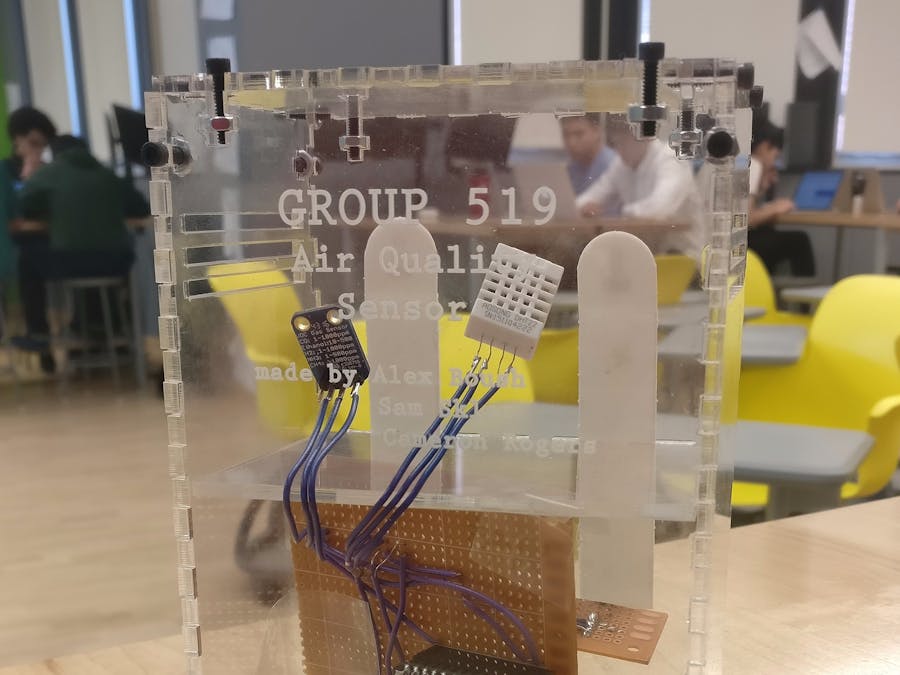

Air Quality Bot

Air Quality Bot w/ Photon that tweets current air quality.

IntermediateFull instructions provided3 hours963
Air Quality Bot

Things used in this project

Hardware components

Photon
Particle Photon
×1

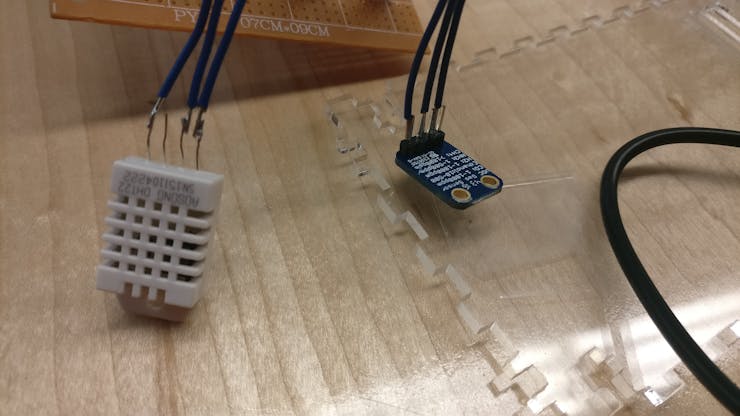

Adafruit MiCS5524 CO / Alcohol / VOC Gas Sensor Breakout
×1
DHT22 Temperature Sensor
DHT22 Temperature Sensor
×1
5 mm LED: Yellow
5 mm LED: Yellow
×1
5 mm LED: Red
5 mm LED: Red
×1
5 mm LED: Green
5 mm LED: Green
×1
Resistor 10k ohm
Resistor 10k ohm
×1
Custom PCB - Bakelite Board
×1
Insulated Wire
×1
Acrylic Sheet - 12x24
×1

Software apps and online services

Particle Development Environment

Hand tools and fabrication machines

Laser cutter (generic)
Laser cutter (generic)
Wire Strippers
Wire Cutters
Tin Snippers

Story

Read more

Code

Particle Code

C#
This code includes sections for posting to the Phant database, tweeting out current data, and checking the sensors for temperature/humidity/air quality.
// This #include statement was automatically added by the Particle IDE.
#include <SparkTime.h>

// This #include statement was automatically added by the Particle IDE.
#include <Adafruit_DHT.h>

// This #include statement was automatically added by the Particle IDE.
#include <SparkFunPhant.h>
UDP UDPClient;
TCPClient client;
SparkTime rtc;
// OAuth Key
#define TOKEN "847504857967632386-5zye176erv8iBZn1qcQNKTlrBOKf44G"

// Twitter Proxy
#define LIB_DOMAIN "arduino-tweet.appspot.com"
unsigned long currentTime;
unsigned long lastTime = 0UL;
String tweetStr;
int counter = 1;
char msg[128];
int delay1 = 0;
DHT dht(4,DHT22);
const char server[] = "data.sparkfun.com"; // Phant destination server
const char publicKey[] = "aGVRnDp0arTqW1nO4Mlp"; // Phant public key - HAS TO BE CHANGED
const char privateKey[] = "KE576jXAZBC1WR47xolM"; // Phant private key  - HAS TO BE CHANGED
Phant phant(server, publicKey, privateKey); // Create a Phant object

const int POST_RATE = 3000; // Time between posts, in ms.
unsigned long lastPost = 0; // global variable to keep track of last post time
double temp = 0;
double hum = 0;
int air = 0;
void setup() {
 rtc.begin(&UDPClient, "time.nist.gov");
  rtc.setTimeZone(-6); // gmt offset
pinMode(A0,INPUT);
pinMode(0,OUTPUT);
pinMode(1,OUTPUT);
pinMode(2,OUTPUT);
Serial.begin(9600);
dht.begin();
}
void light(){

    checkHum();
    checkTemp();
    checkAir();
    digitalWrite(0,LOW);
    digitalWrite(1,LOW);
    digitalWrite(2,LOW);
    if (air > 150){
        digitalWrite(1,HIGH);
    }
    else if (air > 120){
        digitalWrite(2,HIGH);
    }
    else {
        digitalWrite(0,HIGH);
    }
    delay(60000);
}

void loop() {
    delay(4000);
    light();
    sendTweet();
  //  postToPhant();
    int i = 0;
    while (i < 60){
        light();
        i++;
        if (i % 4 == 0){
            postToPhant();
        }
    }






}
int postToPhant()
{
    // Use phant.add(<field>, <value>) to add data to each field.
    // Phant requires you to update each and every field before posting,
    // make sure all fields defined in the stream are added here.
    phant.add("temp", temp);
    phant.add("humidity", hum);
    phant.add("air_quality", air);

    TCPClient client;
    char response[512];
    int i = 0;
    int retVal = 0;


        if (client.connect(server, 80)) // Connect to the server
        {
    		// Post message to indicate connect success
            Serial.println("Posting!");

    		// phant.post() will return a string formatted as an HTTP POST.
    		// It'll include all of the field/data values we added before.
    		// Use client.print() to send that string to the server.
            client.print(phant.post());
            delay(1000);
    		// Now we'll do some simple checking to see what (if any) response
    		// the server gives us.
            while (client.available())
            {
                char c = client.read();
                Serial.print(c);	// Print the response for debugging help.
                if (i < 512)
                    response[i++] = c; // Add character to response string
            }
    		// Search the response string for "200 OK", if that's found the post
    		// succeeded.
            if (strstr(response, "200 OK"))
            {
                Serial.println("Post success!");
                retVal = 1;
            }
            else if (strstr(response, "400 Bad Request"))
            {	// "400 Bad Request" means the Phant POST was formatted incorrectly.
    			// This most commonly ocurrs because a field is either missing,
    			// duplicated, or misspelled.
                Serial.println("Bad request");
                retVal = -1;
            }
            else
            {
    			// Otherwise we got a response we weren't looking for.
                retVal = -2;
            }
        }
        else
        {	// If the connection failed, print a message:
            Serial.println("connection failed");
            retVal = -3;
        }
        client.stop();	// Close the connection to server.
        return retVal;	// Return error (or success) code.
        }

void checkHum()
{
    hum = dht.getHumidity();
}

void checkTemp()
{
    temp = dht.getTempFarenheit();
}
void checkAir()
{
    air = analogRead(A0);
}
void sendTweet()
{
    currentTime = rtc.now();
  //  tweetStr += input;
   // if (rtc.minute(currentTime) != rtc.minute(lastTime)) {
        tweetStr += "Good morning!";
      if((rtc.AMPMString(currentTime) == "PM") && (rtc.hour(currentTime) >= 17)){
          tweetStr = "Good Evening!";
      }
      if((rtc.AMPMString(currentTime) == "PM") && (rtc.hour(currentTime) <17)){
          tweetStr = "Good Afternoon!";
      }

   // checkHum();         // check humidity. Sets the local variables curr_hum and curr_hum str
    //checkTemp();
    tweetStr += " Humidity = ";
    tweetStr += String(hum);
    tweetStr += "% Temperature = ";
    tweetStr += String(temp);
    tweetStr += " Air Quality = ";
    tweetStr += String(air);

    tweetStr += " ";
      //tweetStr = "";
	tweetStr += rtc.hour12String(currentTime);
	tweetStr += ":";
	tweetStr += rtc.minuteString(currentTime);
	tweetStr += ":";
	tweetStr += rtc.secondString(currentTime);
	tweetStr += " ";
	tweetStr += rtc.AMPMString(currentTime);
      tweetStr.toCharArray(msg,128);
      // connect to twitter here and POST update
      delay(1000);

      client.connect(LIB_DOMAIN, 80);
      client.println("POST /update HTTP/1.0");
      client.println("Host: " LIB_DOMAIN);
      client.print("Content-Length: ");
      client.println(strlen(msg)+strlen(TOKEN)+14);
      client.println();
      client.print("token=");
      client.print(TOKEN);
      client.print("&status=");
      client.println(msg);

    counter++;
    tweetStr = "";
      lastTime = currentTime;



}
