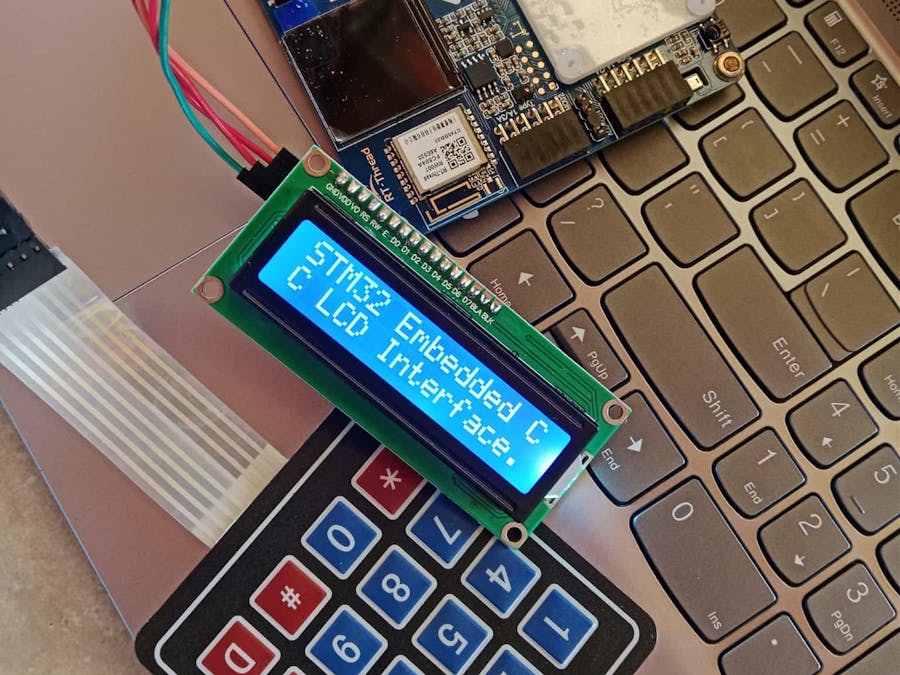

STM32 Calculator: Keypad and I2C LCD Interface

This project demonstrates a basic calculator implemented on a STM32F407ZGT6 microcontroller, utilizing a 4x4 keypad and an I2C LCD.

IntermediateProtip6 hours112

STM32 Calculator: Keypad and I2C LCD Interface

Things used in this project

Hardware components

STM32F407ZGT6

DFRobot I2C 16x2 Arduino LCD Display Module

4X4 Keypad

Software apps and online services

STM CUBE IDE

Story

Our project is a simple but fully functional calculator built using an STM32F4 microcontroller, a 4x4 matrix keypad, and a 16x2 I2C LCD display.

The calculator allows the user to enter numeric values and mathematical operators directly through the physical keypad. Each keypress is detected by the microcontroller, which then builds the expression step by step. After entering the complete expression, the STM32 processes and evaluates it using our programmed calculation logic.

Once the result is computed, it is displayed clearly on the I2C LCD screen, allowing the user to view both the input expression and the final answer. At the same time, the result is also sent to the UART terminal for monitoring and debugging purposes, making it easier to verify the system’s accuracy.

The calculator supports:

Addition (+)
Subtraction (–)
Multiplication (×)
Division (÷)
Clear function

Step 1 — Hardware Setup

Wire the keypad: rows to PD7–PD10, columns to PE11–PE14 (as defined in keypad.h).
Wire the I²C LCD: SDA/PB9, SCL/PB8, power and ground (confirm 3.3 V/5 V compatibility).
(Optional) Setup UART: PA2 (TX), PA3 (RX) to board’s serial adapter or USB-to-UART.

Step 2 — Firmware Preparation

Include main.c, keypad.c/h, i2c_lcd.c/h.
Adjust I²C address in i2c_lcd.h if your LCD backpack uses a different address (common alternatives: 0x27 or 0x3F).
Confirm HAL initialization and clock configuration as per your board.

Step 3 — Flash and Run

Build and flash the firmware.
On startup, LCD shows “INPUT!” then a guide: “A = + B = - E = * C = / D = = F = Clr”.

Step 4 — Using the Calculator

Use keypad to enter digits and operators.
Press D to compute result — displayed on LCD and sent over UART.
Press F to clear and start a new expression.

Step 5 — Features & Behavior

Supports +, -, *, /.
Handles division by zero: displays Err!.
Limits input to defined max expression length (e.g. 16 chars).

Step 6 — Example Sessions

10 - 5 = → result 5

10 -5 displayed on I2C LCD.

10 * 6 = → result 60

10 × 6 displayed on I2C LCD.

55 + 10 = → result 65

55+10 displayed on I2C LCD.

9 / 0 = → Err!

9/0 displayed on I2C LCD.

Our STM32-based calculator successfully performs different arithmetic operations using the physical 4×4 keypad, with each result immediately displayed on the I2C LCD. For subtraction, entering 10 – 5 correctly shows the result 5. Multiplying 10 × 6 gives the expected output of 60 , while adding 55 + 10 produces 65 . The system also properly handles error conditions—when attempting 9 ÷ 0, the calculator detects the invalid operation and displays an error message instead of crashing. These examples demonstrate that the device can manage basic computations reliably while also responding appropriately to special cases.

STM32 Calculator – Final Output

https://drive.google.com/file/d/1MnQXwcoD1rWdlUXneGOctZT2vfwn0tTh/view?usp=drive_link

Code

#include "main.h"
#include "i2c_lcd.h"
#include "keypad.h"
#include <stdio.h>
#include <string.h>


I2C_HandleTypeDef hi2c1;
UART_HandleTypeDef huart2;  // Use USART2

void SystemClock_Config(void);
void MX_GPIO_Init(void);
void MX_I2C1_Init(void);
void MX_USART2_UART_Init(void);

#define MAX_EXPR_SIZE 16
char expr[MAX_EXPR_SIZE + 1] = {0};
uint8_t expr_pos = 0;

void clear_expr(void) {
    expr[0] = 0;
    expr_pos = 0;
}

void show_expr(void) {
    LCD_Clear();
    LCD_SendString(expr);
}


int calc_full(const char* s, int* result) {
    int len = strlen(s);
    int value = 0, current = 0;
    char last_op = '+';
    int i = 0;

    while (i <= len) {

        if (s[i] >= '0' && s[i] <= '9') {
            current = current * 10 + (s[i] - '0');
            i++;
            continue;
        }

        if (s[i] == '+' || s[i] == '-' || s[i] == '*' || s[i] == '/' || s[i] == 0) {

            if (last_op == '+') {
                value += current;
            } else if (last_op == '-') {
                value -= current;
            } else if (last_op == '*') {
                value *= current;
            } else if (last_op == '/') {
                if (current == 0) return 0;
                value /= current;
            }

            if (!s[i]) break;
            last_op = s[i];
            current = 0;
            i++;
        } else {

            return 0;
        }
    }
    *result = value;
    return 1;
}

int main(void)
{
    HAL_Init();
    SystemClock_Config();
    MX_GPIO_Init();
    MX_I2C1_Init();
    MX_USART2_UART_Init();

    LCD_Init();
    LCD_Clear();
    LCD_SendString("INPUT!");

    HAL_Delay(3000);

    Keypad_Init();
    LCD_Clear();
    LCD_SendString("A=+ B=- E=* C=/ D== F=Clr");

    clear_expr();

    while (1)
    {
        char key = Keypad_GetKey();
        if (key) {
            if ((key >= '0' && key <= '9')) {
                if (expr_pos < MAX_EXPR_SIZE) {
                    expr[expr_pos++] = key;
                    expr[expr_pos] = 0;
                    show_expr();
                }
            }
            else if (key == 'A') { // plus
                if (expr_pos < MAX_EXPR_SIZE) {
                    expr[expr_pos++] = '+';
                    expr[expr_pos] = 0;
                    show_expr();
                }
            }
            else if (key == 'B') { // minus
                if (expr_pos < MAX_EXPR_SIZE) {
                    expr[expr_pos++] = '-';
                    expr[expr_pos] = 0;
                    show_expr();
                }
            }
            else if (key == 'E') { // multiplication
                if (expr_pos < MAX_EXPR_SIZE) {
                    expr[expr_pos++] = '*';
                    expr[expr_pos] = 0;
                    show_expr();
                }
            }
            else if (key == 'C') { // division
                if (expr_pos < MAX_EXPR_SIZE) {
                    expr[expr_pos++] = '/';
                    expr[expr_pos] = 0;
                    show_expr();
                }
            }
            else if (key == 'D') { // equal
                int result = 0;
                if (calc_full(expr, &result)) {
                    // Show input on top, result on bottom right
                    LCD_Clear();
                    LCD_SetCursor(0,0);
                    LCD_SendString(expr);
                    char result_str[17];
                    snprintf(result_str, sizeof(result_str), "= %d", result);
                    int pad = 16 - strlen(result_str);
                    if(pad < 0) pad = 0;
                    LCD_SetCursor(1, pad);
                    LCD_SendString(result_str);
                    HAL_UART_Transmit(&huart2, (uint8_t*)result_str, strlen(result_str), 100);
                    HAL_Delay(800);
                } else {
                    LCD_Clear();
                    LCD_SendString("Err!");
                    HAL_UART_Transmit(&huart2, (uint8_t*)"Err!", 4, 100);
                    HAL_Delay(800);
                }
                clear_expr();
                show_expr();
            }
            else if (key == 'F') { // clear
                clear_expr();
                LCD_Clear();
                LCD_SendString("Clr");
                show_expr();  // No delay
            }

            HAL_UART_Transmit(&huart2, (uint8_t*)&key, 1, 100);
            HAL_Delay(150);
        }
    }
}


void SystemClock_Config(void)
{
    RCC_OscInitTypeDef RCC_OscInitStruct = {0};
    RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};

    __HAL_RCC_PWR_CLK_ENABLE();
    __HAL_PWR_VOLTAGESCALING_CONFIG(PWR_REGULATOR_VOLTAGE_SCALE1);

    RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;
    RCC_OscInitStruct.HSEState = RCC_HSE_ON;
    RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
    RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
    RCC_OscInitStruct.PLL.PLLM = 8;
    RCC_OscInitStruct.PLL.PLLN = 336;
    RCC_OscInitStruct.PLL.PLLP = RCC_PLLP_DIV2;
    RCC_OscInitStruct.PLL.PLLQ = 7;
    if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK) Error_Handler();

    RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
                                |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
    RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
    RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
    RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV4;
    RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV2;

    if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_5) != HAL_OK) Error_Handler();
}
void MX_I2C1_Init(void)
{
    hi2c1.Instance = I2C1;
    hi2c1.Init.ClockSpeed = 100000;
    hi2c1.Init.DutyCycle = I2C_DUTYCYCLE_2;
    hi2c1.Init.OwnAddress1 = 0;
    hi2c1.Init.AddressingMode = I2C_ADDRESSINGMODE_7BIT;
    hi2c1.Init.DualAddressMode = I2C_DUALADDRESS_DISABLE;
    hi2c1.Init.OwnAddress2 = 0;
    hi2c1.Init.GeneralCallMode = I2C_GENERALCALL_DISABLE;
    hi2c1.Init.NoStretchMode = I2C_NOSTRETCH_DISABLE;
    if (HAL_I2C_Init(&hi2c1) != HAL_OK) Error_Handler();
}
void MX_USART2_UART_Init(void)
{
    __HAL_RCC_USART2_CLK_ENABLE();
    __HAL_RCC_GPIOA_CLK_ENABLE();
    GPIO_InitTypeDef GPIO_InitStruct = {0};
    GPIO_InitStruct.Pin = GPIO_PIN_2 | GPIO_PIN_3;  // PA2=TX, PA3=RX
    GPIO_InitStruct.Mode = GPIO_MODE_AF_PP;
    GPIO_InitStruct.Pull = GPIO_NOPULL;
    GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_VERY_HIGH;
    GPIO_InitStruct.Alternate = GPIO_AF7_USART2;
    HAL_GPIO_Init(GPIOA, &GPIO_InitStruct);

    huart2.Instance = USART2;
    huart2.Init.BaudRate = 9600;
    huart2.Init.WordLength = UART_WORDLENGTH_8B;
    huart2.Init.StopBits = UART_STOPBITS_1;
    huart2.Init.Parity = UART_PARITY_NONE;
    huart2.Init.Mode = UART_MODE_TX_RX;
    huart2.Init.HwFlowCtl = UART_HWCONTROL_NONE;
    huart2.Init.OverSampling = UART_OVERSAMPLING_16;
    if (HAL_UART_Init(&huart2) != HAL_OK) Error_Handler();
}
void MX_GPIO_Init(void)
{
    GPIO_InitTypeDef GPIO_InitStruct = {0};
    __HAL_RCC_GPIOE_CLK_ENABLE();
    __HAL_RCC_GPIOD_CLK_ENABLE();
    __HAL_RCC_GPIOB_CLK_ENABLE();

    // Keypad LCD related pins
    HAL_GPIO_WritePin(GPIOD, GPIO_PIN_8|GPIO_PIN_9|GPIO_PIN_10|GPIO_PIN_7, GPIO_PIN_RESET);

    GPIO_InitStruct.Pin = GPIO_PIN_11|GPIO_PIN_12|GPIO_PIN_13|GPIO_PIN_14;
    GPIO_InitStruct.Mode = GPIO_MODE_INPUT;
    GPIO_InitStruct.Pull = GPIO_PULLUP;
    HAL_GPIO_Init(GPIOE, &GPIO_InitStruct);

    GPIO_InitStruct.Pin = GPIO_PIN_8|GPIO_PIN_9|GPIO_PIN_10|GPIO_PIN_7;
    GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;
    GPIO_InitStruct.Pull = GPIO_NOPULL;
    GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_LOW;
    HAL_GPIO_Init(GPIOD, &GPIO_InitStruct);
}
void Error_Handler(void)
{
    __disable_irq();
    while(1) {}
}

#include "i2c_lcd.h"
#include "main.h"

extern I2C_HandleTypeDef hi2c1;

// Commands
#define LCD_CLEAR_DISPLAY   0x01
#define LCD_RETURN_HOME     0x02
#define LCD_ENTRY_MODE_SET  0x06
#define LCD_DISPLAY_ON      0x0C
#define LCD_FUNCTION_SET    0x28
#define LCD_SET_DDRAM_ADDR  0x80

// Control bits
#define LCD_BACKLIGHT 0x08
#define LCD_ENABLE    0x04

// ---------------- Low level ----------------
static void LCD_SendInternal(uint8_t data, uint8_t flags)
{
    HAL_StatusTypeDef res;
    uint8_t up = data & 0xF0;
    uint8_t lo = (data << 4) & 0xF0;
    uint8_t data_arr[4];

    data_arr[0] = up | flags | LCD_BACKLIGHT | LCD_ENABLE;
    data_arr[1] = up | flags | LCD_BACKLIGHT;
    data_arr[2] = lo | flags | LCD_BACKLIGHT | LCD_ENABLE;
    data_arr[3] = lo | flags | LCD_BACKLIGHT;

    res = HAL_I2C_Master_Transmit(&hi2c1, LCD_ADDR, data_arr, 4, HAL_MAX_DELAY);
    HAL_Delay(1);
}

static void LCD_SendCommand(uint8_t cmd)
{
    LCD_SendInternal(cmd, 0x00);
}

static void LCD_SendData(uint8_t data)
{
    LCD_SendInternal(data, 0x01);
}


void LCD_Init(void)
{
    HAL_Delay(50);


    LCD_SendCommand(0x30);
    HAL_Delay(5);
    LCD_SendCommand(0x30);
    HAL_Delay(1);
    LCD_SendCommand(0x30);
    HAL_Delay(10);
    LCD_SendCommand(0x20);

    LCD_SendCommand(LCD_FUNCTION_SET);
    LCD_SendCommand(LCD_DISPLAY_ON);
    LCD_SendCommand(LCD_CLEAR_DISPLAY);
    LCD_SendCommand(LCD_ENTRY_MODE_SET);
    HAL_Delay(5);
}

void LCD_Clear(void)
{
    LCD_SendCommand(LCD_CLEAR_DISPLAY);
    HAL_Delay(2);
}

void LCD_SetCursor(uint8_t row, uint8_t col)
{
    uint8_t addr = (row == 0) ? 0x00 + col : 0x40 + col;
    LCD_SendCommand(LCD_SET_DDRAM_ADDR | addr);
}

void LCD_SendChar(char c)
{
    LCD_SendData((uint8_t)c);
}

void LCD_SendString(char *str)
{
    while (*str) {
        LCD_SendChar(*str++);
    }
}

#include "keypad.h"
#include "i2c_lcd.h"

static const char keymap[ROWS][COLS] = {
    { '1', '2', '3', 'A' },
    { '4', '5', '6', 'B' },
    { '7', '8', '9', 'C' },
    { 'E', '0', 'F', 'D' }
};

void Keypad_Init(void)
{
    GPIO_InitTypeDef GPIO_InitStruct = {0};


    __HAL_RCC_GPIOD_CLK_ENABLE();
    GPIO_InitStruct.Pin = ROW0_PIN | ROW1_PIN | ROW2_PIN | ROW3_PIN;
    GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;
    GPIO_InitStruct.Pull = GPIO_NOPULL;
    GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_LOW;
    HAL_GPIO_Init(ROW_PORT, &GPIO_InitStruct);


    __HAL_RCC_GPIOE_CLK_ENABLE();
    GPIO_InitStruct.Pin = COL0_PIN | COL1_PIN | COL2_PIN | COL3_PIN;
    GPIO_InitStruct.Mode = GPIO_MODE_INPUT;
    GPIO_InitStruct.Pull = GPIO_PULLUP;
    HAL_GPIO_Init(COL_PORT, &GPIO_InitStruct);


    HAL_GPIO_WritePin(ROW_PORT, ROW0_PIN | ROW1_PIN | ROW2_PIN | ROW3_PIN, GPIO_PIN_SET);
}

char Keypad_GetKey(void)
{
    uint16_t row_pins[ROWS] = { ROW0_PIN, ROW1_PIN, ROW2_PIN, ROW3_PIN };
    uint16_t col_pins[COLS] = { COL0_PIN, COL1_PIN, COL2_PIN, COL3_PIN };

    for (int row = 0; row < ROWS; row++) {

        HAL_GPIO_WritePin(ROW_PORT, ROW0_PIN | ROW1_PIN | ROW2_PIN | ROW3_PIN, GPIO_PIN_SET);

        HAL_GPIO_WritePin(ROW_PORT, row_pins[row], GPIO_PIN_RESET);


        for (int col = 0; col < COLS; col++) {
            if (HAL_GPIO_ReadPin(COL_PORT, col_pins[col]) == GPIO_PIN_RESET) {
                HAL_Delay(20); // debounce
                if (HAL_GPIO_ReadPin(COL_PORT, col_pins[col]) == GPIO_PIN_RESET) {
                    return keymap[row][col];
                }
            }
        }
    }

    return 0;
}

Credits

PRINCESS LAURON

1 project • 0 followers

HEART LAHOYLAHOY

1 project • 0 followers

STM32 Calculator: Keypad and I2C LCD Interface

Things used in this project

Hardware components

Software apps and online services

Story

Step 1 — Hardware Setup

Step 2 — Firmware Preparation

Step 3 — Flash and Run

Step 4 — Using the Calculator

Step 5 — Features & Behavior

Step 6 — Example Sessions

STM32 Calculator – Final Output

Schematics

RT-Spark Schematic

Code

MAIN.C CODE

I2C_LCD.C

I2C_LCD.H

KEYPAD.C

KEYPAD.H

Credits

PRINCESS LAURON

HEART LAHOYLAHOY

Comments

Embed the widget on your own site

STM32 Calculator: Keypad and I2C LCD Interface

STM32 Calculator: Keypad and I2C LCD Interface

Things used in this project

Hardware components

Software apps and online services

Story

Step 1 — Hardware Setup

Step 2 — Firmware Preparation

Step 3 — Flash and Run

Step 4 — Using the Calculator

Step 5 — Features & Behavior

Step 6 — Example Sessions

STM32 Calculator – Final Output

Schematics

RT-Spark Schematic

Code

MAIN.C CODE

I2C_LCD.C

I2C_LCD.H

KEYPAD.C

KEYPAD.H

Credits

PRINCESS LAURON

HEART LAHOYLAHOY

Comments

Related channels and tags
