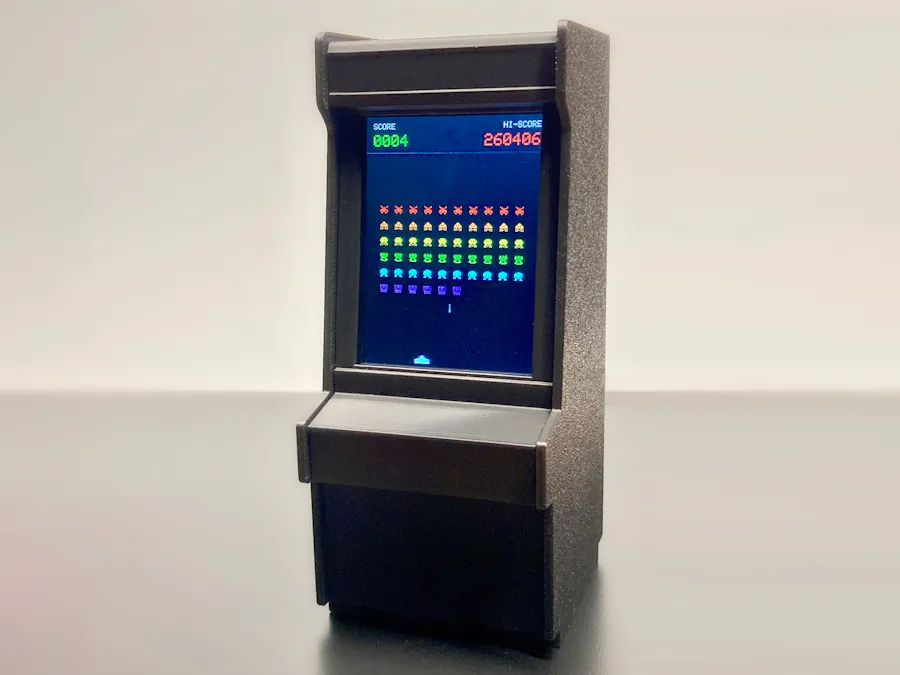

Retro Arcade Clock on a CYD

A retro arcade style clock built on a CYD with pixel enemies, flying saucers, missiles, explosions, and a score display that tells the time.
IntermediateFull instructions provided1 hour11
Things used in this project

Hardware components

Elegoo 2.8 inch TFT LCD Touch Display ESP32 board
Software apps and online services

Arduino IDE
Hand tools and fabrication machines

3D Printer (generic)
Story

I wanted to build an ambient clock that felt more like a tiny desk toy than a normal utility display. The Cheap Yellow Display, or CYD, seemed like the perfect platform for it since it combines an ESP32 with a 2.8 inch TFT screen in a single package.
This project turns the display into a self running retro arcade scene. A full grid of 60 pixel enemies represents the minutes in the hour. As time passes, one enemy is removed each minute. The cannon moves along the bottom of the screen and fires automatically at the top of each minute. Every fifteen minutes, a bonus saucer flies across the display. When the hour rolls over and all enemies are gone, the screen flashes and the wave resets. The score display shows the current time, while the high score area displays the date.
Features

WiFi time sync using NTP
60 pixel enemies represent the minutes in an hour
Score display shows current time in HHMM format
Date shown in YYMMDD format
Flying saucer animation every fifteen minutes
Animated cannon movement, missiles, and explosions
Hour reset effect with screen flash
How It Works

The sketch starts with a full 6 by 10 grid of enemies, for a total of 60. That lines up perfectly with the 60 minutes in an hour. Each minute, one enemy is removed. The code keeps track of valid time using NTP and updates the visible score to match the real clock. At the top of each minute, the cannon aligns to its next target and fires. At every quarter hour, a flying saucer animation is triggered. At the top of the hour, the whole wave is reset and a short flash effect marks the transition.
Invader Clock
#include <SPI.h>
#include <Adafruit_GFX.h>
#include <Adafruit_ILI9341.h>
#include <WiFi.h>
#include <time.h>

//----------------------------------------
// TFT Screen Pins (E32R28T / E32N28T 2.8" ESP32-32E ILI9341 board)
//----------------------------------------
#define TFT_CS    15
#define TFT_DC    2
#define TFT_RST   -1
#define TFT_BL    21
#define TFT_SCLK  14
#define TFT_MOSI  13
#define TFT_MISO  12

Adafruit_ILI9341 tft = Adafruit_ILI9341(TFT_CS, TFT_DC, TFT_RST);

//----------------------------------------
// Wi-Fi Credentials
//----------------------------------------
const char* ssid     = "SSID";
const char* password = "PASSWORD";

const char* tzInfo     = "EST5EDT,M3.2.0,M11.1.0";
const char* ntpServer1 = "pool.ntp.org";
const char* ntpServer2 = "time.nist.gov";

//----------------------------------------
// Layout and Gameplay Constants
//----------------------------------------
#define SCREEN_WIDTH         240
#define SCREEN_HEIGHT        320
#define ROWS                 6
#define COLS                 10

#define INVADER_WIDTH        10
#define INVADER_HEIGHT       10
#define INVADER_X_SPACING    10
#define INVADER_Y_SPACING    10
#define INVADER_LEFT_MARGIN  20
#define INVADER_TOP_MARGIN   110

#define BASE_WIDTH           20
#define BASE_HEIGHT          10

#define MISSILE_WIDTH        2
#define MISSILE_HEIGHT       10

#define UFO_WIDTH            16
#define UFO_HEIGHT           7

const unsigned long frameSwitchInterval     = 500;
const unsigned long invaderShotInterval     = 8000;
const unsigned long nonDestructiveInterval  = 15000;
const unsigned long wifiConnectTimeout      = 15000;
const unsigned long ntpSyncTimeout          = 10000;
const unsigned long syncRetryInterval       = 30000;
const unsigned long flashFrameInterval      = 60;
const unsigned long explosionFrameInterval  = 50;
const unsigned long endOfWaveResetDelay     = 1500;
const int invaderMissMinX                   = 6;
const int invaderMissMaxX                   = SCREEN_WIDTH - 7;
const int invaderMissSafetyMargin           = 12;
const int invaderMissRedirectZone           = 32;
const int cannonDodgeSpeed                  = 6;

int  ufoX      = -1;
int  ufoY      = 64;
bool ufoActive = false;

bool          invaderFrame    = false;
unsigned long lastFrameSwitch = 0;

bool invaders[ROWS][COLS];
int  lastMinute = -1;
int  displayedScoreHour = 0;
int  displayedScoreMinute = 0;
bool scoreInitialized = false;
int  pendingScoreUpdates = 0;

struct tm currentTimeInfo = {};
bool      clockHasValidTime = false;
unsigned long lastTimeRecoveryAttempt = 0;
bool pendingDestructiveShot = false;
bool endOfWavePending = false;
unsigned long endOfWaveResetAt = 0;

// Cannon
int  cannonX         = SCREEN_WIDTH / 2 - BASE_WIDTH / 2;
int  cannonDirection = 1;
int  targetX         = -1;
bool topMinuteFire   = false;
bool cannonAligning  = false;
bool cannonDodging   = false;
int  dodgeTargetX    = -1;

// Player missile
int missileX = -1;
int missileY = -1;
bool missileImpactPending = false;

// Invader missile
int invMissileX       = -1;
int invMissileY       = -1;
int invMissileTargetX = -1;
unsigned long lastInvaderShot = 0;
unsigned long lastNonDestructiveAttempt = 0;

// Non-blocking flash/explosion effects
bool flashActive = false;
uint8_t flashFrame = 0;
unsigned long lastFlashTick = 0;

bool explosionActive = false;
int explosionX = -1;
int explosionY = -1;
uint8_t explosionFrame = 0;
unsigned long lastExplosionTick = 0;

uint16_t invaderColors[ROWS] = {
  ILI9341_RED, 0xFC60, ILI9341_YELLOW,
  ILI9341_GREEN, ILI9341_CYAN, ILI9341_PURPLE
};

//----------------------------------------
// Forward Declarations
//----------------------------------------
bool connectWiFiWithTimeout(unsigned long timeoutMs);
bool waitForTimeSync(struct tm &timeInfo, unsigned long timeoutMs);
bool refreshCurrentTime();
void attemptTimeRecovery();
void resetTransientState();
void syncDisplayedScoreToCurrentTime();
void advanceDisplayedScore();

void startScreenFlash();
void updateScreenFlash();

void startExplosion(int x, int y);
void updateExplosion();
void drawExplosionFrameAt(int x, int y, uint16_t color);
void clearExplosionAt(int x, int y);

void drawPixelSafe(int x, int y, uint16_t color);
uint16_t getBackgroundColor(int px, int py);
void drawSpriteFromArray(int x, int y, uint16_t color, const uint8_t sprite[10][10]);
void drawScaledSprite(int x, int y, int w, int h, uint16_t color, const uint8_t sprite[10][10]);
void drawMissile(int x, int y);
void eraseMissile(int x, int y);
void drawInvaderMissileAt(int x, int y, uint16_t color);
void eraseInvaderMissile(int x, int y);

bool destroyOneInvaderAtMissile();
bool findInvaderAtMissile(int &hitRow, int &hitCol);
bool findLastInvaderToDestroy(int &invXCenter, int &invY);
bool anyInvadersAlive();
void fireMissileIfNeeded();
void fireMissile();
int getGapCenter(int gapIndex);
int chooseInvaderMissTargetX();
bool invaderMissileThreatensCannon(int missileBaseX, int missileY);
int getInvaderMissileDrawX(int missileBaseX, int missileY);
void startCannonDodge(int missileBaseX, int missileY);
void setNonDestructiveTarget();
void setDestructiveTarget();
void handleCannonMovement();
void drawScore();
void drawCannon();
void drawInvaders();
void drawScreen();
void initializeInvaders(int minutesElapsed);
void updateMissile();
void updateInvaderMissile();
void triggerUFO();
void updateUFO();
void drawUFOAt(int x, int y, uint16_t color);

//----------------------------------------
// Sprites
//----------------------------------------
const uint8_t cannonSprite[10][10] = {
  {0,0,0,0,1,1,0,0,0,0},
  {0,0,0,0,1,1,0,0,0,0},
  {0,0,0,1,1,1,1,0,0,0},
  {0,0,0,1,1,1,1,0,0,0},
  {0,1,1,1,1,1,1,1,1,0},
  {1,1,1,1,1,1,1,1,1,1},
  {1,1,1,1,1,1,1,1,1,1},
  {1,1,1,1,1,1,1,1,1,1},
  {1,1,1,1,1,1,1,1,1,1},
  {1,1,1,1,1,1,1,1,1,1}
};

const uint8_t ufoSprite[7][16] = {
  {0,0,0,0,0,1,1,1,1,1,1,0,0,0,0,0},
  {0,0,0,1,1,1,1,1,1,1,1,1,1,0,0,0},
  {0,0,1,1,0,1,0,1,1,0,1,0,1,1,0,0},
  {0,1,1,1,1,1,1,1,1,1,1,1,1,1,1,0},
  {1,1,0,1,1,0,1,1,1,1,0,1,1,0,1,1},
  {0,0,0,1,0,0,0,0,0,0,0,0,1,0,0,0},
  {0,0,0,0,1,0,0,0,0,0,0,1,0,0,0,0}
};

const uint8_t invaderSpriteRow0[10][10] = {
  {1,0,0,0,0,0,0,0,0,1},
  {0,1,1,0,0,0,0,0,1,1},
  {0,0,1,0,1,1,0,1,0,0},
  {0,0,0,1,1,1,1,0,0,0},
  {0,0,1,1,1,1,1,1,0,0},
  {1,1,1,1,1,1,1,1,1,1},
  {1,0,1,1,1,1,1,1,0,1},
  {1,0,0,1,1,1,1,0,0,1},
  {0,1,1,0,0,0,0,1,1,0},
  {0,0,1,0,0,0,0,1,0,0}
};

const uint8_t invaderSpriteRow1[10][10] = {
  {0,0,0,0,1,1,0,0,0,0},
  {0,0,0,1,1,1,1,0,0,0},
  {0,0,1,1,1,1,1,1,0,0},
  {0,1,1,0,1,1,0,1,1,0},
  {1,1,1,0,1,1,0,1,1,1},
  {1,1,1,1,1,1,1,1,1,1},
  {0,0,0,1,0,0,1,0,0,0},
  {1,0,1,0,0,0,0,1,0,1},
  {0,1,0,1,1,1,1,0,1,0},
  {1,0,1,0,0,0,0,1,0,1}
};

const uint8_t invaderSpriteRow2[10][10] = {
  {0,0,1,1,1,1,1,1,0,0},
  {0,1,1,1,1,1,1,1,1,0},
  {1,1,0,1,1,1,1,0,1,1},
  {1,1,1,1,1,1,1,1,1,1},
  {1,1,1,1,1,1,1,1,1,1},
  {0,1,1,1,1,1,1,1,1,0},
  {0,0,1,1,0,0,1,1,0,0},
  {0,1,1,0,0,0,0,1,1,0},
  {1,0,0,0,1,1,0,0,0,1},
  {1,0,1,0,0,0,0,1,0,1}
};

const uint8_t invaderSpriteRow3[10][10] = {
  {0,1,0,0,1,1,0,0,1,0},
  {1,1,1,1,1,1,1,1,1,1},
  {1,0,1,1,1,1,1,1,0,1},
  {1,0,0,1,1,1,1,0,0,1},
  {0,1,1,1,1,1,1,1,1,0},
  {0,0,1,1,1,1,1,1,0,0},
  {0,0,1,1,0,0,1,1,0,0},
  {0,1,1,0,0,0,0,1,1,0},
  {1,1,0,0,0,0,0,0,1,1},
  {0,0,1,1,1,1,1,1,1,0}
};

const uint8_t invaderSpriteRow4[10][10] = {
  {0,0,0,1,1,1,1,0,0,0},
  {0,1,1,1,1,1,1,1,1,0},
  {1,1,1,0,1,1,0,1,1,1},
  {1,1,1,1,1,1,1,1,1,1},
  {1,0,1,1,1,1,1,1,0,1},
  {1,0,0,1,1,1,1,0,0,1},
  {0,1,1,0,1,1,0,1,1,0},
  {0,0,1,0,1,1,0,1,0,0},
  {0,1,1,0,0,0,0,1,1,0},
  {1,0,1,0,0,0,0,1,0,1}
};

const uint8_t invaderSpriteRow5[10][10] = {
  {1,1,1,1,1,1,1,1,1,1},
  {1,1,0,1,1,1,1,1,0,1},
  {1,1,1,1,1,1,1,1,1,1},
  {1,0,1,0,1,1,0,1,0,1},
  {0,1,0,1,1,1,1,0,1,0},
  {1,0,1,0,0,0,0,1,0,1},
  {1,1,1,1,1,1,1,1,1,1},
  {0,1,1,1,1,1,1,1,1,0},
  {0,0,1,1,1,1,1,1,0,0},
  {0,1,1,0,1,1,0,1,1,0}
};

const uint8_t invaderSpriteRow0B[10][10] = {
  {0,0,1,0,0,0,0,0,1,0},
  {0,0,0,1,0,0,0,1,0,0},
  {0,0,1,0,1,1,0,1,0,0},
  {0,0,0,1,1,1,1,0,0,0},
  {0,0,1,1,1,1,1,1,0,0},
  {1,1,1,1,1,1,1,1,1,1},
  {1,0,1,1,1,1,1,1,0,1},
  {1,0,0,1,1,1,1,0,0,1},
  {1,1,0,0,0,0,0,0,1,1},
  {0,0,1,1,0,0,1,1,0,0}
};

const uint8_t invaderSpriteRow1B[10][10] = {
  {0,0,0,0,1,1,0,0,0,0},
  {0,0,0,1,1,1,1,0,0,0},
  {0,0,1,1,1,1,1,1,0,0},
  {0,1,1,0,1,1,0,1,1,0},
  {1,1,1,0,1,1,0,1,1,1},
  {1,1,1,1,1,1,1,1,1,1},
  {1,0,0,1,0,0,1,0,0,1},
  {0,1,0,0,1,1,0,0,1,0},
  {0,0,1,0,0,0,0,1,0,0},
  {0,1,0,0,0,0,0,0,1,0}
};

const uint8_t invaderSpriteRow2B[10][10] = {
  {0,0,1,1,1,1,1,1,0,0},
  {0,1,1,1,1,1,1,1,1,0},
  {1,1,0,1,1,1,1,0,1,1},
  {1,1,1,1,1,1,1,1,1,1},
  {1,1,1,1,1,1,1,1,1,1},
  {0,1,1,1,1,1,1,1,1,0},
  {0,0,1,1,0,0,1,1,0,0},
  {0,0,1,0,0,0,0,1,0,0},
  {0,1,0,0,1,1,0,0,1,0},
  {1,0,0,0,0,0,0,0,0,1}
};

const uint8_t invaderSpriteRow3B[10][10] = {
  {0,1,0,0,1,1,0,0,1,0},
  {1,1,1,1,1,1,1,1,1,1},
  {1,0,1,1,1,1,1,1,0,1},
  {1,0,0,1,1,1,1,0,0,1},
  {0,1,1,1,1,1,1,1,1,0},
  {0,0,1,1,1,1,1,1,0,0},
  {0,1,1,0,0,0,0,1,1,0},
  {1,0,0,1,0,0,1,0,0,1},
  {0,1,1,0,0,0,0,1,1,0},
  {1,0,0,1,1,1,1,0,0,1}
};

const uint8_t invaderSpriteRow4B[10][10] = {
  {0,0,0,1,1,1,1,0,0,0},
  {0,1,1,1,1,1,1,1,1,0},
  {1,1,1,0,1,1,0,1,1,1},
  {1,1,1,1,1,1,1,1,1,1},
  {1,0,1,1,1,1,1,1,0,1},
  {1,0,0,1,1,1,1,0,0,1},
  {1,1,0,0,1,1,0,0,1,1},
  {0,0,1,0,0,0,0,1,0,0},
  {0,0,0,1,0,0,1,0,0,0},
  {0,0,1,0,0,0,0,1,0,0}
};

const uint8_t invaderSpriteRow5B[10][10] = {
  {1,1,1,1,1,1,1,1,1,1},
  {1,1,0,1,1,1,1,1,0,1},
  {1,1,1,1,1,1,1,1,1,1},
  {0,1,0,1,1,1,1,0,1,0},
  {1,0,1,0,1,1,0,1,0,1},
  {0,1,0,1,0,0,1,0,1,0},
  {1,1,1,1,1,1,1,1,1,1},
  {0,1,1,1,1,1,1,1,1,0},
  {0,1,1,0,1,1,0,1,1,0},
  {1,0,0,1,0,0,1,0,0,1}
};

const uint8_t explosionSprite[7][13] = {
  {0,0,1,0,0,0,1,0,0,0,1,0,0},
  {0,1,0,1,0,0,0,0,0,1,0,1,0},
  {1,0,0,0,1,0,0,0,1,0,0,0,1},
  {0,0,0,1,0,1,0,1,0,1,0,0,0},
  {1,0,0,0,1,0,0,0,1,0,0,0,1},
  {0,1,0,1,0,0,0,0,0,1,0,1,0},
  {0,0,1,0,0,0,1,0,0,0,1,0,0}
};

const uint8_t (*const invaderSpritesA[ROWS])[10] = {
  invaderSpriteRow0,
  invaderSpriteRow1,
  invaderSpriteRow2,
  invaderSpriteRow3,
  invaderSpriteRow4,
  invaderSpriteRow5
};

const uint8_t (*const invaderSpritesB[ROWS])[10] = {
  invaderSpriteRow0B,
  invaderSpriteRow1B,
  invaderSpriteRow2B,
  invaderSpriteRow3B,
  invaderSpriteRow4B,
  invaderSpriteRow5B
};

const uint16_t explosionColors[3] = {
  ILI9341_WHITE,
  ILI9341_YELLOW,
  0xFB60
};

//----------------------------------------
// Connectivity / Time
//----------------------------------------
bool connectWiFiWithTimeout(unsigned long timeoutMs) {
  if (ssid[0] == '\0') {
    Serial.println("WiFi credentials missing; starting unsynced.");
    return false;
  }

  WiFi.mode(WIFI_STA);
  WiFi.setAutoReconnect(true);
  WiFi.persistent(false);
  WiFi.begin(ssid, password);

  Serial.print("Connecting WiFi");
  unsigned long start = millis();
  while (WiFi.status() != WL_CONNECTED && (millis() - start) < timeoutMs) {
    delay(250);
    Serial.print(".");
  }
  Serial.println();

  if (WiFi.status() == WL_CONNECTED) {
    Serial.println("WiFi connected");
    return true;
  }

  Serial.println("WiFi timeout; starting unsynced.");
  return false;
}

bool waitForTimeSync(struct tm &timeInfo, unsigned long timeoutMs) {
  Serial.print("Waiting for NTP");
  unsigned long start = millis();
  while ((millis() - start) < timeoutMs) {
    if (getLocalTime(&timeInfo, 100)) {
      Serial.println("\nTime ready");
      return true;
    }
    delay(200);
    Serial.print(".");
  }
  Serial.println("\nTime sync timeout");
  return false;
}

bool refreshCurrentTime() {
  struct tm timeInfo;
  if (getLocalTime(&timeInfo, 10)) {
    currentTimeInfo = timeInfo;
    clockHasValidTime = true;
    return true;
  }
  return false;
}

void attemptTimeRecovery() {
  if (ssid[0] == '\0') return;

  unsigned long now = millis();
  if ((now - lastTimeRecoveryAttempt) < syncRetryInterval) return;
  lastTimeRecoveryAttempt = now;

  if (WiFi.status() != WL_CONNECTED) {
    Serial.println("Retrying WiFi...");
    WiFi.disconnect();
    WiFi.begin(ssid, password);
    return;
  }

  configTzTime(tzInfo, ntpServer1, ntpServer2);
  struct tm timeInfo;
  if (waitForTimeSync(timeInfo, 1500)) {
    currentTimeInfo = timeInfo;
    clockHasValidTime = true;
    initializeInvaders(timeInfo.tm_min);
    lastMinute = timeInfo.tm_min;
    syncDisplayedScoreToCurrentTime();
    drawScreen();
  }
}

//----------------------------------------
// Effects
//----------------------------------------
void startScreenFlash() {
  flashActive = true;
  flashFrame = 0;
  lastFlashTick = millis();
  tft.fillScreen(ILI9341_WHITE);
}

void updateScreenFlash() {
  if (!flashActive) return;

  unsigned long now = millis();
  if ((now - lastFlashTick) < flashFrameInterval) return;

  lastFlashTick = now;
  flashFrame++;

  if (flashFrame >= 6) {
    flashActive = false;
    drawScreen();
    return;
  }

  tft.fillScreen((flashFrame % 2 == 0) ? ILI9341_WHITE : ILI9341_BLACK);
}

void startExplosion(int x, int y) {
  explosionX = x + 5 - 6;
  explosionY = y + 5 - 3;
  explosionFrame = 0;
  explosionActive = true;
  lastExplosionTick = millis();
  drawExplosionFrameAt(explosionX, explosionY, explosionColors[explosionFrame]);
}

void updateExplosion() {
  if (!explosionActive) return;

  unsigned long now = millis();
  if ((now - lastExplosionTick) < explosionFrameInterval) return;

  clearExplosionAt(explosionX, explosionY);
  lastExplosionTick = now;
  explosionFrame++;

  if (explosionFrame >= 3) {
    explosionActive = false;
    explosionX = -1;
    explosionY = -1;
    return;
  }

  drawExplosionFrameAt(explosionX, explosionY, explosionColors[explosionFrame]);
}

void resetTransientState() {
  unsigned long now = millis();

  missileX = -1;
  missileY = -1;
  missileImpactPending = false;
  invMissileX = -1;
  invMissileY = -1;
  invMissileTargetX = -1;
  targetX = -1;
  topMinuteFire = false;
  cannonAligning = false;
  cannonDodging = false;
  dodgeTargetX = -1;
  pendingDestructiveShot = false;
  pendingScoreUpdates = 0;
  endOfWavePending = false;
  endOfWaveResetAt = 0;

  explosionActive = false;
  explosionX = -1;
  explosionY = -1;

  flashActive = false;
  flashFrame = 0;

  lastInvaderShot = now;
  lastNonDestructiveAttempt = now;
}

void syncDisplayedScoreToCurrentTime() {
  displayedScoreHour = currentTimeInfo.tm_hour;
  displayedScoreMinute = currentTimeInfo.tm_min;
  scoreInitialized = true;
  pendingScoreUpdates = 0;
}

void advanceDisplayedScore() {
  if (!scoreInitialized) {
    syncDisplayedScoreToCurrentTime();
    return;
  }

  displayedScoreMinute++;
  if (displayedScoreMinute >= 60) {
    displayedScoreMinute = 0;
    displayedScoreHour = (displayedScoreHour + 1) % 24;
  }
}

//----------------------------------------
// UFO
//----------------------------------------
void triggerUFO() {
  if (!ufoActive) {
    ufoX = -UFO_WIDTH;
    ufoActive = true;
  }
}

void drawUFOAt(int x, int y, uint16_t color) {
  for (int row = 0; row < UFO_HEIGHT; row++) {
    for (int col = 0; col < UFO_WIDTH; col++) {
      if (ufoSprite[row][col]) {
        drawPixelSafe(x + col, y + row, color);
      }
    }
  }
}

void updateUFO() {
  if (!ufoActive) return;

  drawUFOAt(ufoX, ufoY, ILI9341_BLACK);
  ufoX += 1;

  if (ufoX > SCREEN_WIDTH) {
    ufoActive = false;
    ufoX = -1;
    return;
  }

  drawUFOAt(ufoX, ufoY, ILI9341_MAGENTA);
}

//----------------------------------------
// Setup / Loop
//----------------------------------------
void setup() {
  Serial.begin(115200);
  randomSeed(micros());

  pinMode(TFT_BL, OUTPUT);
  digitalWrite(TFT_BL, HIGH);

  SPI.begin(TFT_SCLK, TFT_MISO, TFT_MOSI, TFT_CS);
  tft.begin();
  tft.setRotation(0);

  initializeInvaders(0);
  drawScreen();

  if (connectWiFiWithTimeout(wifiConnectTimeout)) {
    configTzTime(tzInfo, ntpServer1, ntpServer2);

    struct tm timeInfo;
    if (waitForTimeSync(timeInfo, ntpSyncTimeout)) {
      currentTimeInfo = timeInfo;
      clockHasValidTime = true;
      initializeInvaders(timeInfo.tm_min);
      lastMinute = timeInfo.tm_min;
      syncDisplayedScoreToCurrentTime();
    }
  }

  drawScreen();
}

void loop() {
  refreshCurrentTime();
  if (!clockHasValidTime) attemptTimeRecovery();

  if (clockHasValidTime) {
    if (lastMinute == -1) {
      initializeInvaders(currentTimeInfo.tm_min);
      lastMinute = currentTimeInfo.tm_min;
      syncDisplayedScoreToCurrentTime();
      drawScreen();
    } else if (currentTimeInfo.tm_min != lastMinute) {
      lastMinute = currentTimeInfo.tm_min;
      pendingScoreUpdates++;
      pendingDestructiveShot = true;

      if (currentTimeInfo.tm_min == 0) {
        endOfWavePending = true;
      } else {
        if ((currentTimeInfo.tm_min % 15) == 0) triggerUFO();
      }
    }
  }

  if (flashActive) {
    updateScreenFlash();
    delay(30);
    return;
  }

  unsigned long now = millis();

  if (endOfWaveResetAt != 0 && now >= endOfWaveResetAt) {
    resetTransientState();
    initializeInvaders(0);
    startScreenFlash();
    triggerUFO();
    delay(30);
    return;
  }

  if (pendingDestructiveShot && endOfWaveResetAt == 0 &&
      !topMinuteFire && !cannonAligning && !cannonDodging && missileY == -1) {
    setDestructiveTarget();
  } else if (!pendingDestructiveShot && !endOfWavePending && endOfWaveResetAt == 0 &&
             !topMinuteFire && !cannonAligning && !cannonDodging && missileY == -1) {
    if ((now - lastNonDestructiveAttempt) >= nonDestructiveInterval) {
      setNonDestructiveTarget();
      lastNonDestructiveAttempt = now;
    }
  }

  if ((now - lastFrameSwitch) >= frameSwitchInterval) {
    lastFrameSwitch = now;
    invaderFrame = !invaderFrame;
    drawInvaders();
    if (missileY > -1) drawMissile(missileX, missileY);
    if (invMissileY > -1) drawInvaderMissileAt(invMissileX, invMissileY, ILI9341_CYAN);
    if (explosionActive) drawExplosionFrameAt(explosionX, explosionY, explosionColors[explosionFrame]);
  }

  handleCannonMovement();
  updateMissile();
  updateInvaderMissile();
  updateExplosion();
  updateUFO();

  delay(30);
}

//----------------------------------------
// Game Logic
//----------------------------------------
void initializeInvaders(int minutesElapsed) {
  minutesElapsed = constrain(minutesElapsed, 0, ROWS * COLS);

  for (int r = 0; r < ROWS; r++) {
    for (int c = 0; c < COLS; c++) {
      invaders[r][c] = true;
    }
  }

  int destroyed = 0;
  for (int row = ROWS - 1; row >= 0 && destroyed < minutesElapsed; row--) {
    for (int col = COLS - 1; col >= 0 && destroyed < minutesElapsed; col--) {
      invaders[row][col] = false;
      destroyed++;
    }
  }
}

void setDestructiveTarget() {
  int invXCenter;
  int invY;

  if (findLastInvaderToDestroy(invXCenter, invY)) {
    targetX = invXCenter;
    topMinuteFire = true;
    cannonAligning = true;
    pendingDestructiveShot = false;
  } else {
    pendingDestructiveShot = false;
    if (endOfWavePending && endOfWaveResetAt == 0) {
      endOfWaveResetAt = millis() + endOfWaveResetDelay;
    }
  }
}

int getGapCenter(int gapIndex) {
  return INVADER_LEFT_MARGIN + INVADER_WIDTH + (INVADER_X_SPACING / 2) +
         gapIndex * (INVADER_WIDTH + INVADER_X_SPACING);
}

int chooseInvaderMissTargetX() {
  int cannonCenter = cannonX + (BASE_WIDTH / 2);
  return constrain(cannonCenter + random(-4, 5), invaderMissMinX, invaderMissMaxX);
}

int getInvaderMissileDrawX(int missileBaseX, int missileY) {
  bool phase = (missileY / 4) % 2;
  return phase ? missileBaseX + 2 : missileBaseX - 2;
}

bool invaderMissileThreatensCannon(int missileBaseX, int missileY) {
  int cannonTop = SCREEN_HEIGHT - BASE_HEIGHT - 10;
  if (missileY < (cannonTop - invaderMissRedirectZone)) return false;

  int drawX = getInvaderMissileDrawX(missileBaseX, missileY);
  int safeLeft = cannonX - invaderMissSafetyMargin;
  int safeRight = cannonX + BASE_WIDTH + invaderMissSafetyMargin;

  return drawX >= safeLeft && drawX <= safeRight;
}

void startCannonDodge(int missileBaseX, int missileY) {
  int drawX = getInvaderMissileDrawX(missileBaseX, missileY);
  int leftTarget = constrain(drawX - BASE_WIDTH - invaderMissSafetyMargin - 2,
                             0, SCREEN_WIDTH - BASE_WIDTH);
  int rightTarget = constrain(drawX + invaderMissSafetyMargin + 2,
                              0, SCREEN_WIDTH - BASE_WIDTH);

  bool canGoLeft = (leftTarget + BASE_WIDTH) < (drawX - 1);
  bool canGoRight = rightTarget > (drawX + 1);

  if (canGoLeft && canGoRight) {
    dodgeTargetX = (abs(cannonX - leftTarget) <= abs(cannonX - rightTarget)) ? leftTarget : rightTarget;
  } else if (canGoLeft) {
    dodgeTargetX = leftTarget;
  } else if (canGoRight) {
    dodgeTargetX = rightTarget;
  } else {
    dodgeTargetX = (drawX < (SCREEN_WIDTH / 2)) ? (SCREEN_WIDTH - BASE_WIDTH) : 0;
  }

  cannonDodging = true;
}

void setNonDestructiveTarget() {
  targetX = getGapCenter(random(0, COLS - 1));
  topMinuteFire = false;
  cannonAligning = true;
}

bool findLastInvaderToDestroy(int &invXCenter, int &invY) {
  for (int row = ROWS - 1; row >= 0; row--) {
    for (int col = COLS - 1; col >= 0; col--) {
      if (invaders[row][col]) {
        int invX = INVADER_LEFT_MARGIN + col * (INVADER_WIDTH + INVADER_X_SPACING);
        int invYPos = INVADER_TOP_MARGIN + row * (INVADER_HEIGHT + INVADER_Y_SPACING);
        invXCenter = invX + (INVADER_WIDTH / 2);
        invY = invYPos;
        return true;
      }
    }
  }
  return false;
}

bool anyInvadersAlive() {
  for (int row = 0; row < ROWS; row++) {
    for (int col = 0; col < COLS; col++) {
      if (invaders[row][col]) return true;
    }
  }
  return false;
}

void fireMissileIfNeeded() {
  if (missileY == -1) fireMissile();
}

void fireMissile() {
  missileX = cannonX + (BASE_WIDTH / 2);
  missileY = SCREEN_HEIGHT - BASE_HEIGHT - MISSILE_HEIGHT - 10;
  drawMissile(missileX, missileY);
}

void updateMissile() {
  if (missileY == -1) return;

  if (missileImpactPending) {
    eraseMissile(missileX, missileY);
    if (!destroyOneInvaderAtMissile() && topMinuteFire) {
      pendingDestructiveShot = (pendingScoreUpdates > 0);
    }
    missileX = -1;
    missileY = -1;
    missileImpactPending = false;
    topMinuteFire = false;
    return;
  }

  eraseMissile(missileX, missileY);
  missileY -= 3;

  if (missileY <= 46) {
    missileX = -1;
    missileY = -1;
    missileImpactPending = false;
    if (topMinuteFire) {
      pendingDestructiveShot = (pendingScoreUpdates > 0);
    }
    topMinuteFire = false;
    return;
  }

  drawMissile(missileX, missileY);

  if (topMinuteFire) {
    int hitRow;
    int hitCol;
    if (findInvaderAtMissile(hitRow, hitCol)) {
      missileImpactPending = true;
    }
  }
}

void updateInvaderMissile() {
  unsigned long now = millis();

  if (invMissileY == -1 && (now - lastInvaderShot) >= invaderShotInterval) {
    int aliveCount = 0;
    for (int r = 0; r < ROWS; r++) {
      for (int c = 0; c < COLS; c++) {
        if (invaders[r][c]) aliveCount++;
      }
    }

    if (aliveCount > 0) {
      int pick = random(0, aliveCount);
      int idx = 0;
      bool found = false;

      for (int r = 0; r < ROWS && !found; r++) {
        for (int c = 0; c < COLS; c++) {
          if (!invaders[r][c]) continue;
          if (idx == pick) {
            invMissileX = INVADER_LEFT_MARGIN + c * (INVADER_WIDTH + INVADER_X_SPACING) +
                          (INVADER_WIDTH / 2);
            invMissileY = INVADER_TOP_MARGIN + r * (INVADER_HEIGHT + INVADER_Y_SPACING) +
                          INVADER_HEIGHT;
            invMissileTargetX = chooseInvaderMissTargetX();
            lastInvaderShot = now;
            found = true;
            break;
          }
          idx++;
        }
      }
    }
  }

  if (invMissileY == -1) return;

  eraseInvaderMissile(invMissileX, invMissileY);

  invMissileY += 2;
  if (invMissileX < invMissileTargetX) invMissileX++;
  else if (invMissileX > invMissileTargetX) invMissileX--;

  if (invaderMissileThreatensCannon(invMissileX, invMissileY)) {
    startCannonDodge(invMissileX, invMissileY);
  }

  if (invMissileY >= SCREEN_HEIGHT) {
    eraseInvaderMissile(invMissileX, invMissileY);
    invMissileX = -1;
    invMissileY = -1;
    invMissileTargetX = -1;
    return;
  }

  drawInvaderMissileAt(invMissileX, invMissileY, ILI9341_CYAN);
}

bool findInvaderAtMissile(int &hitRow, int &hitCol) {
  // Use only the leading tip of the missile so the visible impact lines up
  // with the hit event and score update.
  const int missileTipHeight = 2;
  int mLeft = missileX - (MISSILE_WIDTH / 2);
  int mRight = mLeft + MISSILE_WIDTH - 1;
  int mTop = missileY;
  int mBottom = missileY + missileTipHeight - 1;

  for (int row = 0; row < ROWS; row++) {
    for (int col = 0; col < COLS; col++) {
      if (!invaders[row][col]) continue;

      int iX = INVADER_LEFT_MARGIN + col * (INVADER_WIDTH + INVADER_X_SPACING);
      int iY = INVADER_TOP_MARGIN + row * (INVADER_HEIGHT + INVADER_Y_SPACING);
      int iX2 = iX + INVADER_WIDTH - 1;
      int iY2 = iY + INVADER_HEIGHT - 1;

      if (!(iX2 < mLeft || iX > mRight || iY2 < mTop || iY > mBottom)) {
        hitRow = row;
        hitCol = col;
        return true;
      }
    }
  }
  return false;
}

bool destroyOneInvaderAtMissile() {
  int hitRow;
  int hitCol;
  if (!findInvaderAtMissile(hitRow, hitCol)) return false;

  int iX = INVADER_LEFT_MARGIN + hitCol * (INVADER_WIDTH + INVADER_X_SPACING);
  int iY = INVADER_TOP_MARGIN + hitRow * (INVADER_HEIGHT + INVADER_Y_SPACING);

  invaders[hitRow][hitCol] = false;
  startExplosion(iX, iY);

  if (pendingScoreUpdates > 0) {
    pendingScoreUpdates--;
    advanceDisplayedScore();
    drawScore();
  }

  if (endOfWavePending) {
    if (anyInvadersAlive()) {
      pendingDestructiveShot = (pendingScoreUpdates > 0);
    } else if (endOfWaveResetAt == 0) {
      endOfWaveResetAt = millis() + endOfWaveResetDelay;
    }
  } else {
    pendingDestructiveShot = (pendingScoreUpdates > 0);
  }
...

This file has been truncated, please download it to see its full contents.
Credits

Brian Wente

7 projects • 8 followers
Retro Arcade Clock on a CYD

Things used in this project

Hardware components

Software apps and online services

Hand tools and fabrication machines

Story

Features

How It Works

Code

Invader Clock

Credits

Brian Wente

Comments

Embed the widget on your own site

Retro Arcade Clock on a CYD

Retro Arcade Clock on a CYD

Things used in this project

Hardware components

Software apps and online services

Hand tools and fabrication machines

Story

Features

How It Works

Code

Invader Clock

Credits

Brian Wente

Comments

Related channels and tags
