Bonnie Wang
Published © GPL3+

ENGI_301 Project_01

This is a fun beginner-level project using PocketBeagle to record and play audio recordings!

BeginnerFull instructions provided897
ENGI_301 Project_01

Things used in this project

Hardware components

Solderless Breadboard Full Size
Solderless Breadboard Full Size
×1
PocketBeagle
BeagleBoard.org PocketBeagle
×1
Jumper wires (generic)
Jumper wires (generic)
×1
Pushbutton switch 12mm
SparkFun Pushbutton switch 12mm
×1
USB-A to Mini-USB Cable
USB-A to Mini-USB Cable
×1
Arduino Mini USB serial adapter
Arduino Mini USB serial adapter
×1
plugable audio adapter
×1

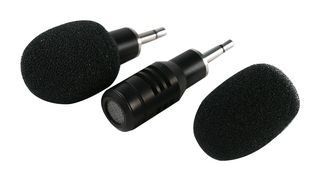

Microphone, Plug-In
Microphone, Plug-In
×1
Ear-clip Heart Rate Sensor
Seeed Studio Ear-clip Heart Rate Sensor
×1

Story

Read more

Schematics

fritz diagram

this is a visual of the general breadboard setup

Code

codecodecode.py

Python
"""
--------------------------------------------------------------------------
Code for Project 01 -- ENGI 301
--------------------------------------------------------------------------
License:   Copyright 2019 Bonnie Wang

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the
following conditions are met:
    1. Redistributions of source code must retain the above copyright notice, this list of conditions and the
    following disclaimer.
    2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
    following disclaimer in the documentation and/or other materials provided with the distribution.
    3. Neither the name of the copyright holder nor the names of its contributors may be used to endorse or promote
    products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,
STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
--------------------------------------------------------------------------
Software API:
* update_flite
        - need to first install flite:
            apt-get install flite
* update_alsa-utils
--------------------------------------------------------------------------
Background Information:
* Using text to speech commands with flite:
    - http://einsteiniumstudios.com/make-your-beaglebone-speak.html
* (No base code)
--------------------------------------------------------------------------

"""

# Import required programs
import os system
import Adafruit_BBIO.EDC as ADC
import Adafruit_BBIO.GPIO as GPIO
import Adafruit_BBIO.PWM as PWM

# Global variables:
BUTTON = "P2_2"

# Initialize Button
GPIO.setup(BUTTON, GPIO.IN)

# Initialize voice file
flite -t "this is the voice file" -o voicefile.wav

# When the button is pressed...
if(GPIO.input(BUTTON0) == 1):
    # Immediately start recording using the microphone for 10 seconds
    os.system(arecord -d 10 -f cd voicefile.wav)
    # Then will play the audio back from the audio output
    os.system(aplay voicefile.wav)

# That's it! (:

extra soldering of pocketbeagle pins for USB

Python
No preview (download only).

video of device

Python
No preview (download only).

final device

Python
No preview (download only).
