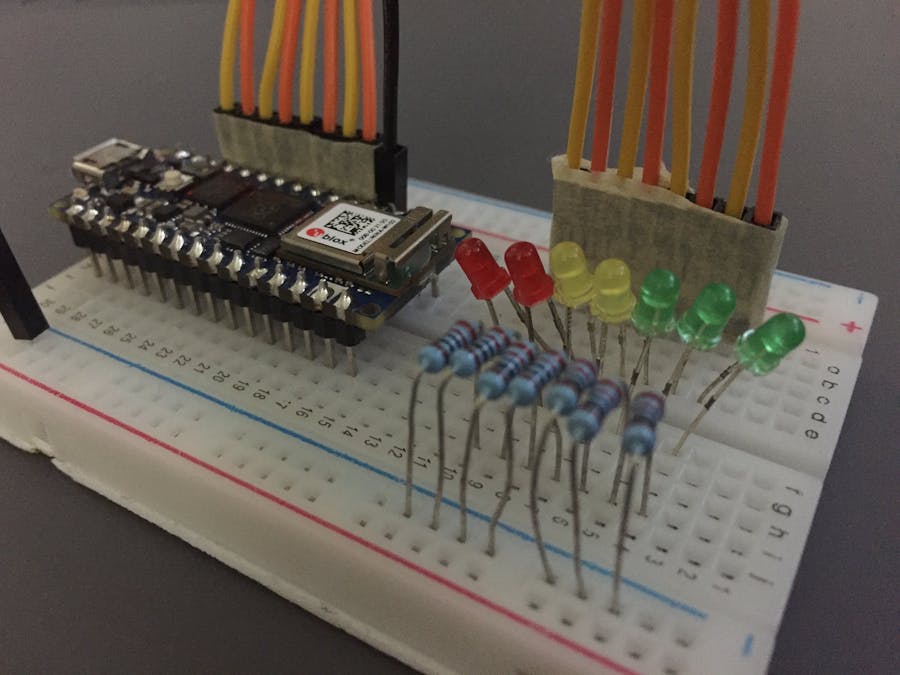

IoT Sound Visualizer

#include "thingProperties.h"
// PDM for mbed_rp2040 - Version: Latest
#include <PDM.h>

int LEDC = 2;
int LEDG1 = 3;
int LEDG2 = 4;
int LEDG3 = 5;
int LEDY4 = 6;
int LEDY5 = 7;
int LEDR6 = 8;
int LEDR7 = 9;

bool switchLED;

static const char channels = 1;

static const int frequency = 16000;

short sampleBuffer [512];

volatile int samplesRead;

void setup() {
  // Initialize serial and wait for port to open:
  Serial.begin(9600);
  // This delay gives the chance to wait for a Serial Monitor without blocking if none is found
  delay(1500);

  // initialize digital pin LED_BUILTIN as an output.
  pinMode(LED_BUILTIN, OUTPUT);
  pinMode(LEDC, OUTPUT);
  pinMode(LEDG1, OUTPUT);
  pinMode(LEDG2, OUTPUT);
  pinMode(LEDG3, OUTPUT);
  pinMode(LEDY4, OUTPUT);
  pinMode(LEDY5, OUTPUT);
  pinMode(LEDR6, OUTPUT);
  pinMode(LEDR7, OUTPUT);

  // Defined in thingProperties.h
  initProperties();

  // Connect to Arduino IoT Cloud
  ArduinoCloud.begin(ArduinoIoTPreferredConnection);

  PDM.onReceive(onPDMData);
  if (!PDM.begin(channels, frequency))
  {
    Serial.println("Failed to Initialize PDM");
    while(1);
  }


  /*
     The following function allows you to obtain more information
     related to the state of network and IoT Cloud connection and errors
     the higher number the more granular information you’ll get.
     The default is 0 (only errors).
     Maximum is 4
 */
  setDebugMessageLevel(2);
  ArduinoCloud.printDebugInfo();
}

void loop() {
  ArduinoCloud.update();

  if(samplesRead)
  {
    for (int i = 0; i < samplesRead; i++)
    {
      Serial.println(sampleBuffer[i]);
      sound_Level = sampleBuffer[i];

      if (sampleBuffer[i] >= 100 || sampleBuffer[i] <= -100)
      {
        digitalWrite(LEDG1, HIGH);

        if (sampleBuffer[i] >= 500 || sampleBuffer[i] <= -500)
        {
          digitalWrite(LEDG2, HIGH);

          if (sampleBuffer[i] >= 1000 || sampleBuffer[i] <= -1000)
          {
            digitalWrite(LEDG3, HIGH);

            if (sampleBuffer[i] >= 2500 || sampleBuffer[i] <= -2500)
            {
            digitalWrite(LEDY4, HIGH);

              if (sampleBuffer[i] >= 5000 || sampleBuffer[i] <= -5000)
              {
              digitalWrite(LEDY5, HIGH);

                if (sampleBuffer[i] >= 7500 || sampleBuffer[i] <= -7500)
                {
                  digitalWrite(LEDR6, HIGH);

                  if (sampleBuffer[i] >= 15000 || sampleBuffer[i] <= -15000)
                  {
                    digitalWrite(LEDR7, HIGH);
                  }

                  else
                  {
                    digitalWrite(LEDR7, LOW);
                  }
                }

                else
                {
                  digitalWrite(LEDR6, LOW);
                }
              }

             else
              {
                digitalWrite(LEDY5, LOW);
              }
            }
            else
            {
              digitalWrite(LEDY4, LOW);
            }
          }

          else
          {
           digitalWrite(LEDG3, LOW);
          }
        }

        else
        {
         digitalWrite(LEDG2, LOW);
        }
      }

      else
      {
       digitalWrite(LEDG1, LOW);
      }



      if (sampleBuffer[i] >= 10000 || sampleBuffer[i] <= -10000)
      {
        switchLED = !switchLED;
        if (switchLED)
        {
          digitalWrite(LED_BUILTIN, HIGH);
          digitalWrite(LEDC, HIGH);
          lED = true;
        }

        else
        {
          digitalWrite(LED_BUILTIN, LOW);
          digitalWrite(LEDC, LOW);
          lED = false;
        }
      }
    }

    samplesRead = 0;
  }


}

void onPDMData()
{
  int bytesAvailable = PDM.available();

  PDM.read(sampleBuffer, bytesAvailable);

  samplesRead = bytesAvailable / 2;
}
