BrewBench

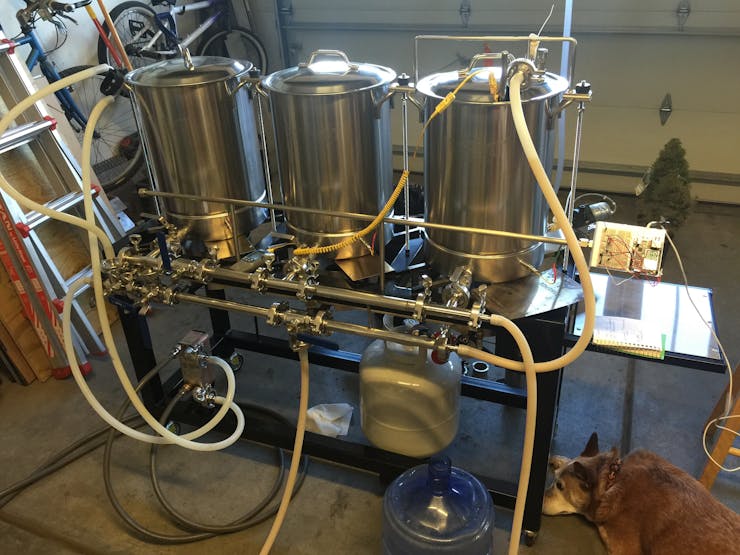

BrewBench - Is an Arduino home brewing kettle temperature monitor, controller and notification system. It can work as a RIMS system.

IntermediateFull instructions provided1 hour16,057
BrewBench

Things used in this project

Hardware components

Arduino Yun
Arduino Yun
Originally Developed with Yun but also works with Yun2, ESP8266 and ESP32 or any Arduino.
×1
Arduino Yun Rev 2
Arduino Yun Rev 2
×1
ESP8266 ESP-12E
Everything ESP ESP8266 ESP-12E
×1
Adafruit Thermistor
Sensor: Works on analog ports, can be used with a Thermowell below.
×1
DS18B20
Sensor: Works on digital ports with a 4.7K ohm resister
×1
PT100
Sensor: Works on analog ports. You will also need an amplifier, MAX31865 RTD or ZJIA DC 24V RTD PT100 Temperature Sensor Transmitter
×1
Resistor 10k ohm
Resistor 10k ohm
Only needed if using the Thermistor temp sensor
×1
Resistor 4.75k ohm
Resistor 4.75k ohm
Only needed if using the DS18B20 temp sensor
×1
SainSmart 2-Channel Relay Module
Only needed if wiring up a heater or pump for a RIMS system
×1
Breadboard (generic)
Breadboard (generic)
×1
Jumper wires (generic)
Jumper wires (generic)
×1
DHT11 Temperature & Humidity Sensor (4 pins)
DHT11 Temperature & Humidity Sensor (4 pins)
×1
DHT22 Temperature Sensor
DHT22 Temperature Sensor
×1

Software apps and online services

BrewBench Monitor
Web and Mobile site to monitor temps from your LAN
BrewBench Forum
BrewBench community and forum

Story

Read more

Schematics

Thermistor

Temperature sensor
Temperature thermistor bb

Wiring Diagram

Brewbench wiring diagram pgaewgdcml

Fritzing Wiring Diagram

SSR Wiring Diagram

Brewbench wiring diagram ssr apg2tpb4kg

SSR Fritzing Wiring Diagram

Code

Github

https://github.com/brewbench

Credits

Andrew Van Tassel

Andrew Van Tassel

1 project • 12 followers
I am a software, DevOps, data engineer and also a home brewer.
Lee Kendrick

Lee Kendrick

1 project • 7 followers
Insatiable appetite for creating and learning. I am an Engineer Technician, Master Welder, Electrician, Fabricator, and a Brewer.
Thanks to Lee Kendrick.
