Salat Time

SalatTime-Arduino-oled

An Arduino code that displays on a small 0.98" OLED SSD1306 Date/Time and also calculates and displays Salat Time for a given town

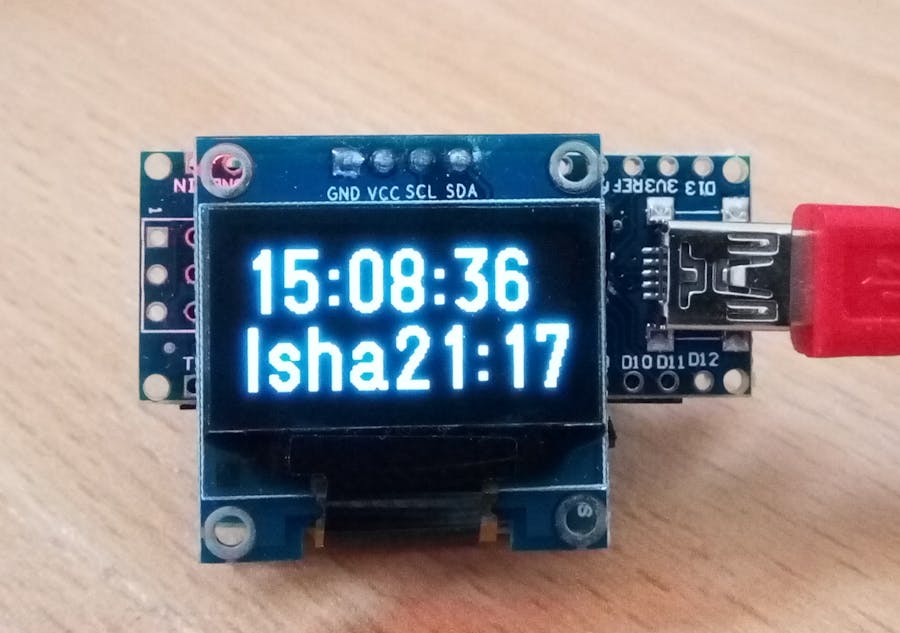

The animation at the end will give the different time as following:

1. Building the circuit

You need

1 Arduino Nano but any Arduino can be used.

1 RTC DS1307 or DS3231 (more precise)

1 I2C OLED display

I used a small 0.98" OLED with I2C interface SSD1106 that is supported by the excellent library U8g2

That's all

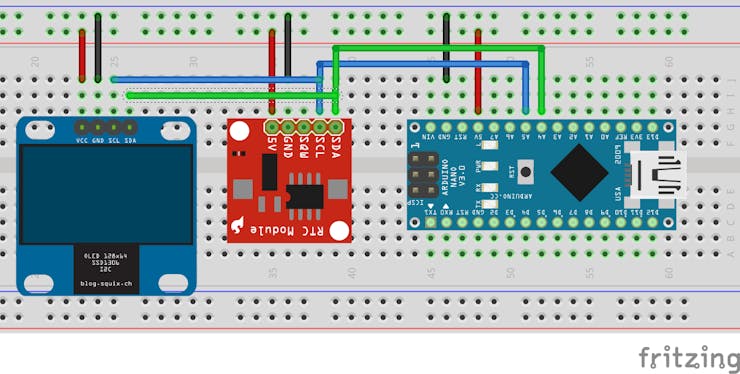

Here is the schematic

2. The program

The code is shared on github:

https://github.com/blotfi/SalatTime-Arduino-oled

This code has math routines to compute sun position and muslims salat (prayer) time for a given town (latitude / longitude), DST and convention. The hardware part is composed of an Arduino Nano, a RTC DS1307 and the SSD1306 OLED display to display the time, the date and prayer times.

More info

• https://baghli.blogspot.com/2016/07/rtc-salattime-et-arduino.html

• https://baghli.blogspot.com/2016/07/position-du-soleil-et-salattime-pour.html

• http://salat-mosque.com/programme.php#Sources

• check the conventions on http://salat-mosque.com/salattime.php (in expert mode)

Here is the part of code you have to adapt to change for your town:

in mainroutines.cpp

/** change your town */
	const char CountryName[] PROGMEM = "Algeria";
	const char TownName[] PROGMEM = "Tlemcen";
	const double latitude = 34.88*deg2rd;
	const double longitude = -1.31*deg2rd;
	const int TimeZoneTown = 	1;
	const int Convention = 1;
	const int DST = 0;

in stoled.ino

//rtc.adjust(DateTime(F(__DATE__), F(__TIME__)));

uncomment to force the RTC to take the compilation date and time
