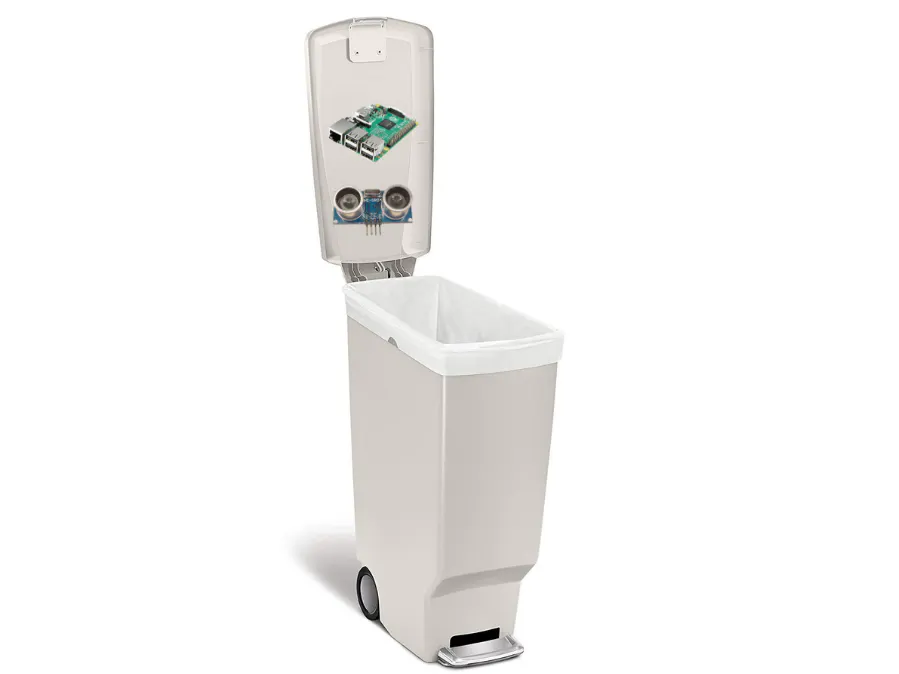

Cellular IoT: Smart Garbage Can

Our Smart Garbage Can is equipped with sensors that can monitor the level of garbage in your can and alert if it needs removal.

IntermediateShowcase (no instructions)1 hour777
Cellular IoT: Smart Garbage Can

Things used in this project

Hardware components

Raspberry Pi Zero
Raspberry Pi Zero
×1

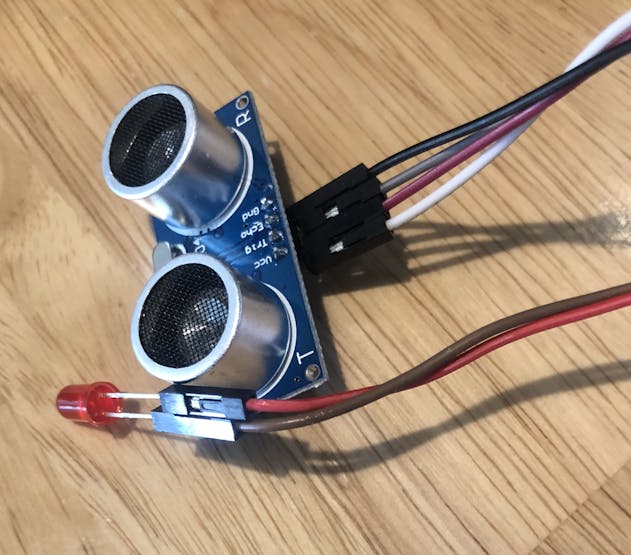

Ultrasonic Sensor - HC-SR04 (Generic)
Ultrasonic Sensor - HC-SR04 (Generic)
×1
LED (generic)
LED (generic)
×1

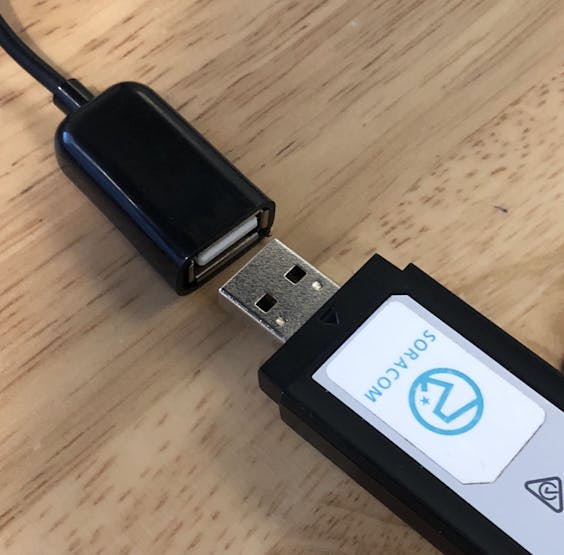

Huawei MS2131 USB-stick
×1

Story

Read more

Schematics

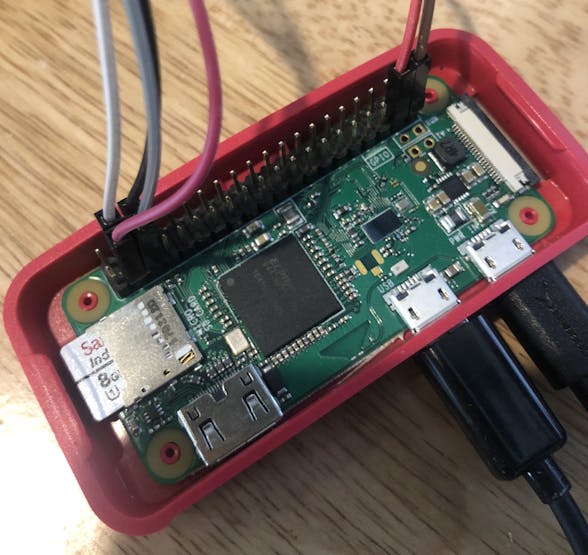

Smart Garbage Wiring

Code

Ultrasonic/Led Code

Python
#!/usr/bin/python
import time
import os
import RPi.GPIO as GPIO

binCapacity = "Empty"

# Setup GPIOs
GPIO.setmode(GPIO.BCM)

# Define the LED GPIO pin and configure it as an output
GPIO.setup(26,GPIO.OUT)

# Turn on the LED for two seconds
GPIO.output(26, GPIO.HIGH)
time.sleep(2)
GPIO.output(26, GPIO.LOW)

# function to read distance from sensor
def read_distance():

    # specify GPIO pins to use for the Ultrasonic sensor
    TRIG = 2 # GPIO02
    ECHO = 3 # GPIO03

    # set pin mode and initialize
    GPIO.setup(TRIG,GPIO.OUT)
    GPIO.setup(ECHO,GPIO.IN)

    # send a very short (10 micro seconds) pulse to "TRIG" pin
    GPIO.output(TRIG, GPIO.HIGH)
    time.sleep(0.00001)
    GPIO.output(TRIG, GPIO.LOW)

    # wait for "ECHO" pin becomes HIGH
    signaloff = time.time()
    while GPIO.input(ECHO) != GPIO.HIGH:
        signaloff = time.time()

    # wait for "ECHO" pin becomes LOW
    signalon = signaloff
    while time.time() < signaloff + 0.1: # timeout in 0.1 seconds
        if GPIO.input(ECHO) == GPIO.LOW:
            signalon = time.time()
            break

    # cleanup GPIO state
    # GPIO.cleanup()

    # calculate distance from time difference
    # sound(ultrasonic) travels 340 m / seconds
    # distance (cm) can be obtained by 340(m/s) x 100(m/cm) * time(s) / 2
    time_passed = signalon - signaloff
    distance = 340 * 100 * time_passed / 2

    # cleanup GPIO state
    #GPIO.cleanup()

    # since the sensor cannot guage over 500 cm,
    # distance over 500 is considered as a noise
    if distance <= 500:
	time.sleep(2)
        return distance
    else:
        time.sleep(2)
	return None

# if executed directly (not import as library)
if __name__ == '__main__':

    while True:
        start_time = time.time()
        distance = read_distance()
        if distance:
            print "distance: %.1f cm" % (distance)
            os.system("mosquitto_pub -h beam.soracom.io -t sorapi -m '%.1f'" % (distance))

    	if distance <= 20 and distance > 0:
       	 	if binCapacity == "Empty":
                	binCapacity = "Full"
                	print("Time to take out the garbage!")
                	os.system("mosquitto_pub -h beam.soracom.io -t sorapi_bin -m 'Full'")
                	GPIO.output(26, GPIO.HIGH)
        	else:
                	GPIO.output(26, GPIO.HIGH)
    	elif distance > 20:
        	if binCapacity == "Full":
                	binCapacity = "Empty"
                	GPIO.output(26, GPIO.LOW)
                	print("Thanks for emptying the garbage!")
                	os.system("mosquitto_pub -h beam.soracom.io -t sorapi_bin -m 'Empty'")
        	else:
                	GPIO.output(26, GPIO.LOW)
    	else:
        	GPIO.output(26, GPIO.LOW)

	# wait for next loop
        wait = start_time + 1 - time.time()
        if wait > 0:
            time.sleep(wait)
