Smart Plant Watering System

# Plant Watering System - Midterm 2

## Overview

The purpose of this project was to send connect an micro-controller to adafuit.io, send data to a dashboard, and be able to receive a signal from the dashboard to water a plant.

## Details

The device will use the following components:

**Particle Argon (qty 1)

**ElectroPeak 64x128 OLED screen (qty 1)

**resistors (one(1) 220ohm and one(1) 2.2.K ohm)

**Transistor model 2N3906 (qty 1)

**SONGLE RELAY SRD-03VDC-SL-C(qty 1)

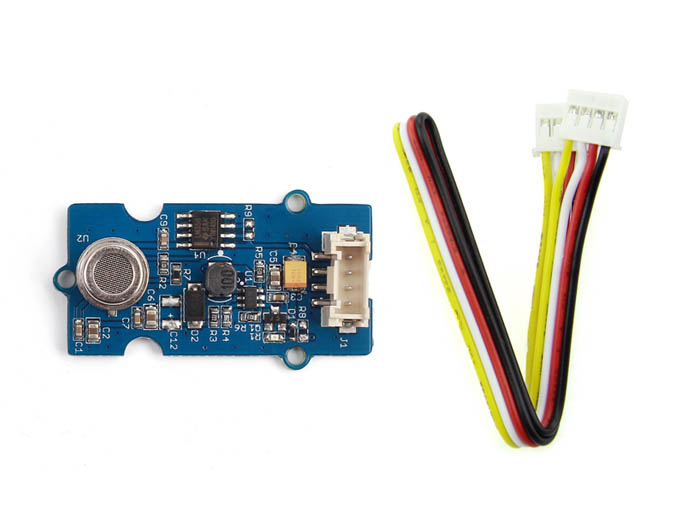

**Grove - Air Quality Sensor v1.3 (qty 1)

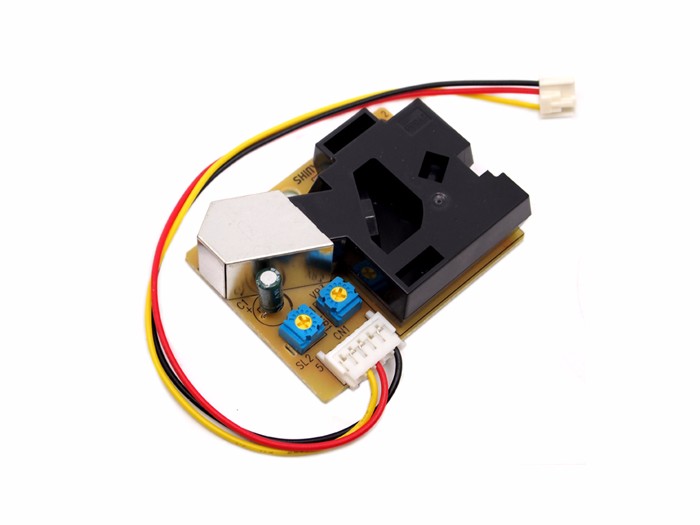

**Grove - Dust Sensor v1.0 (qty 1)

**BME/BMP280 (qty 1)

**soil Moisture Sensor Capacitor Module for Arduino Corrosion Resistant 3 B2t3 (qty 1)

**submersible water pump(qty 1)

The project will be completed in the following steps:

1. Notebook - rough documentation of idea and flow chart

1. Fritzing - A diagram

1. Breadboard

1. Coding

___

## Summary

Our class was given this project to do as for our second "midterm". The requirements that were given were to make something that can:

1) Collect plant soil data (capacitance levels of soil).

2) Collect room environmental conditions (Air Quality, Dust levels, Temperature, Humidity, and Pressure).

3) Send collected data to a Dashboard on Adafruit.IO.

4) Receive a signal from Dashboard to water plant for X seconds per press.

5) Display all data on an OLED screen on system.
