Compact & Low-Cost ESP32 IoT Air Quality Monitor (AP Mode)

Invisible indoor pollutants? This ESP32 IoT node reveals them—TVOC, eCO₂, temp & humidity—via its own Wi-Fi dashboard.

BeginnerWork in progress4 hours2,203

Compact & Low-Cost ESP32 IoT Air Quality Monitor (AP Mode)

Things used in this project

Hardware components

LILYGO T-Display S3 (ESP32-S3 + 1.9″ ST7789)

ENS160+AHT21 CARBON Dioxide CO2 eCO2 TVOC Air Quality And Temperature And Humidity Sensor Replace CCS811 For Arduino

Software apps and online services

Arduino IDE 2.x

ESP32 Board Support Package (“esp32 by Espressif Systems”)

TFT_eSPI

PNGdec

ScioSense _ENS160

AHTxx

WebServer (ESP32 core)

WiFi (ESP32 core)

Hand tools and fabrication machines

Soldering iron (generic)

Dupont Wires

3D Printer (e.g., Creality Ender 3)

Story

Demonstration video

Modern homes excel at saving energy — unfortunately they also excel at trapping pollution. U.S. EPA measurements show that volatile-organic-compound (VOC) concentrations indoors are “consistently up to ten times higher than outdoors, ” even before you start cooking or cleaning. US EPA Field work from the HOME-Chem project found that a single pan-fry can drive VOC and particulate peaks to levels that rival highly polluted megacities. ScienceDirectThe New Yorker I wanted a pocket-size monitor that would reveal those spikes instantly, without shipping data to any cloud. The result is a €25 ESP32-S3 node with an on-board colour screen and its own Wi-Fi hotspot plus auto-refreshing HTTP page—everything you need to “see” the air around you in real time.

Why this tiny box can be trusted

The core sensor is ScioSense’s ENS160, a four-element MOX chip that outputs TVOC, equivalent CO₂ and a five-level AQI compliant with the German UBA scale. ScioSense Its typical response ( t₉₀ ) is under a minute once warmed, and the datasheet recommends an occasional software reset to limit baseline drift — my firmware does exactly that every five minutes. ScioSense Temperature and humidity come from an AHT20, accurate to ±0.3 °C and ±2 % RH; those values are fed straight back to the ENS160 for on-chip compensation. adafruit.com A LILYGO T-Display S3 provides an ESP32-S3, 8 MB PSRAM and a 1.9″ ST7789 TFT on one PCB, keeping the build truly compact.

Introduction picture for the 135x240 pixels screen

How the firmware works

At boot the microcontroller decodes a PNG splash that lives in flash, streamed line-by-line with Larry Bank’s PNGdec library—no SD card required. It then starts a soft-AP called ESP8266_Mesure, fixes the IP at 192.168.4.22 and launches an Arduino-style WebServer. Every second the loop reads the AHT20, pushes that data into the ENS160, and refreshes both the TFT dashboard and the browser page. Gradients and text are drawn with TFT_eSPI, a graphics library heavily optimised for ESP32 hardware.

What the real-world tests show

During a routine stir-fry the monitor jumped from a calm 30 ppb to over 400 ppb TVOC in under thirty seconds, flipping the AQI bar from green to solid orange. Cracking one window pulled the index back below 100 in roughly twelve minutes, right in line with the decay curves reported for kitchen VOCs in peer-reviewed ventilation studies. ScienceDirectScienceDirect A more dramatic demo appears in the build video: I hold a glass of acetone sealed with cardboard a few centimetres from the sensor. The moment the cover is lifted, the ENS160 flags an immediate AQI 5—“heavily polluted.” That isn’t surprising when you note that acetone’s vapour pressure is about 30 kPa at 25 °C, meaning it fills a room faster than you can step back. The bar on the TFT slams to red while any phone connected to the hotspot sees the same spike.

DIY ESP32 Air Quality Monitor: Real-Time AQI Detection with ENS160 Sensor

Night-time readings tell another story: with doors closed and no activity, the unit settles around 450 ppm eCO₂, a value generally accepted as a sign of adequate baseline ventilation in occupied spaces. PubMed Central

Enclosure

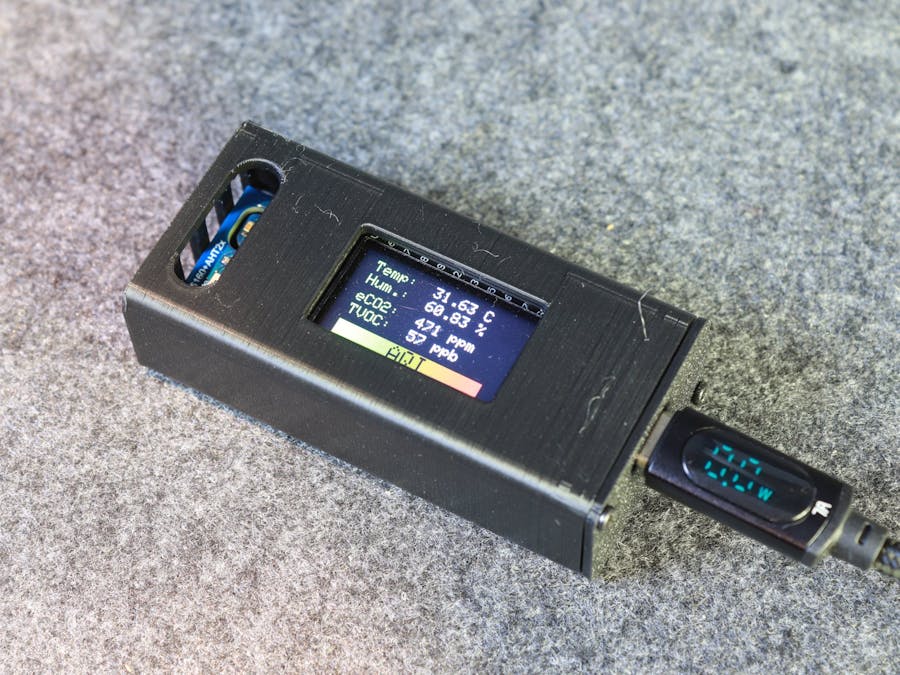

To ensure the durability and portability of the air quality monitor, a custom enclosure was designed. The design accommodates the ESP32-S3 board, the ENS160 gas sensor, and the AHT20 temperature and humidity sensor, providing precise cutouts for each component. The enclosure was 3D printed using PLA material. This protective casing not only safeguards the internal electronics but also enhances the device's aesthetic appeal, making it suitable for both desktop and portable applications.

What's next

Because everything already sits on an ESP32-S3, it is straightforward to add MQTT and feed Home-Assistant, or to drop the board into modem-sleep between scans for better battery life—Espressif’s power-management docs show current drops of an order of magnitude when Wi-Fi naps between bursts. A Li-ion cell and TP4056 charger would make the node truly cable-free, and the raw-resistance mode of the ENS160 opens the door to on-device machine-learning that could recognise “cook”, “clean” or “spray can” just from gas signatures.

Knowing the air you breathe shouldn’t require a lab bench or a cloud subscription. With a handful of AliExpress parts, 20 € and an evening of soldering, this little hotspot lets you watch indoor pollution bloom—and more importantly, disappear the moment you crack a window.

Code

code

#include <AHTxx.h>
#include <Arduino.h>
// #include <BluetoothSerial.h>  // Inclure la bibliothque BluetoothSerial
#include <PNGdec.h>
#include <TFT_eSPI.h>  // Bibliothque graphique
#include <WebServer.h>
#include <WiFi.h>
#include <Wire.h>
#include <image.h>

#include "SPI.h"
#include "ScioSense_ENS160.h"  // ENS160 library

const char *ssid = "ESP8266_Mesure";
const char *password = "12345678";

// Configuration de l'IP fixe
IPAddress local_IP(192, 168, 4, 22);  // Adresse IP fixe
IPAddress gateway(192, 168, 4, 1);
IPAddress subnet(255, 255, 255, 0);
WebServer server(80);

// Dfinition des constantes
#define MAX_IMAGE_WIDTH 240  // Ajustez pour vos images

// Dfinition des variables
int16_t xpos = 0;
int16_t ypos = 0;
float temperature, humidity, eCO2, TVOC;
int AQI = 0;
int AQI_precedent = 0;
uint16_t compteur = 0;

// Dfinition des variables pour les bibliothques
TFT_eSPI tft = TFT_eSPI();  // Dclaration de l'instance de l'cran
ScioSense_ENS160 ens160(ENS160_I2CADDR_1);
AHTxx aht20(AHTXX_ADDRESS_X38, AHT2x_SENSOR);  // Adresse du capteur, type du capteur
PNG png;                                       // Instance du dcodeur PNG
// BluetoothSerial SerialBT;                      // Instance de la bibliothque BluetoothSerial

/// FONCTIONS

// Page principale
void handleRoot() {
  server.sendHeader("Cache-Control", "no-store");
  String html =
      "<!DOCTYPE html>\
      <html>\
      <head>\
      <meta charset='UTF-8'>\
      <title>ESP32 Mesures</title>\
      <style>\
      body { font-family: Arial, sans-serif; text-align: center; background-color: #f4f4f9; color: #333; margin: 0; padding: 0; }\
      h1 { font-size: 28px; margin-top: 20px; }\
      ul { list-style: none; padding: 0; font-size: 20px; }\
      li { margin: 15px 0; }\
      .aqi-bar { width: 80%; height: 25px; margin: 20px auto; background: linear-gradient(to right, green, yellow, orange, red); position: relative; border-radius: 5px; overflow: hidden; }\
      .aqi-fill { height: 100%; background: white; width: " +
      String((1 - (AQI / 5.0)) * 100) +
      "%; position: absolute; right: 0; top: 0; }\
      footer { margin-top: 20px; font-size: 14px; color: #666; }\
      </style>\
      <script>\
      setTimeout(function() { location.reload(true); }, 1000); // Force le rechargement toutes les secondes\
      </script>\
      </head>\
      <body>\
      <h1>ESP32 - Mesures de Qualit de l'Air</h1>\
      <ul>\
      <li><strong>Temprature :</strong> " +
      String(temperature, 2) +
      " C</li>\
      <li><strong>Humidit :</strong> " +
      String(humidity, 2) +
      " %</li>\
      <li><strong>eCO2 :</strong> " +
      String(eCO2, 0) +
      " ppm</li>\
      <li><strong>TVOC :</strong> " +
      String(TVOC, 0) +
      " ppb</li>\
      <li><strong>AQI :</strong> " +
      String(AQI) +
      "</li>\
      </ul>\
      <div class='aqi-bar'>\
        <div class='aqi-fill'></div>\
      </div>\
      <footer>Page mise  jour automatiquement toutes les secondes</footer>\
      </body>\
      </html>";
  server.send(200, "text/html", html);
}

// Fonction de rappel pour dessiner des pixels sur l'cran
void pngDraw(PNGDRAW *pDraw) {
  uint16_t lineBuffer[MAX_IMAGE_WIDTH];
  png.getLineAsRGB565(pDraw, lineBuffer, PNG_RGB565_BIG_ENDIAN, 0xffffffff);
  tft.pushImage(xpos, ypos + pDraw->y, pDraw->iWidth, 1, lineBuffer);
}

void fond_ecran() {
  tft.fillScreen(TFT_BLACK);  // Efface l'cran
  tft.setCursor(20, 10);
  tft.setTextColor(TFT_GREEN);
  tft.printf("Temp: ", temperature);
  tft.setCursor(20, 30);
  tft.printf("Hum.: ", humidity);
  tft.setCursor(20, 55);
  tft.printf("eCO2: ", eCO2);
  tft.setCursor(20, 75);
  tft.printf("TVOC: ", TVOC);
}

void miseajour_ecran() {
  tft.fillRect(105, 0, 120, 94, TFT_BLACK);
  tft.setTextSize(2);
  tft.setTextColor(TFT_WHITE);
  tft.setCursor(105, 10);
  tft.printf("%.2f C\n", temperature);
  tft.setCursor(105, 30);
  tft.printf("%.2f %%\n", humidity);
  tft.setCursor(105, 55);
  tft.printf("%.0f ppm \n", eCO2);
  tft.setCursor(105, 75);
  tft.printf("%.0f ppb \n", TVOC);

  if (AQI_precedent != AQI) {
    tft.fillRect(17, 100, 3, 25, TFT_BLACK);
    tft.fillRect(220, 100, 3, 25, TFT_BLACK);
    tft.fillRectHGradient(20, 100, 200, 25, TFT_GREEN, TFT_RED);
    tft.setTextSize(3);
    tft.setTextColor(TFT_BLACK);
    tft.setCursor(95, 101);
    tft.printf("AQI");
    float position = 18 + 200 * (25 * (AQI - 1) / 100.00);
    tft.fillRect((int)position, 100, 4, 25, TFT_YELLOW);
  }
}

/*--------------------------------------------------------------------------
  SETUP function
  initiate sensor
 --------------------------------------------------------------------------*/
void setup() {
  // Initialisation cran
  tft.init();
  tft.setRotation(1);  // Rotation de l'cran, ajustez selon vos besoins
  tft.fillScreen(TFT_BLACK);

  tft.setTextColor(TFT_WHITE, TFT_BLACK);
  tft.setTextSize(2);
  tft.setCursor(0, 0);

  int16_t rc = png.openFLASH((uint8_t *)fond_reduit, sizeof(fond_reduit), pngDraw);
  if (rc == PNG_SUCCESS) {
    Serial.println("Fichier PNG ouvert avec succs");
    tft.startWrite();
    uint32_t dt = millis();
    rc = png.decode(NULL, 0);
    Serial.print(millis() - dt);
    Serial.println("ms");
    tft.endWrite();
  }

  // Initialiser le bus I2C avec les pins spcifies
  Wire.begin(21, 22);

  Serial.begin(9600);

  // // Initialisation Bluetooth
  // SerialBT.begin("ESP32_AirQuality"); // Nom du priphrique Bluetooth
  // Serial.println("Le priphrique est prt  jumeler!");
  // Configuration de l'IP fixe
  WiFi.config(local_IP, gateway, subnet);
  WiFi.softAP(ssid, password);
  IPAddress IP = WiFi.softAPIP();
  Serial.print("Point d'accs IP address: ");
  Serial.println(IP);

  server.on("/", handleRoot);
  server.begin();
  Serial.println("Serveur web dmarr");

  while (!Serial) {
  }

  delay(500);

  Serial.print("ENS160...");
  ens160.begin();
  Serial.println(ens160.available() ? "done." : "failed!");
  if (ens160.available()) {
    // Print ENS160 versions
    Serial.print("\tRev: ");
    Serial.print(ens160.getMajorRev());
    Serial.print(".");
    Serial.print(ens160.getMinorRev());
    Serial.print(".");
    Serial.println(ens160.getBuild());

    ens160.setMode(ENS160_OPMODE_RESET);
    delay(100);
    ens160.setMode(ENS160_OPMODE_STD);

    // Initialisation AHT20
    while (aht20.begin() != true) {
      Serial.println(F("AHT2x non connect ou chec du chargement des coefficients de calibration"));
      delay(5000);
    }
    Serial.println(F("AHT20 OK"));
  }

  fond_ecran();
}

/*--------------------------------------------------------------------------
  MAIN LOOP FUNCTION
  Cycle every 1000ms and perform measurement
 --------------------------------------------------------------------------*/

void loop() {
  if (ens160.available()) {
    temperature = aht20.readTemperature();  // read 6-bytes via I2C, takes 80 milliseconds
    humidity = aht20.readHumidity();
    ens160.set_envdata(temperature, humidity);

    ens160.measure(true);
    ens160.measureRaw(true);
    AQI_precedent = AQI;
    AQI = ens160.getAQI();
    TVOC = ens160.getTVOC();
    eCO2 = ens160.geteCO2();

    // Envoyer les donnes par Bluetooth
    // SerialBT.printf("Temp: %.2f C, Hum: %.2f %%, eCO2: %.0f ppm, TVOC: %.0f ppb, AQI: %d\n", temperature, humidity, eCO2, TVOC, AQI);
  }
  miseajour_ecran();
  server.handleClient();
  delay(1000);

  compteur++;
  if (compteur > 300) {
    compteur = 0;
    ens160.setMode(ENS160_OPMODE_RESET);
    delay(250);
    ens160.setMode(ENS160_OPMODE_STD);
  }
}
