Belle Danielle CHAVEZ
Published © MIT

General Purpose IO

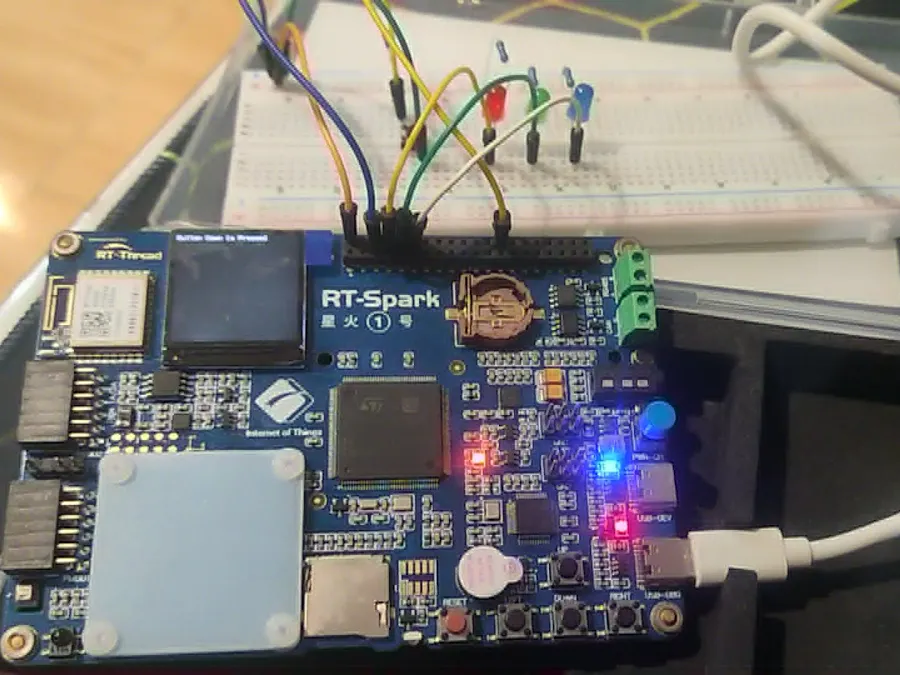

Implementing a dynamic user interface on the RT-Spark board using external breadboard switches to control the built-in LCD and LEDs.

IntermediateShowcase (no instructions)3 hours11
General Purpose IO

Things used in this project

Hardware components

Breadboard (generic)
Breadboard (generic)
×1
Jumper wires (generic)
Jumper wires (generic)
×7
LED (generic)
LED (generic)
×3
RT-Thread STM32F407ZGTx
×1
Resistor 220 ohm
Resistor 220 ohm
×4
PTS 645 Series Switch
C&K Switches PTS 645 Series Switch
×1

Software apps and online services

STM32CUBEPROG
STMicroelectronics STM32CUBEPROG

Story

Read more

Custom parts and enclosures

General Purpose IO

Schematics

General Purpose IO

Code

General Purpose IO

C/C++
/* USER CODE BEGIN Header */
/**
  ******************************************************************************
  * @file           : main.c
  * @brief          : Main program body
  ******************************************************************************
  * @attention
  *
  * Copyright (c) 2026 STMicroelectronics.
  * All rights reserved.
  *
  * This software is licensed under terms that can be found in the LICENSE file
  * in the root directory of this software component.
  * If no LICENSE file comes with this software, it is provided AS-IS.
  *
  ******************************************************************************
  */
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"

/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
#include "drv_lcd.h"

/* USER CODE END Includes */

/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */

/* USER CODE END PTD */

/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */

/* USER CODE END PD */

/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */

/* USER CODE END PM */

/* Private variables ---------------------------------------------------------*/
SRAM_HandleTypeDef hsram1;

/* USER CODE BEGIN PV */

int p = 0;

/* USER CODE END PV */

/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
static void MX_GPIO_Init(void);
static void MX_FSMC_Init(void);
/* USER CODE BEGIN PFP */
void MY_GPIO_Init(void);
void MY_LEDS_Init(void);
void RGBLED_Config(uint8_t red, uint8_t green, uint8_t blue);
void light_leds(void);
void print_switches(void);
/* USER CODE END PFP */

/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */

// Switch Active-High
uint8_t switch_Up(void)     { return HAL_GPIO_ReadPin(GPIOC, GPIO_PIN_5) == GPIO_PIN_RESET; }
uint8_t switch_Down(void)   { return HAL_GPIO_ReadPin(GPIOC, GPIO_PIN_1) == GPIO_PIN_RESET; }
uint8_t switch_Left(void)   { return HAL_GPIO_ReadPin(GPIOC, GPIO_PIN_0) == GPIO_PIN_RESET; }
uint8_t switch_Right(void)  { return HAL_GPIO_ReadPin(GPIOC, GPIO_PIN_4) == GPIO_PIN_RESET; }
uint8_t switch_Center(void) { return HAL_GPIO_ReadPin(GPIOG, GPIO_PIN_6)  == GPIO_PIN_RESET; }

// LED Active-Low
void MY_LEDS_Init(void) {
    GPIO_InitTypeDef cfg = {0};

    HAL_GPIO_WritePin(GPIOA, GPIO_PIN_0 | GPIO_PIN_2 | GPIO_PIN_3, GPIO_PIN_SET);

    __HAL_RCC_GPIOA_CLK_ENABLE();
    cfg.Pin   = GPIO_PIN_0 | GPIO_PIN_2 | GPIO_PIN_3;
    cfg.Mode  = GPIO_MODE_OUTPUT_OD;   /* Open-drain — required by the RT-Spark schematic */
    cfg.Pull  = GPIO_NOPULL;
    cfg.Speed = GPIO_SPEED_FREQ_LOW;
    HAL_GPIO_Init(GPIOA, &cfg);

    RGBLED_Config(0, 0, 0);             /* All channels off */
}

void RGBLED_Config(uint8_t red, uint8_t green, uint8_t blue) {
    HAL_GPIO_WritePin(GPIOA, GPIO_PIN_2, !red);
    HAL_GPIO_WritePin(GPIOA, GPIO_PIN_3, !green);
    HAL_GPIO_WritePin(GPIOA, GPIO_PIN_0, !blue);
}

void light_leds(void) {
    RGBLED_Config(switch_Up(), switch_Center(), switch_Down());
}

void print_switches() {
	if(switch_Up()) {
		lcd_show_string(0, 0, 16, "Button Up is Pressed    ");
	} else if(switch_Down()) {
		lcd_show_string(0, 0, 16, "Button Down is Pressed  ");
	} else if(switch_Left()) {
		lcd_show_string(0, 0, 16, "Button Left is Pressed  ");
	} else if(switch_Right()) {
		lcd_show_string(0, 0, 16, "Button Right is Pressed ");
	} else if(switch_Center()) {
		lcd_show_string(0, 0, 16, "Button Center is Pressed");
	}
}

// Force pins back to inputs and pull them LOW
void MY_GPIO_Init(void) {
    GPIO_InitTypeDef cfg = {0};

    // PC buttons
    __HAL_RCC_GPIOC_CLK_ENABLE();

    cfg.Pin  = GPIO_PIN_0 | GPIO_PIN_1 | GPIO_PIN_4 | GPIO_PIN_5;
    cfg.Mode = GPIO_MODE_INPUT;
    cfg.Pull = GPIO_PULLUP;
    HAL_GPIO_Init(GPIOC, &cfg);

    // PG6 center button
    __HAL_RCC_GPIOG_CLK_ENABLE();

    cfg.Pin  = GPIO_PIN_6;
    cfg.Mode = GPIO_MODE_INPUT;
    cfg.Pull = GPIO_PULLUP;
    HAL_GPIO_Init(GPIOG, &cfg);
}

/* USER CODE END 0 */

/**
  * @brief  The application entry point.
  * @retval int
  */
int main(void)
{

  /* USER CODE BEGIN 1 */

  /* USER CODE END 1 */

  /* MCU Configuration--------------------------------------------------------*/

  /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
  HAL_Init();

  /* USER CODE BEGIN Init */

  /* USER CODE END Init */

  /* Configure the system clock */
  SystemClock_Config();

  /* USER CODE BEGIN SysInit */

  /* USER CODE END SysInit */

  /* Initialize all configured peripherals */
  MX_GPIO_Init();
  MX_FSMC_Init();
  /* USER CODE BEGIN 2 */

    MY_GPIO_Init();
    MY_LEDS_Init();

    drv_lcd_init();
    lcd_clear(BLACK);
    lcd_set_color(BLACK, WHITE);
    lcd_show_string(0, 0, 16, "Hello World!");

  /* USER CODE END 2 */

  /* Infinite loop */
  /* USER CODE BEGIN WHILE */
  while (1)
  {
    /* USER CODE END WHILE */
	  print_switches();
	  light_leds();

	  HAL_Delay(50);
    /* USER CODE BEGIN 3 */
  }
  /* USER CODE END 3 */
}

/**
  * @brief System Clock Configuration
  * @retval None
  */
void SystemClock_Config(void)
{
  RCC_OscInitTypeDef RCC_OscInitStruct = {0};
  RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};

  /** Configure the main internal regulator output voltage
  */
  __HAL_RCC_PWR_CLK_ENABLE();
  __HAL_PWR_VOLTAGESCALING_CONFIG(PWR_REGULATOR_VOLTAGE_SCALE1);

  /** Initializes the RCC Oscillators according to the specified parameters
  * in the RCC_OscInitTypeDef structure.
  */
  RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSI;
  RCC_OscInitStruct.HSIState = RCC_HSI_ON;
  RCC_OscInitStruct.HSICalibrationValue = RCC_HSICALIBRATION_DEFAULT;
  RCC_OscInitStruct.PLL.PLLState = RCC_PLL_NONE;
  if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
  {
    Error_Handler();
  }

  /** Initializes the CPU, AHB and APB buses clocks
  */
  RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
                              |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
  RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_HSI;
  RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
  RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV1;
  RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;

  if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_0) != HAL_OK)
  {
    Error_Handler();
  }
}

/**
  * @brief GPIO Initialization Function
  * @param None
  * @retval None
  */
static void MX_GPIO_Init(void)
{
  GPIO_InitTypeDef GPIO_InitStruct = {0};
  /* USER CODE BEGIN MX_GPIO_Init_1 */

  /* USER CODE END MX_GPIO_Init_1 */

  /* GPIO Ports Clock Enable */
  __HAL_RCC_GPIOF_CLK_ENABLE();
  __HAL_RCC_GPIOA_CLK_ENABLE();
  __HAL_RCC_GPIOG_CLK_ENABLE();
  __HAL_RCC_GPIOE_CLK_ENABLE();
  __HAL_RCC_GPIOD_CLK_ENABLE();
  __HAL_RCC_GPIOB_CLK_ENABLE();

  /*Configure GPIO pin Output Level */
  HAL_GPIO_WritePin(GPIOF, LCD_BL_Pin|GPIO_PIN_11|GPIO_PIN_12, GPIO_PIN_RESET);

  /*Configure GPIO pin Output Level */
  HAL_GPIO_WritePin(GPIOA, LED_B_Pin|LED_R_Pin|LED_G_Pin, GPIO_PIN_SET);

  /*Configure GPIO pin Output Level */
  HAL_GPIO_WritePin(LCD_RST_GPIO_Port, LCD_RST_Pin, GPIO_PIN_RESET);

  /*Configure GPIO pins : LCD_BL_Pin PF11 PF12 */
  GPIO_InitStruct.Pin = LCD_BL_Pin|GPIO_PIN_11|GPIO_PIN_12;
  GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;
  GPIO_InitStruct.Pull = GPIO_NOPULL;
  GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_LOW;
  HAL_GPIO_Init(GPIOF, &GPIO_InitStruct);

  /*Configure GPIO pins : LED_B_Pin LED_R_Pin LED_G_Pin */
  GPIO_InitStruct.Pin = LED_B_Pin|LED_R_Pin|LED_G_Pin;
  GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;
  GPIO_InitStruct.Pull = GPIO_NOPULL;
  GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_LOW;
  HAL_GPIO_Init(GPIOA, &GPIO_InitStruct);

  /*Configure GPIO pins : SW_UP_Pin SW_DN_Pin SW_LT_Pin SW_RT_Pin
                           SW_CR_Pin */
  GPIO_InitStruct.Pin = SW_UP_Pin|SW_DN_Pin|SW_LT_Pin|SW_RT_Pin
                          |SW_CR_Pin;
  GPIO_InitStruct.Mode = GPIO_MODE_INPUT;
  GPIO_InitStruct.Pull = GPIO_PULLUP;
  HAL_GPIO_Init(GPIOG, &GPIO_InitStruct);

  /*Configure GPIO pin : LCD_RST_Pin */
  GPIO_InitStruct.Pin = LCD_RST_Pin;
  GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;
  GPIO_InitStruct.Pull = GPIO_NOPULL;
  GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_LOW;
  HAL_GPIO_Init(LCD_RST_GPIO_Port, &GPIO_InitStruct);

  /* USER CODE BEGIN MX_GPIO_Init_2 */

  /* USER CODE END MX_GPIO_Init_2 */
}

/* FSMC initialization function */
static void MX_FSMC_Init(void)
{

  /* USER CODE BEGIN FSMC_Init 0 */

  /* USER CODE END FSMC_Init 0 */

  FSMC_NORSRAM_TimingTypeDef Timing = {0};

  /* USER CODE BEGIN FSMC_Init 1 */

  /* USER CODE END FSMC_Init 1 */

  /** Perform the SRAM1 memory initialization sequence
  */
  hsram1.Instance = FSMC_NORSRAM_DEVICE;
  hsram1.Extended = FSMC_NORSRAM_EXTENDED_DEVICE;
  /* hsram1.Init */
  hsram1.Init.NSBank = FSMC_NORSRAM_BANK3;
  hsram1.Init.DataAddressMux = FSMC_DATA_ADDRESS_MUX_DISABLE;
  hsram1.Init.MemoryType = FSMC_MEMORY_TYPE_SRAM;
  hsram1.Init.MemoryDataWidth = FSMC_NORSRAM_MEM_BUS_WIDTH_8;
  hsram1.Init.BurstAccessMode = FSMC_BURST_ACCESS_MODE_DISABLE;
  hsram1.Init.WaitSignalPolarity = FSMC_WAIT_SIGNAL_POLARITY_LOW;
  hsram1.Init.WrapMode = FSMC_WRAP_MODE_DISABLE;
  hsram1.Init.WaitSignalActive = FSMC_WAIT_TIMING_BEFORE_WS;
  hsram1.Init.WriteOperation = FSMC_WRITE_OPERATION_ENABLE;
  hsram1.Init.WaitSignal = FSMC_WAIT_SIGNAL_DISABLE;
  hsram1.Init.ExtendedMode = FSMC_EXTENDED_MODE_DISABLE;
  hsram1.Init.AsynchronousWait = FSMC_ASYNCHRONOUS_WAIT_DISABLE;
  hsram1.Init.WriteBurst = FSMC_WRITE_BURST_DISABLE;
  hsram1.Init.PageSize = FSMC_PAGE_SIZE_NONE;
  /* Timing */
  Timing.AddressSetupTime = 1;
  Timing.AddressHoldTime = 15;
  Timing.DataSetupTime = 60;
  Timing.BusTurnAroundDuration = 0;
  Timing.CLKDivision = 16;
  Timing.DataLatency = 17;
  Timing.AccessMode = FSMC_ACCESS_MODE_A;
  /* ExtTiming */

  if (HAL_SRAM_Init(&hsram1, &Timing, NULL) != HAL_OK)
  {
    Error_Handler( );
  }

  /* USER CODE BEGIN FSMC_Init 2 */

  /* USER CODE END FSMC_Init 2 */
}

/* USER CODE BEGIN 4 */

int _write(int file, char *ptr, int len)
{
  int i = 0;
  for (i = 0; i < len; i++)
  {
    ITM_SendChar((*ptr++));
  }
  return len;
}

/* USER CODE END 4 */

/**
  * @brief  This function is executed in case of error occurrence.
  * @retval None
  */
void Error_Handler(void)
{
  /* USER CODE BEGIN Error_Handler_Debug */
  /* User can add his own implementation to report the HAL error return state */
  __disable_irq();
  while (1)
  {
  }
  /* USER CODE END Error_Handler_Debug */
}
#ifdef USE_FULL_ASSERT
/**
  * @brief  Reports the name of the source file and the source line number
  *         where the assert_param error has occurred.
  * @param  file: pointer to the source file name
  * @param  line: assert_param error line source number
  * @retval None
  */
void assert_failed(uint8_t *file, uint32_t line)
{
  /* USER CODE BEGIN 6 */
  /* User can add his own implementation to report the file name and line number,
     ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
  /* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */
