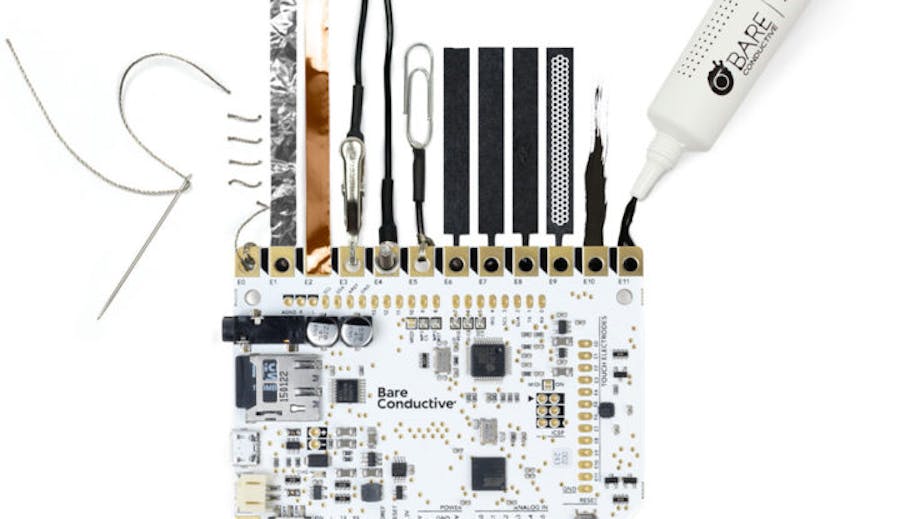

We designed the electrodes to make the Touch Board and Pi Cap easy to connect to. This tutorial will show you some tips and trick you can try to hook your board up to your projects.
So far you might have used only Electric Paint or some wires with crocodile clips, in the project we will show you how you could use conductive thread or copper tape as well as paint and magnets. There are multiple ways to connect to the capacitive sensors and below we list seven materials that you can use, but why not try and find more, take a look and get creative!
Step 1: Electric Paint
The paint that started it all! Electric Paint is a water-based paint that conducts electricity. The paint is a great solution if you want to quickly connect your electronic components together or draw your own creative interface. Depending on how thick you apply the paint, it takes about 15 minutes to dry. It works well both on walls and flat surfaces, but it’s not as good a conductor as copper wire. We wouldn’t recommend this method if you’re creating sensors over long distances.
Links
Step 2: Conductive thread
Have you considered sewing your Touch Board into your wearables or e-textile project? If so, then you might want to use some conductive thread. Loop the thread a couple of times around an electrode and then simply sew the thread to whatever you want to use as an interface. You can then trigger the electrode directly by touching the thread.
Links
Step 3: Copper tape
Adhesive copper tape is really practical and easily sticks on walls or other flat surfaces. It doesn’t allow you to be as creative as Electric Paint does, but if you need to create reliable straight connections then the tape does a really good job. As the tape is adhesive, it’s really easy to apply, it sticks well on surfaces and it conducts electricity just like a wire.
Links
Step 4: Magnet
Magnets are a great one to try, and they will allow you to easily remove your Touch Board or Pi Cap in and out of your Electric Paint interface. You can find a range of small magnets from lots of places, we like e-Magnets.
Simply attach small magnets onto the Electric Paint, or other conductive surfaces – you can do this using the paint itself or a stronger adhesive – then use another set of magnets to connect the Touch Board or Pi Cap through the electrodes to that interface. This is a great application for walls or other flat surfaces.
Links
Step 5: Ring terminals
The electrodes are conveniently sized for M3 hardware. This means that if your project is being mounted into a permanent installation you can easily fit some M3 screws or spacers through the electrodes to attach the board. Combine your screws with some ring terminals, nuts, and bolts and you got yourself a very robust set-up! The top image on the right shows a ring terminal. Using ring terminals is great when you are considering a set-up with wood or walls that need to last a bit longer.
Links
Step 6: Crocodile clips and wires
The forever convenient crocodile clips! They have the benefit of being super easy to attach and detach off the electrodes, which is practical for quick prototyping. While they aren’t the most stable of the methods discussed so far, they also don’t leave any traces and are applied in a matter of seconds. They are really convenient for situations where you just want to quickly connect to your electrodes.
Links
Step 7: Solder
This method is exclusive to the Touch Board. When you look at your Touch Board you can see that the touch electrodes are also available on the right-hand side. This row of pads allows you to solder wires to the electrodes if your application does not require flat mounting. You may also want to consider using shielded cable for your application (check out the tutorial on shielded cable to find out more).
Soldering wires onto your Touch Board requires a bit of experience and can leave some traces if you remove your wires, so make sure you know what you want to solder to!
Links
Step 8: Pi Cap
The Touch Board and Pi Caps’ electrodes are fundamentally the same so most of the methods discussed above also apply to the Pi Cap.
This is obviously not an exhaustive list of techniques, so feel free to experiment and develop your own. If you discover any clever solutions we’d love to hear what they are so we can share them with our community.
Get in touch at: info@bareconductive.com or @BareConductive!
