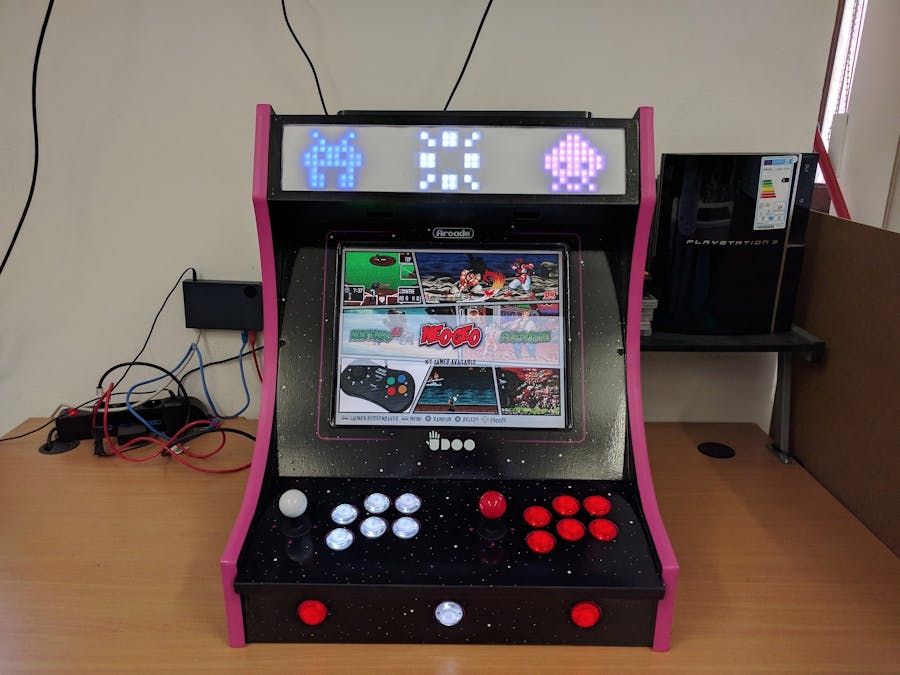

Bartop Arcade Cabinet with UDOO X86

Step by step guide to build your own awesome bartop arcade cabinet with UDOO X86

AdvancedFull instructions provided2 days4,213
Bartop Arcade Cabinet with UDOO X86

Things used in this project

Hardware components

UDOO X86 ULTRA
UDOO X86 ULTRA
You can choose between the UDOO X86 ULTRA or the UDOO BOLT V8
×1
Acrylic Case for UDOO X86
×1
12V 3A Power Adapter
For UDOO X86 ULTRA
×1
M.2 SSD Transcend MTS600
×1
Kit M.2 Wifi/BT
×1
HP Compaq L1706 17" 5ms LCD TFT Monitor 1280x1024 500:1 VGA Display GRADE A
×1
HDMI to VGA adapter
×1
Arcade Game LED USB Encoder PC Joystick Kit
×2
Multiplug
×1
12V Fan
×1
Power Switch
×1
External USB Connector
×1
Speakers 8 ohm
×2
Pieces of wood 120cm x 70cm 1,8cm thick
×2
Screws
×1
T-Molding
×1
Primer spray and Black paint spray
×1
Vinyl stickers
×1
Adafruit Flexible RGB LED Matrix 8x32 WS2812B 5V
×1
5V 3A power adapter
×1

Software apps and online services

ubuntu 16.04
RetroPie
Arduino IDE
Arduino IDE

Hand tools and fabrication machines

Screwdriver
Hammer
Dremel with blade
Soldering iron (generic)
Soldering iron (generic)

Story

Read more
