Smart Sound Processing with Infineon MEMS and MicroPython

Smart audio with Infineon's IM69D130 Shield2Go and CY8CPROTO-062-4343W, delivering high-fidelity sound capture in embedded system.

Things used in this project

Hardware components

Infineon CY8CPROTO-062-4343W Prototyping Board

Infineon S2GOMEMSMICIM69DTOBO1 EVAL BOARD

Software apps and online services

MicroPython

Story

Introduction

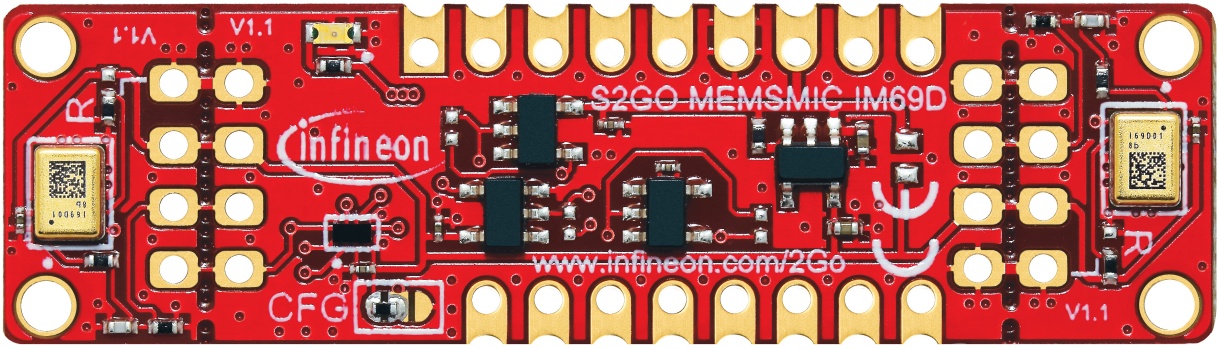

This project is about making machines listen and understand better. We're using a tiny but powerful microphone from Infineon called the S2GO MEMSMIC IM69D. It's really good at picking up clear sound, which is great for things like voice control or recording. We'll hook it up to a small computer, the XMC4200 Platform2Go, that's got the brains to handle the sound the microphone hears. We're coding everything with MicroPython because it's fast and easy to change if we need to. By the end, we'll show you how to put it all together so you can use it in your own projects.

Future work

Machine Learning Integration: Incorporate machine learning algorithms directly onto the microcontroller to enable on-the-edge voice recognition and audio pattern detection, increasing responsiveness and reducing the need for cloud processing.
Power Optimization: Further optimize power consumption for battery-operated devices, potentially through the implementation of sleep modes and wake-on-sound functionality, making the system more sustainable and portable.
IoT Connectivity: Add IoT capabilities to allow the device to communicate with other smart devices and cloud services, enabling features like remote monitoring, data aggregation, and control through a centralized platform.
Enhanced Audio Processing: Develop advanced digital signal processing (DSP) techniques for noise reduction, echo cancellation, and sound localization to improve audio quality and application robustness in various environments.

Code

main.py

import micropython
from machine import I2S, Pin, Timer
from audio_processor import AudioProcessor
from system_monitor import SystemMonitor
import _thread

# Initialize the audio processor and system monitor
audio_processor = AudioProcessor()
system_monitor = SystemMonitor()

# Configure pin P5_0 on J5 as an output
pin_p50 = Pin(5, Pin.OUT)  # Assuming '5' is the pin number for P5_0

# Initialize I2S for the MEMS microphone (adjust pin numbers as necessary)
i2s = I2S(1, ws=Pin(21), sd=Pin(22), sck=Pin(23), mode=I2S.RX, bits=32, format=I2S.MONO, rate=44100)

# Define threads for system monitoring and audio processing
def monitor_system():
    while True:
        system_monitor.check_system_status()
        micropython.schedule(system_monitor.report_status, 0)
        _thread.sleep_ms(500)

def process_audio():
    while True:
        audio_data = i2s.readinto(audio_processor.buffer)
        if audio_data:
            audio_processor.process_data(audio_data)
            if audio_processor.detect_keyword():
                print("Keyword detected!")
                pin_p50.value(1)  # Set P5_0 high
                _thread.sleep_ms(100)  # Debounce delay
                pin_p50.value(0)  # Set P5_0 low
        _thread.sleep_ms(100)

# Start the threads
_thread.start_new_thread(monitor_system, ())
_thread.start_new_thread(process_audio, ())

# Main loop to perform other tasks
while True:
    Timer.sleep_ms(1000)
    # Other tasks can be added here
