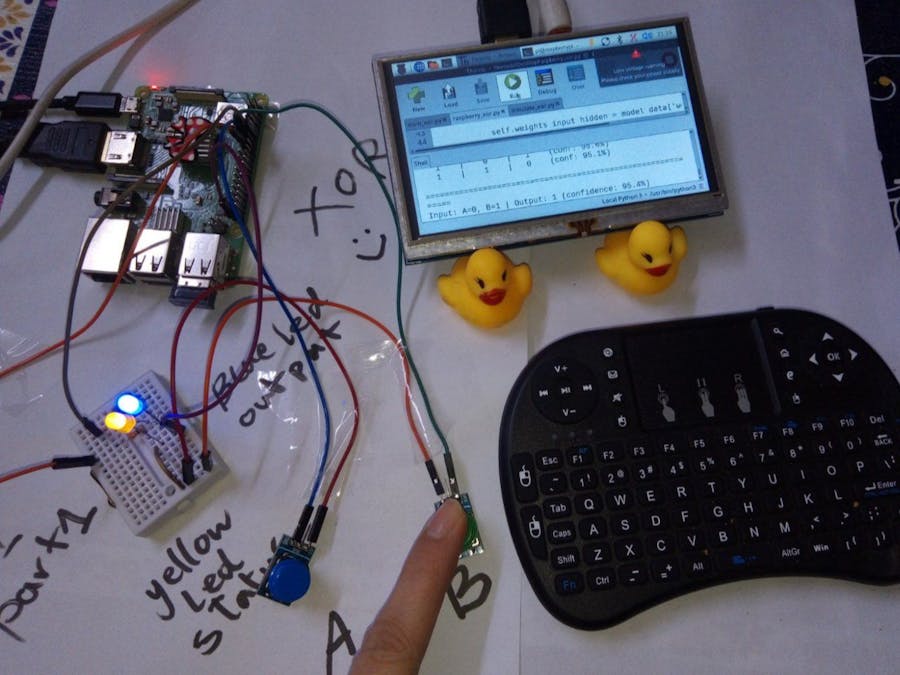

Practical AI Learning with Raspberry Pi - Part 1: Neural XOR

This project introduces students to the basics of Artificial Intelligence using a Raspberry Pi.

BeginnerFull instructions provided1 hour75
Practical AI Learning with Raspberry Pi - Part 1: Neural XOR

Things used in this project

Hardware components

Raspberry Pi 3 Model B
Raspberry Pi 3 Model B
×1
Jumper Wires
DIYables Jumper Wires
×1
LED for Arduino, ESP32, ESP8266, Raspberry Pi
DIYables LED for Arduino, ESP32, ESP8266, Raspberry Pi
×1
Enclosure for Raspberry Pi
DIYables Enclosure for Raspberry Pi
×1
Base Plate Breadboard for Raspberry Pi Prototying
DIYables Base Plate Breadboard for Raspberry Pi Prototying
×1
Resistor 330 ohm
Resistor 330 ohm
×1
Pushbutton switch 12mm
SparkFun Pushbutton switch 12mm
×2
7-Inch Touch Screen Display for Raspberry Pi - HDMI Interface
DIYables 7-Inch Touch Screen Display for Raspberry Pi - HDMI Interface
×1

Story

Read more

Code

XORNeuralNetworkonRaspberryPi.py

Python
"""
XOR Neural Network on Raspberry Pi
Correct implementation with proper weights and English code
"""

import RPi.GPIO as GPIO
import numpy as np
import time

# ============================================
# 1. CORRECT XOR NEURAL NETWORK WEIGHTS
# ============================================

# Input to hidden layer weights (2×2)
weights_input_hidden = np.array([
    [ 5.0, -5.0],   # To hidden neuron 1
    [-5.0,  5.0]    # To hidden neuron 2
])

# Hidden to output layer weights (2×1)
weights_hidden_output = np.array([
    [ 5.0],         # From hidden neuron 1
    [ 5.0]          # From hidden neuron 2
])

# Biases
bias_hidden = np.array([-2.0, -2.0])   # Hidden layer bias
bias_output = np.array([-2.5])         # Output layer bias

# ============================================
# 2. GPIO PIN CONFIGURATION
# ============================================

# Define GPIO pins
BUTTON_A = 17     # Input button A
BUTTON_B = 27     # Input button B
LED_OUTPUT = 18   # Output LED (shows XOR result)
LED_STATUS = 22   # Status LED (always ON when running)

# ============================================
# 3. NEURAL NETWORK FUNCTIONS
# ============================================

def sigmoid(x):
    """Sigmoid activation function"""
    return 1 / (1 + np.exp(-x))

def predict_xor(input_a, input_b):
    """
    Predict XOR output using neural network

    Args:
        input_a: 0 or 1
        input_b: 0 or 1

    Returns:
        0 or 1
    """
    # Convert inputs to 2D array
    inputs = np.array([[input_a, input_b]])

    # Forward pass to hidden layer
    hidden_input = np.dot(inputs, weights_input_hidden) + bias_hidden
    hidden_output = sigmoid(hidden_input)

    # Forward pass to output layer
    final_input = np.dot(hidden_output, weights_hidden_output) + bias_output
    final_output = sigmoid(final_input)

    # Return binary output (threshold at 0.5)
    return 1 if final_output[0][0] > 0.5 else 0

# ============================================
# 4. TEST FUNCTIONS
# ============================================

def test_neural_network():
    """Test XOR neural network with all possible inputs"""
    print("\n🧪 Testing XOR Neural Network:")
    print("=" * 50)
    print("Input A | Input B | Expected | Predicted | Status")
    print("-" * 50)

    test_cases = [
        (0, 0, 0),
        (0, 1, 1),
        (1, 0, 1),
        (1, 1, 0)
    ]

    all_correct = True
    for a, b, expected in test_cases:
        predicted = predict_xor(a, b)
        status = "✓ PASS" if predicted == expected else "✗ FAIL"
        if predicted != expected:
            all_correct = False

        print(f"   {a}    |    {b}    |    {expected}    |    {predicted}    | {status}")

    print("=" * 50)
    return all_correct

def show_manual_calculation():
    """Show manual calculation for verification"""
    print("\n📊 Manual Calculation for A=0, B=1:")
    print("-" * 40)

    a, b = 0, 1
    print(f"Case: A={a}, B={b}")

    # Calculate hidden layer
    h1_input = a*5.0 + b*(-5.0) - 2.0
    h2_input = a*(-5.0) + b*5.0 - 2.0

    h1_output = 1/(1+np.exp(-h1_input))
    h2_output = 1/(1+np.exp(-h2_input))

    print(f"  h1_input = {a}×5.0 + {b}×(-5.0) - 2.0 = {h1_input:.2f}")
    print(f"  h2_input = {a}×(-5.0) + {b}×5.0 - 2.0 = {h2_input:.2f}")
    print(f"  h1_output = sigmoid({h1_input:.2f}) = {h1_output:.4f}")
    print(f"  h2_output = sigmoid({h2_input:.2f}) = {h2_output:.4f}")

    # Calculate output
    output_input = h1_output*5.0 + h2_output*5.0 - 2.5
    output = 1/(1+np.exp(-output_input))

    print(f"  output_input = {h1_output:.4f}×5.0 + {h2_output:.4f}×5.0 - 2.5 = {output_input:.2f}")
    print(f"  output = sigmoid({output_input:.2f}) = {output:.4f}")
    print(f"  Result: {1 if output > 0.5 else 0}")
    print("-" * 40)

# ============================================
# 5. RASPBERRY PI HARDWARE FUNCTIONS
# ============================================

def setup_gpio():
    """Initialize GPIO pins"""
    GPIO.setmode(GPIO.BCM)
    GPIO.setwarnings(False)

    # Setup buttons with PULL_DOWN configuration
    GPIO.setup(BUTTON_A, GPIO.IN, pull_up_down=GPIO.PUD_DOWN)
    GPIO.setup(BUTTON_B, GPIO.IN, pull_up_down=GPIO.PUD_DOWN)

    # Setup LEDs
    GPIO.setup(LED_OUTPUT, GPIO.OUT)
    GPIO.setup(LED_STATUS, GPIO.OUT)

    # Turn ON status LED
    GPIO.output(LED_STATUS, GPIO.HIGH)

    print("✅ GPIO initialized successfully")

def read_buttons():
    """Read current state of both buttons"""
    # With PULL_DOWN:
    # Button not pressed = GPIO.LOW = 0
    # Button pressed = GPIO.HIGH = 1
    button_a = 1 if GPIO.input(BUTTON_A) == GPIO.HIGH else 0
    button_b = 1 if GPIO.input(BUTTON_B) == GPIO.HIGH else 0

    return button_a, button_b

def cleanup_gpio():
    """Cleanup GPIO before exit"""
    GPIO.output(LED_OUTPUT, GPIO.LOW)
    GPIO.output(LED_STATUS, GPIO.LOW)
    GPIO.cleanup()
    print("✅ GPIO cleaned up")

# ============================================
# 6. MAIN PROGRAM
# ============================================

def main():
    print("=" * 60)
    print("XOR Neural Network - Raspberry Pi Implementation")
    print("=" * 60)

    # First, test the neural network logic
    if not test_neural_network():
        print("\n❌ Neural network test failed!")
        show_manual_calculation()
        return

    print("\n✅ Neural network test passed!")

    # Initialize hardware
    setup_gpio()

    # Display connection information
    print("\n" + "=" * 60)
    print("READY TO START - HARDWARE SETUP")
    try:
        while True:
            # Read button states
            button_a, button_b = read_buttons()

            # Get neural network prediction
            output = predict_xor(button_a, button_b)

            # Control output LED
            if output == 1:
                GPIO.output(LED_OUTPUT, GPIO.HIGH)
                led_status = "ON"
            else:
                GPIO.output(LED_OUTPUT, GPIO.LOW)
                led_status = "OFF"

            # Display current state
            print(f"\rInputs: A={button_a}, B={button_b} → XOR={output} (LED: {led_status})", end="")

            # Small delay to reduce CPU usage
            time.sleep(0.1)

    except KeyboardInterrupt:
        print("\n\n🛑 Program stopped by user")

    finally:
        cleanup_gpio()

# ============================================
# 7. ENTRY POINT
# ============================================

if __name__ == "__main__":
    main()

XORModel
