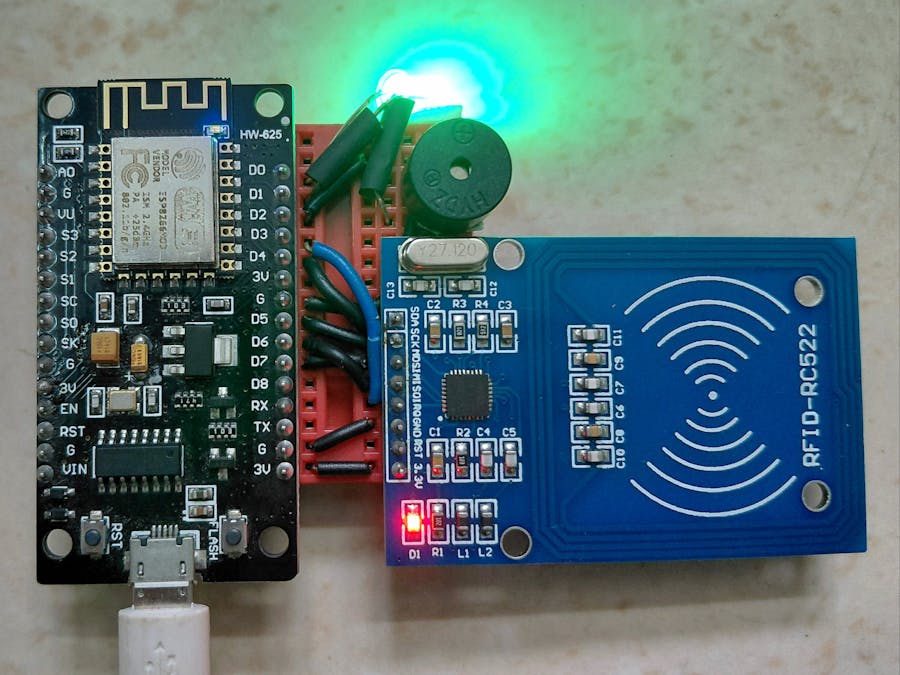

RFID + IoT Smart Security & Attendance System using ESP8266

RFID + IoT Smart Security & Attendance System using ESP8266, MFRC522 & Google Spreadsheet

A Simple, Fast & Cloud-Connected Attendance System for Schools, Offices & Labs

📌 Introduction

Managing attendance manually is slow, error-prone, and often requires maintaining physical registers or expensive biometric systems. As part of my interest in IoT and embedded systems, I wanted to build a low-cost, WiFi-enabled RFID Smart Attendance System that anyone can integrate into classrooms, offices, or maker labs without complex backend servers.

Every time an RFID card is scanned, the system automatically:

✔ Reads card data✔ Sends it securely to the Google Script Web API✔ Logs it into a Google Spreadsheet with Name, Date, and Time✔ Gives instant feedback through LEDs and buzzer

This makes attendance fast, automated, and 100% online.

🎯 Project Goals

• Build a reliable RFID-based attendance/security system
• Store data automatically in Google Sheets
• Provide visual (LED) and audio (buzzer) feedback
• Ensure stable WiFi connection and robust HTTPS communication
• Make the system inexpensive and easy to deploy anywhere

🔌 Circuit Diagram

💡 How the System Works

When powered on, the ESP8266 automatically connects to WiFi.

The MFRC522 RFID scanner waits for a card.

When a card is tapped:

• Data from block 2 is authenticated & read.
• LEDs indicate success/failure.
• Buzzer beeps to confirm a successful scan.

The card data is appended to the Google Script URL, which sends it to the Google Sheet.

The spreadsheet automatically logs:

• Card ID / User Name
• Date
• Time

This makes attendance contactless, fast, and cloud-synchronized.

☁️ Using Google Sheets as a Database

Instead of building a backend server, I used Google Apps Script, which acts like a free cloud API.

The ESP8266 sends data using a simple HTTPS GET request:

https://script.google.com/macros/s/.../exec?name=RFID_DATA

The Google Script appends data directly into a row in Google Sheets, making it extremely convenient to view, export, or analyze logs.

📟 Code Explanation (Simplified)

Here’s a readable breakdown of the main modules used in the code:

1️⃣ Libraries & Definitions

ESP8266WiFi.h and HTTPClient.h handle WiFi and HTTPS requests

• ESP8266WiFi.h and HTTPClient.h handle WiFi and HTTPS requests

MFRC522.h handles RFID card communication

• MFRC522.h handles RFID card communication

Pins for LEDs, buzzer, and RFID are defined

• Pins for LEDs, buzzer, and RFID are defined

2️⃣ WiFi Connection Logic

The ESP8266 automatically reconnects if WiFi is lost:

if (WiFi.status() != WL_CONNECTED) {
    // blink red LED until reconnects
}

Once connected, the green LED stays ON.

3️⃣ RFID Read Function

The function ReadDataFromBlock() authenticates and reads block 2 of the RFID card.

Authentication success → Green LED

Failure → Red LED

4️⃣ Extracting Text from RFID Card

The readBlockData buffer is parsed and stored in a String RFID.

5️⃣ Sending Data to Google Spreadsheet

The ESP8266 builds the URL dynamically:

data2 = data1 + RFID;
https.begin(*client, data2);
https.GET();

HTTP status codes are printed to Serial Monitor for debugging.

6️⃣ User Feedback

Double buzzer beep → Successfully read RFID

Green blink → Successfully uploaded to Sheet

Red LED → Error during upload

📊 Final Output

Every scan logs a new row in Google Sheets like:

This makes it extremely useful for attendance tracking and access monitoring.

🚀 Conclusion

This project demonstrates how powerful IoT can be when combined with simple technologies like RFID and free cloud platforms like Google Sheets. The system is:

• Low cost
• Easy to build
• Highly accurate
• Cloud connected
• Scalable to multiple devices

It can be deployed in schools, offices, labs, hostels, or even home automation setups.

If you want to explore the full code, diagrams, and future updates, check the GitHub repository:
