Capstone Project

The temperature and humidity analysis monitor which send an alert message whenever the temperature crosses the threshold value.

IntermediateWork in progress1 hour444
Capstone Project

Things used in this project

Hardware components

Bolt WiFi Module
Bolt IoT Bolt WiFi Module
×1
Male/Female Jumper Wires
Male/Female Jumper Wires
×1
Micro-USB to USB Cable (Generic)
Micro-USB to USB Cable (Generic)
×1
Temperature Sensor
Temperature Sensor
×1

Software apps and online services

Bolt IoT Android App
Bolt IoT Android App
Bolt Cloud
Bolt IoT Bolt Cloud
SMS Messaging API
Twilio SMS Messaging API

Story

Read more

Schematics

Circuit Diagram

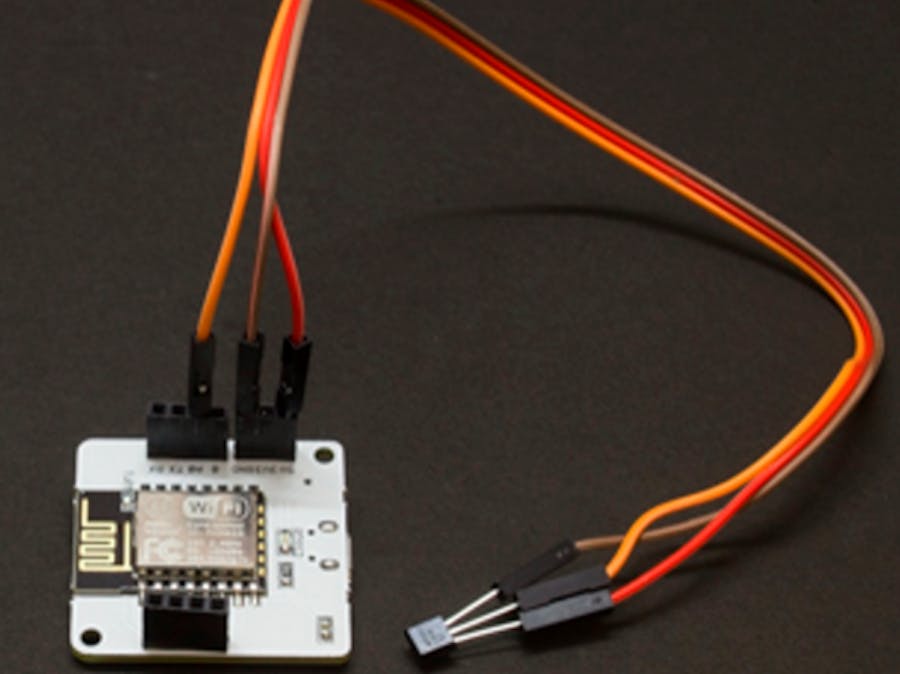

It's shows the how sensor connected to Bolt module.The circuit makes with the help of fritzing simulator software.

Code

conf.py

Python
This help to send the data from module to your device.
SID = 'You can find SID in your Twilio Dashboard'
AUTH_TOKEN = 'You can find  on your Twilio Dashboard'
FROM_NUMBER = 'This is the no. generated by Twilio. You can find this on your Twilio Dashboard'
TO_NUMBER = 'This is your number. Make sure you are adding +91 in beginning'
API_KEY = 'This is your Bolt Cloud accout API key'
DEVICE_ID = 'This is the ID of your Bolt device'

capstone_temp.py

Python
Below code analysis the temperature data and send the message.
import conf, json, time, math, statistics
from boltiot import Sms, Bolt
def compute_bounds(history_data,frame_size,factor):
    if len(history_data)<frame_size :
        return None

    if len(history_data)>frame_size :
        del history_data[0:len(history_data)-frame_size]
    Mn=statistics.mean(history_data)
    Variance=0
    for data in history_data :
        Variance += math.pow((data-Mn),2)
    Zn = factor * math.sqrt(Variance / frame_size)
    High_bound = history_data[frame_size-1]+Zn
    Low_bound = history_data[frame_size-1]-Zn
    return [High_bound,Low_bound]

mybolt = Bolt(conf.API_KEY, conf.DEVICE_ID)
sms = Sms(conf.SSID, conf.AUTH_TOKEN, conf.TO_NUMBER, conf.FROM_NUMBER)
history_data=[]

while True:
    response = mybolt.analogRead('A0')
    data = json.loads(response)
    if data['success'] != 1:
        print("There was an error while retriving the data.")
        print("This is the error:"+data['value'])
        time.sleep(10)
        continue

    print ("This is the value "+data['value'])
    sensor_value=0
    try:
        sensor_value = int(data['value'])
    except e:
        print("There was an error while parsing the response: ",e)
        continue
     bound = compute_bounds(history_data,conf.FRAME_SIZE,conf.MUL_FACTOR)
    if not bound:                                                                                                                                                               required_data_count=conf.FRAME_SIZE-len(history_data)
        print("Not enough data to compute Z-score. Need ",required_data_count," more data points")
        history_data.append(int(data['value']))
        time.sleep(10)
        continue

    try:
        if sensor_value > bound[0] :
            print ("The temp level increased suddenly. Sending an SMS.")
            response = sms.send_sms("Someone open fridge door")
            print("This is the response ",response)
        elif sensor_value < bound[1]:
            print ("The temperature level decreased suddenly. Sending an SMS.")
            response = sms.send_sms("Someone decrease the temperature of fridge.")
            print("This is the response ",response)
        history_data.append(sensor_value);
    except Exception as e:
        print ("Error",e)
    time.sleep(10)
