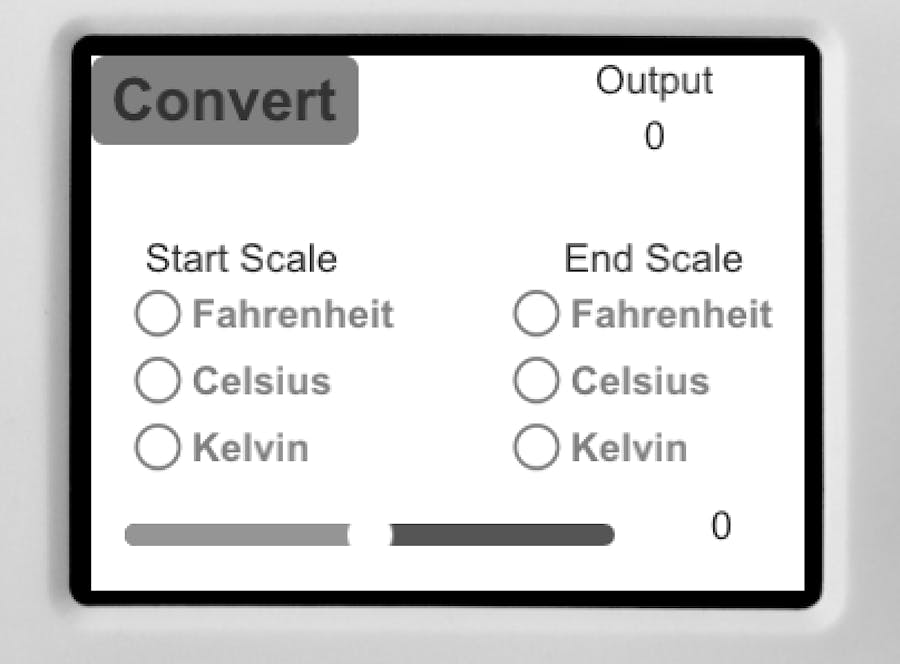

My app is pretty simple, with the bare minimum and some labels. Users choose the scale they want to convert from on the left, labeled "Start Scale," and the scale they want to convert to on the right, labeled "End Scale." The desired temperature is chosen with the slider, and the number at the lower right provides a better estimation of the current value of the slider, rounded to the nearest hundredth. Once these three settings are correct, the user hits "Convert," and the result is shown under the label "Output," once again rounded to the nearest hundredth. The slider goes from -274 to 274, because I thought leaving room for 0°C to K and 0K to °C would be convenient.
**NOTE** Code for most widgets taken from the tutorial posted on piazza.
Untitled file
Warning: Embedding code files within the project story has been deprecated. To edit this file or add more files, go to the "Software" tab. To remove this file from the story, click on it to trigger the context menu, then click the trash can button (this won't delete it from the "Software" tab).
Video link: https://www.youtube.com/watch?v=hKXNRG6VGRc&feature=youtu.be
var THEME = require('themes/flat/theme');
var SLIDERS = require('controls/sliders');
var BUTTONS = require('controls/buttons');
var whiteS = new Skin({fill:"white"});
var greyS = new Skin({fill:"grey"});
var mainCon = new Container({left:0, right:0, top:0, bottom:0, skin: whiteS});
application.add(mainCon);
var mySlider = SLIDERS.HorizontalSlider.template(function($){ return{
height:50, left:0, right:50,
behavior: Object.create(SLIDERS.HorizontalSliderBehavior.prototype, {
onValueChanged: { value: function(container){
SLIDERS.HorizontalSliderBehavior.prototype.onValueChanged.call(this, container);
application.remove(sliderValue);
sliderValue = new Container({
left:245, right:0, top: 205, height:10,
skin: whiteS,
contents:[
new Label({string: Math.round(this.data.value*100)/100, style: labelStyle})
]
});
application.add(sliderValue);
trace("Value is: " + this.data.value + "\n");
}}})
}});
var myRadioGroup = BUTTONS.RadioGroup.template(function($){ return{
top:0, bottom:50, left:0, right:0,
behavior: Object.create(BUTTONS.RadioGroupBehavior.prototype, {
getSelectedName: { value: function(){
if ("selectedName" in this) return this.selectedName;
}},
onRadioButtonSelected: { value: function(buttonName){
this.selectedName = buttonName;
trace("Radio button with name " + buttonName + " was selected.\n");
}}})
}});
var textFont = new Style({font: "30px", color:"#333333"});
var labelStyle = new Style({font: "20px", color:"#333333"});
var buttonBehavior = function(content, data){
BUTTONS.ButtonBehavior.call(this, content, data);
}
buttonBehavior.prototype = Object.create(BUTTONS.ButtonBehavior.prototype, {
onTap: { value: function(button){
var currValue = getSliderValue();
var currIn = getRadioSettingIn();
var currOut = getRadioSettingOut();
if (currIn == "Fahrenheit") {
if (currOut == "Celsius") {
currValue = (currValue-32)*5/9;
}
else if (currOut == "Kelvin") {
currValue = (currValue-32)*5/9 + 273.15;
}
}
else if (currIn == "Celsius") {
if (currOut == "Fahrenheit") {
currValue = currValue*1.8 + 32;
}
else if (currOut == "Kelvin") {
currValue = currValue + 273.15;
}
}
else if (currIn == "Kelvin") {
if (currOut == "Fahrenheit") {
currValue = (currValue - 273.15)*1.8 + 32;
}
else if (currOut == "Celsius") {
currValue = currValue - 273.15;
}
}
currValue = Math.round(currValue*100)/100;
application.remove(result);
resultLabel = new Label({string: currValue, style: labelStyle});
result = new Container({
left:200, right:15, top:25, height:20,
skin: whiteS,
contents:[
resultLabel
]
});
application.add(result);
trace("Current value is " + currValue + "\n");
trace("Current input is " + currIn + "\n");
trace("Current output is " + currOut + "\n");
trace("Button was tapped.\n");
}}
});
var myButtonTemplate = BUTTONS.Button.template(function($){ return{
top:0, bottom:0, left:0, right:0,
contents:[
new Label({left:0, right:0, height:20, string:$.textForLabel, style:textFont})
],
behavior: new buttonBehavior
}});
var slider = new mySlider({ min:-274, max:274, value:0, });
var radioGroupIn = new myRadioGroup({ buttonNames: "Fahrenheit,Celsius,Kelvin" });
var radioGroupOut = new myRadioGroup({ buttonNames: "Fahrenheit,Celsius,Kelvin" });
var button = new myButtonTemplate({textForLabel:"Convert"});
var getSliderValue = function() {
return slider.behavior.data.value;
};
var getRadioSettingIn = function() {
return radioGroupIn.behavior.getSelectedName();
};
var getRadioSettingOut = function() {
return radioGroupOut.behavior.getSelectedName();
};
var output = new Container({
left:200, right:15, top:0, height:20,
skin: whiteS,
contents:[
new Label({string: "Output", style: labelStyle})
]
});
application.add(output);
var result = new Container({
left:200, right:15, top:25, height:20,
skin: whiteS,
contents:[
new Label({string: 0, style: labelStyle})
]
});
application.add(result);
var sliderValue = new Container({
left:245, right:0, top: 205, height:10,
skin: whiteS,
contents:[
new Label({string: 0, style: labelStyle})
]
});
application.add(sliderValue);
var startScale = new Container({
left:15, right:200, top:80, height:20,
skin: whiteS,
contents:[
new Label({string: "Start Scale", style: labelStyle})
]
});
application.add(startScale);
var endScale = new Container({
left:200, right:15, top:80, height:20,
skin: whiteS,
contents:[
new Label({string: "End Scale", style: labelStyle})
]
});
application.add(endScale);
var buttonCon = new Container({left:0, right:200, top:0, bottom:200, skin:greyS});
application.add(buttonCon);
buttonCon.add(button);
var radioCon = new Container({width:120, left:15, top:100});
application.add(radioCon);
radioCon.add(radioGroupIn);
var radioOutCon = new Container({width:120, right:15, top:100});
application.add(radioOutCon);
radioOutCon.add(radioGroupOut);
var sliderCon = new Container({left:5, width:290, top:200, height:30});
application.add(sliderCon);
sliderCon.add(slider);
