DIY Hard-to-Snooze Alarm Clock

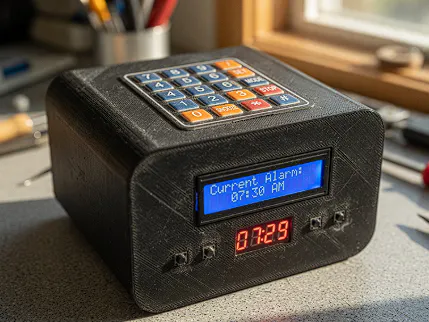

This 3D-printed alarm clock requires a keypad code to turn off, forcing you fully awake instead of easy snoozing.

IntermediateFull instructions provided15 hours35

Things used in this project

Hardware components

Arduino Nano R3

DS3231 RTC module

DFRobot I2C 16x2 Arduino LCD Display Module

4x4 keypad matrix

Active buzzer

Hand tools and fabrication machines

3D Printer (generic)

Story

Introduction

The inspiration is the same painful morning struggle — hitting snooze too easily. This version is a custom 3D-printed alarm clock that requires entering a short code on a keypad to silence the alarm. No more half-asleep button mashing! It uses an Arduino-compatible board, RTC module, LCD, 7-segment display, buzzer, and keypad for a fully functional (and frustratingly effective) wake-up device.

Difficulty: Intermediate (3D printing, soldering/electronics, basic coding)Time: 10-15 hours + print timeCost: ~$30-50 depending on parts you already have.

Materials

3D printer + filament (black/charcoal PLA or PETG)
Arduino Nano / Uno (or compatible)
DS3231 RTC module
16x2 LCD display
4-digit 7-segment display (TM1637 or similar)
4x4 keypad matrix
Active buzzer or speaker
Buttons/switches for testing
Jumper wires, protoboard or perfboard
Power supply (5V USB)
Optional: enclosure hardware, hot glue, etc.

Step 1: Design the Enclosure in Fusion 360

Start with a compact rectangular box design to house all electronics. Include cutouts for the displays, keypad on top, and access ports on the sides/back. Slightly rounded edges for a modern look, with space for wiring.

I modeled it in Fusion 360, then tweaked the original concept with minor dimension changes for better fit and aesthetics.

Export as STL and slice for printing (0.2mm layer height recommended for clean results).

Step 2: 3D Print the Case

Print the main body and any lid/top plate. Use supports where needed for overhangs. Post-process with light sanding for a smooth finish and to hide layer lines slightly (but leave some visible for that handmade look).

Step 3: Electronics Prototyping and Assembly

Wire up the components:

Keypad to Arduino pins for matrix scanning.
LCD and 7-segment to appropriate I2C/SPI pins.
RTC for accurate timekeeping.
Buzzer to a PWM pin for alarm tones.

Prototype on a breadboard first, then solder to perfboard for permanence. Mount everything securely inside the case with hot glue or standoffs. Test connections thoroughly before closing it up.

Step 4: Coding

Use the Arduino IDE. You'll need libraries for the keypad, LCD, TM1637/7-segment, DS3231, and buzzer tones.

Key features in the code:

Set current time and alarm time.
Display current time on 7-segment + alarm info on LCD.
When alarm triggers: loud buzzer + flashing displays.
To turn off: enter a specific code (e.g., 1-3-5-7 or whatever you set) on the keypad.
Add a snooze option that requires a longer/different code or multiple steps.

Step 5: Final Assembly and Testing

Fit all parts into the printed case. Secure the keypad on top, displays in front cutouts. Add strain relief for any external power cable. Close it up and test the full system — set an alarm and practice disabling it (while fully awake!).

Step 6: How to Use / Improvements

Place it across the room so you have to get out of bed. Customize the disable code to something you won't remember half-asleep. Future ideas: add motion sensor to verify you're up, or multiple alarm stages.

Code

void Accelerometer(){
  //Check Accelerometer Values
    lis.read();                                                                 // get X Y and Z data at once
    sensors_event_t event;
    lis.getEvent(&event);

  //Movement Indicator
    MovementVal = abs(event.acceleration.x + event.acceleration.y);             // Movement is calculated via X and Y movement since Z is gravity
    if(Alarm_go == true && ContinuousMovement == true){                         // If the alarm is on and moving begin counting movmeent timer
      MovementTimer++;
      LastMovementVal = MovementVal;

      if(MovementTimer >= 15){          //10                                    // Once movement timer reaches 20, movement is confirmed
        Movement = true;
      }

    }else{
      Movement = false;                                                         // Otherwise it is false
    }

  //Checks if the acceleration is changing direction
    if (abs(MovementVal - LastMovementVal) >= 3  && Alarm_go == true){          // To see if movement is contious the current movementval is compared to the previous movementval
      ContinuousMovement = true;
    }else{
      ContinuousMovement = false;
    }

/*/Accelerometer Debugging
  Serial.println("Acceleration Debugging:");
  Serial.print("X: ");
  Serial.print(event.acceleration.x);
  Serial.print("  Y: ");
  Serial.print(event.acceleration.y);
  Serial.print("  Z: ");
  Serial.print(event.acceleration.z);
  Serial.print("  MovementVal: ");
  Serial.print(MovementVal);
  Serial.print("  Movement Y/N: ");
  Serial.print(Movement);
  Serial.print("  Movement Timer: ");
  Serial.print(MovementTimer);
  Serial.print("  Cont. Movement: ");
  Serial.println(ContinuousMovement);
  Serial.println(""); // */

}

//Hour Counter Function
  void Hours(){
    Hour_ButtonState = digitalRead(Hour_buttonPin);                 // Grabs input from hour button
    if (Hour_ButtonState != Hour_lastButtonState) {                 // If the button has been pressed
      if (Hour_ButtonState == LOW) {                                // & if the button has been unclicked
        bPress = true;                                              // then a button press has occured making bPress true
        buttonPushCounterHours++;                                   // Adds one number to the hour counter
      }
      delay(50);
    }
    Hour_lastButtonState = Hour_ButtonState;                        // Button State is reset
    if (buttonPushCounterHours >= 24){                              // If the counter reaches 24 hours it resets
      buttonPushCounterHours = 0;                                   // Sets the hours counter to zero
    }
  }

//Minuites Counter Function
  void Minuites(){
    Minuite_ButtonState = digitalRead(Minuite_buttonPin);           // Grabs input from minuite button
    if (Minuite_ButtonState != Minuite_lastButtonState) {           // If the button has been pressed
      if (Minuite_ButtonState == LOW) {                             // & if the button has been unclicked
        bPress = true;                                              // then a button press has occured making bPress true
        buttonPushCounterMinuites = buttonPushCounterMinuites+5;    // Adds five numbers to the minuite counter
      }
      delay(50);
   }
    Minuite_lastButtonState = Minuite_ButtonState;                  // Button State is reset
    if (buttonPushCounterMinuites > 59){                            // Wraps the button counter to zero if minuites goes over 59 minuites
      buttonPushCounterMinuites = buttonPushCounterMinuites - 60;   // Calculates what the minuites counter ought to be
      buttonPushCounterHours++;                                     // Adds an hour to the hour counter
    }
  }

void ResetMenu(){
  lcd.clear();
  lcd.setCursor(0,0);
  lcd.print("Current Alarm:");
  lcd.setCursor(3,1);
  lcd.print(" ");
  lcd.setCursor(4,1);
  lcd.print(":");
  if(buttonPushCounterMinuites <=9){
    lcd.setCursor(5,1);
    lcd.print("0");
    lcd.setCursor(6,1);
    lcd.print(buttonPushCounterMinuites);
  }else{
     lcd.setCursor(5,1);
     lcd.print(buttonPushCounterMinuites);
  }
  if(buttonPushCounterHours >= 10){
     lcd.setCursor(2,1);
     lcd.print(buttonPushCounterHours);
  }else{
     lcd.setCursor(2,1);
     lcd.print(" ");
     lcd.setCursor(3,1);
     lcd.print(buttonPushCounterHours);
  }
}

void UpdateCounter(){
  if(bPress == true && AlarmDisabled == false && CheckQuestions == false){
    bPress = false;
    lcd.setCursor(3,1);
    lcd.print(" ");
    lcd.setCursor(4,1);
    lcd.print(":");

    if(buttonPushCounterMinuites <=9){
       lcd.setCursor(5,1);
       lcd.print("0");
       lcd.setCursor(6,1);
       lcd.print(buttonPushCounterMinuites);
     }else{
       lcd.setCursor(5,1);
       lcd.print(buttonPushCounterMinuites);
    }

    if(buttonPushCounterHours >= 10){
       lcd.setCursor(2,1);
       lcd.print(buttonPushCounterHours);
    }else{
      lcd.setCursor(2,1);
      lcd.print(" ");
      lcd.setCursor(3,1);
      lcd.print(buttonPushCounterHours);
    }
  }
}

void AlarmMenu(){
    lcd.setCursor(0,0);
    lcd.print("Alarm Activated");
    lcd.setCursor(0,1);
    lcd.print("Shake To Snooze");
}


void PrintQuestion(){
// LCD Preperation
  lcd.clear();
  lcd.setCursor(0,0);
  lcd.print("Q: ");
  lcd.setCursor(0,1);
  lcd.print("A: ");

//Question
  lcd.setCursor(3,0);
  lcd.print(x);
  lcd.print(sign1);
  lcd.print(y);
  if(sign2 != 0 && z != 0){
    lcd.print(sign2);
    lcd.print(z);
  }
  lcd.print(" = ?");
  lcd.setCursor(3, 1);

}

void CorrectAnswer(){
  lcd.clear();
  lcd.setCursor(4,0);
  delay(10);
  lcd.print("Correct");
  EqualRow();
  for (int thisNote = 0; thisNote < 8; thisNote++) {
    int noteDuration = 1000 / noteDurations[thisNote];
    tone(8, melody[thisNote], noteDuration);
    int pauseBetweenNotes = noteDuration * 1.30;
    delay(pauseBetweenNotes);
    noTone(8);
  }
  AlarmSet = AlarmSet - SnoozeCounter;      // Removes teh extra time added to the alarm by the snooze
  if (AlarmSet < 0){                        // ... And if the new time is less than zero
    AlarmSet = 2400 - AlarmSet;             // Fix the alarm settime by wrapping it back to the maximum time
  }
  o = AlarmSet%10;                          // Seperates the ones place from the AlarmSet time
  t = (AlarmSet/10)%10;                     // Seperates the tens place from the AlarmSet time
  h = (AlarmSet/100)%10;                    // Seperates the hundreds place from the AlarmSet time
  th = AlarmSet/1000;                       // Seperates the thousands place from the AlarmSet time
  buttonPushCounterHours = (th*10)+h;       // Updates the Alarm hours counter to the AlarmSet hours
  buttonPushCounterMinuites = (t*10)+o;     // Updates the Alarm minuites counter to the AlarmSet minuites
  ResetMenu();                              // Reset the menu
  CheckQuestions = false;                   // Questions are no longer being answered

}

void IncorrectAnswer(){
  lcd.clear();
  lcd.setCursor(3,0);
  delay(10);
  lcd.print("Incorrect");
  EqualRow();
  tone(8, NOTE_DS4, 300);
  delay(300);
  tone(8, NOTE_DS3, 400);
  delay(400);
  tone(8, NOTE_CS2, 400);
  delay(300);
  Questions();
}



void EqualRow(){
  lcd.setCursor(0,1);
  lcd.print("=");
  lcd.setCursor(15,1);
  lcd.print("=");
  delay(150);
  lcd.setCursor(1,1);
  lcd.print("=");
  lcd.setCursor(14,1);
  lcd.print("=");
  delay(150);
  lcd.setCursor(2,1);
  lcd.print("=");
  lcd.setCursor(13,1);
  lcd.print("=");
  delay(150);
  lcd.setCursor(3,1);
  lcd.print("=");
  lcd.setCursor(12,1);
  lcd.print("=");
  delay(150);
  lcd.setCursor(4,1);
  lcd.print("=");
  lcd.setCursor(11,1);
  lcd.print("=");
  delay(150);
  lcd.setCursor(5,1);
  lcd.print("=");
  lcd.setCursor(10,1);
  lcd.print("=");
  delay(150);
  lcd.setCursor(6,1);
  lcd.print("=");
  lcd.setCursor(9,1);
  lcd.print("=");
  delay(150);
  lcd.setCursor(7,1);
  lcd.print("=");
  lcd.setCursor(8,1);
  lcd.print("=");
}

void Alarm(){

// Set the current time
  DateTime now = rtc.now();                                               // The Date/Time is what the RTC currently reads
  displaytime = (now.hour() * 100) + now.minute();                        // Takes the hours and minuites and puts it in numarical form
  display.showNumberDecEx(displaytime, 0b11100000, true);

// Updates Current Alarm
  AlarmSet = (buttonPushCounterHours * 100) + buttonPushCounterMinuites;  // Sets the AlarmSet based on the button counters

// Alarm
  if(AlarmSet == displaytime && SnoozeVal == false){                      // If the Alarmset equals the real time and the snoozeval is not engaged
    if(AlarmDisabled == false){                                           // & If the alarm is not disabled
      Alarm_go = true;                                                    // The alarm is turned on
      AlarmMenu();                                                        // Inserts the Alarm Menu
      tone(8, NOTE_GS4);                                                  // Plays the Alarm Buzzer
    }

  }

  if(CheckQuestions == true){                                             // If the questions are being answered
    noTone(8);                                                            // Toggles the Alarm Buzzer off
  }


// Alarm-Master Button. It forces the alarm to go off when pressed.
  AlarmMaster_ButtonState = digitalRead(AlarmMaster_buttonPin);           // Checks if the Alarm master pin is pushed
  if(AlarmMaster_ButtonState == true || Snooze == true){                  // If the AlarmMaster button is pressed or if the snooze is true
    if(AlarmDisabled == false && CheckQuestions == false){                // & If the alarm is enabled and the questions are not currently on
      o=displaytime%10;                                                   // Seperates the ones place from the current time
      t=(displaytime/10)%10;                                              // Seperates the tens place from the current time
      h=(displaytime/100)%10;                                             // Seperates the hundreds place from the current time
      th=displaytime/1000;                                                // Seperates the thousands place from the current time
      buttonPushCounterHours = (th*10)+h;                                 // Updates the Alarm hours counter to the current hours
      buttonPushCounterMinuites = (t*10)+o;                               // Updates the Alarm minuites counter to the current minuites
      ResetMenu();                                                        // Reset the current alarm menu
      Snooze = false;                                                     // Turns off the snooze incase it was the thing that activated the alarm
    }

  }

// If the snooze button is pressed
  AlarmToggle_ButtonState = digitalRead(AlarmToggle_buttonPin);                           // Grabs the output from the Alarmtoggle pin
  if(AlarmToggle_ButtonState == HIGH && Alarm_go == false && CheckQuestions == false){    // If the button is pressed, the alarm isn't on, and the questions are not on
    if(AlarmToggle_ButtonState == AlarmToggle_LastButtonState){                           // & if the button state has changed

      if(AlarmToggleFlipFlop == true){                                    // If the flipflop value is true
        AlarmToggleFlipFlop = false;                                      // ... Swap it to false
      } else {                                                            // Otherwise,
        AlarmToggleFlipFlop = true;                                       // ... Swap it to true
      }

      if(AlarmToggleFlipFlop == false){                                   // If the flipflop value is false
        lcd.clear();
        lcd.setCursor(4,0);
        lcd.print("Alarm is");
        lcd.setCursor(4,1);
        lcd.print("Disabled");
        AlarmDisabled = true;                                             // Disables the ability for the alarm to go off


      }

      if(AlarmToggleFlipFlop == true){                                    // If the flipflop value is true
        lcd.clear();
        lcd.setCursor(1,0);
        lcd.print("Alarm Toggled");
        EqualRow();
        delay(100);
        ResetMenu();                                                     // Resets the menu with the Alarm set counter
        AlarmDisabled = false;                                           // Re-enables the ability for the alarm to go off

      }

      delay(1000);
      AlarmToggle_LastButtonState = AlarmToggle_ButtonState;            // Holds onto the buttonstate to check if the button has been pressed later

    }

  }

// Main Snooze - Accelerometer
  if(Alarm_go == true && Movement == true){                               // If the alarm is on and the alarm is moving
    Alarm_go = false;                                                     // The alarm is turned off
    SnoozeVal = true;                                                     // and snoozebal is engaged
    CheckQuestions = true;                                                // The questions are currently being answered
    MovementTimer = 0;                                                    // The movement is reset back to zero
    Questions();                                                          // Runs the questions function
  }

// Resets the SnoozeVal so the alarm can repeat on the next cycle
  if(AlarmSet != displaytime && SnoozeVal == true){                       // If the alarm does not equal the current time and the snoozeval is true
    SnoozeVal = false;                                                    // Snoozeval is false
  }

/*/Alarm Debugging
  Serial.println("Alarm Debugging:");
  Serial.print("Alarm Set: ");
  Serial.print(AlarmSet);
  Serial.print("  Time: ");
  Serial.print(displaytime);
  Serial.print("  Alarm On/Off: ");
  Serial.print(Alarm_go);
  Serial.print("  Snooze ButtonState: ");
  Serial.print(Snooze_ButtonState);
  Serial.print("  SnoozeVal: ");
  Serial.print(SnoozeVal);
  Serial.print(" AlarmMaster: ");
  Serial.print(AlarmMaster_ButtonState);
  Serial.print(" Snooze Check: ");
  Serial.print(SnoozeCheck);
  Serial.print(" Snooze: ");
  Serial.print(Snooze);
  Serial.print(" CheckQuestions: ");
  Serial.print(CheckQuestions);
  Serial.print("FlipFlop: ");
  Serial.print(AlarmToggleFlipFlop);
  Serial.print(" ButtonState: ");
  Serial.print(AlarmToggle_ButtonState);
  Serial.print(" LastButtonState: ");
  Serial.println(AlarmToggle_LastButtonState);
  Serial.println("\n"); // */

//Alarm Master Snooze Debugging
  Serial.print("Alarm Set: ");
  Serial.print(AlarmSet);
  Serial.print("  Time: ");
  Serial.print(displaytime);
  Serial.print(" Thousands: ");
  Serial.print(th);
  Serial.print(" Hundreds: ");
  Serial.print(h);
  Serial.print(" Tens: ");
  Serial.print(t);
  Serial.print(" Ones: ");
  Serial.print(o);
  Serial.print(" Hours: ");
  Serial.print(buttonPushCounterHours);
  Serial.print(" Minuites: ");
  Serial.println(buttonPushCounterMinuites); // */


}

void CheckAnswer(){
  if (KeypadValue != '@'){                                                  // If a button has been pressed
    if (KeypadValue != 'A' && KeypadValue != 'B' &&  KeypadValue != 'C'){   // And if A/B/C haven't been pressed
      CurrentKeyPress = KeypadValue;                                        // The output is CurrentKeypress
      lcd.print(CurrentKeyPress);                                           // Print the output
      delay(1000);                                                          // Delay
      KeypadValue = '@';                                                    // Reset the button press
    }

    if (KeypadValue == 'B'){                                                // If B has been pressed
      PrintQuestion();                                                      // Displays the question on the LCD
      if(Negative == false){                                                // If negative is false
        Negative = true;                                                    // ... Swap it to true
        lcd.print('-');                                                     // Print a negative sign
        if(UserResponse > 0){                                               // If there's a response
          lcd.print(UserResponse);                                          // ... Print it
        }
      } else {                                                              // If negative is true
        Negative = false;                                                   // ... Swap it to false
        if(UserResponse > 0){                                               // If there's a response
          lcd.print(UserResponse);                                          // Print it
        }

      }

      UpdateNegative();                                                     // Updates the final answer so it has a negative sign
      delay(1000);                                                          // Delay
      KeypadValue = '@';                                                    // Reset the keypad so it can be pressed again

    }

    if (KeypadValue == 'C'){                                                // If C has been pressed
      UserResponse = 0;                                                     // Resets the response
      ResponseFinal = 0;                                                    // Resets the final response (which is negative is needed)
      Negative = false;                                                     // Resets the negative value
      lcd.clear();                                                          // Clear the LCD
      PrintQuestion();                                                      // Reprint the question
      KeypadValue = '@';                                                    // Reset the button press
    }

    if (KeypadValue == 'A'){                                                // If A has been pressed
      if (ResponseFinal == Answer){                                         // and if the answer is correct
        CorrectAnswer();                                                    // Display correct animiation & reset alarm
      }

      if (ResponseFinal != Answer){                                         // If the answer check is inncorect
        IncorrectAnswer();                                                  // Display the inncorrect animation & print a new question
      }
      KeypadValue = '@';                                                    // Reset the button press

    }

  }

  if (CurrentKeyPress != '@'){                                              // if there is a new button press response
    UserResponse = CurrentKeyPress + (UserResponse * 10);                   // Add the button press to the already accumulated button presses
    CurrentKeyPress = '@';                                                  // Reset the button press
    ResponseFinal = UserResponse;                                           // Set the final response to the user response
    UpdateNegative();

  }


  if (CheckQuestions == true){                                              // If the questions are currently being answered
    SnoozeCheck = AlarmSet + 1;                                             // Make a new var and make it the current alarm plus a minuite
    if (displaytime == SnoozeCheck){                                        // If the display time is equal to the new var
      Snooze = true;                                                        // Snooze is true (runs the alarm again)
      SnoozeCounter++;                                                      // Counts the number of times alarmset is increased
      SnoozeCheck = SnoozeCheck + 1;                                        // Add another minuite to the var
      CheckQuestions = false;                                               // Questions are not being answered right now
      UserResponse = 0;                                                     // Resets the response
      ResponseFinal = 0;                                                    // Resets the final response (which has negative)
      Negative = false;                                                     // Resets the negative value
    }

  }

}

void UpdateNegative(){                                                      // If the update negative function is initated
  if (Negative == true){                                                    // If negative is true
    ResponseFinal = ResponseFinal * -1;                                     // The final response is equal to itself but negative
  } else {                                                                  // ... Otherwise,
    ResponseFinal = abs(ResponseFinal);                                     // The final response is equal to the absolute value of itself
  }

}

void Keypad(){

// Pulls the raw keypad output voltage
  int RawKeypadOutput = analogRead(A0);

/*/ Data Smoothing Code
  if (RawKeypadOutput > 20) {
    total = total - readings[readIndex];              // subtract the last reading
    readings[readIndex] = analogRead(Keypad_Pin);     // read from the sensor
    total = total + readings[readIndex];              // add the reading to the total
    readIndex = readIndex + 1;                        // advance to the next position in the array
    if (readIndex >= numReadings) {                   // if we're at the end of the array...
      readIndex = 0;                                  // ...wrap around to the beginning:
    }
    average = total / numReadings;                    // calculates the average

  } else {                                            // if the keypad is not pressed
    average = 0;                                      // the average & total is reset
    total = 0;
    for (int thisReading = 0; thisReading < numReadings; thisReading++) {
      readings[thisReading] = 0;
    }

  }

// Verifies the button press
  if (RawKeypadOutput > 30) {
    if (average == RawKeypadOutput + - 1 || average == RawKeypadOutput + - 2 || average == RawKeypadOutput + - 3 || average == RawKeypadOutput) {
      KeypadOutput = average;
    }

  } */


switch(RawKeypadOutput){ // KeypadOutput if using data filtering

  case 228 ... 243:           // Keypad #1
    KeypadValue = 1;
    KeypadOutput = 0;
  break;

  case 325 ... 331:           //Keypad #2
    KeypadValue = 2;
    KeypadOutput = 0;
  break;

  case 472 ... 478:           //Keypad #3
    KeypadValue = 3;
    KeypadOutput = 0;
  break;

  case 109 ... 119:           //Keypad #4
    KeypadValue = 4;
    KeypadOutput = 0;
  break;

  case 125 ... 130:           //Keypad #5
    KeypadValue = 5;
    KeypadOutput = 0;
  break;

  case 143 ... 150:           //Keypad #6
    KeypadValue = 6;
    KeypadOutput = 0;
  break;

  case 71 ... 75:             //Keypad #7
    KeypadValue = 7;
    KeypadOutput = 0;
  break;

  case 77 ... 83:             //Keypad #8
    KeypadValue = 8;
    KeypadOutput = 0;
  break;

  case 84 ... 90:             //Keypad #9
    KeypadValue = 9;
    KeypadOutput = 0;
  break;

  case 55 ... 61:             //Keypad #0
    KeypadValue = 0;
    KeypadOutput = 0;
  break;

  case 840 ... 915:           //Keypad A
    KeypadValue = 'A';
    KeypadOutput = 0;
  break;

  case 160 ... 175:           //Keypad B
    KeypadValue = 'B';
    KeypadOutput = 0;
  break;

  case 91 ... 101:             //Keypad C
    KeypadValue = 'C';
    KeypadOutput = 0;
  break;

  /*case 65 ... 69:           //Keypad D
    KeypadValue = 'D';
    KeypadOutput = 0;
  break;

  case 52 ... 55:             //Keypad *
    KeypadValue = '*';
    KeypadOutput = 0;
  break;

  case 60 ... 63:             //Keypad #
    KeypadValue = '#';        //Removed
    KeypadOutput = 0;         //Overlap
  break;*/
}

//Keypad Debugging
  Serial.print("Raw KP: ");
  Serial.print(RawKeypadOutput);
  Serial.print(" Average: ");
  Serial.print(average);
  Serial.print(" KP Output: ");
  Serial.print(KeypadOutput);
  Serial.print(" Final KP: ");
  Serial.print(KeypadValue);
  Serial.print(" Current Press: ");
  Serial.print(CurrentKeyPress);
  Serial.print(" Negative: ");
  Serial.print(Negative);
  Serial.print(" Response: ");
  Serial.print(UserResponse);
  Serial.print(" Final: ");
  Serial.println(ResponseFinal); // */


}

//Libraries
  #include <Wire.h>                     // I2C communication Library
  #include <LiquidCrystal_I2C.h>        // LCD Library
  #include <TM1637Display.h>            // 7-Segment Library
  #include <RTClib.h>                   // Clock Module Library
  #include <Adafruit_LIS3DH.h>          // Accelerometer
  #include <Adafruit_Sensor.h>          // Accelerometer
  #include "pitches.h"                  //Tone Pitches For Buzzer

//Pins
  #define CLK 2                         // 4 Digit Display
  #define DIO 3                         // 4 Digit Display
  #define Hour_buttonPin 6              // Hour Counter
  #define Minuite_buttonPin 7           // Minuite Counter
  #define AlarmToggle_buttonPin 5       // Snooze
  #define AlarmMaster_buttonPin 4       // Foces Alarm to go off
  #define Keypad_Pin A0                 // Keypad


//LCD Setup
  LiquidCrystal_I2C lcd = LiquidCrystal_I2C(0x27, 16, 2);

//I2C Setup for Accelerometer
  Adafruit_LIS3DH lis = Adafruit_LIS3DH();

// 7-Segment Display Setup
  TM1637Display display = TM1637Display(CLK, DIO);
  const uint8_t data[] = {0xff, 0xff, 0xff, 0xff};
  const uint8_t blank[] = {0x00, 0x00, 0x00, 0x00};
  RTC_DS3231 rtc;

//Variables
  int buttonPushCounterHours = 0;       // Hours Counter
  int buttonPushCounterMinuites = 0;    // Minuites Counter
  int Hour_ButtonState = 0;             // current state of the up button
  int Hour_lastButtonState = 0;         // previous state of the up button
  int Minuite_ButtonState = 0;          // current state of the up button
  int Minuite_lastButtonState = 0;      // previous state of the up button
  int AlarmMaster_ButtonState = 0;      // Forcibly turns on the Alarm
  int AlarmToggle_LastButtonState = 1;  // Registers the button press for the alarm toggle
  int th,h,t,o;                         // Thousands,hundreds,tens,Ones
  int AlarmSet;                         // The time the alarm will go off
  int AlarmToggle_ButtonState = 0;      // Alarm toggle state
  int MovementTimer = 0;                // Timer which delays the snooze by holding the movement indicator
  int LastMovementVal;                  // The previous movementval stored to see if there has been a change
  int MovementVal;                      // The absoulte value of x & y axis data from the accelerometer
  int RawKeypadOutput;                  // The voltage value coming straight from the keypad
  int KeypadOutput;                     // Refined output value from the keypad
  int KeypadValue = '@';                // Holds the keypad character/number output
  int CurrentKeyPress = '@';            // Holds the current keypad press once it has been reset
  long int UserResponse;                // Accumulated Button presses
  long int ResponseFinal;               // Response that accounts for negative values
  const int numReadings = 2;            // Number of values in the averaging array
  int readings[numReadings];            // Readings from the keypad
  int readIndex = 0;                    // The index of the current reading
  int total = 0;                        // The running total from the keypad array
  int average = 0;                      // The average from the keypad array
  int QuestionCase;                     // Random number generator for the questions
  int x;                                // Random Math Question Value
  int y;                                // Random Math Question Value
  int z;                                // Random Math Question Value
  int Answer;                           // Answer to the Alarm Question
  int SnoozeCheck;                      // Its slightly more than the alarm set time to verify question completion
  int SnoozeCounter;                    // Counts the number of snoozes so it can reset the alarmset value correctly
  int displaytime;                      // Holds the current time
  char sign1;                           // Math sign in each question
  char sign2;                           // Math sign #2 in each question
  boolean Negative = false;             // If the button respsonse from the keypad is negative
  boolean ContinuousMovement = false;   // Checks if the movement is changing directions
  boolean Alarm_go = false;             // Alarm goes brr
  boolean CheckQuestions = false;       // The alarm menu is still in progress
  boolean bPress = false;               // Hour/Minuite Button press
  boolean SnoozeVal = false;            // Used to see if alarm is toggled
  boolean Movement = false;             // Deturmines if the system has moved
  boolean MasterSupress = false;        // Keeps the SetAlarm value from updating to force the alarm on
  boolean Snooze = false;               // If the question hasn't been answered within a minuite
  boolean AlarmToggleFlipFlop = true;   // Flip flops the alarm toggle button
  boolean AlarmDisabled = false;        // Suppresses the SnoozeVal update when the alarm is toggled off

//Melody Setup
  int melody[] = {
  NOTE_C4, NOTE_G3, NOTE_G3, NOTE_A3, NOTE_G3, 0, NOTE_B3, NOTE_C4
  };
  int noteDurations[] = {
  4, 8, 8, 4, 4, 4, 4, 4
  };

void setup() {

//Begins Serial Communication at a baud rate of 9600
  Serial.begin(9600);

//LCD Setup
  lcd.init();
  lcd.backlight();

// Check if the RTC lost power and if so, set the time:
  if (rtc.lostPower()) {
    rtc.adjust(DateTime(F(__DATE__), F(__TIME__)));
  }

//7 Segment Setup
  display.setBrightness(5);
  display.clear();

//Data Smoother initialization
  for (int thisReading = 0; thisReading < numReadings; thisReading++) {
    readings[thisReading] = 0;
  }

//Input setup
  pinMode( Hour_buttonPin , INPUT_PULLUP);
  pinMode( Minuite_buttonPin , INPUT_PULLUP);
  pinMode( AlarmToggle_buttonPin , INPUT_PULLUP);

//Accelerometer setup
  lis.begin(0x18);

//Preset Alarm (Military Time)
  buttonPushCounterHours = 6;
  buttonPushCounterMinuites = 45;

//Display the preset alarm:
  ResetMenu();
}

void loop() {

//Runs the clock & Alarm
  Alarm();

//Print the alarm time:
  if(Alarm_go != true){
    Minuites();
    Hours();
    UpdateCounter();
  }


//Accelerometer Data
  Accelerometer();

//Stuff needed for the question answering process
  if(CheckQuestions == true){
    Keypad();
    CheckAnswer();
  }
}

//All of the constant pitches for the buzzer

#define NOTE_B0  31
#define NOTE_C1  33
#define NOTE_CS1 35
#define NOTE_D1  37
#define NOTE_DS1 39
#define NOTE_E1  41
#define NOTE_F1  44
#define NOTE_FS1 46
#define NOTE_G1  49
#define NOTE_GS1 52
#define NOTE_A1  55
#define NOTE_AS1 58
#define NOTE_B1  62
#define NOTE_C2  65
#define NOTE_CS2 69
#define NOTE_D2  73
#define NOTE_DS2 78
#define NOTE_E2  82
#define NOTE_F2  87
#define NOTE_FS2 93
#define NOTE_G2  98
#define NOTE_GS2 104
#define NOTE_A2  110
#define NOTE_AS2 117
#define NOTE_B2  123
#define NOTE_C3  131
#define NOTE_CS3 139
#define NOTE_D3  147
#define NOTE_DS3 156
#define NOTE_E3  165
#define NOTE_F3  175
#define NOTE_FS3 185
#define NOTE_G3  196
#define NOTE_GS3 208
#define NOTE_A3  220
#define NOTE_AS3 233
#define NOTE_B3  247
#define NOTE_C4  262
#define NOTE_CS4 277
#define NOTE_D4  294
#define NOTE_DS4 311
#define NOTE_E4  330
#define NOTE_F4  349
#define NOTE_FS4 370
#define NOTE_G4  392
#define NOTE_GS4 415
#define NOTE_A4  440
#define NOTE_AS4 466
#define NOTE_B4  494
#define NOTE_C5  523
#define NOTE_CS5 554
#define NOTE_D5  587
#define NOTE_DS5 622
#define NOTE_E5  659
#define NOTE_F5  698
#define NOTE_FS5 740
#define NOTE_G5  784
#define NOTE_GS5 831
#define NOTE_A5  880
#define NOTE_AS5 932
#define NOTE_B5  988
#define NOTE_C6  1047
#define NOTE_CS6 1109
#define NOTE_D6  1175
#define NOTE_DS6 1245
#define NOTE_E6  1319
#define NOTE_F6  1397
#define NOTE_FS6 1480
#define NOTE_G6  1568
#define NOTE_GS6 1661
#define NOTE_A6  1760
#define NOTE_AS6 1865
#define NOTE_B6  1976
#define NOTE_C7  2093
#define NOTE_CS7 2217
#define NOTE_D7  2349
#define NOTE_DS7 2489
#define NOTE_E7  2637
#define NOTE_F7  2794
#define NOTE_FS7 2960
#define NOTE_G7  3136
#define NOTE_GS7 3322
#define NOTE_A7  3520
#define NOTE_AS7 3729
#define NOTE_B7  3951
#define NOTE_C8  4186
#define NOTE_CS8 4435
#define NOTE_D8  4699
#define NOTE_DS8 4978

void Questions(){
//Initilizaiton
  UserResponse = 0;
  ResponseFinal = 0;
  Negative = false;

//Generate A Random Question
  randomSeed(analogRead(1));
  QuestionCase = random(5);

//Generates Math Question Values
  x = random(50);
  y = random(50);
  z = random(50);

  switch(QuestionCase){

    case 0:
    Answer = x+y+z;
    sign1 = '+';
    sign2 = '+';
    PrintQuestion();
    break;

    case 1:
    Answer = x+y-z;
    sign1 = '+';
    sign2 = '-';
    PrintQuestion();
    break;

    case 2:
    Answer = x-y;
    z = '\0';
    sign1 = '-';
    sign2 = '\0';
    PrintQuestion();
    break;

    case 3:
    Answer = x+y;
    z = '\0';
    sign1 = '+';
    sign2 = '\0';
    PrintQuestion();
    break;

    case 4:
    x = random(20);
    y = random(11);
    Answer = x*y;
    z = '\0';
    sign1 = '*';
    sign2 = '\0';
    PrintQuestion();
    break;

  }

//Debugging
  Serial.print("QuestionCase: ");
  Serial.print(QuestionCase);
  Serial.print(" x: ");
  Serial.print(x);
  Serial.print(" y: ");
  Serial.print(y);
  Serial.print(" z: ");
  Serial.print(z);
  Serial.print(" Answer: ");
  Serial.print(Answer);
  Serial.print(" Sign1: ");
  Serial.print(sign1);
  Serial.print(" Sign2: ");
  Serial.println(sign2);

}

Credits

Arpit

12 projects • 6 followers

Firmware Engineer specializing in embedded systems, MCU programming, and hardware-software integration.

DIY Hard-to-Snooze Alarm Clock

Things used in this project

Hardware components

Hand tools and fabrication machines

Story

Introduction

Step 1: Design the Enclosure in Fusion 360

Step 2: 3D Print the Case

Step 3: Electronics Prototyping and Assembly

Step 6: How to Use / Improvements

Schematics

CODING SCHEMATICS

Code

Accelerometer_Logic.ino

Alarm_Functions.ino

Alarm_Logic.ino

Answer_Verification.ino

Keypad_Logic.ino

Main7.ino

pitches.h

Questions.ino

Credits

Arpit

Comments

Embed the widget on your own site

DIY Hard-to-Snooze Alarm Clock

DIY Hard-to-Snooze Alarm Clock

Things used in this project

Hardware components

Hand tools and fabrication machines

Story

Introduction

Step 1: Design the Enclosure in Fusion 360

Step 2: 3D Print the Case

Step 3: Electronics Prototyping and Assembly

Step 6: How to Use / Improvements

Schematics

CODING SCHEMATICS

Code

Accelerometer_Logic.ino

Alarm_Functions.ino

Alarm_Logic.ino

Answer_Verification.ino

Keypad_Logic.ino

Main7.ino

pitches.h

Questions.ino

Credits

Arpit

Comments

Related channels and tags
