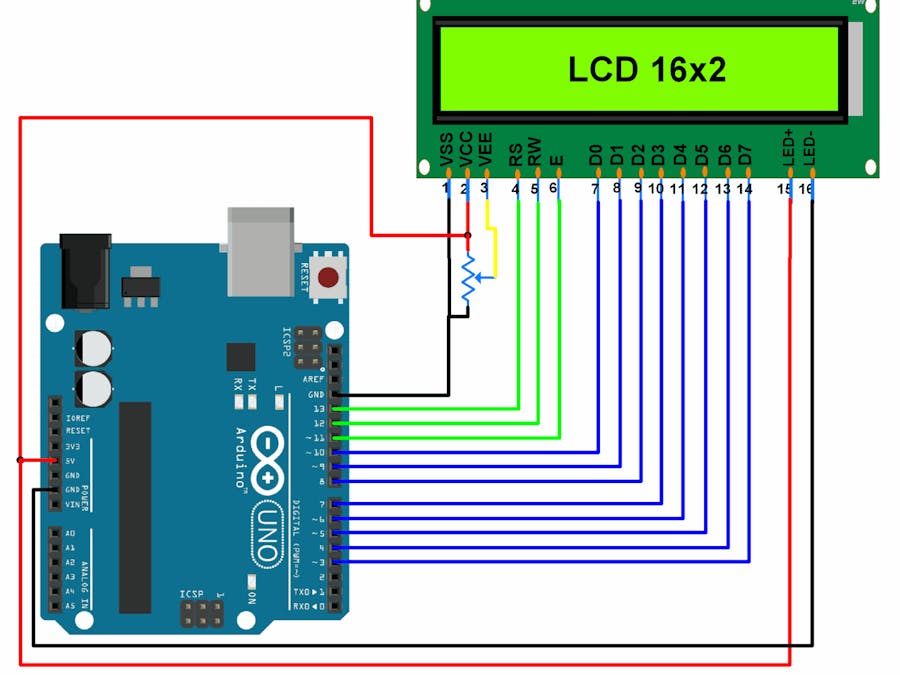

Arduino + 16×2 LCD Interfacing Project (Parallel Mode)

1. Objective

Build a basic embedded interface where an Arduino displays messages on a 16×2 LCD.This is the foundation for:

• Sensor readout displays
• Smart security status screens
• IoT debug consoles
• Menu-driven systems

5. Install Required Library

Open Arduino IDE:

Sketch → Include Library → Manage Libraries

Search: LiquidCrystal

Install (official one)

6. Arduino Code

Upload this code.

#include <LiquidCrystal.h>

// RS, E, D4, D5, D6, D7
LiquidCrystal lcd(12, 11, 5, 4, 3, 2);

void setup() {
  lcd.begin(16, 2);          // Initialize LCD
  lcd.print("Hello Arpit"); // First Line
}

void loop() {
  lcd.setCursor(0, 1);        // Second line
  lcd.print("LCD Working OK");
  delay(1000);

  lcd.clear();

  lcd.setCursor(0, 0);
  lcd.print("Arduino + LCD");
  lcd.setCursor(0, 1);
  lcd.print("Project Ready");
  delay(1000);

  lcd.clear();
}

7. How It Works (Important Concept)

The LCD does NOT understand characters directly.

Arduino sends:

• Command → where to write
• Data → which character
• Enable pulse → execute instruction
• Library LiquidCrystal handles this low-level timing.

8. Expected Output

Display alternates between:

Hello Arpit
LCD Working OK

and

Arduino + LCD
Project Ready

10. How to Extend This Project (Real Use)

You can now connect:

• Ultrasonic sensor → show distance
• RFID → show UID
• Temperature sensor → live monitor
• Security system → "Door Open / Closed"
• IoT node → show IP address

This LCD becomes your human–machine interface (HMI).
