TLI 313 Final Project

Arduino Biometrics Final Team Project

BeginnerShowcase (no instructions)650

Things used in this project

Hardware components

Arduino UNO

Alphanumeric LCD, 16 x 2

Adafruit Keypad, 4 x 4

Jumper wires (generic)

LED (generic)

Resistor 1k ohm

Resistor 100 ohm

Breadboard (generic)

Story

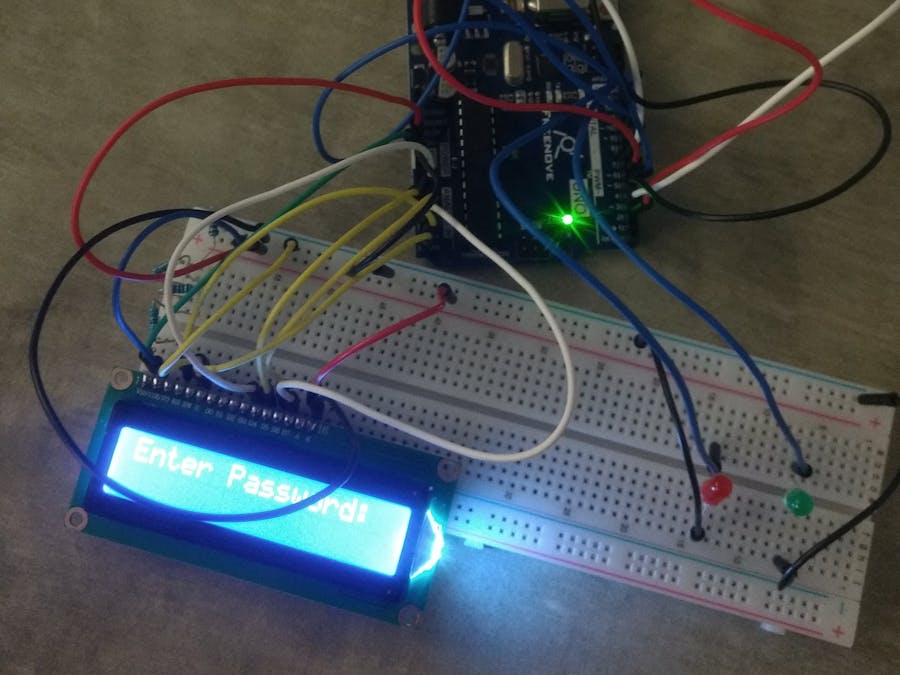

Keypad security using Arduino

This project went through a few iterations until we landed on a successful version.

Future development, if time would allow, would include the following additions:

1. Wifi shield to allow sending a tweet or notification upon correct and incorrect access times.

2. RTC module to allow a timestamp to be saved within a log of access attempts.

3. Addition of a camera to send a photo with the tweet/app notification

4. Capability to set master password

Log of issues:

1. LCD Wiring, used a defunct project to properly wire the LCD

2. Venturing into EEPROM, simply do not know enough of this yet.

Code

Keypad_Final_Proj_ALTERNATIVE_METHOD.ino

#include <LiquidCrystal.h>
#include <Keypad.h>

#define Password_Length 8

char Data[Password_Length];
char Master[Password_Length] = "ABC123D";
byte data_count = 0, master_count = 0;
bool Pass_is_good;
char customKey;

const int greenLED = 13;
const int redLED = 12;

const byte ROWS = 4;
const byte COLS = 4;

const byte LCD_RS = A4;
const byte LCD_EN = A5;
const byte LCD_D4 = A0;
const byte LCD_D5 = A1;
const byte LCD_D6 = A2;
const byte LCD_D7 = A3;
const byte BACKLIGHT = 3;
const byte BEEP = 2;

char hexaKeys[ROWS][COLS] = {
  {'1', '2', '3', 'A'},
  {'4', '5', '6', 'B'},
  {'7', '8', '9', 'C'},
  {'*', '0', '#', 'D'}
};

byte rowPins[ROWS] = {9, 8, 7, 6};
byte colPins[COLS] = {5, 4, 3, 2};

Keypad customKeypad = Keypad(makeKeymap(hexaKeys), rowPins, colPins, ROWS, COLS);
LiquidCrystal lcd(LCD_RS, LCD_EN, LCD_D4, LCD_D5, LCD_D6, LCD_D7);


void setup(){
  lcd.begin(16,2);
  pinMode(greenLED, OUTPUT);
}

void loop(){

  lcd.setCursor(0,0);
  lcd.print("Enter Password:");

  customKey = customKeypad.getKey();
  if (customKey){
    Data[data_count] = customKey;
    lcd.setCursor(data_count,1);
    lcd.print(Data[data_count]);
    data_count++;
    }

  if(data_count == Password_Length-1){
    lcd.clear();

    if(!strcmp(Data, Master)){
      lcd.print("Correct");
      digitalWrite(greenLED, HIGH);
      delay(5000);
      digitalWrite(greenLED, LOW);
      }
    else{
      lcd.print("Incorrect");
      digitalWrite(redLED, HIGH);
      delay(5000);
      digitalWrite(redLED, LOW);
      delay(1000);
      }

    lcd.clear();
    clearData();
  }
}

void clearData(){
  while(data_count !=0){
    Data[data_count--] = 0;
  }
  return;
}
