Security for bike riders is a must, with road bike or mountain bike accidents happens and as soon as possible, emergency personnel must locate you. This is even more important when you ride alone.
As bike user, I know how important is security for bikers and I want to build a simple, low power and high coverage device to monitor the rides and have a security system in case of an accident.
Thanks to the large coverage of sigfox network in Spain and an Arduino MKRFOX1200 with an IMU and a GPS module, it's possible to monitor the biker and in case the bike falls and it's on the ground for more than a configured time, the devide sends and alarm with the GPS coordinates.
This device checks every a configured timer (for example 10 seconds) the bike the inclination in the three axis (X, Y and Z) with the IMU. In case the bike is not vertical, sends an alarm to sigfox platform where two callbacks:

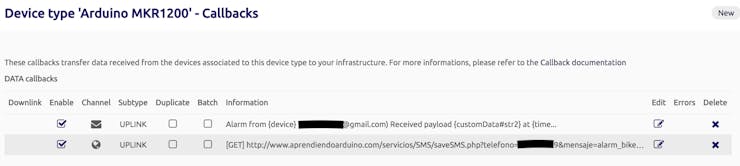

- First callback sends an email to a configured address with the possible alert and the GPS position
- Second callback use a http request to my public service hosted in https://www.aprendiendoarduino.com/servicios/SMS/index.html saving the alert. This database is checked by an Arduino Leonardo ETH with an Arduino GSM Shield 2 and sends SMS to somebody phone you want to be warned in case os accident.
Also, this device sends the GPS position or IMU data every a configured timer, for example 10 minutes.

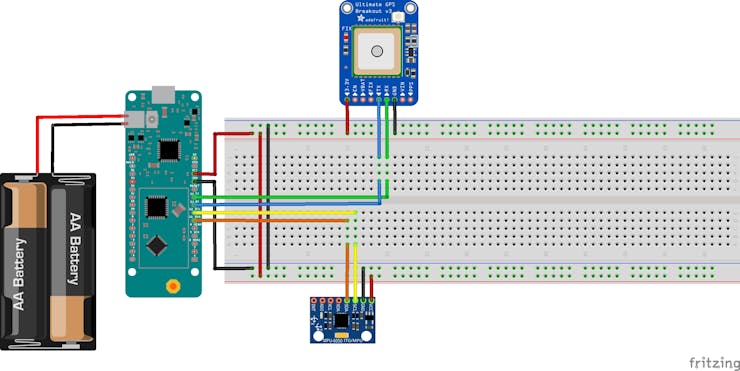

Wiring all elements:

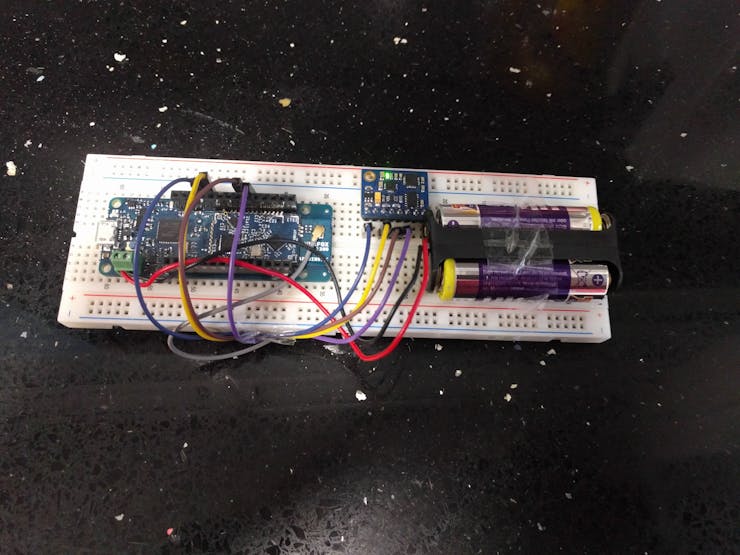

Aruino MKRFOX1200 with devices connected and ready to use:

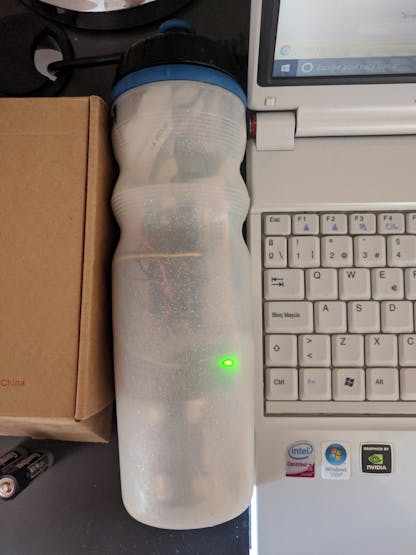

In the final version, the device is placed in the base of the bike bottle holder. For the prototype phase all components are inside a bottle completely isolated form rain, dust, etc...

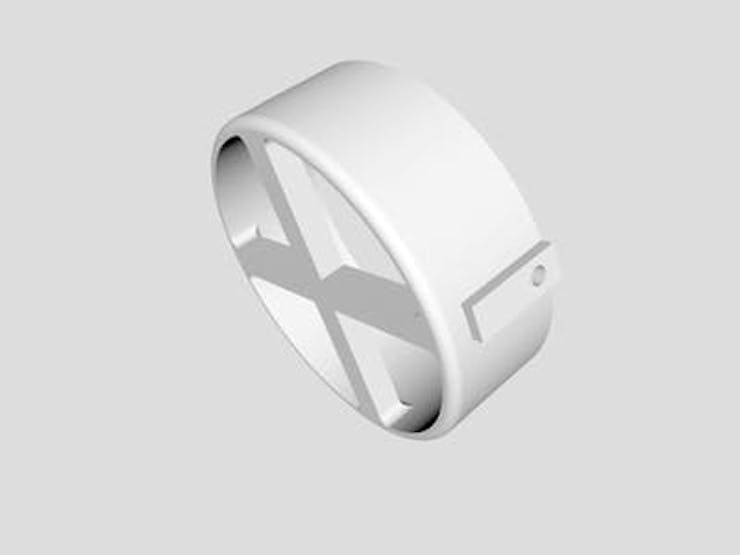

This is a first version design of the bike bottle holder base:

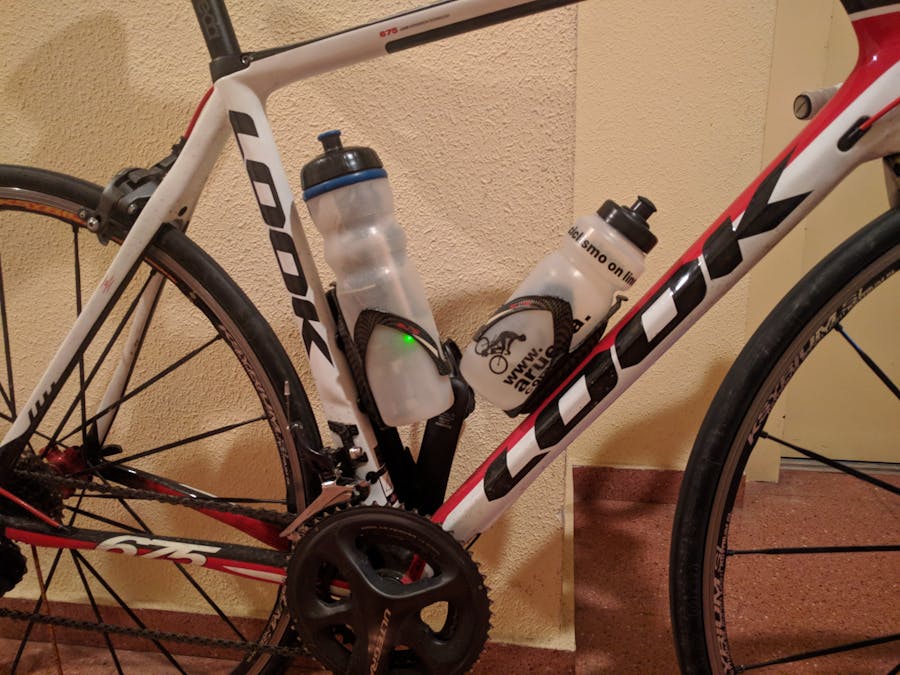

And the final test with a 55 kms ride:
This demo video shows that about 15 seconds lapse since the system detects the bottle fall until a SMS is received to the configured phone number.

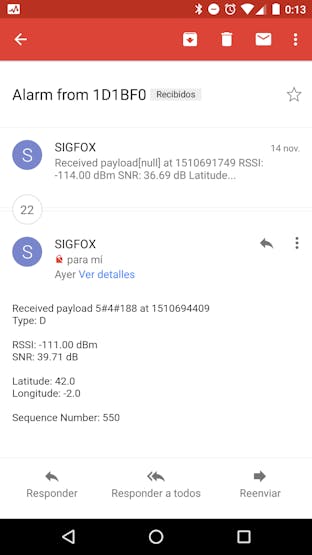

Received alerts: SMS and email
Also, this device could be used for tracking your bike rides or be tracked by your family or friends, or in case your bike is stolen, the bike will be located in a short time. As an anti-theft device could be hidden inside the bike frame in the future.
Another application for this device could be for participants tracking in bike competitions with both features security and live tracking for organizers.
Additionally, with a low energy bluetooth, this device could be controlled by a smartphone and add more features. For example send your location to your bike group to know how far you are form them.
Code for Arduino MKRFOX1200
API for recieve SMS to send
Arduino SMS sender
