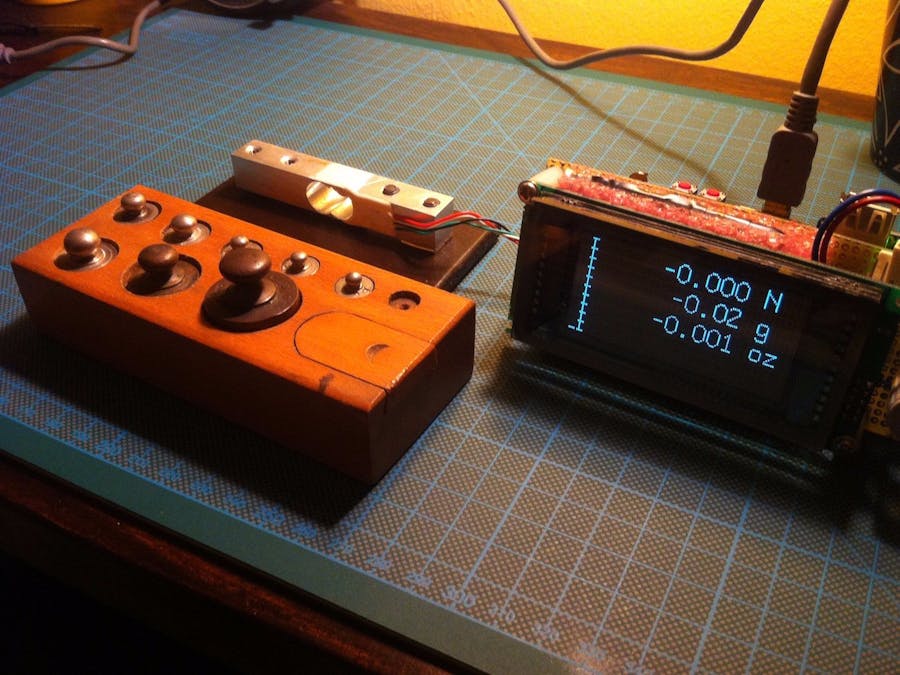

Arduino-based Digital Scale with HX711 and VFD Display

#include <Average.h>
#include <EasyScheduler.h>
#include "HX711.h"
#include <SoftwareSerial.h>

// HX711.DOUT - pin #A1
// HX711.PD_SCK - pin #A0

HX711 scale(A1, A0);  // parameter "gain" is ommited; the default value 128 is used by the library
SoftwareSerial VFD(6,7); // RX, TX

Average<float> ave1(20);

static float f1 = 0;
static char f1f[8];
static float wt1 = 0;
static float wt1avg = 0;
static char wt1f[8];
static float lbs = 0;
static char lbsf[8];
static float raw = 0;
static char rawf[16];

 const int zeroPin = 11;     // the number of the pushbutton pin
 int zeroState = 0;         // variable for reading the pushbutton status

int bar;

Schedular Task1;
Schedular Task2;

void setup() {
  Task1.start();
  Task2.start();

  pinMode(zeroPin, INPUT);

  VFD.begin(57600);
  VFD.write(0x19);
  VFD.write(0x1B);
  VFD.write(0xF9);

  scale.set_scale(1674640.f);                      // this value is obtained by calibrating the scale with known weights

delay(200);

  scale.tare();            // reset the scale to 0
  scale.tare();            // reset the scale to 0
  scale.tare();            // reset the scale to 0

delay(200);

  scale.tare();            // reset the scale to 0

  VFD.write(0x11);
  VFD.write(0x08);
  VFD.write(byte(0x02));
  VFD.write(0x08);
  VFD.write(0x3D);
//  Tick 100%
  VFD.write(0x11);
  VFD.write(0x07);
  VFD.write(byte(0x02));
  VFD.write(0x0A);
  VFD.write(byte(0x02));
//  Tick 90%
  VFD.write(0x11);
  VFD.write(0x07);
  VFD.write(0x08);
  VFD.write(0x0A);
  VFD.write(0x08);
//  Tick 80%
  VFD.write(0x11);
  VFD.write(0x07);
  VFD.write(0x0E);
  VFD.write(0x0A);
  VFD.write(0x0E);
//  Tick 70%
  VFD.write(0x11);
  VFD.write(0x07);
  VFD.write(0x14);
  VFD.write(0x0A);
  VFD.write(0x14);
//  Tick 60%
  VFD.write(0x11);
  VFD.write(0x07);
  VFD.write(0x1A);
  VFD.write(0x0A);
  VFD.write(0x1A);
//  Tick 50%
  VFD.write(0x11);
  VFD.write(0x07);
  VFD.write(0x20);
  VFD.write(0x0A);
  VFD.write(0x20);
//  Tick 40%
  VFD.write(0x11);
  VFD.write(0x07);
  VFD.write(0x26);
  VFD.write(0x0A);
  VFD.write(0x26);
//  Tick 30%
  VFD.write(0x11);
  VFD.write(0x07);
  VFD.write(0x2C);
  VFD.write(0x0A);
  VFD.write(0x2C);
//  Tick 20%
  VFD.write(0x11);
  VFD.write(0x07);
  VFD.write(0x32);
  VFD.write(0x0A);
  VFD.write(0x32);
  //  Tick 10%
  VFD.write(0x11);
  VFD.write(0x07);
  VFD.write(0x38);
  VFD.write(0x0A);
  VFD.write(0x38);
    //  Tick 0%
  VFD.write(0x11);
  VFD.write(0x07);
  VFD.write(0x3E);
  VFD.write(0x0A);
  VFD.write(0x3E);
}


void loop() {
    Task1.check(funct1,1);
    Task2.check(funct2,10);
}

   void funct1(){
  wt1 = scale.get_units() * 1000.000;
  lbs = wt1avg * 0.035274;
  f1 = wt1avg * 9.80665 / 1000.0;


  if (digitalRead(zeroPin) == LOW) {
  VFD.write(0x1B);
  VFD.write(0x98);
  VFD.write(0x01);                                            // Set VFD font size (5x7)
  VFD.write(0x10);
  VFD.write(0x26);
  VFD.write(0x3F);                                            // Set cursor position
  VFD.print("cell zeroing");
    scale.tare();
    scale.tare();
    scale.tare();
    scale.tare();
    scale.tare();                                              // reset the scale to 0
  VFD.write(0x10);
  VFD.write(0x26);
  VFD.write(0x3F);                                            // Set cursor position
  VFD.print("             ");
  }


}


   void funct2(){
//  raw = scale.read();
  ave1.push(wt1);
  wt1avg = ave1.mean();


   bar = (wt1avg / 1000.000 * 60);

     if (bar <= 0) {
  bar = 0;
  }

     if (bar >= 60) {
  bar = 60;
  }

  dtostrf(wt1avg,7, 2, wt1f);
  dtostrf(lbs,7, 3, lbsf);
  dtostrf(f1,7, 3, f1f);
//  dtostrf(raw, 10, 0, rawf);

//  Serial.print("one reading:\t");
//  Serial.println(scale.get_units(), 2);
//  Serial.print("\t| average:\t");
//  Serial.println(scale.get_units(10), 1);

//  scale.power_down();             // put the ADC in sleep mode
//  delay(100);
//  scale.power_up();

// DISPLAY FORCE IN NEWTONS
  VFD.write(0x1B);
  VFD.write(0x98);
  VFD.write(0x03);                                            // Set VFD font size (7x15)                                            // Set VFD font size (10x14)
  VFD.write(0x10);
  VFD.write(0x2A);
  VFD.write(0x11);          // Set cursor position
  VFD.print("");
  VFD.print(f1f);
  VFD.print(" ");
  VFD.print("N");

// DISPLAY WEIGHT IN KG
  VFD.write(0x1B);
  VFD.write(0x98);
  VFD.write(0x03);                                            // Set VFD font size (7x15)                                            // Set VFD font size (10x14)
  VFD.write(0x10);
  VFD.write(0x2A);
  VFD.write(0x21);          // Set cursor position
  VFD.print("");
  VFD.print(wt1f);
  VFD.print(" ");
  VFD.print("g");

// DISPLAY WEIIGHT IN LBS
  VFD.write(0x1B);
  VFD.write(0x98);
  VFD.write(0x03);                                            // Set VFD font size (7x15)                                            // Set VFD font size (10x14)
  VFD.write(0x10);
  VFD.write(0x2A);
  VFD.write(0x31);          // Set cursor position
  VFD.print("");
  VFD.print(lbsf);
  VFD.print(" ");
  VFD.print("oz");


/*
// DISPLAY RAW ADC READING
  VFD.write(0x1C);
  VFD.write(0x98);
  VFD.write(0x03);                                            // Set VFD font size (7x15)                                            // Set VFD font size (10x14)
  VFD.write(0x10);
  VFD.write(0x2A);
  VFD.write(0x39);          // Set cursor position
  VFD.print("");
  VFD.print(rawf);
*/


  VFD.write(0x11);
  VFD.write(byte(0x02));
  VFD.write(byte(61-bar));
  VFD.write(0x05);
  VFD.write(0x3E);

  VFD.write(0x12);
  VFD.write(byte(0x00));
  VFD.write(byte(0x00));
  VFD.write(0x05);
  VFD.write(61-bar);

   }
