Space Dodger: High-Performance LVGL Game on HMI-Board

Learn how to optimize embedded graphics with this open-source "Space Dodger" game. Built on RT-Thread Studio, it demonstrates collision dete

BeginnerFull instructions provided1 hour4

Space Dodger: High-Performance LVGL Game on HMI-Board

Things used in this project

Hardware components

Renesas IoT Enabler

Software apps and online services

RT-Thread IoT OS

Story

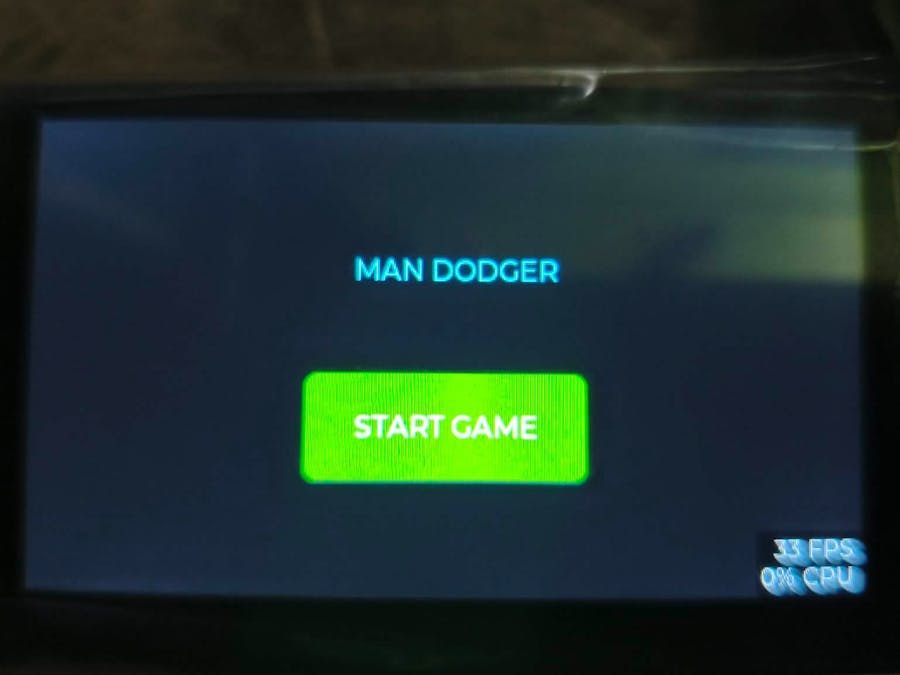

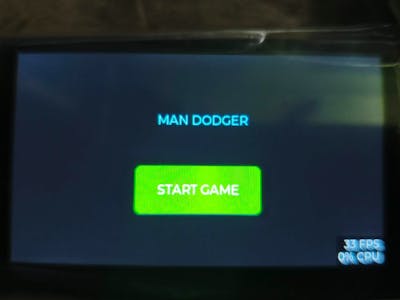

"Space Dodger" is a high-performance arcade game built entirely on the Renesas HMI-Board (RA6M3), leveraging the power of the RT-Thread real-time operating system and LVGL 8.3. My primary goal for this project was to challenge the misconception that embedded microcontrollers are only good for static user interfaces. I wanted to demonstrate that with the right optimization techniques, it is possible to create a fluid, "Bullet Hell" style game running at a rock-solid 50 FPS (20ms refresh rate) on a Cortex-M4F MCU. Instead of a simple menu demo, this project showcases multiple moving objects, collision detection, and real-time score tracking happening simultaneously without lag.

To achieve this level of performance, I heavily utilized the hardware capabilities of the Renesas RA6M3. By enabling the board's built-in D/AVE 2D graphics acceleration engine, I was able to offload intensive drawing tasks—such as rendering the "Starfighter" ship and enemy boxes—from the CPU. The game logic operates on a dedicated LVGL timer that updates object coordinates every 20ms, ensuring the UI thread never blocks. I also implemented memory optimization strategies; for instance, rather than destroying and recreating enemy objects (which causes memory fragmentation), the game "recycles" the same three enemy entities, simply resetting their positions once they leave the screen.

Beyond raw performance, I focused on creating fair and engaging gameplay mechanics. I developed a custom "Smart Randomizer" algorithm to handle enemy spawning. Standard random functions often lead to enemies clumping in one spot, so my system uses a history buffer to ensure enemies pick different vertical lanes, covering the entire screen dynamically. The game also features a scaling difficulty system: it starts at a manageable speed for the first 20 seconds, then ramps up into a fast-paced survival mode as time progresses. A session-based leaderboard tracks the top three high scores, adding a competitive layer to the experience.

The development process came with specific hurdles. Early in the project, I encountered visual artifacts and screen tearing. I resolved this by carefully configuring the display driver to allocate the frame buffers within the RA6M3’s fast internal SRAM rather than the slower external RAM. Additionally, tuning the collision detection to feel "fair" required adjusting the hitboxes to be slightly smaller than the visual sprites, ensuring players didn't feel cheated by edge-case collisions.

This project serves as a blueprint for developers looking to push the limits of the HMI-Board. It combines hardware acceleration, efficient RTOS task management, and game logic into a single package. In future updates, I plan to utilize the board’s PWM capabilities to add sound effects and implement persistent storage to save high scores permanently.

Code

game.c

#include "lvgl.h"
#include <stdlib.h>
#include <time.h>
#include <stdio.h>

/* --- SCREEN SETTINGS --- */
#define SCREEN_WIDTH   480
#define SCREEN_HEIGHT  272
#define PLAYER_SIZE    45
#define ENEMY_SIZE     30
#define MOVE_STEP      40

/* --- DIFFICULTY SETTINGS --- */
#define MAX_ENEMIES    3
#define ENEMY_SPACING  120
#define MAX_LEADERBOARD 3
#define LANE_WIDTH     40

/* --- GLOBAL OBJECTS --- */
static lv_obj_t *player = NULL;
static lv_obj_t *enemies[MAX_ENEMIES];
static lv_obj_t *score_label = NULL;
static lv_obj_t *game_over_panel = NULL;
static lv_obj_t *start_menu_panel = NULL;
static lv_obj_t *left_btn = NULL;
static lv_obj_t *right_btn = NULL;

/* --- TIMERS --- */
static lv_timer_t *game_timer_handle = NULL;
static lv_timer_t *level_timer_handle = NULL;

/* --- GAME VARIABLES --- */
static int player_x = (SCREEN_WIDTH / 2) - (PLAYER_SIZE / 2);
static int enemies_x[MAX_ENEMIES];
static float enemies_y[MAX_ENEMIES]; // Changed to float for smooth varying speeds
static float enemies_individual_speed[MAX_ENEMIES]; // Individual speed variance

// History buffer to prevent clumping
static int spawn_history[2] = {-1, -1};

static int base_speed = 4;
static int seconds_elapsed = 0;
static int score = 0;
static int prev_score = -1;
static int high_scores[MAX_LEADERBOARD] = {0, 0, 0};

/* --- SHAPES --- */
static lv_point_t star_points[] = {
    {22, 0}, {45, 45}, {22, 35}, {0, 45}, {22, 0}
};

/* --- STYLES --- */
static lv_style_t style_box;
static lv_style_t style_star;
static lv_style_t style_text_large;

/* --- FORWARD DECLARATIONS --- */
void start_gameplay_setup(void);
void show_game_over(void);
void game_loop(lv_timer_t *timer);
void level_timer(lv_timer_t *t);
void update_leaderboard(int new_score);

/* --- IMPROVED RANDOMIZER --- */
static int get_new_enemy_x(void) {
    // 1. Calculate how many lanes fit
    int total_lanes = (SCREEN_WIDTH - ENEMY_SIZE) / LANE_WIDTH;

    // 2. Calculate offset to PERFECTLY CENTER the grid
    int grid_width = total_lanes * LANE_WIDTH;
    int x_offset = (SCREEN_WIDTH - grid_width) / 2;

    int new_lane;
    bool is_duplicate;

    // 3. Smart Retry Loop
    // Keep picking a lane until it is NOT in our recent history
    do {
        new_lane = rand() % total_lanes;
        is_duplicate = false;
        if(new_lane == spawn_history[0] || new_lane == spawn_history[1]) {
            is_duplicate = true;
        }
    } while (is_duplicate);

    // Update History (Shift old values)
    spawn_history[1] = spawn_history[0];
    spawn_history[0] = new_lane;

    // Return centered pixel coordinate + small jitter
    return x_offset + (new_lane * LANE_WIDTH) + (rand() % 5);
}

/* --- LEADERBOARD --- */
void update_leaderboard(int new_score) {
    for(int i = 0; i < MAX_LEADERBOARD; i++) {
        if(new_score > high_scores[i]) {
            for(int j = MAX_LEADERBOARD - 1; j > i; j--) {
                high_scores[j] = high_scores[j-1];
            }
            high_scores[i] = new_score;
            break;
        }
    }
}

/* --- GAMEPLAY LOOP --- */
void game_loop(lv_timer_t *timer)
{
    (void)timer;
    if(!player) return;

    bool collision_detected = false;

    for(int i = 0; i < MAX_ENEMIES; i++) {
        if(enemies[i] == NULL) continue;

        // Move with individual speed variance
        enemies_y[i] += enemies_individual_speed[i];

        // Respawn logic
        if (enemies_y[i] > SCREEN_HEIGHT) {
            enemies_y[i] = -40;
            enemies_x[i] = get_new_enemy_x();

            // Randomize individual speed slightly (Base speed + random 0.0 to 1.5)
            enemies_individual_speed[i] = base_speed + ((rand() % 15) / 10.0f);

            score++;
        }

        lv_obj_set_pos(enemies[i], enemies_x[i], (int)enemies_y[i]);

        // Collision
        if (abs(player_x - enemies_x[i]) < (PLAYER_SIZE/2 + ENEMY_SIZE/2 - 8) &&
            abs((SCREEN_HEIGHT - PLAYER_SIZE - 10) - (int)enemies_y[i]) < (PLAYER_SIZE/2 + ENEMY_SIZE/2 - 8))
        {
            collision_detected = true;
        }
    }

    lv_obj_set_pos(player, player_x, SCREEN_HEIGHT - PLAYER_SIZE - 10);

    if (score != prev_score) {
        char buf[32];
        sprintf(buf, "Score: %d", score);
        lv_label_set_text(score_label, buf);
        prev_score = score;
    }

    if (collision_detected) {
        show_game_over();
    }
}

void level_timer(lv_timer_t *t) {
    (void)t;
    seconds_elapsed++;
    if (seconds_elapsed > 0 && seconds_elapsed % 10 == 0) {
        if (base_speed < 15) base_speed += 1; // Increase base speed
    }
}

/* --- CONTROLS --- */
static void move_left(lv_event_t *e) {
    (void)e;
    player_x -= MOVE_STEP;
    if (player_x < 0) player_x = 0;
}

static void move_right(lv_event_t *e) {
    (void)e;
    player_x += MOVE_STEP;
    if (player_x > (SCREEN_WIDTH - PLAYER_SIZE)) {
        player_x = (SCREEN_WIDTH - PLAYER_SIZE);
    }
}

/* --- MENUS --- */
static void start_btn_handler(lv_event_t * e)
{
    if(start_menu_panel) {
        lv_obj_del(start_menu_panel);
        start_menu_panel = NULL;
    }
    start_gameplay_setup();
}

static void restart_event_handler(lv_event_t * e)
{
    if(game_over_panel) {
        lv_obj_del(game_over_panel);
        game_over_panel = NULL;
    }

    score = 0;
    prev_score = -1;
    base_speed = 4;
    seconds_elapsed = 0;
    player_x = (SCREEN_WIDTH / 2) - (PLAYER_SIZE / 2);

    spawn_history[0] = -1;
    spawn_history[1] = -1;

    for(int i = 0; i < MAX_ENEMIES; i++) {
        enemies_x[i] = get_new_enemy_x();
        enemies_y[i] = -50 - (i * ENEMY_SPACING);
        enemies_individual_speed[i] = base_speed;
    }

    lv_label_set_text(score_label, "Score: 0");
    lv_timer_resume(game_timer_handle);
    lv_timer_resume(level_timer_handle);
}

/* --- SETUP --- */
void start_gameplay_setup(void)
{
    score_label = lv_label_create(lv_scr_act());
    lv_label_set_text(score_label, "Score: 0");
    lv_obj_set_style_text_color(score_label, lv_color_hex(0xFFFFFF), 0);
    lv_obj_align(score_label, LV_ALIGN_TOP_MID, 0, 10);

    player = lv_obj_create(lv_scr_act());
    lv_obj_set_size(player, PLAYER_SIZE, PLAYER_SIZE);
    lv_obj_set_style_bg_opa(player, LV_OPA_0, 0);
    lv_obj_set_style_border_width(player, 0, 0);
    lv_obj_clear_flag(player, LV_OBJ_FLAG_SCROLLABLE);
    lv_obj_set_pos(player, player_x, SCREEN_HEIGHT - PLAYER_SIZE - 10);

    lv_obj_t * star_line = lv_line_create(player);
    lv_line_set_points(star_line, star_points, 5);
    lv_obj_add_style(star_line, &style_star, 0);
    lv_obj_center(star_line);

    for(int i = 0; i < MAX_ENEMIES; i++) {
        enemies[i] = lv_obj_create(lv_scr_act());
        lv_obj_add_style(enemies[i], &style_box, 0);
        lv_obj_set_size(enemies[i], ENEMY_SIZE, ENEMY_SIZE);
        lv_obj_clear_flag(enemies[i], LV_OBJ_FLAG_SCROLLABLE);

        enemies_x[i] = get_new_enemy_x();
        enemies_y[i] = -50 - (i * ENEMY_SPACING);
        enemies_individual_speed[i] = base_speed; // Start synced

        lv_obj_set_pos(enemies[i], enemies_x[i], (int)enemies_y[i]);
    }

    left_btn = lv_btn_create(lv_scr_act());
    lv_obj_set_size(left_btn, SCREEN_WIDTH / 2, SCREEN_HEIGHT);
    lv_obj_set_pos(left_btn, 0, 0);
    lv_obj_set_style_bg_opa(left_btn, LV_OPA_0, 0);
    lv_obj_add_event_cb(left_btn, move_left, LV_EVENT_CLICKED, NULL);

    right_btn = lv_btn_create(lv_scr_act());
    lv_obj_set_size(right_btn, SCREEN_WIDTH / 2, SCREEN_HEIGHT);
    lv_obj_set_pos(right_btn, SCREEN_WIDTH / 2, 0);
    lv_obj_set_style_bg_opa(right_btn, LV_OPA_0, 0);
    lv_obj_add_event_cb(right_btn, move_right, LV_EVENT_CLICKED, NULL);

    game_timer_handle = lv_timer_create(game_loop, 20, NULL);
    level_timer_handle = lv_timer_create(level_timer, 1000, NULL);
}

void show_game_over(void)
{
    lv_timer_pause(game_timer_handle);
    lv_timer_pause(level_timer_handle);
    update_leaderboard(score);

    game_over_panel = lv_obj_create(lv_scr_act());
    lv_obj_set_size(game_over_panel, 300, 240);
    lv_obj_center(game_over_panel);
    lv_obj_set_style_bg_color(game_over_panel, lv_color_hex(0x1a1a1a), 0);
    lv_obj_set_style_border_color(game_over_panel, lv_color_hex(0xFF0000), 0);
    lv_obj_set_style_border_width(game_over_panel, 3, 0);

    lv_obj_t * title = lv_label_create(game_over_panel);
    lv_label_set_text(title, "GAME OVER");
    lv_obj_add_style(title, &style_text_large, 0);
    lv_obj_set_style_text_color(title, lv_color_hex(0xFF4444), 0);
    lv_obj_align(title, LV_ALIGN_TOP_MID, 0, 5);

    lv_obj_t * score_msg = lv_label_create(game_over_panel);
    char buf[64];
    sprintf(buf, "Your Score: %d", score);
    lv_label_set_text(score_msg, buf);
    lv_obj_set_style_text_color(score_msg, lv_color_hex(0xFFFFFF), 0);
    lv_obj_align(score_msg, LV_ALIGN_TOP_MID, 0, 45);

    lv_obj_t * lb_list = lv_label_create(game_over_panel);
    char lb_buf[128];
    sprintf(lb_buf, "1. %d\n2. %d\n3. %d", high_scores[0], high_scores[1], high_scores[2]);
    lv_label_set_text(lb_list, lb_buf);
    lv_obj_set_style_text_color(lb_list, lv_color_hex(0x00EEFF), 0);
    lv_obj_align(lb_list, LV_ALIGN_TOP_MID, 0, 80);

    lv_obj_t * btn = lv_btn_create(game_over_panel);
    lv_obj_set_size(btn, 140, 40);
    lv_obj_align(btn, LV_ALIGN_BOTTOM_MID, 0, -5);
    lv_obj_set_style_bg_color(btn, lv_color_hex(0x00AACC), 0);
    lv_obj_add_event_cb(btn, restart_event_handler, LV_EVENT_CLICKED, NULL);

    lv_obj_t * btn_label = lv_label_create(btn);
    lv_label_set_text(btn_label, "TRY AGAIN");
    lv_obj_center(btn_label);
}

void create_start_menu(void)
{
    start_menu_panel = lv_obj_create(lv_scr_act());
    lv_obj_set_size(start_menu_panel, LV_PCT(100), LV_PCT(100));
    lv_obj_set_style_bg_color(start_menu_panel, lv_color_hex(0x101010), 0);
    lv_obj_set_style_border_width(start_menu_panel, 0, 0);
    lv_obj_clear_flag(start_menu_panel, LV_OBJ_FLAG_SCROLLABLE);

    lv_obj_t * title = lv_label_create(start_menu_panel);
    lv_label_set_text(title, "AMAN DODGER");
    lv_obj_add_style(title, &style_text_large, 0);
    lv_obj_set_style_text_color(title, lv_color_hex(0x00EEFF), 0);
    lv_obj_align(title, LV_ALIGN_CENTER, 0, -50);

    lv_obj_t * btn = lv_btn_create(start_menu_panel);
    lv_obj_set_size(btn, 160, 60);
    lv_obj_align(btn, LV_ALIGN_CENTER, 0, 40);
    lv_obj_set_style_bg_color(btn, lv_color_hex(0x00CC00), 0);
    lv_obj_add_event_cb(btn, start_btn_handler, LV_EVENT_CLICKED, NULL);

    lv_obj_t * btn_label = lv_label_create(btn);
    lv_label_set_text(btn_label, "START GAME");
    lv_obj_set_style_text_font(btn_label, &lv_font_montserrat_16, 0);
    lv_obj_center(btn_label);
}

void game_start(void)
{
    srand((unsigned)time(NULL));

    lv_obj_set_style_bg_color(lv_scr_act(), lv_color_hex(0x101010), 0);

    lv_style_init(&style_box);
    lv_style_set_radius(&style_box, 2);
    lv_style_set_bg_color(&style_box, lv_color_hex(0xFF3333));
    lv_style_set_border_width(&style_box, 2);
    lv_style_set_border_color(&style_box, lv_color_hex(0x880000));

    lv_style_init(&style_star);
    lv_style_set_line_width(&style_star, 3);
    lv_style_set_line_color(&style_star, lv_color_hex(0x00EEFF));
    lv_style_set_line_rounded(&style_star, true);

    lv_style_init(&style_text_large);
    lv_style_set_text_font(&style_text_large, &lv_font_montserrat_16);

    create_start_menu();
}
