Grove Button With monoZero

Grove - Button is a momentary push button switch. This button outputs a HIGH signal when pressed, and LOW when released

IntermediateProtip2 days98

Things used in this project

Hardware components

Seeed Studio Grove - Button(P)

Female/Female Jumper Wires

monoZ™ monoZero 1WG

monoZ™ monoZero Grove

Software apps and online services

STMicroelectronics STM32CUBEPROG

monoZ™ monoZ SDK

Story

monoZero Cellular IoT solution is one of the best alternatives to the expensive commercial home security system. The monoZero hardware has a built-in 1WG modem module that supports LwM2M protocol with NIDD (Non-IP Data Delivery). Users need to insert an IoT SIM to the monoZero to make 1WG active and do cloud setup to receive and see the data. It has an associated SDK that makes programming simple with its own APIs, for example APIs that can send processed data as payload to the cloud.

Grove Button with monoZero is one such example where users can easily plug a push button to the monoZero Grove board. Add simple codes to read the status of the switch and use the monoZ SDK APIs to send the status of the push button as payload to the cloud.

Grove - Button is a momentary push button switch. It contains one independent "momentary on/off" button. “Momentary” means that the button rebounds on its own after it is released. This button outputs a HIGH signal when pressed, and LOW when released.

HARDWARE :

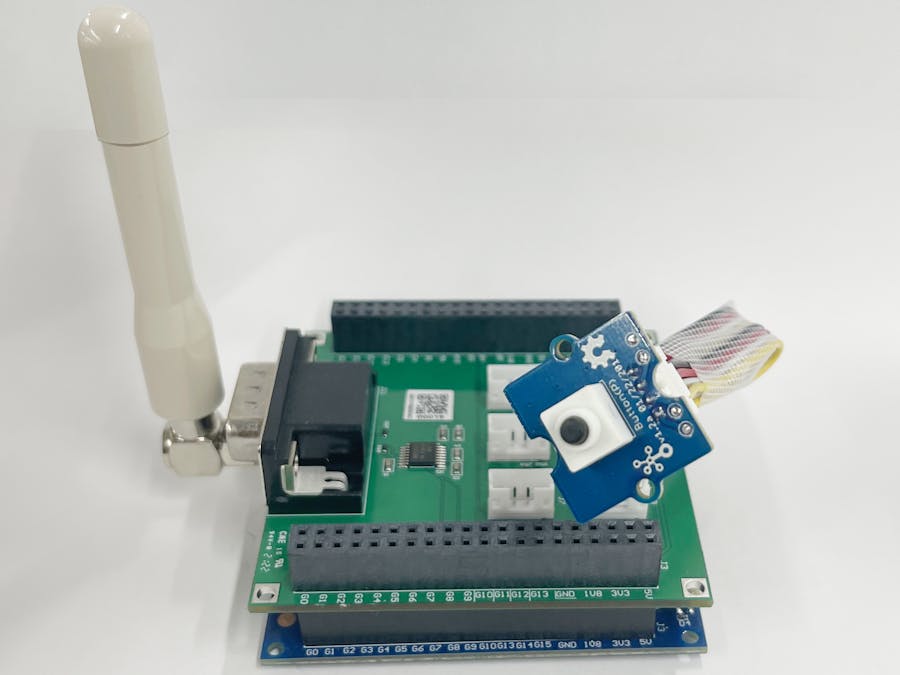

1 ) Connect the MonoZero Grove board on the monoZero 1WG V3 board

2) Connect the Grove Switch on the monoZero Grove board as per the schematic given.

Things you need :

1 / 3 • monoZero 1WG V3

Working of Grove Button:

Connect the "Grove button switch to the Grove board, upload the program using STM cube IDE and run the code.
When you press the button its output signal state changes to a HIGH, Normally it will be in low state.
When the switch is pressed monoZero 1WG will send 31 as payload to the server, when the switch is released monoZero 1WG will send 30 as payload to the server.

Result :

The console output:

The server output:

Application:

Unmanned convenience/grocery stores with monoZero Cellular IoT solution

This setup can be installed in Unmanned Convenience stores to add the selected products to cart using monoZero Cellular IoT. It requires a push button connected to monoZero with a built-in 1WG modem module. These push buttons are placed nearer to each item on the shelf. Based on the number of times the button is pressed, the count of the selected item is incremented and this count is stored using the monoZero. Then using the monoZ SDK APIs these (counts) payloads can easily be sent to the cloud. In the cloud these payloads are received and corresponding items are added to the cart.

Example - Convenience Store Dashboard

CART

Code

/*
 * MZ_Board_Grove_Switch.c
 *
 *  Created on: Mar 15, 2022
 *  Author: Alsufiyan
 */

/* Include Header Files - START */
#include "MZ_Board_Grove_Switch.h"
#include "MZ_sys_cmsis_os2.h"
#include "MZ_error_handler.h"
#include "MZ_timer.h"
#include "MZ_print.h"
#include "MZ_Lwm2m_public.h"
#include "MZ_type_converter.h"
#include "MZ_Modem_public.h"
#include "MZ_uart.h"
#include "MZ_main.h"
#include "stdlib.h"
#include "main.h"
/* Include Header Files - END */

/* Define some common use MACRO - START */
//#define REED_SWITCH_STATUS			//Macro to enable read and send Reed Switch Status
#define PUSH_BUTTON_STATUS			//Macro to enable read and send Push Button Status

#define SERVER_REG_NEED_SET						(0)
#define SERVER_REG_NEED_CLEAR						(1)
#define EXTI_CB_FLAG_CLEAR						(0)
#define EXTI_CB_FLAG_SET						(1)
#define OBSERVE_COMPLETE_SET						(1)
#define OBSERVE_COMPLETE_CLEAR					(0)
#define TIME_180SEC							(pdMS_TO_TICKS(180000))
#define TIMER_ID_CLEAR							(0)
/* Define some common use MACRO - END */

/* Thread related MACRO and variables - START */
#define SWITCH_APP_STACK_SIZE		(1024)
static mz_thread_t 			switch_thread_id = NULL;
static StaticTask_t 			switch_cb_mem;
static StackType_t 			switch_stack[SWITCH_APP_STACK_SIZE];
/* Thread related MACRO and variables - END */

/* Timer related MACRO and variables - START */
#define LWM2M_SERVER_MONITORING_TIME		(TIME_180SEC)
static size_t lwm2m_server_monitoring_timer_id = TIMER_ID_CLEAR;
/* Timer related MACRO and variables - END */

/* Reed switch related MACRO and variables - START */
//#define REED_SWITCH								REED_SW_Pin
#define PUSH_BUTTON								PB_Pin
static char external_interrupt_cb_flag  = EXTI_CB_FLAG_CLEAR;
static uint16_t exti_pin=0;
static uint8_t reed_switch_status=0;
static uint8_t push_button_status=0;
static uint8_t locstr[50]={0};
/* Reed switch related MACRO and variables - END */

/* LWM2M related MACRO and variables - START */
static char lwm2m_server_rereg_flag = SERVER_REG_NEED_CLEAR;
static char observe_receive_flag = OBSERVE_COMPLETE_CLEAR;
static char payload_string[11] = "";
static char payload_string_1[11] = "";
/* LWM2M related MACRO and variables - END */

extern void mz_reboot_sequence(void * arg);

/* static function prototypes - START */
static void lwm2m_server_monitoring_timer_cb(TimerHandle_t xTimer);
static void switch_read_timer_cb(TimerHandle_t xTimer);
static void lwm2m_server_reregistration(void);
static void create_lwm2m_payload_reed_switch(void);
static void send_reed_payload_to_server(void);
static void create_lwm2m_payload_pb(void);
static void send_pb_payload_to_server(void);
static void switch_app_thread(void * arg);
static void process_switch_status();
static uint32_t int32_to_string_decimal(uint8_t *dststr,uint32_t num);
/* static function prototypes - END */

/*============================================================================*/
/*           Monoz switch status and data send to Lwm2m server - START         */
/*============================================================================*/

/* EXTI line detection callback -START.  */
void HAL_GPIO_EXTI_Callback(uint16_t GPIO_Pin)
{
	external_interrupt_cb_flag  = EXTI_CB_FLAG_SET;
	exti_pin = GPIO_Pin;
}
/*  EXTI line detection callback - END */

/*   process_switch_status -START.  */
static void process_switch_status(){
#ifdef REED_SWITCH_STATUS
	if(HAL_GPIO_ReadPin(GPIOD, REED_SWITCH)){
		reed_switch_status=1;
		mz_puts("Reed Switch Status: open\r\n");
	}else{
		reed_switch_status=0;
		mz_puts("Reed Switch Status: closed\r\n");
	}
#endif
#ifdef PUSH_BUTTON_STATUS
	if(HAL_GPIO_ReadPin(GPIOD, PUSH_BUTTON)){
		push_button_status=1;
		mz_puts("Push Button Status: open\r\n");
	}else{
		push_button_status=0;
		mz_puts("Push Button Status: closed\r\n");
	}
#endif
}
/*  process_switch_status - END */

/* LWM2M server registration monitoring timer callback - START
 */
static void lwm2m_server_monitoring_timer_cb(TimerHandle_t xTimer)
{
	/* Check if observe has not started */
	if(OBSERVE_COMPLETE_CLEAR == observe_receive_flag)
	{
		/* Then set the server re-registration flag */
		lwm2m_server_rereg_flag = SERVER_REG_NEED_SET;
	}
}
/* LWM2M server registration monitoring timer callback - END */

/* LWM2M server re-registration API - START

 */
static void lwm2m_server_reregistration(void)
{
	/* Clear previous observe receive flag */
	observe_receive_flag = OBSERVE_COMPLETE_CLEAR;

	/* Starting the Lwm2m server monitoring one time timer */
	if(MZ_OK != mz_tm_start(lwm2m_server_monitoring_timer_id))
	{
		mz_puts("Server monitoring timer creation failed\r\n");
	}

	/* Initiate the server re-registration */

	if(MZ_OK == MZ_modem_config_set(mz_reboot_sequence))
	{
		/* print the success in the CLI */
		mz_puts("Server re-reg sequence started\r\n");
	}
	else
	{
		/* print the fail - It will be again tried on next timer expire */
		mz_puts("Server re-reg sequence failed\r\n");
	}
}
/* LWM2M server re-registration API - END */

/* LWM2M Create payload API - START */
static void create_lwm2m_payload_reed_switch(void)
{
	/*
	 * As all the payload is just number, this is a optimized implementation
	 * of converting the final value to ASCII HEX string
	 */
	payload_string[0] = '\"';
	payload_string[1] = '3';
	payload_string[2] = '0' + reed_switch_status;
	payload_string[3] = '\"';
	payload_string[4] = '\0';
}
/* LWM2M Create payload API - END */

/*  LWM2M send payload API - START */
static void send_reed_payload_to_server(void)
{
	/* Set the Object 19/0/0 Data and send the Notify request to MonoZ_Lib */
	mz_error_t status = mz_set_and_notify_Ob19_0_0(payload_string);

	/* Check the status of the request */
	if(MZ_OK == status)
	{
		/* print success on CLI */
		mz_puts("Notify send to MonoZ_Lib\r\n");
	}
	else
	{
		/* print of error string on CLI */
		mz_puts(mz_error_to_str(status));
	}
}

/* LWM2M Create payload API - START */
static void create_lwm2m_payload_pb(void)
{
	/*
	 * As all the payload is just number, this is a optimized implementation
	 * of converting the final value to ASCII HEX string
	 */
	payload_string_1[0] = '\"';
	payload_string_1[1] = '3';
	payload_string_1[2] = '0' + push_button_status;
	payload_string_1[3] = '\"';
	payload_string_1[4] = '\0';
}
/* LWM2M Create payload API - END */

/*  LWM2M send payload API - START */
static void send_pb_payload_to_server(void)
{
	/* Set the Object 19/0/0 Data and send the Notify request to MonoZ_Lib */
	mz_error_t status = mz_set_and_notify_Ob19_0_0(payload_string_1);


	if(MZ_OK == status)
	{
		/* print success on CLI */
		mz_puts("Notify send to MonoZ_Lib\r\n");
	}
	else
	{

		mz_puts(mz_error_to_str(status));
	}
}

/* LWM2M send payload API - END */
/*  Switch main Application thread. - START */
static void switch_app_thread(void * arg)
{
	(void)arg;

	lwm2m_server_monitoring_timer_id =
			mz_tm_create_one("Server monitoring timer",
							LWM2M_SERVER_MONITORING_TIME,
							lwm2m_server_monitoring_timer_cb);
	/* Starting the Lwm2m server monitoring timer.	 */
	(void)mz_tm_start(lwm2m_server_monitoring_timer_id);

	/* Print on the console about timer start */
	mz_puts("Server monitoring timer started\r\n");

	while(1)
	{

		if(SERVER_REG_NEED_SET == lwm2m_server_rereg_flag)
		{
			/* clear the server re-registration flag */
			lwm2m_server_rereg_flag = SERVER_REG_NEED_CLEAR;

			/* Perform lwm2m server re-registration */
			lwm2m_server_reregistration();
		}
		if(EXTI_CB_FLAG_SET == external_interrupt_cb_flag){
			// process switch status
			process_switch_status();
			#ifdef REED_SWITCH_STATUS
			// Create the lwm2m payload for reed switch
			create_lwm2m_payload_reed_switch();
			// Send the reed switch payload to server
			send_reed_payload_to_server();
			#endif

			#ifdef PUSH_BUTTON_STATUS
			// Create the lwm2m payload for push button
			create_lwm2m_payload_pb();
			// Send the push button payload to server
			send_pb_payload_to_server();
			#endif
			/* clear the flag after processing */
			external_interrupt_cb_flag  = EXTI_CB_FLAG_CLEAR;
		}



		/* Put a delay to avoid blocking on this thread */
		HAL_Delay(10);


	}//End of while(1) - Do not place any code after this.

}
/* Switch main Application thread. - END */

/*
Switch Application initialization API. - START

 */
mz_error_t switch_app_init(void)
{
	uint8_t _ret= MZ_OK;

	/* Clear locstr of reed switch */
	memset(&locstr,0,sizeof(locstr));

	/* Create the Reed application thread */
	if(!mz_thread_create(	&switch_thread_id,
							"switch_app_scheduler",
							switch_app_thread,
							NULL,
							osPriorityNormal,
							switch_stack,
							SWITCH_APP_STACK_SIZE,
							&switch_cb_mem,
							sizeof(switch_cb_mem)))
	{
		_ret = MZ_THREAD_CREATE_FAIL;
	}

	_ret = mz_set_value_Ob19_0_0("\"30303030\"");
	if(MZ_OK != _ret) goto clean;
	_ret = mz_set_value_Ob19_1_0("\"30303030\"");
	if(MZ_OK != _ret) goto clean;

	clean :
	return _ret;
}
/* Switch Application initialization API. - END */

/*============================================================================*/
/*           Monoz Reed Switch Count and send to Lwm2m server - END           */
/*============================================================================*/

/*============================================================================*/
/*        Monoz Reed Switch Count - LWM2M event related code - START          */
/*============================================================================*/
/*
 * LWM2M user defined callback function. - START
 */
void lwm2m_event_process(void * event)
{
	st_lw_event * e = event;


	switch(e->lw_event)
	{

		case LW_EV_OBSERVE:

			mz_puts("Observe received\r\n");

			if(e->lw_Obj_id == 19 && e->lw_Obj_Ins_id == 0 && e->lw_Res_id == 0)
			{
				/* Set the observed received flag */
				observe_receive_flag = OBSERVE_COMPLETE_SET;
			}
		break;
		case LW_EV_CLIENT_NOTIFY_SEND:

			mz_puts("Notify send to server\r\n");
		break;
		case LW_EV_CLIENT_NOTIFY_SEND_ACK:

			mz_puts("Notify send acknowledge\r\n");
		break;
		case LW_EV_NOTIFY_FAIL:

			mz_puts("Notify send failed\r\n");
		break;
		case LW_EV_CLIENT_OFF:

			lwm2m_server_rereg_flag = SERVER_REG_NEED_SET;
		break;

#if 0

		case LW_EV_WRITE_DATA:
			/* Do something */
			;
		break;
		case LW_EV_EXECUTE:
			/* Do something */
			;
		break;
		case LW_EV_READ:
			/* Do something */
			;
		break;
		case LW_EV_OBSERVE_CANCEL:
			/* Do something */
			;
		break;
#endif

		default:
		break;
	}
}
/*============================================================================*/
/*        Monoz Reed Switch Count - LWM2M event related code - END            */
/*============================================================================*/

/*============================================================================*/
/* 			     Utils Functions - START                           */
/*============================================================================*/
static uint32_t int32_to_string_decimal(uint8_t *dststr,uint32_t num){
	uint32_t val=0;
	uint8_t mod=0;
	uint8_t i=0;
	uint8_t j=0;
	uint8_t len=0;
	uint8_t lbuf[15];
	val = num;
	mod = val%10;
	while(val > 0){
		mod = val%10;
		lbuf[i] = mod + 48;
		val = val/10;
		i++;
	}
	len=i;
	for(j=0;j<len;j++){
		i--;
		dststr[j]=lbuf[i];
	}
	j++;
	dststr[j]='\0';
//	dststr[j]='\n';
}
/*============================================================================*/
/* 			     Utils Functions - END                             */
/*============================================================================*/

Credits

Alsufiyan

Posted by

SHANGUGAPRIYA G

Grove Button With monoZero

Things used in this project

Hardware components

Software apps and online services

Story

Things you need :

Result :

Application:

Example - Convenience Store Dashboard

Schematics

Grove switch connection with Grove board

Code

C file

H file

Credits

Comments

Embed the widget on your own site

Grove Button With monoZero

Grove Button With monoZero

Things used in this project

Hardware components

Software apps and online services

Story

Things you need :

Result :

Application:

Example - Convenience Store Dashboard

Schematics

Grove switch connection with Grove board

Code

C file

H file

Credits

Comments

Related channels and tags
