In many lab and industrial setups, building a complete test or control system usually means combining multiple separate devices:
- A DAQ for measurement
- A controller (PLC or similar) for logic and PID
- A motion controller or driver interface
While this approach works, it often leads to increased complexity — more wiring, more configuration, and more points of failure.
In electrically noisy environments, this can also introduce instability and unpredictable behavior.

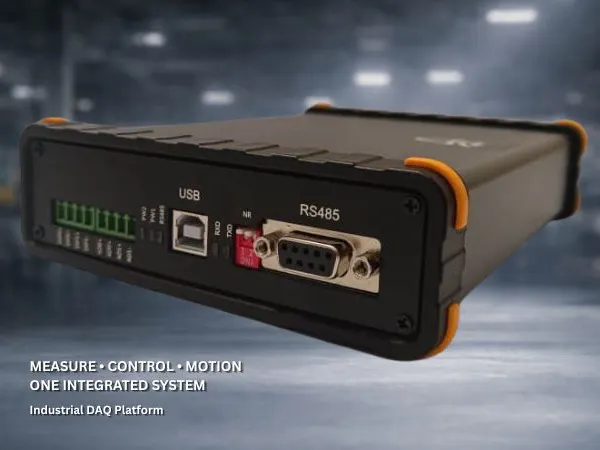

The IdeaThis project explores a more integrated approach — combining measurement, control, and motion capabilities into a single compact platform.
Instead of assembling multiple boxes, the goal is to simplify system architecture while maintaining flexibility and reliability.
System Overview
This DAQ platform combines multiple functions:
- Data acquisition (analog and digital I/O)
- Built-in PID control
- Motion control outputs (PWM / pulse-direction)
- Isolated communication (USB & RS485)
- Separate power domains for analog and digital sections
This approach reduces system complexity, especially in real-world environments where multiple subsystems must work together reliably.
Prototype DemoA short overview of the working prototype showing system behavior and core functionality.
Example Applications🔧 Motor & Actuator Testing- Control motor speed or position
- Monitor voltage and sensor feedback
- Apply closed-loop PID control
- Read multiple analog sensors
- Log temperature and humidity
- Detect abnormal conditions
- Combine measurement and control
- Reduce external devices
- Simplify wiring
- Track system behavior under load
- Analyze voltage stability
The system integrates multiple subsystems typically found in separate devices:
- Mixed-signal data acquisition
- Embedded control (PID)
- Motion output interfaces
- Isolated communication layers
A key design decision is the use of separate analog and digital power domains, reducing noise coupling in mixed-signal environments, especially when working with motors and switching loads.
Noise Performance in Real-World Conditions
Electrical noise is a critical factor in real-world industrial systems, particularly when operating alongside motors and switching loads.
The oscilloscope capture illustrates the system operating under these conditions. Despite significant noise on the signal, the DAQ platform maintains stable operation and reliable data acquisition.
Despite this level of noise, the signal remains stable and usable for measurement and control purposes.
This robustness is achieved through:
- Separation of analog and digital power domains
- Careful PCB layout and grounding strategy
- Signal conditioning in the analog front-end
The following schematics highlight key sections of the system design:
USB Interface, Isolation, and MCU CoreThis section includes the USB interface, isolation stage, and the main microcontroller responsible for system control and communication.
Discrete transistor-based output stages used for generating pulse and direction signals for external motion drivers.
Precision analog front-end for signal conditioning and differential measurement before ADC input.
Multi-stage power design including DC-DC conversion, regulation, and filtering for stable system operation.
Buffered digital outputs using logic ICs to interface with external systems and improve signal integrity.
- Hardware prototypes are complete and functional
- The system has been tested in real-world environments
- Firmware and UI are still under development
The design continues to evolve based on testing and feedback.
NotesThis project is not intended as a step-by-step build tutorial.
Instead, it focuses on system architecture and integration strategies for real-world applications.
Final ThoughtsIn many cases, engineering solutions evolve by adding more components.
This project explores the opposite direction — reducing system complexity through integration, while maintaining flexibility and reliability.
Feedback from others working on similar systems is always welcome.
