Texas Instruments RSLK With MeArm - WiFi Controlled

Learn about creating a wirelessly controlled robot with the TI RSLK that can not only move around but grab objects with its arm.

AdvancedShowcase (no instructions)180

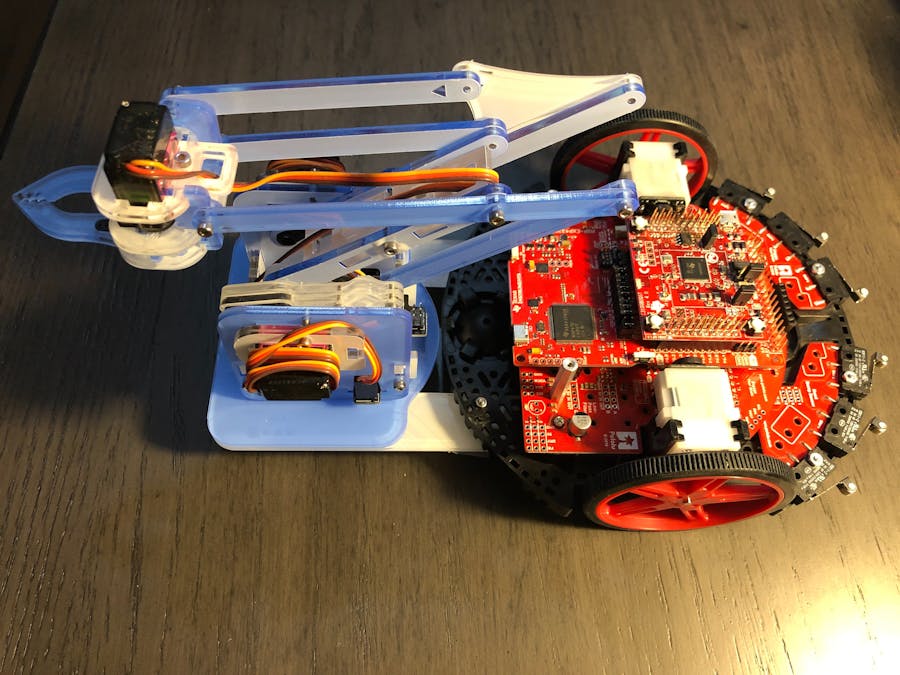

Texas Instruments RSLK With MeArm - WiFi Controlled

Things used in this project

Hardware components

Texas Instruments TI Robotics System Learning Kit TI-RSLK

Analog joystick (Generic)

Texas Instruments MSP-EXP432P401R SimpleLink MSP432 LaunchPad

Texas Instruments CC3100BOOST SimpleLink CC3100 Wi-Fi BoosterPack

MeArm

Software apps and online services

Texas Instruments Code Composer Studio

Story

This robot was created as a project to explore wireless remote control of a robot with mechanical grabber arm functionalities. The information provided in this hackster.io page is not enough to fully replicate this project; however, the key parts are explained and higher level code (without library/sdk code or RTOS code) is provided for joystick, wheel, arm, and wifi functions. The page was designed to explain the process of developing code for such a robot and explain key areas.

Use the below link to view a demo of the robot.

https://drive.google.com/file/d/1pxEh5eV6AysNjS5M0PX_UKbb4YLNRabb/view?usp=sharing

1.Goals and Overview

Create a robot with mechanical arm that can be controlled wirelessly via a joystick board. The robot demonstrates wireless capability using MSP432 microcontrollers and CC3100 WIFI boosterpacks from Texas Instruments. The robot can move and use its mounted arm to grab/place objects. Most of the code used is developed from scratch; however, some parts are adapted from an online repository for the RSLK robot. https://github.com/VivekAdra31/TI-Robotic-Systems-Learning-Kit

The code also utilizes a real time operating system (RTOS). The RTOS used for the development of the robot can be replaced by any RTOS of your choice. The threads and periods will be provided in this hackster.io page, but the RTOS will not.

2. RSLK Wheels

The wheels of the robot are driven by two motors that can be controlled using a joystick board. The joystick board used for the development of the robot can be replaced by any generic joystick connected to an MSP432 microcontroller with CC3100 boosterpack. The basic structure of the code is simple, translate the joystick x, y coordinates to duty cycles that can be sent to the motors on the RSLK via WiFi. Saving the WiFi part for later, the code can be more challenging than it appears. Normally, remote controlled vehicles use two joysticks, one for the x direction and one for the y direction. However, here only one joystick is used. To do this, an algorithm is implemented that can be found here https://home.kendra.com/mauser/joystick.html

The algorithm allows one joystick to control the robot in a "tank drive" fashion. A bit of manipulation is needed to ensure the robot moves in proper directions for all possible x, y combinations, this is seen in the provided code.

3. MeArm

The MeArm mounted to the robot is driven by 4 servo motors. The directions of movement are left/right rotate, forward/backward extension, up/down movement, and claw open/close movement. The 4 servo motors on the MeArm are controlled by pwm signals from the MSP432 of the RSLK robot. The pwm signals are generated via Timer A1 and output from pins 7.4 - 7.7. The MeArm also requires connections to VCC and GND. All signals to the MeArm must be based on a 5V operating voltage (the RSLK allows this by using its batteries for power).

The configuration of Timer A1 needed to produce pwm signals is shown in the code section. The duty cycle controls the position for these specific servo motors. The PWM signals stay active during operation of the robot but the duty cycle of the timer can be adjusted to move the arm in various directions. A MeArm motor that isn't moving will simply maintain a constant duty cycle, keeping that motor in the same position. The duty cycles for the arm motors are held in a global array, one index for each motor (uint16_t servoDuty[4]).

There exists two different modes for operating the MeArm, one mode controls the rotation and forward/backward motors while the other mode controls the up/down and claw motors. The modes are toggled by pressing a button, the button for the specific board used here is the B1 button on the right.

Datasheet for MeArm servo motors: https://www.electronicoscaldas.com/datasheet/MG90S_Tower-Pro.pdf

4. WiFi

WiFi is used in this design to communicate between the joystick board and the RSLK. The joystick board needs a way to wirelessly send data to the RSLK, in order for the joystick to control the behavior of the robot. To implement this, the CC3100 WiFi boosterpack from TI was used along with the SDK provided for it. There are many ways to implement the WiFi functionality, but here, a UDP protocol was used. In the code for this robot, both the CC3100 boosterpacks are initialized as clients and are automatically assigned an IP address. They then send and receive data between each other to acknowledge this connection. The functions used from the CC3100 SDK library code are in the code section.

The duty cycles for the arm and wheels are calculated on the MSP432 from the joystick board and then sent via WiFi to the MSP432 on the RSLK. The joystick board sends this data in the form of a struct object. The struct contains the duty cycles for each motor as well as variables used for the WiFi such as IP address.

5. RTOS

The sending and receiving of data as well as the timing of all the function calls is controlled by the RTOS. The general RTOS structure used for this robot was a priority scheduler with 3 threads for the joystick board and 4 threads for the RSLK. The joystick board has a ReadJoy thread to calculate duty cycles from joystick coordinates, a HostSend thread to send data from the joystick board to the RSLK via WiFi, and an idle thread with a lower priority. The RSLK has a Wheels thread to move the wheels based on the received duty cycles, a Servo thread to move the arm based on the received duty cycles, a ClientReceive thread to receive data from the joystick board via WiFi, and an idle thread with a lower priority. Since these are threads in an RTOS, the periods of each can be adjusted to change the frequency at which certain things happen. For example, the MeArm should be controlled so that it can move at a reasonable speed in response to joystick movements. Since the Servo thread moves the MeArm by updating the corresponding duty cycles, how frequent that thread is run controls how fast the MeArm can move. The same applies to the Wheel thread. The code for the threads and the periods for each are provided in the code section.

6.Operation

In the provided code, the robot must follow a specific programming procedure. First, program the RSLK with the main_test_client() function from the RSLKThreads.c file (comment out the main_test_host() function call in main.c). Turn the RSLK on by flipping the on/off switch or pressing the power button. Next, program the joystick board with the main_test_host() function from the RSLKThreads.c file (comment out the main_test_client() function call in main.c). Both the RSLK and the joystick board should now be running and the WiFi should connect automatically. To operate the robot, the controls are in wheel movement mode by default, this means that you are able to control where the robot goes using the joystick. To switch to arm control mode, press the B0 button on the specific board used here (this can be replaced by another button on a different board). Then, the arm control mode has two submodes. By default, it is in rotate and forward/backward mode. Press button B1 to toggle to up/down and claw mode.

Resources for RSLK, MSP432, and CC3100:

MSP432

https://www.ti.com/lit/ds/symlink/msp432p401r.pdf?ts=1627958692173&ref_url=https%253A%252F%252Fwww.ti.com%252Fproduct%252FMSP432P401R

https://www.ti.com/lit/ug/slau356i/slau356i.pdf?ts=1627958695230&ref_url=https%253A%252F%252Fwww.ti.com%252Fproduct%252FMSP432P401R

CC3100

https://www.ti.com/lit/ds/symlink/cc3100.pdf?ts=1627958651710&ref_url=https%253A%252F%252Fwww.ti.com%252Fproduct%252FCC3100

https://www.ti.com/lit/ug/swru368c/swru368c.pdf?ts=1627958663159&ref_url=https%253A%252F%252Fwww.ti.com%252Fproduct%252FCC3100

RSLK

https://www.ti.com/lit/ml/sekp166/sekp166.pdf?ts=1623516229423&ref_url=https%253A%252F%252Fwww.google.com%252F

#include "msp.h"
#include ".\Clock.h"
#include ".\LaunchPad.h"
#include ".\PWM.h"
#include ".\Motor.h"

//#include "main_RSLK.h"

int16_t joyX = 0;
int16_t joyY = 0;
int16_t leftWheelDuty = 0;
int16_t rightWheelDuty = 0;
// Array to hold mearm servo duty cycles
uint16_t servoDuty[4] = {2949, 2949, 2949, 2949};

/************************************** Arm Control Functions **************************************************/

//***************************PWM_Init12*******************************
// PWM outputs on P2.4, P2.5
// Inputs:  period (1.333us)
//          duty1
//          duty2
// Outputs: none
// SMCLK = 48MHz/4 = 12 MHz, 83.33ns
// Counter counts up to TA0CCR0 and back down
// Let Timerclock period T = 8/12MHz = 666.7ns
// P2.4=1 when timer equals TA0CCR1 on way down, P2.4=0 when timer equals TA0CCR1 on way up
// P2.5=1 when timer equals TA0CCR2 on way down, P2.5=0 when timer equals TA0CCR2 on way up
// Period of P2.4 is period*1.333us, duty cycle is duty1/period
// Period of P2.5 is period*1.333us, duty cycle is duty2/period
void PWM_Init_Servo(uint16_t period, uint16_t duty){
	// invalid input
	if(duty >= period) return;
	// bit  mode
	// 9-8  10    TASSEL, SMCLK=12MHz
	// 7-6  11    ID, divide by 2
	// 5-4  11    MC, up-down mode
	// 2    0     TACLR, no clear
	// 1    0     TAIE, no interrupt
	// 0          TAIFG*/
	P7->DIR |= 0xF0;          // P7.4 - P7.7 output
	P7->SEL0 |= 0xF0;         // P7.4 - P7.7 Timer1A functions
	P7->SEL1 &= ~0xF0;        // P7.4 - P7.7 Timer1A functions
	TIMER_A1->CCTL[0] = 0x0080;      // CCI0 toggle
	TIMER_A1->CCR[0] = period;       // Period is 2*period*8*83.33ns is 1.333*period
	TIMER_A1->EX0 = 0x0000;          //    divide by 1
	TIMER_A1->CCTL[3] = 0x0040;      // CCR3 toggle/reset
	TIMER_A1->CCR[3] = duty;         // CCR3 duty cycle is duty3/period
	TIMER_A1->CCTL[4] = 0x0040;      // CCR4 toggle/reset
	TIMER_A1->CCR[4] = duty;         // CCR4 duty cycle is duty4/period
	TIMER_A1->CCTL[1] = 0x0040;      // CCR1 toggle/reset
	TIMER_A1->CCR[1] = duty;         // CCR1 duty cycle is duty1/period
	TIMER_A1->CCTL[2] = 0x0040;      // CCR2 toggle/reset
	TIMER_A1->CCR[2] = duty;         // CCR2 duty cycle is duty2/period
	TIMER_A1->CTL = 0x0270;          // SMCLK=12MHz, divide by 2, up-down mode
}

//***************************PWM_Duty1*******************************
// change duty cycle of PWM output on P2.4
// Inputs:  duty1
// Outputs: none
// period of P2.4 is 2*period*666.7ns, duty cycle is duty1/period
void PWM_Duty_Servo(uint16_t * duty){
	if(duty[0] >= TIMER_A1->CCR[0]) return; // bad input
	if(duty[1] >= TIMER_A1->CCR[0]) return; // bad input
	if(duty[2] >= TIMER_A1->CCR[0]) return; // bad input
	if(duty[3] >= TIMER_A1->CCR[0]) return; // bad input
	TIMER_A1->CCR[1] = duty[0];             // CCR1 duty cycle is duty1/period
	TIMER_A1->CCR[2] = duty[1];             // CCR1 duty cycle is duty1/period
	TIMER_A1->CCR[3] = duty[2];             // CCR1 duty cycle is duty1/period
	TIMER_A1->CCR[4] = duty[3];             // CCR1 duty cycle is duty1/period
}

void changeServoDuty(int16_t joy, uint16_t servoIndex, uint16_t min, uint16_t max){
    if((servoDuty[servoIndex] < max) && (joy <= -2000)){servoDuty[servoIndex] += 10;}
    if((servoDuty[servoIndex] > min) && (joy >= 2000)){servoDuty[servoIndex] -= 10;}
}

void ServoCTRL_Base(void){
    // Change Base PWM
    changeServoDuty(joyX, 0, 1769, 7667);
}

void ServoCTRL_Height(void){
    // Change Height PWM
    changeServoDuty(joyY, 2, 1769, 5898);
}

void ServoCTRL_Length(void){
    // Change Length PWM
    changeServoDuty(joyY, 1, 2359, 7667);
}

void ServoCTRL_Claw(void){
    // Change Claw PWM
    changeServoDuty(joyX, 3, 2949, 7667);
}

void ServoMotor_Init(void){
    P7->SEL0 &= ~0b11110000;
    P7->SEL1 &= ~0b11110000;    // 1) configure P7.4-7 as GPIO
    P7->DIR |= 0b11110000;      // 2) make P7.4-7 output
    P7->OUT &= ~0b11110000;     // 3) output LOW
    PWM_Init_Servo(58982, 0);   // 50 Hz
}

void ServoMotor_Run(void){
    while(1){
        PWM_Duty_Servo(servoDuty);
    }
}

/*
 * Function to control base and length servo for RTOS
 */
void Servo_BaseLength(){
	ServoCTRL_Base();
	ServoCTRL_Length();
	//PWM_Duty_Servo(servoDuty);
}

/*
 * Function to control height and claw servo for RTOS
 */
void Servo_HeightClaw(){
	ServoCTRL_Height();
	ServoCTRL_Claw();
	//PWM_Duty_Servo(servoDuty);
}

/***************************************************************************************************************/

/************************************** Wheel Control Functions ************************************************/

// Actual Values:              -8000,-8000 right,up -8000,0 right 8000,8000 left,down  0,-8000 up -8000,8000 right,down  0,8000 down   8000,-8000 left,up  8000,0 left
// X and Y INV for Algorithm:   8000,8000 right,up   8000,0 right                                                                     -8000,8000 left,up  -8000,0 left
// Y INV for Algorithm:                                           8000,-8000 left,down 0,8000 up  -8000,-8000 right,down 0,-8000 down
void findWheelDuty(int16_t joyX, int16_t joyY, int16_t * leftDuty, int16_t * rightDuty){
    // manipulate joystick values for algorithm
	//     x and y directions for joystick are flipped from what algorithm needs
	//     additonal manipulation needed for handling backwards movement
	if ((joyX < 0 && joyY < 0) || (joyX > 0 && joyY < 0) || (joyX != 0 && joyY == 0)) {
		// (right,up), (right), (left,up), (left)
		// invert X and Y
		joyX*=-1;
		joyY*=-1;
	} else if ((joyX > 0 && joyY > 0) || (joyX < 0 && joyY > 0) || (joyX == 0 && joyY != 0)) {
		// (left,down), (up), (right,down), (down)
		// invert Y
		joyY*=-1;
	}
	// find percentage
    int16_t x = joyX / 80;
    int16_t y = joyY / 80;
    // Check for overflow
    if(x > 100){ x = 100;}
    if(x < -100){ x = -100;}
    if(y > 100){ y = 100;}
    if(y < -100){ y = -100;}
    // find x and y inverse
    int16_t x_inv = x * (-1);
    int16_t y_inv = y * (-1);
    // find absolute values
    int16_t x_abs = (x >= 0) ? x : x_inv;
    int16_t y_abs = (y >= 0) ? y : y_inv;
    // find V = Right + Left
    int16_t v = (100 - x_abs) * y / 100 + y;
    // find W = Right - Left
    int16_t w = (100 - y_abs) * x_inv / 100 + x_inv;
    // find Right and Left
    int16_t right = (v + w) / 2;
    int16_t left = (v - w) / 2;
    // scale back to Motor values, assuming 3000 is max
    *rightDuty = right * 30;
    *leftDuty = left * 30;
}

void Motor_Move(int16_t leftDuty, int16_t rightDuty){
    uint16_t leftPWM;
    uint16_t rightPWM;
    if(leftDuty < 0){
        // backward on left
        P5->OUT |= 0b00010000;
        leftPWM = (uint16_t)(leftDuty * (-1));
    }
    else{
        // forward on left
        P5->OUT &= ~0b00010000;
        leftPWM = (uint16_t)(leftDuty);
    }
    if(rightDuty < 0){
        // backward on right
        P5->OUT |= 0b00100000;
        rightPWM = (uint16_t)(rightDuty * (-1));
    }
    else{
        // forward on right
        P5->OUT &= ~0b00100000;
        rightPWM = (uint16_t)(rightDuty);
    }
    // Wake up motors
    P3->OUT |= 0xC0;
    // Pass in duty cycle
    PWM_Duty3(rightPWM);
    PWM_Duty4(leftPWM);
}

/***************************************************************************************************************/

void test(void){
    // Test Wheels
    joyX = 0;
    joyY = 8000;
    findWheelDuty(joyX, joyY, &leftWheelDuty, &rightWheelDuty);
    Motor_Move(leftWheelDuty, rightWheelDuty);
    joyX = -8000;
    joyY = 1000;
    findWheelDuty(joyX, joyY, &leftWheelDuty, &rightWheelDuty);
    Motor_Move(leftWheelDuty, rightWheelDuty);
    joyX = -4000;
    joyY = -2000;
    findWheelDuty(joyX, joyY, &leftWheelDuty, &rightWheelDuty);
    Motor_Move(leftWheelDuty, rightWheelDuty);
    Motor_Stop();

    // Test Arm
    while(1){
        joyX = 5000;
        joyY = 5000;
        while(servoDuty[0] < 7667){
            ServoCTRL_Base();
            ServoCTRL_Length();
            ServoCTRL_Height();
            ServoCTRL_Claw();
            PWM_Duty_Servo(servoDuty);
            int j;
            for(j = 0; j < 3000; j++);
        }
        joyX = -5000;
        joyY = -5000;
        while(servoDuty[0] > 1769){
            ServoCTRL_Base();
            ServoCTRL_Length();
            ServoCTRL_Height();
            ServoCTRL_Claw();
            PWM_Duty_Servo(servoDuty);
            int j;
            for(j = 0; j < 3000; j++);
        }
    }
}

/**
 * main.c
 */
void main_RSLK(void)
{
    WDT_A->CTL = WDT_A_CTL_PW | WDT_A_CTL_HOLD;     // stop watchdog timer

    Clock_Init48MHz();
    LaunchPad_Init();

    Motor_Init();
    ServoMotor_Init();
    test();
    while(1);
}

#include "msp.h"
#include "driverlib.h"
#include "BSP.h"
#include "cc3100_usage.h"
#include "G8RTOS_Scheduler.h"
#include "G8RTOS_Semaphores.h"
#include "RSLKThreads.h"
#include <stdlib.h>
#include <time.h>
#include <stdbool.h>
#include <string.h>

extern int16_t joyX;
extern int16_t joyY;
extern int16_t leftWheelDuty;
extern int16_t rightWheelDuty;
extern uint16_t servoDuty[4];

// 0 for Wheels, 1 for Servo Base/Length, 2 for Servo Height/Claw
uint8_t mode = 0;

// Semaphores
semaphore_t joyMutex;
semaphore_t infoMutex;

HostInfo_t hostData;
ClientInfo_t clientData;

void vIdle(void){
    for(;;);
}

void vTaskReadJoy(void){

    for(;;){

        G8RTOS_WaitSemaphore(&joyMutex);

        GetJoystickCoordinates(&joyX, &joyY);
        //joyX *= -1;
        //joyY *= -1;
        if((joyX < 1000) && (joyX > -1000)){joyX = 0;}
        if((joyY < 1000) && (joyY > -1000)){joyY = 0;}

        if(mode == 2){
            // Height and Claw
            Servo_HeightClaw();
        }
        else if(mode == 1){
            // Base and Length
            Servo_BaseLength();
        }
        else{
            // Wheels
            findWheelDuty(joyX, joyY, &leftWheelDuty, &rightWheelDuty);
        }

        G8RTOS_SignalSemaphore(&joyMutex);

        OS_Sleep(5);
    }
}


void vTaskMoveWheels(void){

    for(;;){

        G8RTOS_WaitSemaphore(&joyMutex);

        Motor_Move(leftWheelDuty, rightWheelDuty);

        G8RTOS_SignalSemaphore(&joyMutex);

        OS_Sleep(5);
    }
}

void vTaskMoveServo(void){

    for(;;){

        G8RTOS_WaitSemaphore(&joyMutex);

        PWM_Duty_Servo(servoDuty);

        G8RTOS_SignalSemaphore(&joyMutex);

        OS_Sleep(5);
    }
}

void PORT4_IRQHandler(void){
    __NVIC_DisableIRQ(PORT4_IRQn);
    if((P4->IFG) & BIT5){
        P4->IE &= ~BIT5;
        P4->IFG &= ~BIT5;
        if(mode == 1){
            mode = 2;
        }
        else{
            mode = 1;
        }
        P4->IE |= BIT5;
    }
    else if((P4->IFG) & BIT4){
        P4->IE &= ~BIT4;
        P4->IFG &= ~BIT4;
        mode = 0;
        P4->IE |= BIT4;
    }
    else{
        P4->IFG &= ~(BIT4 | BIT5);
    }
    __NVIC_EnableIRQ(PORT4_IRQn);
}

void vHostSend(void){

    for(;;){

        // Fill packet for client
        G8RTOS_WaitSemaphore(&joyMutex);

        hostData = (HostInfo_t) {
            .IP_address   = RSLK_HOST_IP,
            .leftWheelDuty = leftWheelDuty,
            .rightWheelDuty = rightWheelDuty,
            .mode          = mode,
            .ready        = true,
        };
        memcpy(&hostData.servoDuty, &servoDuty, sizeof(hostData.servoDuty));

        G8RTOS_WaitSemaphore(&infoMutex);

        // Send packet
        SendData((uint8_t *)&hostData, RSLK_CLIENT_IP, sizeof(hostData));

        G8RTOS_SignalSemaphore(&infoMutex);
        G8RTOS_SignalSemaphore(&joyMutex);

        OS_Sleep(30);
    }
}

void vClientReceive(void){

    for(;;){

        int32_t retVal = -1;

        // Continually receive data until retVal >= 0 (meaning valid data has been read)
        while(!(retVal >= 0))
        {
            G8RTOS_WaitSemaphore(&infoMutex);
            retVal = ReceiveData((uint8_t *)&hostData, sizeof(hostData));
            G8RTOS_SignalSemaphore(&infoMutex);
            OS_Sleep(2);
        }

        // Empty the package
        G8RTOS_WaitSemaphore(&joyMutex);
        memcpy(&servoDuty, &hostData.servoDuty, sizeof(servoDuty));
        leftWheelDuty = hostData.leftWheelDuty;
        rightWheelDuty = hostData.rightWheelDuty;
        mode = hostData.mode;
        G8RTOS_SignalSemaphore(&joyMutex);

        // Sleep 5 ms
        OS_Sleep(3);
    }
}

int main_test_host(void){

    G8RTOS_Init(1);

    uartInit();

    P4->DIR &= ~(BIT4 | BIT5);
    P4->OUT |= BIT4 | BIT5; // Sets res to pull-up
    P4->REN |= BIT4 | BIT5; // Pull-up resistor
    P4->SEL0 = 0;
    P4->SEL1 = 0;
    P4->IES |= BIT4 | BIT5;  // High-to-low transition
    P4->IFG &= ~(BIT4 | BIT5); // P4.4 IFG cleared
    P4->IE |= BIT4 | BIT5; // Enable interrupt on P4.4

    NVIC_EnableIRQ(PORT4_IRQn);

    initCC3100(Client);
    uint32_t boardIP = getLocalIP();

    hostData = (HostInfo_t) {
        .IP_address   = RSLK_HOST_IP,
        .leftWheelDuty = leftWheelDuty,
        .rightWheelDuty = rightWheelDuty,
        .mode          = mode,
        .ready        = false,
    };
    memcpy(&hostData.servoDuty, &servoDuty, sizeof(hostData.servoDuty));

    clientData = (ClientInfo_t) {
        .IP_address   = RSLK_CLIENT_IP,
        .ready        = false,
    };

    // Send ready to client
    hostData.ready = true;
    SendData((uint8_t *)&hostData, RSLK_CLIENT_IP, sizeof(hostData));

    // Wait for acknowledge
    int32_t retVal = -1;
    while(!(retVal >= 0) || (clientData.ready == false))
    {
        retVal = ReceiveData((uint8_t *)&clientData, sizeof(clientData));
    }

    G8RTOS_InitSemaphore(&joyMutex, 1);
    G8RTOS_InitSemaphore(&infoMutex, 1);

    G8RTOS_AddThread(vTaskReadJoy, 5, "ReadJoy");
    G8RTOS_AddThread(vHostSend, 5, "HostSend");
    G8RTOS_AddThread(vIdle, 6, "Idle");

    G8RTOS_Launch();

    return 0;
}

int main_test_client(void){

    G8RTOS_Init(0);

    uartInit();

    Motor_Init();
    ServoMotor_Init();

    initCC3100(Client);
    uint32_t boardIP = getLocalIP();

    hostData = (HostInfo_t) {
        .IP_address   = RSLK_HOST_IP,
        .leftWheelDuty = 0,
        .rightWheelDuty = 0,
        .mode           = 0,
        .ready        = false,
    };
    memcpy(&hostData.servoDuty, &servoDuty, sizeof(hostData.servoDuty));

    clientData = (ClientInfo_t) {
        .IP_address   = RSLK_CLIENT_IP,
        .ready        = false,
    };

    // Wait for host
    int32_t retVal = -1;
    while(!(retVal >= 0) || (hostData.ready == false))
    {
        retVal = ReceiveData((uint8_t *)&hostData, sizeof(hostData));
    }

    // Send ready to host
    clientData.ready = true;
    SendData((uint8_t *)&clientData, RSLK_HOST_IP, sizeof(clientData));

    G8RTOS_InitSemaphore(&joyMutex, 1);
    G8RTOS_InitSemaphore(&infoMutex, 1);

    G8RTOS_AddThread(vTaskMoveWheels, 5, "Wheels");
    G8RTOS_AddThread(vTaskMoveServo, 5, "Servo");
    G8RTOS_AddThread(vClientReceive, 5, "ClientReceive");
    G8RTOS_AddThread(vIdle, 6, "Idle");

    G8RTOS_Launch();
}

#ifndef RSLKTHREADS_H_
#define RSLKTHREADS_H_

#include <stdbool.h>
#include <stdint.h>

#define RSLK_HOST_IP    0xC0A8003B
#define RSLK_CLIENT_IP  0xC0A8005D
// host: C0A8003B (192.168.0.59), 3C (60), client: C0A8005D (192.168.0.93), 5E (94)
// computer: C0A80052 (192.168.0.82)

int main_test_host(void);
int main_test_client(void);
void vTaskReadJoy(void);
void vTaskMoveWheels(void);
void vTaskMoveServo(void);
void vIdle(void);

void vHostSend(void);
void vClientReceive(void);

//void button_int_PORT4(void);

typedef struct{
    uint32_t IP_address;
    int16_t leftWheelDuty;
    int16_t rightWheelDuty;
    uint16_t servoDuty[4];
    uint8_t mode;
    bool ready;
} HostInfo_t;

typedef struct{
    uint32_t IP_address;
    bool ready;
} ClientInfo_t;

#endif

#include "msp.h"
#include <driverlib.h>
#include "G8RTOS_Scheduler.h"
#include "G8RTOS_Semaphores.h"
#include "RSLKThreads.h"

/* Configuration for UART */
static const eUSCI_UART_Config Uart115200Config = {
    EUSCI_A_UART_CLOCKSOURCE_SMCLK, // SMCLK Clock Source
    6, // BRDIV
    8, // UCxBRF
    0, // UCxBRS
    EUSCI_A_UART_NO_PARITY, // No Parity
    EUSCI_A_UART_LSB_FIRST, // LSB First
    EUSCI_A_UART_ONE_STOP_BIT, // One stop bit
    EUSCI_A_UART_MODE, // UART mode
    EUSCI_A_UART_OVERSAMPLING_BAUDRATE_GENERATION // Oversampling
};

void uartInit(){
    /* select the GPIO functionality */
    MAP_GPIO_setAsPeripheralModuleFunctionInputPin(GPIO_PORT_P1, GPIO_PIN2 | GPIO_PIN3, GPIO_PRIMARY_MODULE_FUNCTION);

    /* configure the digital oscillator */
    CS_setDCOCenteredFrequency(CS_DCO_FREQUENCY_12);

    /* configure the UART with baud rate 115200 */
    MAP_UART_initModule(EUSCI_A0_BASE, &Uart115200Config);

    /* enable the UART */
    MAP_UART_enableModule(EUSCI_A0_BASE);
}

//void PORT4_IRQHandler(void){
    //__NVIC_DisableIRQ(PORT4_IRQn);
    //P4->IE &= ~BIT0;

    // set interrupt flag
    //LCDTap();

    // All the following are done in WaitForTap()
    //P4->IFG &= ~BIT0; // must clear IFG flag, can also read PxIV to clear IFG
    //P4->IE |= BIT0;
    //__NVIC_EnableIRQ(PORT4_IRQn);
//}

/**
 * main.c
 */
void main(void)
{
	WDT_A->CTL = WDT_A_CTL_PW | WDT_A_CTL_HOLD;		// stop watchdog timer

	main_test_host();
	//main_test_client();
}

Credits

Alex Liu

1 project • 1 follower

Thanks to Xuanhao Shi.

Texas Instruments RSLK With MeArm - WiFi Controlled

Things used in this project

Hardware components

Software apps and online services

Story

2. RSLK Wheels

3. MeArm

4. WiFi

5. RTOS

Resources for RSLK, MSP432, and CC3100:

Code

Library Functions for Wheel and Arm

RTOS Threads Source

RTOS Threads Header

main.c

Credits

Alex Liu

Comments

Embed the widget on your own site

Texas Instruments RSLK With MeArm - WiFi Controlled

Texas Instruments RSLK With MeArm - WiFi Controlled

Things used in this project

Hardware components

Software apps and online services

Story

2. RSLK Wheels

3. MeArm

4. WiFi

5. RTOS

Resources for RSLK, MSP432, and CC3100:

Code

Library Functions for Wheel and Arm

RTOS Threads Source

RTOS Threads Header

main.c

Credits

Alex Liu

Comments

Related channels and tags
