Auto Time Switch for Router

We went to bed every night, and the router worked hard every day without a break. It's quite hard to turn off the power every day, so I make this thing because I tried to find a way to let it rest automatically.

1. Schematic as below：

2. Componment parts

Please see hardware components

1. Board process

A. Open four holes with a 4 mm diameter into two 7*5 bread boards, as shown in the figure:

B. Open six holes of 3 mm diameter on one of the bread board. As shown in the picture:

C. Welded hollow plates with digital tubes, as shown in the follow figure:

The front site:

The opposite：

D. Welding the hole board with MCU, as shown in the figure:

The front site：

The opposite：

E. Connect two boards with flying wires, as shown in the figure:

The front site：

The opposite:

G.Connect the upper and lower bread boards with 3M*25 bolts, and separate them with insulating paper to prevent short circuit. As shown in the figure:

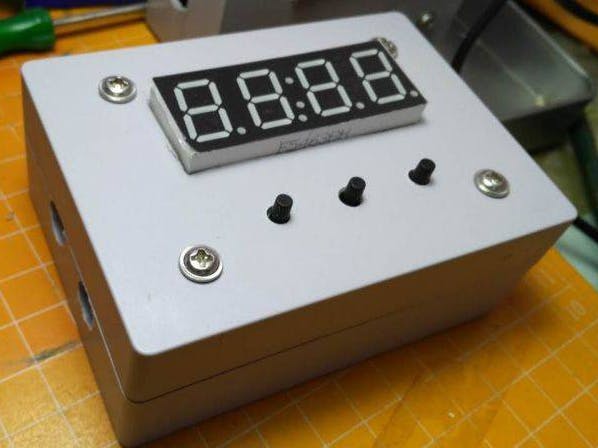

H. Put the cover on, as shown on figure:

User Guide
