Sky Star Edition XiaoZhi AI——Ai-WV01-32S

Description

Project Overview

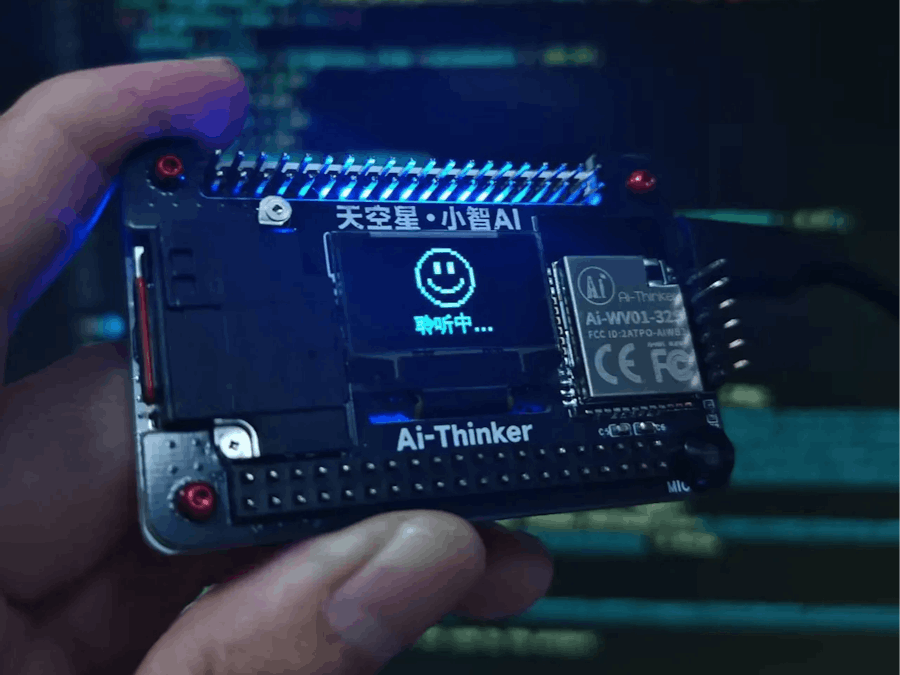

The Sky Star · XiaoZhi AI is an AI application development board built using the LCSC Sky Star GD32F407 as the main controller and the Ai-Thinker Ai-WV01-32S as the AI module.With it, you can let XiaoZhi AI play music, tell stories, tell jokes, and even control the color of LED light strips.

The Sky Star · XiaoZhi AI provides a simple example of using the Ai-WV01-32S XiaoZhi AI MCP to control a microcontroller. Through MCP programming, the AI can control peripherals such as:

• AI-controlled LED
• AI-controlled motor
• AI-controlled volume settings

Key Features

• Full voice interaction: offline voice control + AI conversation
• Quick network provisioning via mini-program
• Emoji display
• Subtitle display
• AI control of WS2812 color adjustments

Feature Demonstration

Color Control

Play Music

System Block Diagram

Hardware Design

The most complex circuit in this project is the OLED driver circuit, which only requires following the specifications provided.

Speaker & Accessories

The speaker used is a 2W 8Ω mobile phone speaker. We created and verified the footprint for it.Purchase link (Taobao):

https://item.taobao.com/item.htm?abbucket=10&id=849193816088&mi_id=00002oGkm0iLWzJwTW1dvixLK2Fl48bR6WiWCcuztxs46Ys&ns=1&priceTId=214786de17633438002618882e0f24&skuId=5712457953267&spm=a21n57.1.hoverItem.2&utparam=%7B%22aplus_abtest%22%3A%22eaf73162adec17f38beff347afc19f5c%22%7D&xxc=taobaoSearch

Touch spring contacts: Recommended height is 2.5–3 mm to ensure proper contact.

Mounting posts: Use M1 PCB nuts. These require heating with a hot air gun for proper soldering.Note: Do not apply too much solder, or the hole may become blocked.

Software Information

This project uses the Ai-WV01-32S, but not the default firmware. Instead, it uses the UART-MCP firmware developed by Ai-Thinker’s open-source team (firmware link provided below).The first step after soldering is flashing the UART-MCP firmware; otherwise, control functions will not work.

Ai-Thinker provides a dedicated adaptation library for UART-MCP: emMCP.It requires only a simple porting process, allowing Sky Star to focus mainly on OLED display and peripheral control logic.

Additional Resources

· Source code:https://gitee.com/Ai-Thinker-Open/emMCP

· UART-MCP firmware download: download

· MCP reference documentation:

· https://docs.ai-thinker.com/uart_mcp/emMCP.html

· emMCP programming guide:

https://docs.ai-thinker.com/uart_mcp/emMCP_getStart.html

· Sky Star firmware: see attachments

· Community, replication & technical discussion:

https://bbs.ai-thinker.com/portal.php
