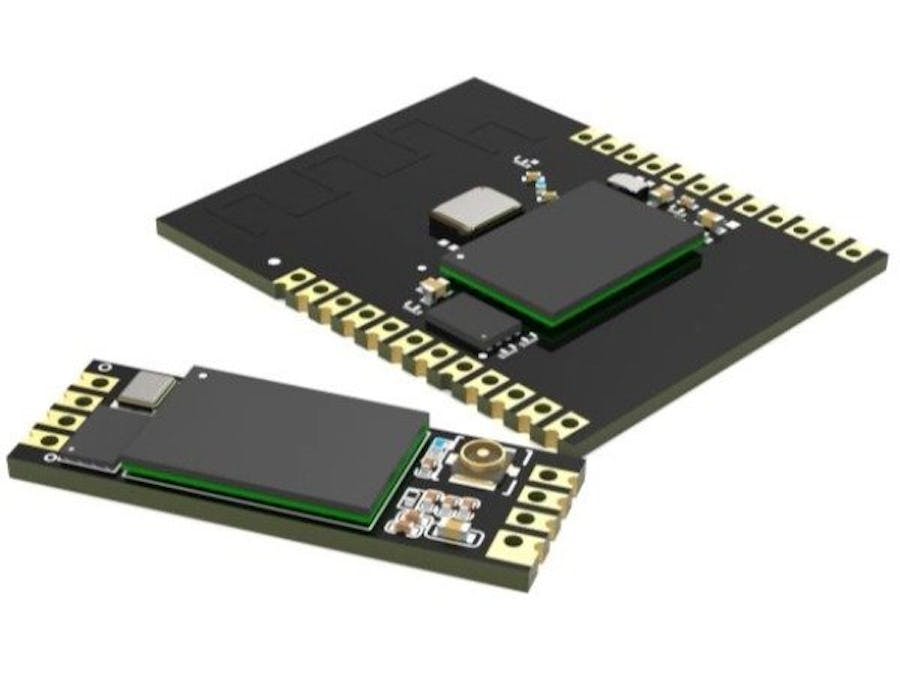

The 60G radar series modules developed by Ai-Thinker are 60GHz millimeter-wave radars, available in two modules: Rd-60 and Rd-61.
Both modules feature high precision, low power consumption, and compact size.
They come with integrated radar antennas and adopt a design that can be either surface-mounted or through-hole, allowing for flexible installation.
Using UART Shell control commands, offline parameter adjustment can be
performed without the need for programming.
Support for FFT radar detection data output, which can be used for sleep apneadetection, fall alarm, heart rate detection, and human movement detection, among other application scenarios.
For the secondary development package, please contact:overseas@aithinker.com
- Package: SMD-24, can be surface-mounted or through-hole
- Pin spacing: 1.27mm
- Size: 18.5x22.5mm
- Supports serial port output
- High-precision detection (minimum threshold 8.3cm)
- Supports FFT display Supports point cloud data display
- 16 available IOs
- Supports secondary development
- Supports low power consumption (28uA)
- Provides test host software, click to view effects
- Supports serial port Shell command control
Rd-61
- Package: SMD-8, can be surface-mounted or through-hole
- Pin spacing: 1.27mm
- Size: 6.5x18.5mm
- Supports serial port output
- High-precision detection (minimum threshold 8.3cm)
- Supports FFT display
- Supports point cloud data display
- 3 available IOs
- Supports secondary development
- Supports low power consumption detection (28uA)
- Provides test host software, click to view effects
- Supports serial port Shell command control
The Rd-60-Kit is a development board designed by Ai-Thinker for Rd-60/61 modules.
- Supports Rd-60 module interface
- Supports Rd-61 module interface
- Dual TTL interfaces, supporting both command sending and data output
- Supports low power consumption testing
- Can be connected to a host computer for data monitoring
- Supports up to 2M bps baud rate
- All available interfaces are brought out
- A set of LEDs is brought out for identification prompts
- FFT data
- Point cloud data
