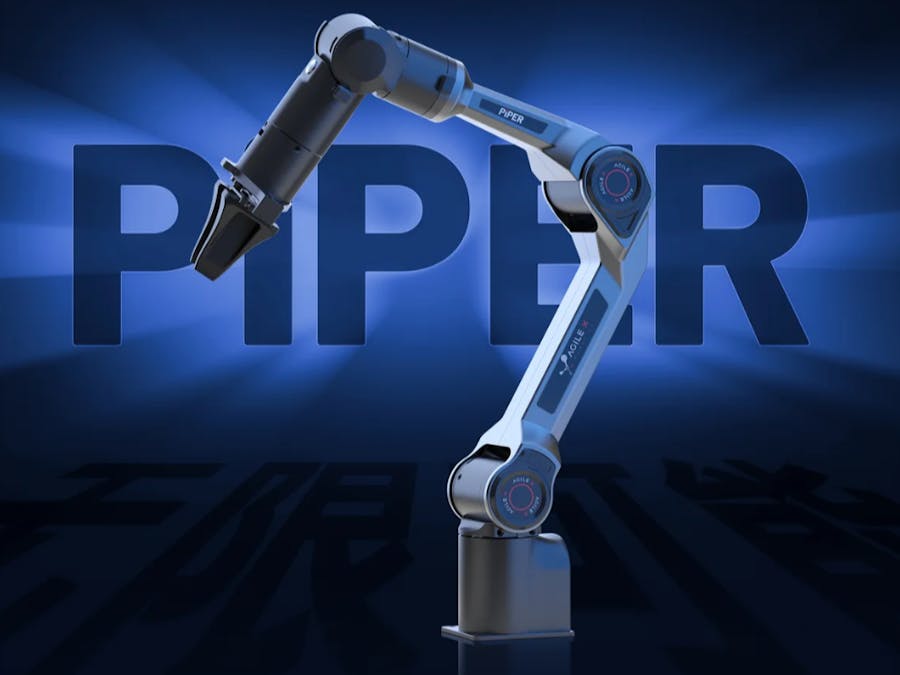

PIPER Robotic Arm - Fixed Position Recording & Replay

Introduction

Have you ever wanted to teach a robotic arm to perform repetitive tasks without complex programming? This project demonstrates how to implement a simple yet powerful position recording and replay system for the AgileX PIPER robotic arm using its Python SDK.

What It Does

This system allows you to:

• Enter teaching mode with a simple button press
• Manually guide the robotic arm to desired positions
• Record positions with a single keystroke
• Replay recorded positions automatically or step-by-step
• Control gripper actions during replay
• Perform infinite loops for continuous operations

Why It Matters

This implementation is valuable for:

• Industrial Automation: Repetitive pick-and-place operations
• Education: Teaching robotics concepts through hands-on demonstration
• Prototyping: Quick testing of robotic workflows without complex programming
• Quality Control: Consistent positioning for inspection tasks

How It Works

Recording Phase:

• The system initializes the robotic arm via CAN bus communication
• User enters teaching mode by pressing the teach button (joints become freely movable)
• User manually positions the arm and presses Enter to record each position
• Joint angles and gripper positions are saved to a CSV file
• Teaching mode is exited to lock the arm in place

Replay Phase:

• System reads recorded positions from CSV file
• Arm is enabled in CAN control mode with safety checks
• System moves through each recorded position using closed-loop control
• Position accuracy is verified (within 4° tolerance) before proceeding
• Gripper actions are executed at appropriate positions
• Process repeats based on configured replay settings

Safety Features:

• Automatic reset operation when exiting teaching mode
• Safe position verification for critical joints (2, 3, and 5)
• Emergency stop capability
• Timeout protection for mode switching
• Real-time position monitoring

Technical Implementation

Key Technologies:

• CAN bus communication for real-time control
• Closed-loop position control with error checking
• CSV-based trajectory storage for portability
• Multi-threaded state monitoring
• Position-speed control mode for smooth movements

Control Parameters:

• Position accuracy threshold: 0.0698 radians (≈4°)
• Speed control: 10-100% adjustable
• Teaching mode timeout: 10 seconds
• CAN mode switch timeout: 5 seconds
• Safe angle limits: 10°, 45°, 12° for joints 2, 3, 5

SCHEMATICS, DIAGRAMS, AND PHOTOS

System Architecture:

User Input → Teaching Mode → Position Recording → CSV File
                                                      ↓
Robotic Arm ← CAN Control ← Position Replay ← CSV File

Control Flow:

Initialize → Connect CAN → Enter Teaching Mode → Record Positions
                                                        ↓
Exit Teaching ← Verify Playback ← Enable Arm ← Read CSV

CODE

recordPos_en.py

#!/usr/bin/env python3
# -*-coding:utf8-*-
# Record positions
import os, time
from piper_sdk import *

if __name__ == "__main__":
    # Configuration
    have_gripper = True
    timeout = 10.0
    CSV_path = os.path.join(os.path.dirname(__file__), "pos.csv")

    # Initialize robotic arm
    piper = Piper("can0")
    interface = piper.init()
    piper.connect()
    time.sleep(0.1)

    def get_pos():
        '''Get current joint radians and gripper opening distance'''
        joint_state = piper.get_joint_states()[0]
        if have_gripper:
            return joint_state + (piper.get_gripper_states()[0][0], )
        return joint_state

    # Wait for teaching mode
    print("INFO: Please click the teach button to enter teaching mode")
    over_time = time.time() + timeout
    while interface.GetArmStatus().arm_status.ctrl_mode != 2:
        if over_time < time.time():
            print("ERROR: Teaching mode detection timeout")
            exit()
        time.sleep(0.01)

    # Record positions
    count = 1
    csv = open(CSV_path, "w")
    while input("INPUT: Enter 'q' to exit, press Enter to record: ") != "q":
        current_pos = get_pos()
        print(f"INFO: {count}th position recorded: {current_pos}")
        csv.write(",".join(map(str, current_pos)) + "\n")
        count += 1
    csv.close()
    print("INFO: Recording complete. Exit teaching mode.")

playPos_en.py

#!/usr/bin/env python3
# -*-coding:utf8-*-
# Play positions
import os, time, csv
from piper_sdk import Piper

if __name__ == "__main__":
    # Configuration
    have_gripper = True
    play_times = 1  # 0 = infinite loop
    play_interval = 0  # negative = manual control
    move_spd_rate_ctrl = 100
    timeout = 5.0
    CSV_path = os.path.join(os.path.dirname(__file__), "pos.csv")

    # Read position file
    try:
        with open(CSV_path, 'r', encoding='utf-8') as f:
            track = list(csv.reader(f))
            if not track:
                print("ERROR: Position file is empty")
                exit()
            track = [[float(j) for j in i] for i in track]
    except FileNotFoundError:
        print("ERROR: Position file does not exist")
        exit()

    # Initialize robotic arm
    piper = Piper("can0")
    interface = piper.init()
    piper.connect()
    time.sleep(0.1)

    def get_pos():
        '''Get current joint radians and gripper opening distance'''
        joint_state = piper.get_joint_states()[0]
        if have_gripper:
            return joint_state + (piper.get_gripper_states()[0][0], )
        return joint_state

    def stop():
        '''Emergency stop with safety position check'''
        interface.EmergencyStop(0x01)
        time.sleep(1.0)
        limit_angle = [0.1745, 0.7854, 0.2094]
        pos = get_pos()
        while not (abs(pos[1]) < limit_angle[0] and abs(pos[2]) < limit_angle[0]
                   and pos[4] < limit_angle[1] and pos[4] > limit_angle[2]):
            time.sleep(0.01)
            pos = get_pos()
        piper.disable_arm()
        time.sleep(1.0)

    def enable():
        '''Enable robotic arm and gripper'''
        while not piper.enable_arm():
            time.sleep(0.01)
        if have_gripper:
            time.sleep(0.01)
            piper.enable_gripper()
        interface.ModeCtrl(0x01, 0x01, move_spd_rate_ctrl, 0x00)
        print("INFO: Enable successful")

    # Ensure CAN mode
    print("Step 1: Ensure robotic arm has exited teaching mode")
    if interface.GetArmStatus().arm_status.ctrl_mode != 1:
        stop()
    over_time = time.time() + timeout
    while interface.GetArmStatus().arm_status.ctrl_mode != 1:
        if over_time < time.time():
            print("ERROR: Failed to switch to CAN mode")
            exit()
        interface.ModeCtrl(0x01, 0x01, move_spd_rate_ctrl, 0x00)
        time.sleep(0.01)

    # Execute replay
    enable()
    count = 0
    input("Step 2: Press Enter to start playing positions")
    while play_times == 0 or abs(play_times) != count:
        for n, pos in enumerate(track):
            # Move to position with closed-loop control
            while True:
                piper.move_j(pos[:-1], move_spd_rate_ctrl)
                time.sleep(0.01)
                current_pos = get_pos()
                print(f"INFO: Playback {count + 1}, Position {n + 1}")
                print(f"Current: {current_pos}, Target: {pos}")
                if all(abs(current_pos[i] - pos[i]) < 0.0698 for i in range(6)):
                    break
            # Control gripper
            if have_gripper and len(pos) == 7:
                piper.move_gripper(pos[-1], 1)
                time.sleep(0.5)
            # Handle replay interval
            if play_interval < 0:
                if n != len(track) - 1:
                    if input("INPUT: Enter 'q' to exit, Enter to continue: ") == 'q':
                        exit()
            else:
                time.sleep(play_interval)
        count += 1

INSTRUCTIONS

Step 1: Environment Setup

Install System Dependencies:

sudo apt install git python3-pip can-utils ethtool

Install PIPER SDK:

git clone -b 1_0_0_beta https://github.com/agilexrobotics/piper_sdk.git
cd piper_sdk
pip3 install .

Step 2: Hardware Setup

• Power on the PIPER robotic arm
• Connect USB-to-CAN module to computer
• Ensure only one CAN module is connected
• Verify teach button functionality
• Clear workspace of obstacles

Step 3: Activate CAN Interface

sudo ip link set can0 up type can bitrate 1000000

Step 4: Download Project Code

git clone https://github.com/agilexrobotics/Agilex-College.git
cd Agilex-College/piper/recordAndPlayPos/

Step 5: Record Positions

• Run recording program:

python3 recordPos_en.py

Short-press teach button to enter teaching mode (indicator light turns on)

• Short-press teach button to enter teaching mode (indicator light turns on)

Manually move arm to desired position

• Manually move arm to desired position

Press Enter in terminal to record position

• Press Enter in terminal to record position

Repeat steps 3-4 for all desired positions

• Repeat steps 3-4 for all desired positions

Type 'q' and press Enter to finish recording

• Type 'q' and press Enter to finish recording

Short-press teach button again to exit teaching mode

• Short-press teach button again to exit teaching mode

Step 6: Replay Positions

• Run replay program:

python3 playPos_en.py

System will perform safety reset (joints 2, 3, 5 return to zero)

• System will perform safety reset (joints 2, 3, 5 return to zero)

Press Enter when prompted to start replay

• Press Enter when prompted to start replay

Arm will execute all recorded positions in sequence

• Arm will execute all recorded positions in sequence

Configuration Options

Modify these parameters in the code as needed:

• have_gripper: Set to False if no gripper attached
• play_times: Number of replay cycles (0 = infinite)
• play_interval: Delay between positions (negative = manual control)
• move_spd_rate_ctrl: Speed percentage (10-100)

TROUBLESHOOTING

Problem: "No Piper class" error

• Cause: Wrong SDK version installed
• Solution: Uninstall with pip3 uninstall piper_sdk, then reinstall 1_0_0_beta version

Problem: Arm doesn't move, timeout errors

• Cause: Teaching mode accidentally activated during replay
• Solution: Check teach button LED. If on, press to exit teaching mode and restart program

Problem: Arm falls when exiting teaching mode

• Cause: Joints 2, 3, 5 not in safe positions
• Solution: Manually assist moving these joints to near-zero positions before exiting

Support Contact: [email protected]
