Curve and Cube Recognition with AgileX PiPER Robotic Arm

Overview

In this project, we'll explore how to combine computer vision with robotic arm control. We'll build a system that uses a depth camera to detect colored blocks and curves, then processes this data to guide an AgileX PIPER robotic arm through precise manipulation tasks. This is a great starting point for anyone interested in vision-based robotics!

What You'll Learn

• Color block and curve detection using OpenCV
• 3D coordinate extraction from depth camera data
• Point cloud processing with curve fitting and interpolation
• Integrating computer vision with ROS and robotic arm control
• Path planning and end-effector trajectory control

Hardware Requirements

• Orbbec Petrel (aligned depth + RGB images: 640×400@30fps)
• Intel RealSense D435 (optional - aligned depth + RGB images: 640×480@30fps)
• AgileX PIPER Robotic Arm

Software Requirements

1. PCL Point Cloud Library

Compile and install PCL with the on_nurbs option. Refer to the official PCL documentation for Linux compilation:

# Make sure to include -Don_nurbs=ON during CMake configuration

2. PIPER Manipulator Driver

Check out the driver setup guide: https://github.com/agilexrobotics/piper_sdk/blob/1_0_0_beta/README(ZH).MD

3. PIPER ROS Control

For ROS integration, see: https://github.com/agilexrobotics/piper_ros/blob/noetic/README.MD

Getting Started

Step 1: Launch the Depth Camera

Start the camera driver (using Orbbec Petrel as an example):

roslaunch astra_camera dabai_dc1.launch

Step 2: Color Block Detection

Start the color detection node:

rosrun cube_det cube_det

Two windows will appear:

• hsv_image: Adjust HSV sliders to fine-tune color detection
• origin_image: Click on target colors to automatically extract them

Click on your target color in the origin_image window to automatically search and extract it:

The 3D coordinates of detected blocks will be visualized in RViz:

Step 3: Curve Detection & Trajectory Planning

Launch the curve detection node:

roslaunch astra_camera dabai_dc1.launch

Start the curve detection:

rosrun cube_det line_det

The system automatically handles reflection-induced gaps in the curve by using curve fitting and interpolation to create smooth, continuous trajectories:

Step 4: Set Up the Robotic Arm

Find and activate the CAN bus connection:

# Locate the CAN port
./find_all_can_port.sh

# Activate the connection
./can_activate.sh

Launch the PIPER control node:

roslaunch piper start_single_piper.launch

Step 5: Configure Inverse Kinematics

Set up Pinocchio for IK calculations (see the Pinocchio README for details):

python piper_pinocchio.py

Step 6: Set Home Position

Define the manipulator's home position:

rostopic pub /pos_cmd piper_msgs/PosCmd "{
x: -0.344,
y: 0.0,
z: 0.110,
roll: 0.0,
pitch: 0.0,
yaw: 0.0,
gripper: 0.0,
mode1: 1,
mode2: 0
}"

Step 7: Visualize the Path

Add the RViz plugin to visualize the /line_path topic:

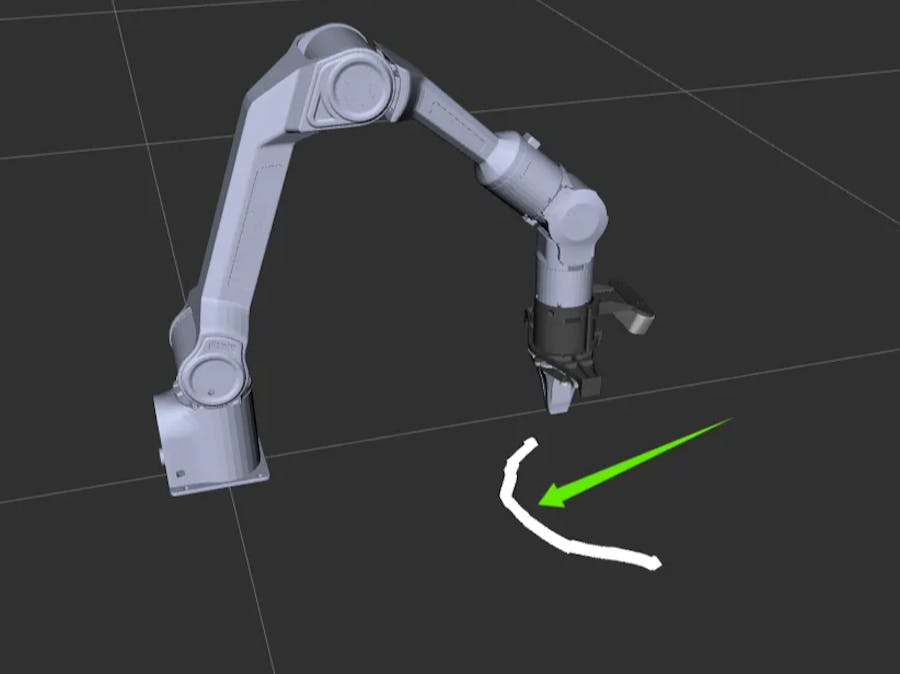

You should now see the generated end-effector trajectory:

Step 8: Execute the Trajectory

Run the path execution script:

rosrun cube_det path_confer.py

The script supports three keyboard commands:

• r: Record current frame's point cloud, transform from camera_color_frame_optical to arm_base coordinates, and generate control path
• s: Send one point from the path to the manipulator per keypress
• p: Continuously publish the entire path to the manipulator

Press r to confirm and generate the trajectory /transformed_cloud:

Press s or p to start manipulator motion along the trajectory!

Next Steps

This project demonstrates the fundamentals of vision-guided manipulation. You can extend it by:

• Adding multiple object tracking
• Implementing grasp planning algorithms
• Combining with force feedback control
• Scaling to different robotic platforms

Feel free to adapt this approach to your own projects and share your results!

Happy building! 🚀
