DragonBoy: Run your AI applications anywhere anytime!
- Qualcomm 5G global cellular network
- 8-core CPU + GPU + AI: 12TOPs
- Memory: RAM 8 GB + ROM 128 GB + Unlimited expandable storage ( SD card , SSD)
- Low power consumption
- 15 years lifecycle of Qualcomm chipset
- Open Source
With the rapid development of AI technology, it is difficult to find a Pi board in the market to meet the requirements of both high performance and ease to use.

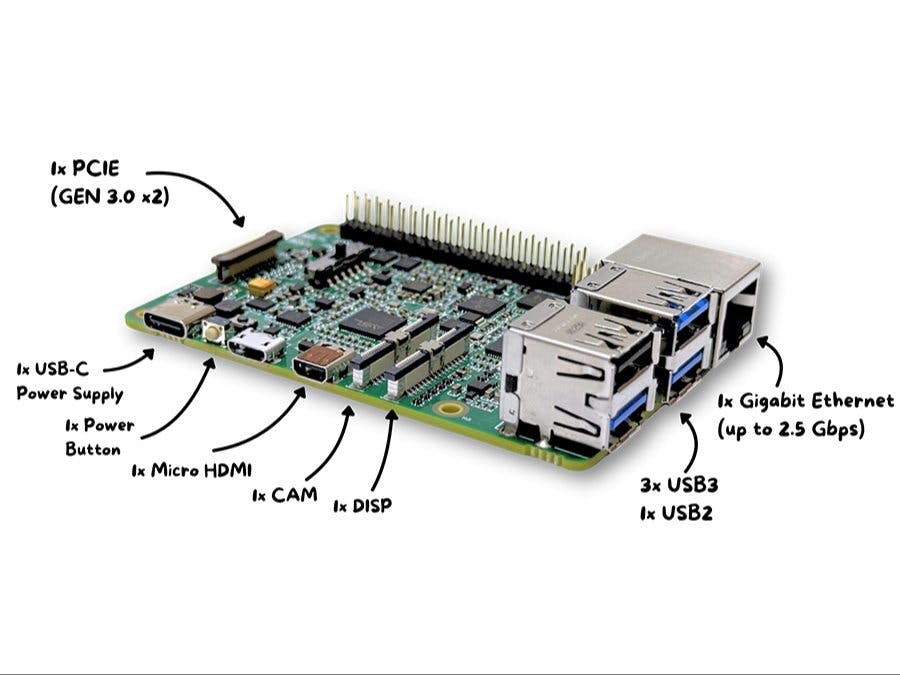

DragonBoy is an open-source platform for learning AI. It's based on the Qualcomm 6nm chip, with 5G connectivity, 12 TOPS, and low power consumption. The board provides many high-performance interfaces and easy to use. For example, there is a 2.5G Ethernet port, a PCIE3.0x2 interface, 40-pin header etc. We'll open source many application samples, such as running large language models locally and various AI sample programs.
The goal of the DragonBoy is that everyone can easily learn AI, and build amazing things to show your creativities.
Open SourceThe Qualcomm chipset we’re using has upstream Qualcomm Linux support. Base on this branch, we'll build our GitHub repo and maintain all our contributions on GitHub repos and let you easy to build and DIY your creatitivites, we will public our GitHub reop link later, just like we did before.
The Qualcomm Dragonwing™ QCM6490 chipset on DragonBoy board is purpose-built with global 5G mmW/Sub-6 GHz and support for Wi-Fi 6E for ubiquitous coverage, multi-OS support for IoT industrial use cases.
8+128GB(UFS2.x) memory is built on the SBC, if you need more memory, you can use SD card or SSD to extend much larger.
With Qualcomm 5G modern, you can access the enthernet anywhere, any place. Besides, you can also use Wi-Fi 6E for blazing fast connectivity over your Wi-Fi network.
Built-in SIM card slot
There is a SIM card slot. You can choose the SIM card of your preferred carrier, enabling the DragonBoy to connect to the internet and work anywhere.
DragonBoy is inspired by Raspberry Pi. Our goal is not only to be compatible with the Raspberry Pi 4B and 5 as much as possible, but also maximize the significant advantages of the Qualcomm chip, such as 5G connectivity, high performance, and low power consumption.
Super Fast Speed Ethernet: up to 2.5Gbps
PCIE 3.0x2
There is a PCIe 3.0 x2 interface on DragonBoy. Its faster transmission speed enables you to bring your cooler creative ideas to life, such as, connect an M.2 SSD to give you super-fast data transfer and boot.
Unleash the Joy of High-Speed SSD(M.2 & PCIe & NVMe).
GPIO and the 40-pin header
The GPIO and 40-pin header is compatible with Raspberry Pi. That means, you can use off-the-shelf peripherals or Raspberry Pi HATs of the Pi ecosystem.
Accessories
The compatible design makes it convenient for you to reuse many accessories from the Raspberry Pi ecosystem, such as power adapters and heat sinks. If you've previously designed products using a Raspberry Pi, perhaps after replacing it with an AIGC - Pi, you only need to make few modifications to make your products incredibly powerful.
Generative AI service
Run generative AI services right on the AIGC - Pi SBC in the comfort of your home to build your persional applications. This way, you can ensure the utmost security for all your private data, keeping it safe from potential external threats.
If you need to run larger models to achieve better performance, you can run multiple SBCs in parallel. (refer to https://github.com/b4rtaz/distributed-llama/discussions/162)
Model Farm
There are many models you can try on our DragonBoy, including audio, NLP and Multimodal. We and our partners will provide an increasing number of interesting sample programs. For detailed info, please refer to refer1 or refer2.
Classic phone: As the most popular mobile phone chipset, do you feel the urge to DIY a big brother phone? Of course, you can DIY your own DynaTAC 8000X!
MiniPupper Robot: The excellent design of Mini Pupper 2 allows it to directly access the DragonBoy board through a 40-pin interface, injecting powerful local computing resources into Mini Pupper 2. ROS SLAM and Navigation can both run on the robot with DragonBoy.
Outdoor 5G Robot Control: As the core controller in robotics projects, the DragonBoy connects to motor drivers and sensors (ultrasonic, infrared) for autonomous navigation, obstacle avoidance, and target tracking. Ideal for building small smart robots or driverless vehicles.
NAC
Aluminum Mini Tower Case with Cooling Fan and Color Changing Ambient Light. Meet our sleek, ultra-small NUC—engineered for performance and style. It runs effortlessly with advanced heat dissipation, staying cool and quiet.
Home Media Center:Connect DragonBoy to your TV, install media center software, and build a home media hub. It plays local or online videos, music, and games.
Smart Home Control Center:Use DragonBoy’s 40-pin ports to link sensors (temperature, humidity, light) and control devices (relays, smart switches). With compatible software, automate home systems: adjust lighting brightness, regulate AC temperature, or remotely control appliances.
Retro Gaming Console:With 3rd party software, DragonBoy emulates classic and popular gaming systems. Simply connect a controller and TV to enjoy the games.
Blockchain Node:Thanks to its computing and networking capabilities, DragonBoy can serves as a blockchain node, participating in transaction validation and data storage. Perfect for small-scale blockchain development or testing environments.
