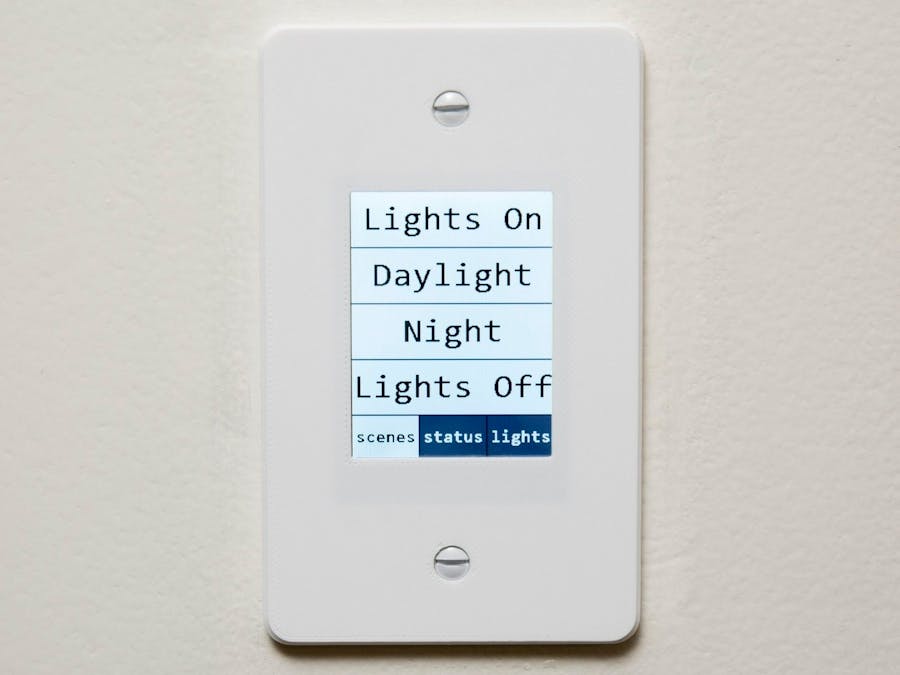

HASwitchPlate

////////////////////////////////////////////////////////////////////////////////////////////////////
//           _____ _____ _____ _____
//          |  |  |  _  |   __|  _  |
//          |     |     |__   |   __|
//          |__|__|__|__|_____|__|
//        Home Automation Switch Plate
// https://github.com/aderusha/HASwitchPlate
//
// Copyright (c) 2019 Allen Derusha allen@derusha.org
//
// MIT License
//
// Permission is hereby granted, free of charge, to any person obtaining a copy of this hardware,
// software, and associated documentation files (the "Product"), to deal in the Product without
// restriction, including without limitation the rights to use, copy, modify, merge, publish,
// distribute, sublicense, and/or sell copies of the Product, and to permit persons to whom the
// Product is furnished to do so, subject to the following conditions:
//
// The above copyright notice and this permission notice shall be included in all copies or
// substantial portions of the Product.
//
// THE PRODUCT IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT
// NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
// NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM,
// DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
// OUT OF OR IN CONNECTION WITH THE PRODUCT OR THE USE OR OTHER DEALINGS IN THE PRODUCT.
////////////////////////////////////////////////////////////////////////////////////////////////////

// OPTIONAL: Assign default values here.
char wifiSSID[32] = ""; // Leave unset for wireless autoconfig. Note that these values will be lost
char wifiPass[64] = ""; // when updating, but that's probably OK because they will be saved in EEPROM.

////////////////////////////////////////////////////////////////////////////////////////////////////
// These defaults may be overwritten with values saved by the web interface
char mqttServer[64] = "";
char mqttPort[6] = "1883";
char mqttUser[32] = "";
char mqttPassword[32] = "";
char haspNode[16] = "plate01";
char groupName[16] = "plates";
char configUser[32] = "admin";
char configPassword[32] = "";
char motionPinConfig[3] = "0";
////////////////////////////////////////////////////////////////////////////////////////////////////

#include <FS.h>
#include <ESP8266WiFi.h>
#include <ESP8266mDNS.h>
#include <WiFiUdp.h>
#include <ArduinoOTA.h>
#include <DNSServer.h>
#include <ESP8266HTTPClient.h>
#include <ESP8266WebServer.h>
#include <ESP8266httpUpdate.h>
#include <ESP8266HTTPUpdateServer.h>
#include <WiFiManager.h>
#include <ArduinoJson.h>
#include <MQTT.h>
#include <EEPROM.h>
#include <SoftwareSerial.h>

const float haspVersion = 0.36;                     // Current HASP software release version
byte nextionReturnBuffer[128];                      // Byte array to pass around data coming from the panel
uint8_t nextionReturnIndex = 0;                     // Index for nextionReturnBuffer
uint8_t nextionActivePage = 0;                      // Track active LCD page
bool lcdConnected = false;                          // Set to true when we've heard something from the LCD
char wifiConfigPass[9];                             // AP config password, always 8 chars + NUL
char wifiConfigAP[19];                              // AP config SSID, haspNode + 3 chars
bool shouldSaveConfig = false;                      // Flag to save json config to SPIFFS
bool nextionReportPage0 = false;                    // If false, don't report page 0 sendme
const unsigned long updateCheckInterval = 43200000; // Time in msec between update checks (12 hours)
unsigned long updateCheckTimer = 0;                 // Timer for update check
const unsigned long nextionCheckInterval = 5000;    // Time in msec between nextion connection checks
unsigned long nextionCheckTimer = 0;                // Timer for nextion connection checks
unsigned int nextionRetryMax = 5;                   // Attempt to connect to panel this many times
bool updateEspAvailable = false;                    // Flag for update check to report new ESP FW version
float updateEspAvailableVersion;                    // Float to hold the new ESP FW version number
bool updateLcdAvailable = false;                    // Flag for update check to report new LCD FW version
bool debugSerialEnabled = true;                     // Enable USB serial debug output
bool debugTelnetEnabled = false;                    // Enable telnet debug output
bool debugSerialD8Enabled = true;                   // Enable hardware serial debug output on pin D8
const unsigned long telnetInputMax = 128;           // Size of user input buffer for user telnet session
bool motionEnabled = false;                         // Motion sensor is enabled
bool mdnsEnabled = true;                            // mDNS enabled
uint8_t motionPin = 0;                              // GPIO input pin for motion sensor if connected and enabled
bool motionActive = false;                          // Motion is being detected
const unsigned long motionLatchTimeout = 30000;     // Latch time for motion sensor
const unsigned long motionBufferTimeout = 1000;     // Latch time for motion sensor
unsigned long lcdVersion = 0;                       // Int to hold current LCD FW version number
unsigned long updateLcdAvailableVersion;            // Int to hold the new LCD FW version number
bool lcdVersionQueryFlag = false;                   // Flag to set if we've queried lcdVersion
const String lcdVersionQuery = "p[0].b[2].val";     // Object ID for lcdVersion in HMI
bool startupCompleteFlag = false;                   // Startup process has completed
const long statusUpdateInterval = 300000;           // Time in msec between publishing MQTT status updates (5 minutes)
long statusUpdateTimer = 0;                         // Timer for update check
const unsigned long connectTimeout = 300;           // Timeout for WiFi and MQTT connection attempts in seconds
const unsigned long reConnectTimeout = 15;          // Timeout for WiFi reconnection attempts in seconds
byte espMac[6];                                     // Byte array to store our MAC address
const uint16_t mqttMaxPacketSize = 4096;            // Size of buffer for incoming MQTT message
String mqttClientId;                                // Auto-generated MQTT ClientID
String mqttGetSubtopic;                             // MQTT subtopic for incoming commands requesting .val
String mqttStateTopic;                              // MQTT topic for outgoing panel interactions
String mqttCommandTopic;                            // MQTT topic for incoming panel commands
String mqttGroupCommandTopic;                       // MQTT topic for incoming group panel commands
String mqttStatusTopic;                             // MQTT topic for publishing device connectivity state
String mqttSensorTopic;                             // MQTT topic for publishing device information in JSON format
String mqttLightCommandTopic;                       // MQTT topic for incoming panel backlight on/off commands
String mqttLightStateTopic;                         // MQTT topic for outgoing panel backlight on/off state
String mqttLightBrightCommandTopic;                 // MQTT topic for incoming panel backlight dimmer commands
String mqttLightBrightStateTopic;                   // MQTT topic for outgoing panel backlight dimmer state
String mqttMotionStateTopic;                        // MQTT topic for outgoing motion sensor state
String nextionModel;                                // Record reported model number of LCD panel
const byte nextionSuffix[] = {0xFF, 0xFF, 0xFF};    // Standard suffix for Nextion commands
long tftFileSize = 0;                               // Filesize for TFT firmware upload
uint8_t nextionResetPin = D6;                       // Pin for Nextion power rail switch (GPIO12/D6)

WiFiClient wifiClient;
MQTTClient mqttClient(mqttMaxPacketSize);
ESP8266WebServer webServer(80);
ESP8266HTTPUpdateServer httpOTAUpdate;
WiFiServer telnetServer(23);
WiFiClient telnetClient;

// Additional CSS style to match Hass theme
const char HASP_STYLE[] = "<style>button{background-color:#03A9F4;}body{width:60%;margin:auto;}input:invalid{border:1px solid red;}input[type=checkbox]{width:20px;}</style>";
// URL for auto-update "version.json"
const char UPDATE_URL[] = "http://haswitchplate.com/update/version.json";
// Default link to compiled Arduino firmware image
String espFirmwareUrl = "http://haswitchplate.com/update/HASwitchPlate.ino.d1_mini.bin";
// Default link to compiled Nextion firmware images
String lcdFirmwareUrl = "http://haswitchplate.com/update/HASwitchPlate.tft";

////////////////////////////////////////////////////////////////////////////////////////////////////
void setup()
{ // System setup
  pinMode(nextionResetPin, OUTPUT);
  digitalWrite(nextionResetPin, HIGH);
  Serial.begin(115200);  // Serial - LCD RX (after swap), debug TX
  Serial1.begin(115200); // Serial1 - LCD TX, no RX
  Serial.swap();

  debugPrintln(String(F("SYSTEM: Starting HASwitchPlate v")) + String(haspVersion));
  debugPrintln(String(F("SYSTEM: Last reset reason: ")) + String(ESP.getResetInfo()));

  configRead(); // Check filesystem for a saved config.json

  // Wait up to 5 seconds for serial input from LCD
  while (!lcdConnected && (millis() < 5000))
  {
    nextionHandleInput();
  }
  if (lcdConnected)
  {
    debugPrintln(F("HMI: LCD responding, continuing program load"));
    nextionSendCmd("connect");
  }
  else
  {
    debugPrintln(F("HMI: LCD not responding, continuing program load"));
  }

  espWifiSetup(); // Start up networking

  if (mdnsEnabled)
  {
    MDNS.begin(haspNode); // Add mDNS hostname
    // MDNS.addService("http", "tcp", 80); this breaks Wemo devices when Home Assistant discovery is enabled.  No idea why.
    if (debugTelnetEnabled)
    {
      MDNS.addService("telnet", "tcp", 23);
    }
    MDNS.addServiceTxt("arduino", "tcp", "app_name", "HASwitchPlate");
    MDNS.addServiceTxt("arduino", "tcp", "app_version", String(haspVersion));
    MDNS.addServiceTxt("arduino", "tcp", "mac", WiFi.macAddress());
    MDNS.update();
  }

  if ((configPassword[0] != '\0') && (configUser[0] != '\0'))
  {
    httpOTAUpdate.setup(&webServer, "/update", configUser, configPassword);
  }
  else
  {
    httpOTAUpdate.setup(&webServer, "/update");
  }
  webServer.on("/", webHandleRoot);
  webServer.on("/saveConfig", webHandleSaveConfig);
  webServer.on("/resetConfig", webHandleResetConfig);
  webServer.on("/firmware", webHandleFirmware);
  webServer.on("/espfirmware", webHandleEspFirmware);
  webServer.on("/lcdupload", HTTP_POST, []() { webServer.send(200, "text/plain", ""); }, webHandleLcdUpload);
  webServer.on("/tftFileSize", webHandleTftFileSize);
  webServer.on("/lcddownload", webHandleLcdDownload);
  webServer.on("/reboot", webHandleReboot);
  webServer.onNotFound(webHandleNotFound);
  webServer.begin();
  debugPrintln(String(F("HTTP: Server started @ http://")) + WiFi.localIP().toString());

  espSetupOta();

  // Create server and assign callbacks for MQTT
  mqttClient.begin(mqttServer, atoi(mqttPort), wifiClient);
  mqttClient.onMessage(mqttCallback);
  mqttConnect();

  // Setup motion sensor if configured
  motionSetup();

  if (debugTelnetEnabled)
  { // Setup telnet server for remote debug output

    telnetServer.setNoDelay(true);
    telnetServer.begin();
    debugPrintln(String(F("TELNET: debug server enabled at telnet:")) + WiFi.localIP().toString());
  }

  debugPrintln(F("SYSTEM: System init complete."));
}

////////////////////////////////////////////////////////////////////////////////////////////////////
void loop()
{ // Main execution loop

  if (nextionHandleInput())
  { // Process user input from HMI
    nextionProcessInput();
  }

  while ((WiFi.status() != WL_CONNECTED) || (WiFi.localIP().toString() == "0.0.0.0"))
  { // Check WiFi is connected and that we have a valid IP, retry until we do.
    if (WiFi.status() == WL_CONNECTED)
    { // If we're currently connected, disconnect so we can try again
      WiFi.disconnect();
    }
    espWifiReconnect();
  }

  if (!mqttClient.connected())
  { // Check MQTT connection
    debugPrintln("MQTT: not connected, connecting.");
    mqttConnect();
  }

  mqttClient.loop();        // MQTT client loop
  ArduinoOTA.handle();      // Arduino OTA loop
  webServer.handleClient(); // webServer loop
  if (mdnsEnabled)
  {
    MDNS.update();
  }

  if ((lcdVersion < 1) && (millis() <= (nextionRetryMax * nextionCheckInterval)))
  { // Attempt to connect to LCD panel to collect model and version info during startup
    nextionConnect();
  }
  else if ((lcdVersion > 0) && (millis() <= (nextionRetryMax * nextionCheckInterval)) && !startupCompleteFlag)
  { // We have LCD info, so trigger an update check + report
    if (updateCheck())
    { // Send a status update if the update check worked
      mqttStatusUpdate();
      startupCompleteFlag = true;
    }
  }
  else if ((millis() > (nextionRetryMax * nextionCheckInterval)) && !startupCompleteFlag)
  { // We still don't have LCD info so go ahead and run the rest of the checks once at startup anyway
    updateCheck();
    mqttStatusUpdate();
    startupCompleteFlag = true;
  }

  if ((millis() - statusUpdateTimer) >= statusUpdateInterval)
  { // Run periodic status update
    statusUpdateTimer = millis();
    mqttStatusUpdate();
  }

  if ((millis() - updateCheckTimer) >= updateCheckInterval)
  { // Run periodic update check
    updateCheckTimer = millis();
    if (updateCheck())
    { // Send a status update if the update check worked
      mqttStatusUpdate();
    }
  }

  if (motionEnabled)
  { // Check on our motion sensor
    motionUpdate();
  }

  if (debugTelnetEnabled)
  {
    handleTelnetClient(); // telnetClient loop
  }
}

////////////////////////////////////////////////////////////////////////////////////////////////////
// Functions

////////////////////////////////////////////////////////////////////////////////////////////////////
void mqttConnect()
{ // MQTT connection and subscriptions

  static bool mqttFirstConnect = true; // For the first connection, we want to send an OFF/ON state to
                                       // trigger any automations, but skip that if we reconnect while
                                       // still running the sketch

  // Check to see if we have a broker configured and notify the user if not
  if (mqttServer[0] == 0)
  {
    nextionSendCmd("page 0");
    nextionSetAttr("p[0].b[1].txt", "\"WiFi Connected!\\rConfigure MQTT:\\r" + WiFi.localIP().toString() + "\\r\\r\\r\\r\\r\\r\\r \"");
    nextionSetAttr("p[0].b[3].txt", "\"http://" + WiFi.localIP().toString() + "\"");
    nextionSendCmd("vis 3,1");
    while (mqttServer[0] == 0)
    { // Handle HTTP and OTA while we're waiting for MQTT to be configured
      yield();
      if (nextionHandleInput())
      { // Process user input from HMI
        nextionProcessInput();
      }
      webServer.handleClient();
      ArduinoOTA.handle();
    }
  }
  // MQTT topic string definitions
  mqttStateTopic = "hasp/" + String(haspNode) + "/state";
  mqttCommandTopic = "hasp/" + String(haspNode) + "/command";
  mqttGroupCommandTopic = "hasp/" + String(groupName) + "/command";
  mqttStatusTopic = "hasp/" + String(haspNode) + "/status";
  mqttSensorTopic = "hasp/" + String(haspNode) + "/sensor";
  mqttLightCommandTopic = "hasp/" + String(haspNode) + "/light/switch";
  mqttLightStateTopic = "hasp/" + String(haspNode) + "/light/state";
  mqttLightBrightCommandTopic = "hasp/" + String(haspNode) + "/brightness/set";
  mqttLightBrightStateTopic = "hasp/" + String(haspNode) + "/brightness/state";
  mqttMotionStateTopic = "hasp/" + String(haspNode) + "/motion/state";

  const String mqttCommandSubscription = mqttCommandTopic + "/#";
  const String mqttGroupCommandSubscription = mqttGroupCommandTopic + "/#";
  const String mqttLightSubscription = "hasp/" + String(haspNode) + "/light/#";
  const String mqttLightBrightSubscription = "hasp/" + String(haspNode) + "/brightness/#";

  // Loop until we're reconnected to MQTT
  while (!mqttClient.connected())
  {
    // Create a reconnect counter
    static uint8_t mqttReconnectCount = 0;

    // Generate an MQTT client ID as haspNode + our MAC address
    mqttClientId = String(haspNode) + "-" + String(espMac[0], HEX) + String(espMac[1], HEX) + String(espMac[2], HEX) + String(espMac[3], HEX) + String(espMac[4], HEX) + String(espMac[5], HEX);
    nextionSendCmd("page 0");
    nextionSetAttr("p[0].b[1].txt", "\"WiFi Connected:\\r" + WiFi.localIP().toString() + "\\rMQTT Connecting" + String(mqttServer) + "\"");
    debugPrintln(String(F("MQTT: Attempting connection to broker ")) + String(mqttServer) + " as clientID " + mqttClientId);

    // Set keepAlive, cleanSession, timeout
    mqttClient.setOptions(30, true, 5000);

    // declare LWT
    mqttClient.setWill(mqttStatusTopic.c_str(), "OFF");

    if (mqttClient.connect(mqttClientId.c_str(), mqttUser, mqttPassword))
    { // Attempt to connect to broker, setting last will and testament
      // Subscribe to our incoming topics
      if (mqttClient.subscribe(mqttCommandSubscription))
      {
        debugPrintln(String(F("MQTT: subscribed to ")) + mqttCommandSubscription);
      }
      if (mqttClient.subscribe(mqttGroupCommandSubscription))
      {
        debugPrintln(String(F("MQTT: subscribed to ")) + mqttGroupCommandSubscription);
      }
      if (mqttClient.subscribe(mqttLightSubscription))
      {
        debugPrintln(String(F("MQTT: subscribed to ")) + mqttLightSubscription);
      }
      if (mqttClient.subscribe(mqttLightBrightSubscription))
      {
        debugPrintln(String(F("MQTT: subscribed to ")) + mqttLightSubscription);
      }
      if (mqttClient.subscribe(mqttStatusTopic))
      {
        debugPrintln(String(F("MQTT: subscribed to ")) + mqttStatusTopic);
      }

      if (mqttFirstConnect)
      { // Force any subscribed clients to toggle OFF/ON when we first connect to
        // make sure we get a full panel refresh at power on.  Sending OFF,
        // "ON" will be sent by the mqttStatusTopic subscription action.
        debugPrintln(String(F("MQTT: binary_sensor state: [")) + mqttStatusTopic + "] : [OFF]");
        mqttClient.publish(mqttStatusTopic, "OFF", true, 1);
        mqttFirstConnect = false;
      }
      else
      {
        debugPrintln(String(F("MQTT: binary_sensor state: [")) + mqttStatusTopic + "] : [ON]");
        mqttClient.publish(mqttStatusTopic, "ON", true, 1);
      }

      mqttReconnectCount = 0;

      // Update panel with MQTT status
      nextionSetAttr("p[0].b[1].txt", "\"WiFi Connected:\\r" + WiFi.localIP().toString() + "\\rMQTT Connected:\\r" + String(mqttServer) + "\"");
      debugPrintln(F("MQTT: connected"));
      if (nextionActivePage)
      {
        nextionSendCmd("page " + String(nextionActivePage));
      }
    }
    else
    { // Retry until we give up and restart after connectTimeout seconds
      mqttReconnectCount++;
      if (mqttReconnectCount > ((connectTimeout / 10) - 1))
      {
        debugPrintln(String(F("MQTT connection attempt ")) + String(mqttReconnectCount) + String(F(" failed with rc ")) + String(mqttClient.returnCode()) + String(F(".  Restarting device.")));
        espReset();
      }
      debugPrintln(String(F("MQTT connection attempt ")) + String(mqttReconnectCount) + String(F(" failed with rc ")) + String(mqttClient.returnCode()) + String(F(".  Trying again in 10 seconds.")));
      nextionSetAttr("p[0].b[1].txt", "\"WiFi Connected:\\r" + WiFi.localIP().toString() + "\\rMQTT Connect to" + String(mqttServer) + "\\rFAILED rc=" + String(mqttClient.returnCode()) + "\\rRetry in 10 sec\"");
      unsigned long mqttReconnectTimer = millis(); // record current time for our timeout
      while ((millis() - mqttReconnectTimer) < 10000)
      { // Handle HTTP and OTA while we're waiting 10sec for MQTT to reconnect
        yield();
        if (nextionHandleInput())
        { // Process user input from HMI
          nextionProcessInput();
        }
        webServer.handleClient();
        ArduinoOTA.handle();
      }
    }
  }
}

////////////////////////////////////////////////////////////////////////////////////////////////////
void mqttCallback(String &strTopic, String &strPayload)
{ // Handle incoming commands from MQTT

  // strTopic: homeassistant/haswitchplate/devicename/command/p[1].b[4].txt
  // strPayload: "Lights On"
  // subTopic: p[1].b[4].txt

  // Incoming Namespace (replace /device/ with /group/ for group commands)
  // '[...]/device/command' -m '' = No command requested, respond with mqttStatusUpdate()
  // '[...]/device/command' -m 'dim=50' = nextionSendCmd("dim=50")
  // '[...]/device/command/json' -m '["dim=5", "page 1"]' = nextionSendCmd("dim=50"), nextionSendCmd("page 1")
  // '[...]/device/command/page' -m '1' = nextionSendCmd("page 1")
  // '[...]/device/command/statusupdate' -m '' = mqttStatusUpdate()
  // '[...]/device/command/lcdupdate' -m 'http://192.168.0.10/local/HASwitchPlate.tft' = nextionStartOtaDownload("http://192.168.0.10/local/HASwitchPlate.tft")
  // '[...]/device/command/lcdupdate' -m '' = nextionStartOtaDownload("lcdFirmwareUrl")
  // '[...]/device/command/espupdate' -m 'http://192.168.0.10/local/HASwitchPlate.ino.d1_mini.bin' = espStartOta("http://192.168.0.10/local/HASwitchPlate.ino.d1_mini.bin")
  // '[...]/device/command/espupdate' -m '' = espStartOta("espFirmwareUrl")
  // '[...]/device/command/p[1].b[4].txt' -m '' = nextionGetAttr("p[1].b[4].txt")
  // '[...]/device/command/p[1].b[4].txt' -m '"Lights On"' = nextionSetAttr("p[1].b[4].txt", "\"Lights On\"")

  debugPrintln(String(F("MQTT IN: '")) + strTopic + "' : '" + strPayload + "'");

  if (((strTopic == mqttCommandTopic) || (strTopic == mqttGroupCommandTopic)) && (strPayload == ""))
  { // '[...]/device/command' -m '' = No command requested, respond with mqttStatusUpdate()
    mqttStatusUpdate(); // return status JSON via MQTT
  }
  else if (strTopic == mqttCommandTopic || strTopic == mqttGroupCommandTopic)
  { // '[...]/device/command' -m 'dim=50' == nextionSendCmd("dim=50")
    nextionSendCmd(strPayload);
  }
  else if (strTopic == (mqttCommandTopic + "/page") || strTopic == (mqttGroupCommandTopic + "/page"))
  { // '[...]/device/command/page' -m '1' == nextionSendCmd("page 1")
    if (nextionActivePage != strPayload.toInt())
    { // Hass likes to send duplicate responses to things like page requests and there are no plans to fix that behavior, so try and track it locally
      nextionActivePage = strPayload.toInt();
      nextionSendCmd("page " + strPayload);
    }
  }
  else if (strTopic == (mqttCommandTopic + "/json") || strTopic == (mqttGroupCommandTopic + "/json"))
  { // '[...]/device/command/json' -m '["dim=5", "page 1"]' = nextionSendCmd("dim=50"), nextionSendCmd("page 1")
    nextionParseJson(strPayload); // Send to nextionParseJson()
  }
  else if (strTopic == (mqttCommandTopic + "/statusupdate") || strTopic == (mqttGroupCommandTopic + "/statusupdate"))
  { // '[...]/device/command/statusupdate' == mqttStatusUpdate()
    mqttStatusUpdate(); // return status JSON via MQTT
  }
  else if (strTopic == (mqttCommandTopic + "/lcdupdate") || strTopic == (mqttGroupCommandTopic + "/lcdupdate"))
  { // '[...]/device/command/lcdupdate' -m 'http://192.168.0.10/local/HASwitchPlate.tft' == nextionStartOtaDownload("http://192.168.0.10/local/HASwitchPlate.tft")
    if (strPayload == "")
    {
      nextionStartOtaDownload(lcdFirmwareUrl);
    }
    else
    {
      nextionStartOtaDownload(strPayload);
    }
  }
  else if (strTopic == (mqttCommandTopic + "/espupdate") || strTopic == (mqttGroupCommandTopic + "/espupdate"))
  { // '[...]/device/command/espupdate' -m 'http://192.168.0.10/local/HASwitchPlate.ino.d1_mini.bin' == espStartOta("http://192.168.0.10/local/HASwitchPlate.ino.d1_mini.bin")
    if (strPayload == "")
    {
      espStartOta(espFirmwareUrl);
    }
    else
    {
      espStartOta(strPayload);
    }
  }
  else if (strTopic == (mqttCommandTopic + "/reboot") || strTopic == (mqttGroupCommandTopic + "/reboot"))
  { // '[...]/device/command/reboot' == reboot microcontroller)
    debugPrintln(F("MQTT: Rebooting device"));
    espReset();
  }
  else if (strTopic == (mqttCommandTopic + "/lcdreboot") || strTopic == (mqttGroupCommandTopic + "/lcdreboot"))
  { // '[...]/device/command/lcdreboot' == reboot LCD panel)
    debugPrintln(F("MQTT: Rebooting LCD"));
    nextionReset();
  }
  else if (strTopic == (mqttCommandTopic + "/factoryreset") || strTopic == (mqttGroupCommandTopic + "/factoryreset"))
  { // '[...]/device/command/factoryreset' == clear all saved settings)
    configClearSaved();
  }
  else if (strTopic.startsWith(mqttCommandTopic) && (strPayload == ""))
  { // '[...]/device/command/p[1].b[4].txt' -m '' == nextionGetAttr("p[1].b[4].txt")
    String subTopic = strTopic.substring(mqttCommandTopic.length() + 1);
    mqttGetSubtopic = "/" + subTopic;
    nextionGetAttr(subTopic);
  }
  else if (strTopic.startsWith(mqttGroupCommandTopic) && (strPayload == ""))
  { // '[...]/group/command/p[1].b[4].txt' -m '' == nextionGetAttr("p[1].b[4].txt")
    String subTopic = strTopic.substring(mqttGroupCommandTopic.length() + 1);
    mqttGetSubtopic = "/" + subTopic;
    nextionGetAttr(subTopic);
  }
  else if (strTopic.startsWith(mqttCommandTopic))
  { // '[...]/device/command/p[1].b[4].txt' -m '"Lights On"' == nextionSetAttr("p[1].b[4].txt", "\"Lights On\"")
    String subTopic = strTopic.substring(mqttCommandTopic.length() + 1);
    nextionSetAttr(subTopic, strPayload);
  }
  else if (strTopic.startsWith(mqttGroupCommandTopic))
  { // '[...]/group/command/p[1].b[4].txt' -m '"Lights On"' == nextionSetAttr("p[1].b[4].txt", "\"Lights On\"")
    String subTopic = strTopic.substring(mqttGroupCommandTopic.length() + 1);
    nextionSetAttr(subTopic, strPayload);
  }
  else if (strTopic == mqttLightBrightCommandTopic)
  { // change the brightness from the light topic
    int panelDim = map(strPayload.toInt(), 0, 255, 0, 100);
    nextionSetAttr("dim", String(panelDim));
    nextionSendCmd("dims=dim");
    mqttClient.publish(mqttLightBrightStateTopic, strPayload);
  }
  else if (strTopic == mqttLightCommandTopic && strPayload == "OFF")
  { // set the panel dim OFF from the light topic, saving current dim level first
    nextionSendCmd("dims=dim");
    nextionSetAttr("dim", "0");
    mqttClient.publish(mqttLightStateTopic, "OFF");
  }
  else if (strTopic == mqttLightCommandTopic && strPayload == "ON")
  { // set the panel dim ON from the light topic, restoring saved dim level
    nextionSendCmd("dim=dims");
    mqttClient.publish(mqttLightStateTopic, "ON");
  }
  else if (strTopic == mqttStatusTopic && strPayload == "OFF")
  { // catch a dangling LWT from a previous connection if it appears
    mqttClient.publish(mqttStatusTopic, "ON");
  }
}

////////////////////////////////////////////////////////////////////////////////////////////////////
void mqttStatusUpdate()
{ // Periodically publish a JSON string indicating system status
  String mqttStatusPayload = "{";
  mqttStatusPayload += String(F("\"status\":\"available\","));
  mqttStatusPayload += String(F("\"espVersion\":")) + String(haspVersion) + String(F(","));
  if (updateEspAvailable)
  {
    mqttStatusPayload += String(F("\"updateEspAvailable\":true,"));
  }
  else
  {
    mqttStatusPayload += String(F("\"updateEspAvailable\":false,"));
  }
  if (lcdConnected)
  {
    mqttStatusPayload += String(F("\"lcdConnected\":true,"));
  }
  else
  {
    mqttStatusPayload += String(F("\"lcdConnected\":false,"));
  }
  mqttStatusPayload += String(F("\"lcdVersion\":\"")) + String(lcdVersion) + String(F("\","));
  if (updateLcdAvailable)
  {
    mqttStatusPayload += String(F("\"updateLcdAvailable\":true,"));
  }
  else
  {
    mqttStatusPayload += String(F("\"updateLcdAvailable\":false,"));
  }
  mqttStatusPayload += String(F("\"espUptime\":")) + String(long(millis() / 1000)) + String(F(","));
  mqttStatusPayload += String(F("\"signalStrength\":")) + String(WiFi.RSSI()) + String(F(","));
  mqttStatusPayload += String(F("\"haspIP\":\"")) + WiFi.localIP().toString() + String(F("\","));
  mqttStatusPayload += String(F("\"heapFree\":")) + String(ESP.getFreeHeap());
  mqttStatusPayload += "}";

  mqttClient.publish(mqttSensorTopic, mqttStatusPayload);
  mqttClient.publish(mqttStatusTopic, "ON", true, 1);
  debugPrintln(String(F("MQTT: status update: ")) + String(mqttStatusPayload));
  debugPrintln(String(F("MQTT: binary_sensor state: [")) + mqttStatusTopic + "] : [ON]");
}

////////////////////////////////////////////////////////////////////////////////////////////////////
bool nextionHandleInput()
{ // Handle incoming serial data from the Nextion panel
  // This will collect serial data from the panel and place it into the global buffer
  // nextionReturnBuffer[nextionReturnIndex]
  // Return: true if we've received a string of 3 consecutive 0xFF values
  // Return: false otherwise
  bool nextionCommandComplete = false;
  static int nextionTermByteCnt = 0;   // counter for our 3 consecutive 0xFFs
  static String hmiDebug = "HMI IN: "; // assemble a string for debug output

  if (Serial.available())
  {
    lcdConnected = true;
    byte nextionCommandByte = Serial.read();
    hmiDebug += (" 0x" + String(nextionCommandByte, HEX));
    // check to see if we have one of 3 consecutive 0xFF which indicates the end of a command
    if (nextionCommandByte == 0xFF)
    {
      nextionTermByteCnt++;
      if (nextionTermByteCnt >= 3)
      { // We have received a complete command
        nextionCommandComplete = true;
        nextionTermByteCnt = 0; // reset counter
      }
    }
    else
    {
      nextionTermByteCnt = 0; // reset counter if a non-term byte was encountered
    }
    nextionReturnBuffer[nextionReturnIndex] = nextionCommandByte;
    nextionReturnIndex++;
  }
  if (nextionCommandComplete)
  {
    debugPrintln(hmiDebug);
    hmiDebug = "HMI IN: ";
  }
  return nextionCommandComplete;
}

////////////////////////////////////////////////////////////////////////////////////////////////////
void nextionProcessInput()
{ // Process incoming serial commands from the Nextion panel
  // Command reference: https://www.itead.cc/wiki/Nextion_Instruction_Set#Format_of_Device_Return_Data
  // tl;dr, command byte, command data, 0xFF 0xFF 0xFF

  if (nextionReturnBuffer[0] == 0x65)
  { // Handle incoming touch command
    // 0x65+Page ID+Component ID+TouchEvent+End
    // Return this data when the touch event created by the user is pressed.
    // Definition of TouchEvent: Press Event 0x01, Release Event 0X00
    // Example: 0x65 0x00 0x02 0x01 0xFF 0xFF 0xFF
    // Meaning: Touch Event, Page 0, Object 2, Press
    String nextionPage = String(nextionReturnBuffer[1]);
    String nextionButtonID = String(nextionReturnBuffer[2]);
    byte nextionButtonAction = nextionReturnBuffer[3];

    if (nextionButtonAction == 0x01)
    {
      debugPrintln(String(F("HMI IN: [Button ON] 'p[")) + nextionPage + "].b[" + nextionButtonID + "]'");
      String mqttButtonTopic = mqttStateTopic + "/p[" + nextionPage + "].b[" + nextionButtonID + "]";
      debugPrintln(String(F("MQTT OUT: '")) + mqttButtonTopic + "' : 'ON'");
      mqttClient.publish(mqttButtonTopic, "ON");
    }
    if (nextionButtonAction == 0x00)
    {
      debugPrintln(String(F("HMI IN: [Button OFF] 'p[")) + nextionPage + "].b[" + nextionButtonID + "]'");
      String mqttButtonTopic = mqttStateTopic + "/p[" + nextionPage + "].b[" + nextionButtonID + "]";
      debugPrintln(String(F("MQTT OUT: '")) + mqttButtonTopic + "' : 'OFF'");
      mqttClient.publish(mqttButtonTopic, "OFF");
      // Now see if this object has a .val that might have been updated.
      // works for sliders, two-state buttons, etc, throws a 0x1A error for normal buttons
      // which we'll catch and ignore
      mqttGetSubtopic = "/p[" + nextionPage + "].b[" + nextionButtonID + "].val";
      nextionGetAttr("p[" + nextionPage + "].b[" + nextionButtonID + "].val");
    }
  }
  else if (nextionReturnBuffer[0] == 0x66)
  { // Handle incoming "sendme" page number
    // 0x66+PageNum+End
    // Example: 0x66 0x02 0xFF 0xFF 0xFF
    // Meaning: page 2
    String nextionPage = String(nextionReturnBuffer[1]);
    debugPrintln(String(F("HMI IN: [sendme Page] '")) + nextionPage + "'");
    if ((nextionActivePage != nextionPage.toInt()) && ((nextionPage != "0") || nextionReportPage0))
    { // If we have a new page AND ( (it's not "0") OR (we've set the flag to report 0 anyway) )
      nextionActivePage = nextionPage.toInt();
      String mqttPageTopic = mqttStateTopic + "/page";
      debugPrintln(String(F("MQTT OUT: '")) + mqttPageTopic + "' : '" + nextionPage + "'");
      mqttClient.publish(mqttPageTopic, nextionPage);
    }
  }
  else if (nextionReturnBuffer[0] == 0x67)
  { // Handle touch coordinate data
    // 0X67+Coordinate X High+Coordinate X Low+Coordinate Y High+Coordinate Y Low+TouchEvent+End
    // Example: 0X67 0X00 0X7A 0X00 0X1E 0X01 0XFF 0XFF 0XFF
    // Meaning: Coordinate (122,30), Touch Event: Press
    // issue Nextion command "sendxy=1" to enable this output
    uint16_t xCoord = nextionReturnBuffer[1];
    xCoord = xCoord * 256 + nextionReturnBuffer[2];
    uint16_t yCoord = nextionReturnBuffer[3];
    yCoord = yCoord * 256 + nextionReturnBuffer[4];
    String xyCoord = String(xCoord) + ',' + String(yCoord);
    byte nextionTouchAction = nextionReturnBuffer[5];
    if (nextionTouchAction == 0x01)
    {
      debugPrintln(String(F("HMI IN: [Touch ON] '")) + xyCoord + "'");
      String mqttTouchTopic = mqttStateTopic + "/touchOn";
      debugPrintln(String(F("MQTT OUT: '")) + mqttTouchTopic + "' : '" + xyCoord + "'");
      mqttClient.publish(mqttTouchTopic, xyCoord);
    }
    else if (nextionTouchAction == 0x00)
    {
      debugPrintln(String(F("HMI IN: [Touch OFF] '")) + xyCoord + "'");
      String mqttTouchTopic = mqttStateTopic + "/touchOff";
      debugPrintln(String(F("MQTT OUT: '")) + mqttTouchTopic + "' : '" + xyCoord + "'");
      mqttClient.publish(mqttTouchTopic, xyCoord);
    }
  }
  else if (nextionReturnBuffer[0] == 0x70)
  { // Handle get string return
    // 0x70+ASCII string+End
    // Example: 0x70 0x41 0x42 0x43 0x44 0x31 0x32 0x33 0x34 0xFF 0xFF 0xFF
    // Meaning: String data, ABCD1234
    String getString;
    for (int i = 1; i < nextionReturnIndex - 3; i++)
    { // convert the payload into a string
      getString += (char)nextionReturnBuffer[i];
    }
    debugPrintln(String(F("HMI IN: [String Return] '")) + getString + "'");
    if (mqttGetSubtopic == "")
    { // If there's no outstanding request for a value, publish to mqttStateTopic
      debugPrintln(String(F("MQTT OUT: '")) + mqttStateTopic + "' : '" + getString + "]");
      mqttClient.publish(mqttStateTopic, getString);
    }
    else
    { // Otherwise, publish the to saved mqttGetSubtopic and then reset mqttGetSubtopic
      String mqttReturnTopic = mqttStateTopic + mqttGetSubtopic;
      debugPrintln(String(F("MQTT OUT: '")) + mqttReturnTopic + "' : '" + getString + "]");
      mqttClient.publish(mqttReturnTopic, getString);
      mqttGetSubtopic = "";
    }
  }
  else if (nextionReturnBuffer[0] == 0x71)
  { // Handle get int return
    // 0x71+byte1+byte2+byte3+byte4+End (4 byte little endian)
    // Example: 0x71 0x7B 0x00 0x00 0x00 0xFF 0xFF 0xFF
    // Meaning: Integer data, 123
    unsigned long getInt = nextionReturnBuffer[4];
    getInt = getInt * 256 + nextionReturnBuffer[3];
    getInt = getInt * 256 + nextionReturnBuffer[2];
    getInt = getInt * 256 + nextionReturnBuffer[1];
    String getString = String(getInt);
    debugPrintln(String(F("HMI IN: [Int Return] '")) + getString + "'");

    if (lcdVersionQueryFlag)
    {
      lcdVersion = getInt;
      lcdVersionQueryFlag = false;
      debugPrintln(String(F("HMI IN: lcdVersion '")) + String(lcdVersion) + "'");
    }
    else if (mqttGetSubtopic == "")
    {
      mqttClient.publish(mqttStateTopic, getString);
    }
    // Otherwise, publish the to saved mqttGetSubtopic and then reset mqttGetSubtopic
    else
    {
      String mqttReturnTopic = mqttStateTopic + mqttGetSubtopic;
      mqttClient.publish(mqttReturnTopic, getString);
      mqttGetSubtopic = "";
    }
  }
  else if (nextionReturnBuffer[0] == 0x63 && nextionReturnBuffer[1] == 0x6f && nextionReturnBuffer[2] == 0x6d && nextionReturnBuffer[3] == 0x6f && nextionReturnBuffer[4] == 0x6b)
  { // Catch 'comok' response to 'connect' command: https://www.itead.cc/blog/nextion-hmi-upload-protocol
    String comokField;
    uint8_t comokFieldCount = 0;
    byte comokFieldSeperator = 0x2c; // ","

    for (uint8_t i = 0; i <= nextionReturnIndex; i++)
    { // cycle through each byte looking for our field seperator
      if (nextionReturnBuffer[i] == comokFieldSeperator)
      { // Found the end of a field, so do something with it.  Maybe.
        if (comokFieldCount == 2)
        {
          nextionModel = comokField;
          debugPrintln(String(F("HMI IN: nextionModel: ")) + nextionModel);
        }
        comokFieldCount++;
        comokField = "";
      }
      else
      {
        comokField += String(char(nextionReturnBuffer[i]));
      }
    }
  }

  else if (nextionReturnBuffer[0] == 0x1A)
  { // Catch 0x1A error, possibly from .val query against things that might not support that request
    // 0x1A+End
    // ERROR: Variable name invalid
    // We'll be triggering this a lot due to requesting .val on every component that sends us a Touch Off
    // Just reset mqttGetSubtopic and move on with life.
    mqttGetSubtopic = "";
  }
  nextionReturnIndex = 0; // Done handling the buffer, reset index back to 0
}

////////////////////////////////////////////////////////////////////////////////////////////////////
void nextionSetAttr(String hmiAttribute, String hmiValue)
{ // Set the value of a Nextion component attribute
  Serial1.print(hmiAttribute);
  Serial1.print("=");
  Serial1.print(utf8ascii(hmiValue));
  Serial1.write(nextionSuffix, sizeof(nextionSuffix));
  debugPrintln(String(F("HMI OUT: '")) + hmiAttribute + "=" + hmiValue + "'");
}

////////////////////////////////////////////////////////////////////////////////////////////////////
void nextionGetAttr(String hmiAttribute)
{ // Get the value of a Nextion component attribute
  // This will only send the command to the panel requesting the attribute, the actual
  // return of that value will be handled by nextionProcessInput and placed into mqttGetSubtopic
  Serial1.print("get " + hmiAttribute);
  Serial1.write(nextionSuffix, sizeof(nextionSuffix));
  debugPrintln(String(F("HMI OUT: 'get ")) + hmiAttribute + "'");
}

////////////////////////////////////////////////////////////////////////////////////////////////////
void nextionSendCmd(String nextionCmd)
{ // Send a raw command to the Nextion panel
  Serial1.print(utf8ascii(nextionCmd));
  Serial1.write(nextionSuffix, sizeof(nextionSuffix));
  debugPrintln(String(F("HMI OUT: ")) + nextionCmd);
}

////////////////////////////////////////////////////////////////////////////////////////////////////
void nextionParseJson(String &strPayload)
{ // Parse an incoming JSON array into individual Nextion commands
  DynamicJsonBuffer nextionJsonBuffer(256);
  JsonArray &nextionCommands = nextionJsonBuffer.parseArray(strPayload, 1);
  for (uint8_t i = 0; i < nextionCommands.size(); i++)
  {
    nextionSendCmd(nextionCommands[i]);
  }
}

////////////////////////////////////////////////////////////////////////////////////////////////////
void nextionStartOtaDownload(String otaUrl)
{ // Upload firmware to the Nextion LCD via HTTP download
  // based in large part on code posted by indev2 here:
  // http://support.iteadstudio.com/support/discussions/topics/11000007686/page/2

  int lcdOtaFileSize = 0;
  String lcdOtaNextionCmd;
  int lcdOtaChunkCounter = 0;
  uint16_t lcdOtaPartNum = 0;
  int lcdOtaTransferred = 0;
  int lcdOtaPercentComplete = 0;

  debugPrintln(String(F("LCD OTA: Attempting firmware download from:")) + otaUrl);
  HTTPClient lcdOtaHttp;
  lcdOtaHttp.begin(otaUrl);
  int lcdOtaHttpReturn = lcdOtaHttp.GET();
  if (lcdOtaHttpReturn > 0)
  { // HTTP header has been sent and Server response header has been handled
    debugPrintln(String(F("LCD OTA: HTTP GET return code:")) + String(lcdOtaHttpReturn));
    if (lcdOtaHttpReturn == HTTP_CODE_OK)
    { // file found at server
      // get length of document (is -1 when Server sends no Content-Length header)
      int lcdOtaRemaining = lcdOtaHttp.getSize();
      lcdOtaFileSize = lcdOtaRemaining;
      int lcdOtaParts = (lcdOtaRemaining / 4096) + 1;
      uint8_t lcdOtaBuffer[128] = {}; // max size of ESP8266 UART buffer

      debugPrintln(String(F("LCD OTA: File found at Server. Size ")) + String(lcdOtaRemaining) + String(F(" bytes in ")) + String(lcdOtaParts) + String(F(" 4k chunks.")));

      WiFiUDP::stopAll(); // Keep mDNS responder and MQTT traffic from breaking things
      if (mqttClient.connected())
      {
        debugPrintln(F("LCD OTA: LCD firmware upload starting, closing MQTT connection."));
        mqttClient.publish(mqttStatusTopic, "OFF");
        mqttClient.publish(mqttSensorTopic, "{\"status\": \"unavailable\"}");
        mqttClient.disconnect();
      }

      // get tcp stream
      WiFiClient *stream = lcdOtaHttp.getStreamPtr();
      // Send empty command
      Serial1.write(nextionSuffix, sizeof(nextionSuffix));
      Serial1.flush();
      nextionHandleInput();

      String lcdOtaNextionCmd = "whmi-wri " + String(lcdOtaFileSize) + ",115200,0";
      debugPrintln(String(F("LCD OTA: Sending LCD upload command: ")) + lcdOtaNextionCmd);
      Serial1.print(lcdOtaNextionCmd);
      Serial1.write(nextionSuffix, sizeof(nextionSuffix));
      Serial1.flush();

      if (nextionOtaResponse())
      {
        debugPrintln(F("LCD OTA: LCD upload command accepted."));
      }
      else
      {
        debugPrintln(F("LCD OTA: LCD upload command FAILED.  Restarting device."));
        espReset();
      }
      debugPrintln(F("LCD OTA: Starting update"));
      while (lcdOtaHttp.connected() && (lcdOtaRemaining > 0 || lcdOtaRemaining == -1))
      { // Write incoming data to panel as it arrives
        // get available data size
        size_t lcdOtaHttpSize = stream->available();
        if (lcdOtaHttpSize)
        {
          // read up to 128 bytes
          int lcdOtaChunkSize = stream->readBytes(lcdOtaBuffer, ((lcdOtaHttpSize > sizeof(lcdOtaBuffer)) ? sizeof(lcdOtaBuffer) : lcdOtaHttpSize));
          // write it to panel
          Serial1.flush();
          Serial1.write(lcdOtaBuffer, lcdOtaChunkSize);
          lcdOtaChunkCounter += lcdOtaChunkSize;
          if (lcdOtaChunkCounter >= 4096)
          {
            Serial1.flush();
            lcdOtaPartNum++;
            lcdOtaTransferred += lcdOtaChunkCounter;
            lcdOtaPercentComplete = (lcdOtaTransferred * 100) / lcdOtaFileSize;
            lcdOtaChunkCounter = 0;
            if (nextionOtaResponse())
            {
              // debugPrintln(String(F("LCD OTA: Part ")) + String(lcdOtaPartNum) + String(F(" OK, ")) + String(lcdOtaPercentComplete) + String(F("% complete")));
            }
            else
            {
              debugPrintln(String(F("LCD OTA: Part ")) + String(lcdOtaPartNum) + String(F(" FAILED, ")) + String(lcdOtaPercentComplete) + String(F("% complete")));
              debugPrintln(F("LCD OTA: failure"));
              delay(2000); // extra delay while the LCD does its thing
              espReset();
            }
          }
          else
          {
            delay(20);
          }
          if (lcdOtaRemaining > 0)
          {
            lcdOtaRemaining -= lcdOtaChunkSize;
          }
        }
      }
      lcdOtaPartNum++;
      lcdOtaTransferred += lcdOtaChunkCounter;
      if ((lcdOtaTransferred == lcdOtaFileSize) && nextionOtaResponse())
      {
        debugPrintln(String(F("LCD OTA: success, wrote ")) + String(lcdOtaTransferred) + " of " + String(lcdOtaFileSize) + " bytes.");
        delay(5000); // extra delay while the LCD does its thing
        espReset();
      }
      else
      {
        debugPrintln(F("LCD OTA: failure"));
        delay(2000); // extra delay while the LCD does its thing
        espReset();
      }
    }
  }
  else
  {
    debugPrintln(String(F("LCD OTA: HTTP GET failed, error code ")) + lcdOtaHttp.errorToString(lcdOtaHttpReturn));
    espReset();
  }
  lcdOtaHttp.end();
}

////////////////////////////////////////////////////////////////////////////////////////////////////
bool nextionOtaResponse()
{ // Monitor the serial port for a 0x05 response within our timeout

  unsigned long nextionCommandTimeout = 2000;   // timeout for receiving termination string in milliseconds
  unsigned long nextionCommandTimer = millis(); // record current time for our timeout
  bool otaSuccessVal = false;
  while ((millis() - nextionCommandTimer) < nextionCommandTimeout)
  {
    if (Serial.available())
    {
      byte inByte = Serial.read();
      if (inByte == 0x5)
      {
        otaSuccessVal = true;
        break;
      }
      else
      {
...

This file has been truncated, please download it to see its full contents.
