OMEN Bravo

An easy as possible, but still expandable, single-board computer with 65C02 CPU.

AdvancedWork in progress12 hours1,260

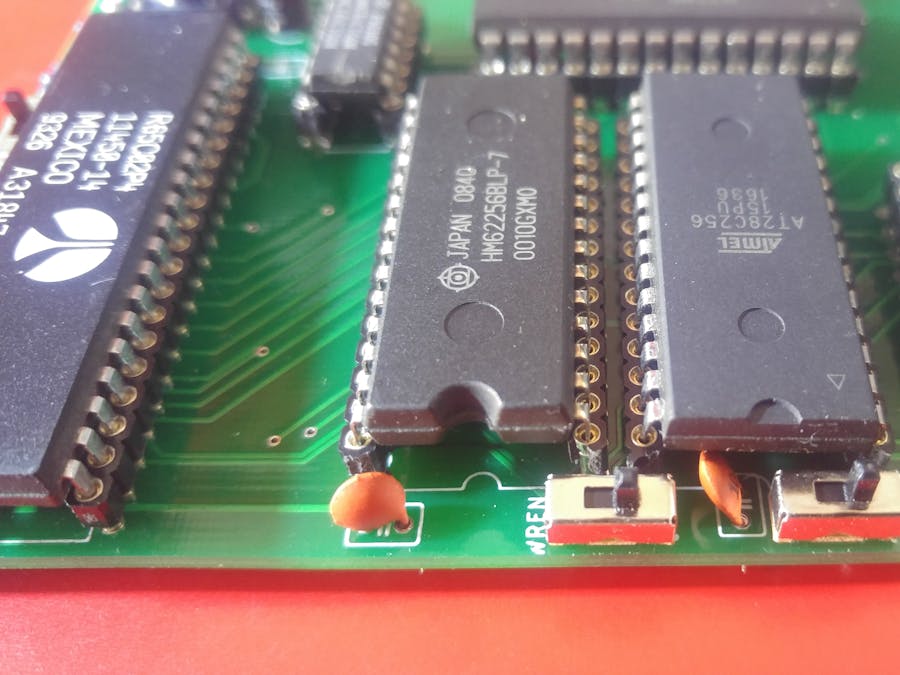

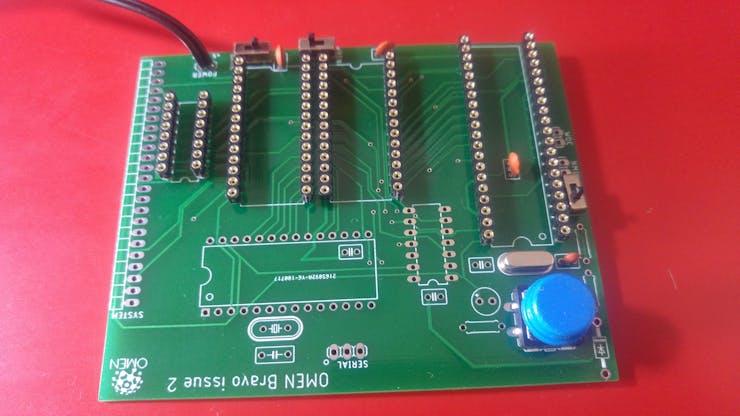

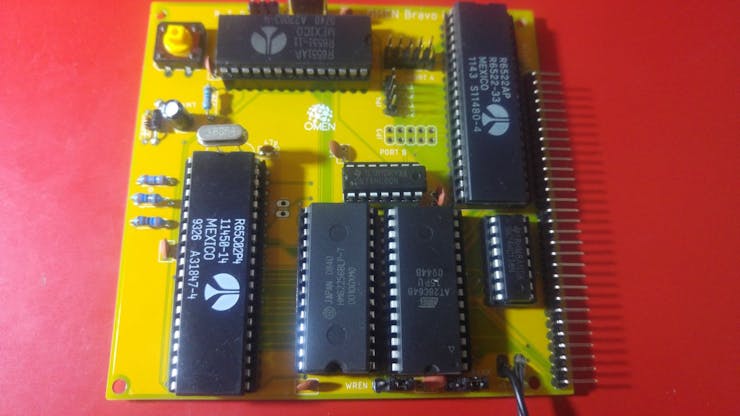

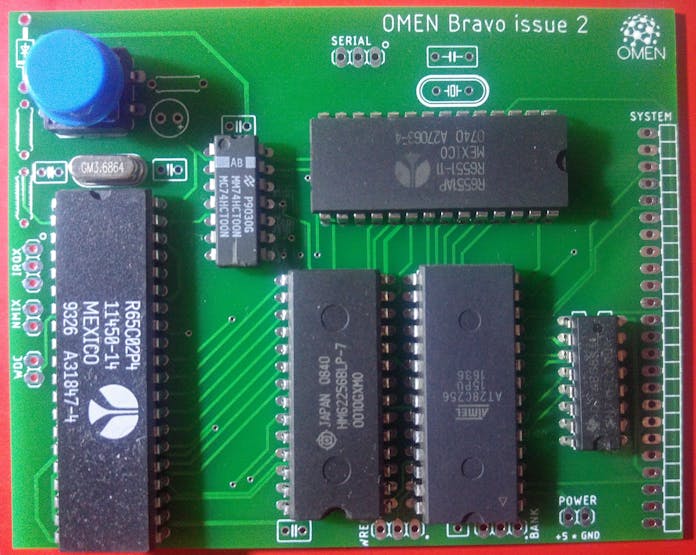

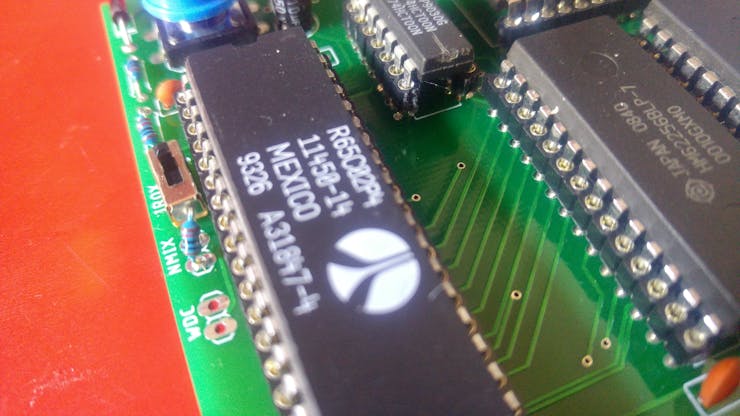

OMEN Bravo

Things used in this project

Hardware components

65C02
×1
62256
×1
Microchip AT28C256
×1
Texas Instruments 74HCT00
×1
6551
×1
pinheader
×1
Texas Instruments 74HCT138
×1
3.6864 MHz crystal
×1
1.8432 MHz crystal
×1
Capacitor 22 pF
Capacitor 22 pF
×2
Capacitor 100 nF
Capacitor 100 nF
×6
Pushbutton switch 12mm
SparkFun Pushbutton switch 12mm
×1
Capacitor 10 µF
Capacitor 10 µF
×1
1N4007 – High Voltage, High Current Rated Diode
1N4007 – High Voltage, High Current Rated Diode
×1
Resistor 10k ohm
Resistor 10k ohm
×3
Resistor 330 ohm
Resistor 330 ohm
×1

Software apps and online services

ASM80.com

Hand tools and fabrication machines

JLCPCB.com

Story

Read more

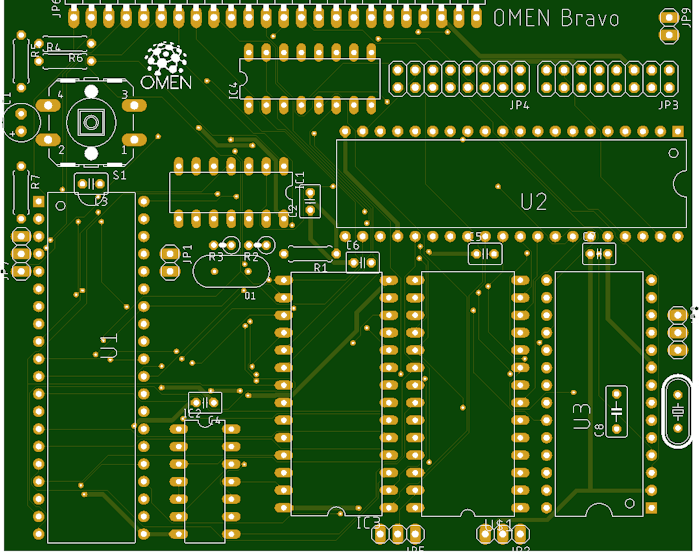

Schematics

Full Schematics, issue 4

Full Schematics, issue 2

GitHub repository

Code

Hello world...

Assembly x86
            .ORG    0x0000
            .PHASE  0xc000
                    ;org 0xc000
            .ENGINE bravo

NIO0        EQU     $8000
NIO1        EQU     $9000
NIO2        EQU     $8800
NIO3        EQU     $9800
NIO4        EQU     $8400
NIO5        EQU     $9400
NIO6        EQU     $8C00
NIO7        EQU     $9C00

ACIA_BASE   EQU     nIO0

SDR         EQU     ACIA_BASE
SSR         EQU     ACIA_BASE+1
SCMD        EQU     ACIA_BASE+2
SCTL        EQU     ACIA_BASE+3

SCTL_V      EQU     00011111b
SCMD_V      EQU     00001011b
TX_RDY      EQU     00010000b
RX_RDY      EQU     00001000b


RESET:
            SEI
            CLD
            LDX     #$FF
            TXS

                    ;serial init
            LDA     #SCTL_V
            STA     SCTL
            LDA     #SCMD_V
            STA     SCMD

MAIN:       LDA     #<hello
            STA     zp_str
            LDA     #>hello
            STA     zp_str+1
            JSR     strout

            JSR     delay
            JMP     main

GETSER:     LDA     SSR ; look at serial status
            AND     #RX_RDY ; see if anything is ready
            BEQ     GETSER ; busy-wait until character comes in!
            LDA     SDR ; get the character
            RTS

                    ; Write the character in A as ASCII:
PUTSER:     STA     SDR ; write to transmit register
WRS1:       LDA     SSR ; get status
            AND     #TX_RDY ; see if transmitter is busy
            BEQ     WRS1 ; if it is, wait
            RTS

STROUT:     LDY     #0
STROUT1:    LDA     (zp_str),y
            BNE     strout2
            RTS
STROUT2:
            JSR     putser
            INY
            JMP     strout1


DELAY:      LDX     #200
DELAY2:     LDY     #0
DELAY1:     DEY
            BNE     delay1
            DEX
            BNE     delay2
            RTS

            .ORG    0xc0fc

HELLO:      .CSTR   "OMEN Bravo v.1.0",$0d,$0a

            .ORG    0xfffa
            DW      reset
            DW      reset
            DW      reset

                    ; zero page
ZP_BASE     EQU     $f0
            .ORG    zp_base

ZP_STR:     DS      2
