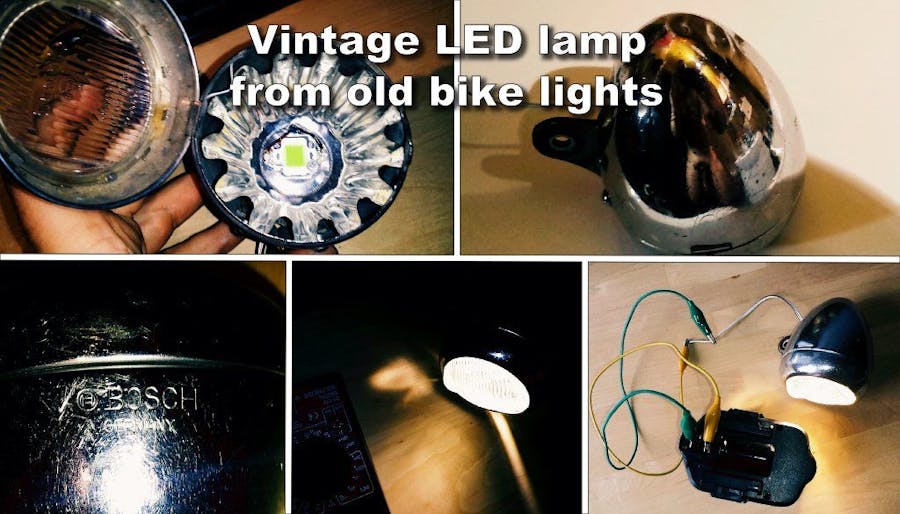

DIY Vintage LED Lamp From Old Bike Lights

Some time ago I found an old bicycle light in my garage. It is the original lamp

of the well-known BOSCH brand. This lamp has many scratches and a few dents, but it only gives it an original style. I do not know exactly where to mount it, maybe

it will light up my desk, or maybe do some lighting in the workshop or gazebo. In this projection, I used the LM2596 the same one I used when building other LED lamp Diy LED lights panel for 5$ - Cheap and Easy 6 x 10W

The entire project, you can also see here: DIY vintage LED lamp from old bike lights

Step 1: Components

• Old bicycle light

• Small baking pan

• 1 x LED 10W

• LM2596

• Silicone heat transfer compound

Step 2: Schematic

Schematic of retro/vintage LED lamp

Step 3: Cleaning and Removing Unnecessary Parts

I removed unnecessary parts that I no longer need. Then I cleaned everything, especially the glass.

Step 4: Drilling Holes

Because I have 3 mm screws and in LEDs are 2.5 mm holes, so I need to drill to 3mm. I drilled 3 holes, two 3mm on LED and one 4mm on cord. Because the edges are not nice, I smooth them with a much larger drill bit.

Step 5: Voltage Setting

Before soldering LM2596 to LED I check the voltage and set them to about 9.5V.Then hook LM2596 to the LED and set the voltage again. My LED diodes have not been set to full power, so I have no problem with overheating.

Step 6: Soldering

Soldering of LED and LM2596.

Step 7: Mounting the LED

Step 8: The Project Is Finished

The project is finished. I have to choose the right place for my new LED lamp.
