FRILLER (FRILL Explorer Robot)

FRILLER (FRILL Explorer Robot) is a 3D-printed compact robot that changes the radius of its wheels to overcome obstacles. It can be used to explore extreme terrains and reach targets of interest. On a level dirt path, FRILLER can drive about 2000 feet (610 meters) on one battery charge. That could fluctuate a bit depending on how much any onboard instruments or sensor are used. Its expanded wheels and flat fishtail allows it to traverse desert or snow terrains.

How it works

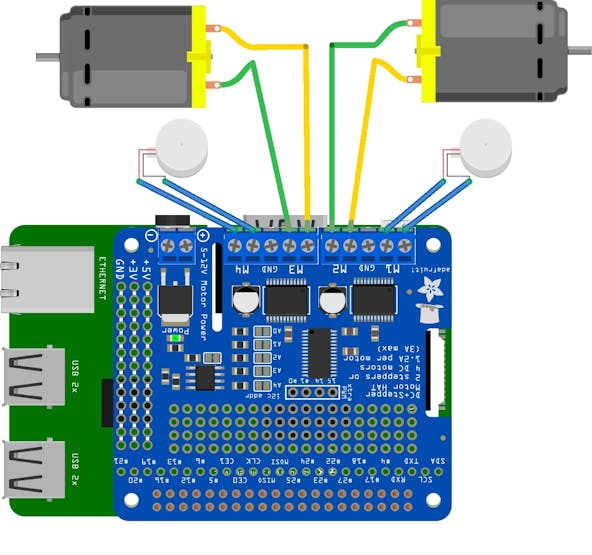

FRILLER employees a Raspberry Pi 3B running the Android Things embedded OS platform; which receives command via WiFi to control the motors though the Adafruit motor hat. The wheel deformation mechanism is composed of two DC geared motors, sliding racks, and an elastic cord. When the motors push out the racks, the wheel diameter becomes larger. The elastic cord around the wheels assists with the return of the spikes to the close position when the motors pull the racks back inside. The wheels remain round for faster travel on roads or indoors, but transform into spikes to overcome obstacles off-road.

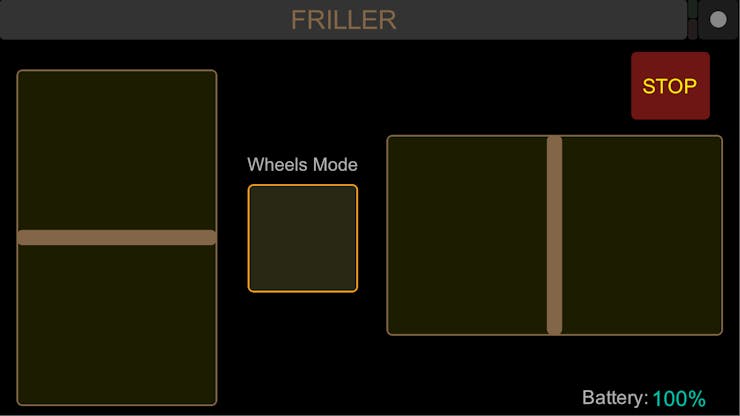

For testing purposes, it was easy to use the TouchOSC app to send UDP packets to the robot; which was also cheaper than the traditional hobby RC. However, you will have to setup your Android device as an access point (hotspot) so the FRILLER can connect to it; which is useful for field tests.

What you’ll need

• Android Studio 3.0+.

• Flash Android Things on the Raspberry Pi 3 (instructions here).

• TouchOSC.

• The following individual components:

Qty(1) - Raspberry Pi 3 Model B

Qty(1) - DC & Stepper Motor HAT

Qty(1) - Extra Tall Header

Qty(1) - 3mm Pegs (package of 100)

Qty(1) - Micro-B USB DIY Connector

Qty(1) - 50:1 Brushed DC Gearmotor

Qty(2) - Solarbotics Geamotor 90deg Output

Qty(2) - Voltage and Current Sense Breakout (or similar)

Qty(1) - Lithium Ion batter

Qty(1) - XT60 Connector

Qty(1) - Vytaflex-60

Improvements

• Make FRILLER smarter. Right now, it runs off WiFi and can be controlled remotely, but I’d like to add autonomy.

• Add GPS and compass sensors for position control.

• Replace the 3D printed body with a lighter and flexible structure; capable to resist high temperatures and handle impacts from a fall.

Acknowledgement

The FRILLER prototype is based on former OSU student Carter Hurd’s design.

References

• Differential Drive Kinematics

• Systems and Methods for Mobile Robot Positioning

• NASA Game On
