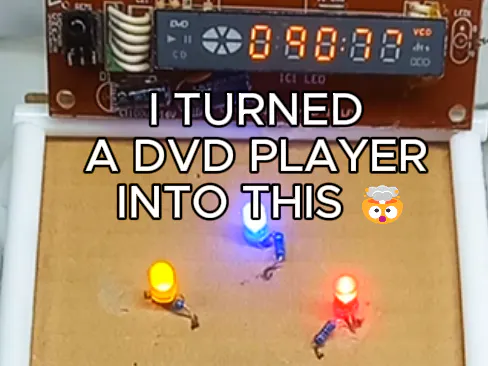

Arduino Pinball Machine Using a DVD Display (TM1628)

#include <TM1628.h>
#include <Servo.h>

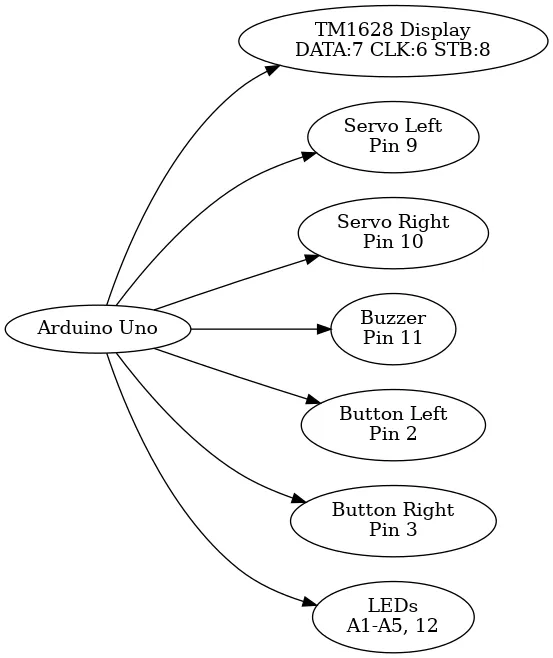

// ---------------- DISPLAY ----------------
#define DATA_PIN 7
#define CLOCK_PIN 6
#define STROBE_PIN 8

TM1628 display(DATA_PIN, CLOCK_PIN, STROBE_PIN);

// ---------------- LEDS ----------------
int leds[] = {A1, A2, A3, A4, A5, 12};

// ---------------- BUZZER ----------------
int buzzer = 11;

// ---------------- BUTTONS ----------------
int btnLeft = 2;
int btnRight = 3;

// ---------------- SERVOS ----------------
Servo servoLeft;
Servo servoRight;

// ---------------- GAME LOGIC ----------------
int currentLed = -1;
unsigned long lastChange = 0;
int speed = 400;

// ---------------- SCORE ----------------
int score = 0;
unsigned long lastScoreTime = 0;
int scoreStep = 1;

// ---------------- DISCO / VISUAL EFFECTS ----------------
byte discoEnd[] = {1, 3, 11, 13, 7, 9};
int discoFrame = 0;
unsigned long discoTime = 0;
int discoSpeed = 90;

// ---------------- NUMBERS (7-Segment Mapping) ----------------
const byte numbers[] = {
  0b00111111, 0b00000110, 0b01011011, 0b01001111,
  0b01100110, 0b01101101, 0b01111101, 0b00000111,
  0b01111111, 0b01101111
};

void setup() {
  display.begin(true, 7);
  clearAll();

  for(int i=0; i<6; i++) pinMode(leds[i], OUTPUT);

  pinMode(buzzer, OUTPUT);
  pinMode(btnLeft, INPUT_PULLUP);
  pinMode(btnRight, INPUT_PULLUP);

  servoLeft.attach(9);
  servoRight.attach(10);

  servoLeft.write(20);
  servoRight.write(160);

  randomSeed(analogRead(A0));
}

void loop() {
  // Random LED logic
  if(millis() - lastChange > (unsigned long)speed){
    lastChange = millis();

    for(int i=0; i<6; i++) digitalWrite(leds[i], LOW);

    currentLed = random(0, 6);
    digitalWrite(leds[currentLed], HIGH);

    speed = max(120, speed - 1);
  }

  // Input Handling
  if(digitalRead(btnLeft) == LOW){
    flipperAction(true);
  }

  if(digitalRead(btnRight) == LOW){
    flipperAction(false);
  }

  runDisco();
}

// ---------------- FLIPPER ----------------
void flipperAction(bool left){
  if(left){
    servoLeft.write(70);
    delay(60);
    servoLeft.write(20);
  } else {
    servoRight.write(110);
    delay(60);
    servoRight.write(160);
  }

  hitEffect();
  addScore();
}

// ---------------- HIT EFFECT ----------------
void hitEffect(){
  digitalWrite(leds[currentLed], LOW);

  for(int f = 1000; f < 2000; f += 150){
    tone(buzzer, f, 10);
    delay(5);
  }

  for(int i=0; i<6; i++) digitalWrite(leds[i], HIGH);
  delay(40);
  for(int i=0; i<6; i++) digitalWrite(leds[i], LOW);
}

// ---------------- SCORE ----------------
void addScore(){
  if(millis() - lastScoreTime < 200) return;
  lastScoreTime = millis();

  score += scoreStep;
  if(score > 9999) score = 0;

  // Progression: Increase points per hit every 10 points
  if(score % 10 == 0 && scoreStep < 5){
    scoreStep++;
  }

  discoSpeed = max(50, 90 - score);

  discoWaveEffect();
  numberWaveEffect(score);
  comboEffect();
}

// ---------------- DISCO ANIMATION ----------------
void runDisco(){
  if(millis() - discoTime >= (unsigned long)discoSpeed){
    discoTime = millis();

    for(int i=0; i<6; i++){
      setIcon(discoEnd[i], 0);
    }

    setIcon(discoEnd[discoFrame], 2);

    discoFrame++;
    if(discoFrame >= 6) discoFrame = 0;
  }
}

// ---------------- DISCO WAVE EFFECT ----------------
void discoWaveEffect(){
  for(int i=0; i<6; i++){
    setIcon(discoEnd[i], 2);
    tone(buzzer, 1200 + i*120, 10);
    delay(12);
  }

  for(int i=5; i>=0; i--){
    setIcon(discoEnd[i], 0);
    delay(10);
  }
}

// ---------------- NUMBER WAVE EFFECT ----------------
void numberWaveEffect(int value){
  int d1 = value % 10;
  int d2 = (value / 10) % 10;
  int d3 = (value / 100) % 10;
  int d4 = (value / 1000) % 10;

  byte digits[4] = {d1, d2, d3, d4};

  for(int seg=0; seg<7; seg++){
    byte val = 0;

    if(bitRead(numbers[digits[0]], seg)) val += 1;
    if(bitRead(numbers[digits[1]], seg)) val += 2;
    if(bitRead(numbers[digits[2]], seg)) val += 128;
    if(bitRead(numbers[digits[3]], seg)) val += 4;

    display.setSegments(val, seg);
    delay(18);
  }
}

// ---------------- COMBO EFFECTS ----------------
void comboEffect(){
  if(score % 50 == 0){
    // 💥 Explosion effect
    for(int i=0; i<3; i++){
      display.setSegments(255, i);
    }
    tone(buzzer, 2500, 100);
    delay(120);
    clearAll();
  }
  else if(score % 20 == 0){
    // ⚡ Strong flash
    display.setSegments(255, 0);
    display.setSegments(255, 1);
    tone(buzzer, 2000, 80);
    delay(80);
  }
  else if(score % 10 == 0){
    // ✨ Light flash
    display.setSegments(255, 0);
    tone(buzzer, 1500, 50);
    delay(50);
  }
}

// ---------------- LOW LEVEL COMMUNICATION ----------------
void sendRawCommand(byte cmd) {
  digitalWrite(STROBE_PIN, LOW);
  shiftOut(DATA_PIN, CLOCK_PIN, LSBFIRST, cmd);
  digitalWrite(STROBE_PIN, HIGH);
}

void setIcon(byte address, byte value) {
  sendRawCommand(0x44);
  digitalWrite(STROBE_PIN, LOW);
  shiftOut(DATA_PIN, CLOCK_PIN, LSBFIRST, 0xC0 + address);
  shiftOut(DATA_PIN, CLOCK_PIN, LSBFIRST, value);
  digitalWrite(STROBE_PIN, HIGH);
}

// ---------------- CLEAR DISPLAY ----------------
void clearAll() {
  for (int i = 0; i <= 20; i++) {
    display.setSegments(0x00, i);
  }

  sendRawCommand(0x40);
  digitalWrite(STROBE_PIN, LOW);
  shiftOut(DATA_PIN, CLOCK_PIN, LSBFIRST, 0xC0);
  for (int i = 0; i < 16; i++) shiftOut(DATA_PIN, CLOCK_PIN, LSBFIRST, 0x00);
  digitalWrite(STROBE_PIN, HIGH);
}
