Automatic Lighting of the Working Area in Kitchen

Controller is made on a popular Wi-Fi module such as NodeMCU, which is based on the powerful Espressif ESP8266 SoC.

IntermediateFull instructions provided8 hours2,850

Automatic Lighting of the Working Area in Kitchen

Things used in this project

Hardware components

NodeMCU ESP8266 Breakout Board

PIR Motion Sensor (generic)

Espressif ESP8266 ESP-12E

Software apps and online services

Arduino IDE

myDevices Cayenne

Story

General information

The second version (First version on Arduino) of the controller is made on a popular Wi-Fi module such as NodeMCU, which is based on the powerful Espressif ESP8266 system-on-chip (SoC). Such a solution will allow us to implement in our light controller additional functions inherent in the devices of the Internet of things (Figure 1). At this moment, there are many varieties of these Wi-Fi modules, which have different form factor, the number of general purpose I/O lines, the presence of an interface for debugging and programming. This diversity is due to the high popularity of Wi-Fi modules among radio amateurs and designers, as well as full support for the ESP8266 core in the Arduino integrated development environment. In other words, it is a miniature Arduino board with a Wi-Fi interface, with which you can create Internet devices of things (IoT) with enough rich functionality.

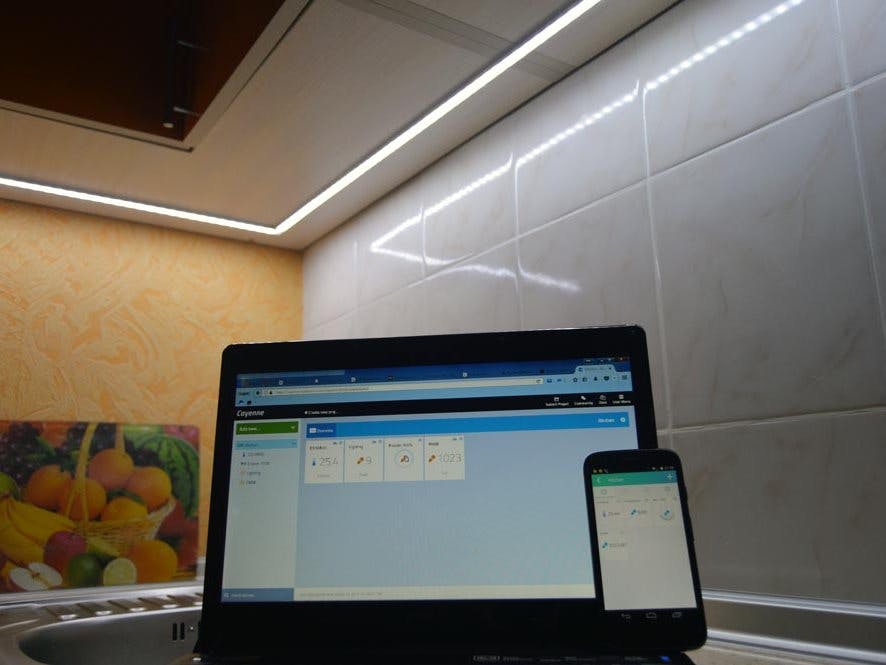

Figure 1. Kitchen working area accent lighting with automatic control on NodeMCU support IoT functions.

Next, we will look in detail at construction and the operation principle of this version of the controller.

The idea to implement the IoT function in the additional light controller was born after I evaluated the possibilities of the cloud service and mobile application myDevices Cayenne for developing IoT devices on Raspberry Pi and Arduino [1, 2]. I recommend that you familiarize yourself with the reviews published on our portal in order to understand the principle of building and operating the system.

Now, considering that the device for automatic light control supports the Internet connection (in particular, to the Cayenne server), we can implement additional useful remote control and management functions. At the moment on the Cayenne dashboard I can observe the level of illumination and its change, the current PWM mode of controller, the temperature in the room, and also I can switch the controller to manual mode from the application on the smartphone and turn the additional light to maximum brightness (Figure 2). All data arriving at the Cayenne server is saved, and in the future I can view detail data (and download) and statistics of changing data for different time periods, and also set up notification conditions for a mobile phone or e-mail (Figure 3). Thus, this controller, in addition to controlling the lighting of the working area in the kitchen, can perform additional automation functions and it can be called a remote sensor (sensor node).

Figure 2a. Cayenne dashboard for automatic lighting controller in kitchen: in the browser

Figure 2b. Cayenne dashboard for automatic lighting controller in kitchen: in the mobile application.

Figure 3. One of the options for details display (statistics) of temperature changes in the kitchen.

Schematic diagram

The schematic diagram in pdf format is available for download in the download section, the original project is available online in the EasyEDA.

As I noted in the first part of the article, the circuitry of the device on NodeMCU differs somewhat from the similar device on Arduino (Figure 4). Firstly, this is due to the fact that the nominal supply voltage of the ESP8266 SoC is 3.3 V. Secondly, the technical documentation for SoC, practical manuals and thematic forums do not give an unambiguous answer to the question of the compatibility of Wi-Fi modules on the ESP8266 with 5 V devices.

In addition, in NodeMCU modules, a 3.3 V line voltage regulator (usually from the AMS1117-3.3 series) is installed for powering the SoC, for which the maximum input voltage is 15 V (in some versions up to 18 V). In this case, the NodeMCU module could be powered directly from the 12 V power supply. However, for some obvious reasons, I decided to install an additional 5 V voltage regulator with the appropriate filter capacitors. The 5 V supply voltage from 5 V regulator output is fed to the Vin input of the Wi-Fi module.

Figure 4. Schematic diagram of the Controller (NodeMCU Version).

The PWM circuit of the LED tape control did not change. The power MOSFET Gate pin is connected to the D5 NodeMCU port.

The input voltage range of the A/D converter integrated in the ESP8266 is 0 - 1 V, therefore the connection circuit of the light sensor (photoresistor) is slightly changed. Depending on the type of photoresistor used, it may be necessary to include an additional resistive divider in the measuring circuit. In my case (a photoconductor VT93N1 with a rating of 12 kOhm) there is no need for a voltage divider - even under high brightness conditions the voltage at the input of the ADC did not reach 0.9 V, so the resistor R7 is not installed, and instead of R6 a jumper (SMD resistor 0 Ω) is placed.

The DS18B20 temperature sensor is connected to the P3 connector. The 3.3 V supply voltage for the temperature sensor is supplied from the NodeMCU module, the sensor signal terminal with the pull-up resistor R5 is connected to port D3.

Connector P4 and pin 3 of connector P3 are provided for the possibility of further expansion of the functional.

To connect the motion sensor using a similar dual connector TB1-TB2. The output line of the motion sensor is connected to the D2 port via the logic level matching circuit (5 V / 3.3 V) made on the resistor R3 and the Schottky diode D1. With the current method of connecting the motion sensor (as in the case of the Arduino controller), the logic level matching scheme is not needed, and it can be eliminated. However, depending on the type of motion sensor used and the way it is connected, this circuit may be mandatory, since the ESP8266 can be damaged by operation with 5 V signals.

I note that the applied logic level matching scheme is one-sided. It is desirable to use Schottky diodes in the circuit - they have a low direct voltage drop.

Printed Circuit Board (PCB)

The design of the double-sided printed circuit board is developed in EasyEDA; Gerber files are available for download (Figure 5). The components and connectors tried to arrange the same way as on the Arduino Version, however, the board size was slightly larger. You can also view the project Gerber files using GerberViewer.

Figure 5. PCB for Controller on NodeMCU designed in EasyEDA.

The top and bottom layers are filled with Copper Area (GND, ground) and silkscreen. As with the Arduino board, the minimum order (5 pcs.) for PCB manufacturing was made as soon as possible, but in the end I received 6 PCBs.

All components are installed freely, and I did not even check the sizes and diameters of the holes in the library components used. The resulting set of printed circuit boards is shown in Figure 6. The board with installed components is shown in Figure 7.

Figure 6. Printed circuit boards ordered and manufactured in EasyEDA.

Figure 7. View of the controller board on the NodeMCU with the installed components.

Arduino Sketch Highlights

The source code of the microcontroller program (sketch) is simple in understanding and provided with comments. The sketch is provided "as is", I do not exclude the possibility of further optimization or adding new functions and operating modes of the controller. Here everything depends on your imagination and desire.

The main functions in the sketch and modes of operation for controller on NodeMCU remained the same as in the version on Arduino.

Pay attention to the definition of the I/O ports, additional libraries for working with the temperature sensor and the Cayenne server, constants for connecting the NodeMCU over Wi-Fi to the home network. In addition, I note that on ESP8266 in Arduino IDE with the analogWrite () function implemented software PWM with a range of 0-1023 (default). Consequently, the delays in the cycles of a smooth change in brightness during the transition from one operating mode to another have changed. In the PWM control loops, the delay () function is used, and at the end of the main program loop the yield () function is applied - this is necessary so that the ESP8266 processor, in addition to the user application, can perform background tasks to maintain the Wi-Fi connection. For connect the controller to the Cayenne server, you must specify in the source code a unique authorization key for the device that you will receive at the initial stage of adding a new device to the Cayenne dashboard. To find out how to do this, I recommend that you read the articles about myDevices Cayenne published on Radiolocman.com.

With current firmware version controller in automatic mode controls the brightness of the additional lighting in the kitchen and sends data (current illumination level, temperature and PWM value) to the Cayenne server, and also receives data from the Cayenne server about the current status of one button on the dashboard for Manual forced lighting on the maximum brightness. Pressing this button (on the dashboard or in the mobile application, called "Enable-100%") disables controller automatic mode for 2 hours and turns additional light on for maximum brightness. At the end of this period, the controller switches back to automatic operation mode and switches to the inactive state button on the Cayenne dashboard. By the way, I learned about the possibility to change the state of the button on the dashboard from a remote device during experiments; In the Cayenne help section information about this function I did not find.

Virtual channels are used to communicating with the Cayenne server (Listing 1).

Listing 1. Defining virtual ports for data exchange with the Cayenne server.

#define VIRTUAL_PIN_0 V0   // Virtual PIN 0: LDR
#define VIRTUAL_PIN_1 V1   // Virtual PIN 1: Current PWM Value
#define VIRTUAL_PIN_2 V2   // Virtual PIN 2: "Enable-100%" Button state
#define VIRTUAL_PIN_3 V3   // Virtual PIN 3: DS18B20 temperature sensor

Virtual PIN V2 is used to control the state of the button «Enable-100%» on the dashboard. The controller on this channel sends a value (1 or 0) to change state of the button (Listing 2). The server, receiving a value on virtual channel V2 equal to 0, deactivates the button on the Cayenne dashboard and changes the icon on it.

Listing 2. Changing the state of the button on the Cayenne dashboard from a remote device.

if ((Cayenne_Button == 1) && (millis() - timeout_3 > interval_4))
{
//manual mode, 2 hour timer interval expired
    Cayenne_Button = 0;
    Cayenne.virtualWrite(V2, Cayenne_Button);  // button deactivation (write 0)
    timeout_3 = millis();                      // reset timer
    mode=3;                                    // return to automatic mode
}

The processing of the Cayenne dashboard button pressing event is performed by the function CAYENNE_IN (V2) (Listing 3).

Listing 3. Cayenne dashboard Button processing.

CAYENNE_IN(V2)
{
  Cayenne_Button = getValue.asInt();
  if (Cayenne_Button == 1) {
    mode=2;
    Mode_Set();
  }
  else {
    mode=3;
    Mode_Set();
  }
}

Temperature, illumination and the current PWM (controller operating mode) value sending to Cayenne is performed by separate functions of the form CAYENNE_OUT (). These are very simple functions, the construction of which was discussed in detail in [2]. Sending and updating of data occurs automatically on request from the Cayenne server, but it is possible to implement your own algorithm and change the frequency of updating the data.

Conclusion

The presented two options for automatic control of additional LED lighting in the kitchen are simple enough, but, in my opinion, functional and practical. At this moment I have a controller on the NodeMCU working in the kitchen. In the future, I plan to connect additional sensors and a ventilation control scheme in the kitchen to the system.

Of course, both devices are not ideal, and may require optimization or modification. For example, the controller on the NodeMCU with Cayenne has several nuances related to the features of the Cayenne software libraries for Arduino. When power is applied to the controller, the execution of the main cycle of the user program will start only after the wireless connection with the access point has been established. If the wireless network disconnects or the connection to the Cayenne fails, the controller will continue to perform its main function (lighting control), but there will be delays when processing events from the motion sensor, when changing from one operating mode to another. All of this can be solved, but for all the time of this controller is working this situation has not happened ...

I want to note that the controller on Arduino can also integrate the IoT functions and connect it to the Cayenne server using a wired connection (RS232, RS485) or using wireless transceiver modules on the NRF24L01 chip. In the latter case, you will have to take care of choosing the optimal remote devices network topology and developing a master device that will collect and process data from the slaves in the network.

Downloads

Schematic Diagram (pdf) - download

Printed Circuit Board (Gerber) – download

Arduino Sketch – download

References

1. Cayenne - Simplifying the Creation of IoT

2. Cayenne dashboard simplifies IoT project building on Raspberry Pi

3. Free, cloud-based EDA application for drawing circuits, running SPICE simulations, designing PCBs, and even placing orders for fabricating PCBs - EasyEDA

4. Project files for controller on NodeMCU in EasyEDA

5. Platform to create IoT projects on the Raspberry Pi and Arduino

Code

// Controller for automatic lighting of the working area in the kitchen
// NodeMCU Version (ESP12-E)
// Operating principle:
// The sufficient level of lighting in the kitchen and motion is detected - the local lighting does not turn on
// The level of lighting in the kitchen - the average, motion is detected - gradually increase the brightness to 20%, start the timer for 3 minutes
// If for 40 seconds before the end of 3 minutes interval movement is detected - activates the backlight at 100%, run timer for 7 minutes, light level and movement monitoring
// If there is no movement - reduce the level to 20%, and then, after 3 minutes, if the motion not detected - gradually disable the backlight. If motion is detected again, increasing to 100%
// The level of lighting in the kitchen is low (night), motion is detected - turn on the backlight for 10%, start the timer for 3 minutes
// If for 40 seconds before the end of 3 minutes interval movement is detected - increase brightness to 50%, start the timer for 7 minutes.
// If there is no movement - slowly reduce the level to 10%, a 3-minute hold, then turn off

// LDR connected to A7, Motion sensor connected to D2, PWM output - D5

// mode=1 - gradually increase the brightness to 20%, start the timer for 3 minutes
// mode=2 - gradually increase the brightness from 20% to 100%, start the timer for 7 minutes. Motion Detection reset this 7 min timer
// mode=3 - gradually decrease the brightness from 100% to 20% (=mode 1)
// mode=4 - gradually increase the brightness to 10%, start the timer for 3 minutes (night).
// mode=5 - gradually increase the brightness from 10% to 50%, start the timer for 7 minutes . Motion Detection reset this 7 min timer
// mode=0 - turn off

//Additional functions
//IoT Device (Sensor Node) - DS18B20 temperature sensor connected to D4 NodeMCU
//Remote temperature monitoring, manual lighting control (on/Off) from mobile application or browser
//The ability to implement various notifications by email
//The ability to adding new automation functions

//#define CAYENNE_PRINT Serial  // Cayenne debug messages
//#define CAYENNE_DEBUG

#include "CayenneDefines.h"
#include "BlynkSimpleEsp8266.h"
#include "CayenneWiFiClient.h"
#include <OneWire.h>
#include <DallasTemperature.h>

#define Light_Sensor A0         //LDR connected to A0
#define Motion_Sensor D2        //motion sensor conneted      D2
#define PWM_Out D5              //D5 - PWM Out
#define Temp_Sensor D4          //DS18B20 conncted to D4

#define VIRTUAL_PIN_0 V0        // Virtual Pin 0: LDR
#define VIRTUAL_PIN_1 V1        // Virtual Pin 1: PWM current value
#define VIRTUAL_PIN_2 V2        // Virtual Pin 2: button status in Cayenne dashboard Enable.-100%
#define VIRTUAL_PIN_3 V3        // Virtual Pin 3: DS18B20- temperature sensor

OneWire oneWire(Temp_Sensor);
DallasTemperature sensors(&oneWire);

boolean Light_On;                                       //true if local lighting is on , false - if local lighting is on
byte mode;                                              //Current operation mode

// Cayenne token for NodeMCU
char token[] = "oss64ax86v";
// SSID and pass for you Wi-Fi
char ssid[] = "SSID";
char password[] = "pass";

int Cayenne_Button;                                   //Cayenne dashboard Button "Enable-100%"
int current_luminosity, previus_luminosity, PWM_Value;
unsigned long interval_1 = 1000;                      //1 s interval
unsigned long interval_2 = 180000UL;                  //3 min interval
unsigned long interval_3 = 420000UL;                  //7 min interval
unsigned long interval_4 = 7200000UL;                 //2 hour interval for manual mode
unsigned long checkpoint_1 = 150000UL;                //checkpiont: before end of 3 min interval
unsigned long timeout_1;
unsigned long timeout_2;
unsigned long timeout_3;

void Mode_Set() {
  switch (mode) {
    case 0:
      for (PWM_Value; PWM_Value > -1; PWM_Value--) {
        analogWrite(PWM_Out, PWM_Value);                  //local lighting turning off
        delay(10);
      }
      Light_On = false;                          //local lighting is off
      PWM_Value = 0;
      break;

    case 1:
      for (PWM_Value = 0; PWM_Value < 210; PWM_Value++) {
        analogWrite(PWM_Out, PWM_Value);                  //gradually increase the brightness to 20%
        delay(10);
      }
      Light_On = true;
      timeout_2 = millis();                     //start timer for mode 1
      break;

    case 2:
      for (PWM_Value; PWM_Value < 1023; PWM_Value++) {
        analogWrite(PWM_Out, PWM_Value);                  //gradually increase the brightness to 100%
        delay(5);
      }
      Light_On = true;
      timeout_2 = millis();                     //start timer for mode 2
      break;

    case 3:
      for (PWM_Value; PWM_Value > 210; PWM_Value--) {
        analogWrite(PWM_Out, PWM_Value);                  //gradually decrease the brightness from 100 to 20%
        delay(5);
      }
      Light_On = true;
      timeout_2 = millis();                     //start timer for mode 1
      mode = 1;                                 //after decreasing this is mode 1
      break;

    case 4:
      for (PWM_Value = 0; PWM_Value < 105; PWM_Value++) {
        analogWrite(PWM_Out, PWM_Value);                  //gradually decrease the brightness from 0 to 10%
        delay(10);
      }
      Light_On = true;
      timeout_2 = millis();                     //start timer for mode 4
      break;

    case 5:
      for (PWM_Value; PWM_Value < 515; PWM_Value++) {
        analogWrite(PWM_Out, PWM_Value);                  //radually decrease the brightness from 10% to 50%
        delay(10);
      }
      Light_On = true;
      timeout_2 = millis();
      break;
  }

}

CAYENNE_IN(V2)
{
//  CAYENNE_LOG("Got a value: %s", getValue.asStr());
  Cayenne_Button = getValue.asInt();
  if (Cayenne_Button == 1) {
    mode=2;
    Mode_Set();
  }
  else {
    mode=3;
    Mode_Set();
  }
}

CAYENNE_OUT(V0)                                                           //Lighting
{
  Cayenne.virtualWrite(V0, current_luminosity);
}

CAYENNE_OUT(V1)                                                           //Current PWM value (operation mode)
{
  Cayenne.virtualWrite(V1, PWM_Value);
}

CAYENNE_OUT(V3)                                                           //temperature
{
  sensors.requestTemperatures();
  Cayenne.virtualWrite(V3, sensors.getTempCByIndex(0) );
}

void LightingChange_Det () {
  current_luminosity = analogRead(Light_Sensor);
  if (Cayenne_Button == 0) {
    if ((current_luminosity < 150) && (current_luminosity - previus_luminosity > 40) && (Light_On == false)) {                //local lighting is off and turning on main Lighting
      mode = 1;
      Mode_Set();                                                                                     //turn local lighting On (day mode, step 1)
    }
    if ((current_luminosity - previus_luminosity > 40) && (Light_On == true) && (mode == 1)) {        //local lighting is on (day mode) and turning on main Lighting
      mode = 2;
      Mode_Set();                                                                                     //increasing brightness(day mode, step 2)
    }
    else if ((current_luminosity - previus_luminosity > 40) && (Light_On == true) && (mode == 4)) {  //local lighting is on (night mode) and turning on main Lighting
      mode = 5;
      Mode_Set();                                                                                    //increasing brightness(night mode, step 2)
    }
    previus_luminosity = current_luminosity;
    if ((current_luminosity > 110) && (Light_On == true)) {                                       //Sufficient light level on kitchen
      mode = 0;                                                                                   //local lighting turn off
      Mode_Set();
    }
  }
}

void setup() {
  pinMode(Motion_Sensor, INPUT_PULLUP);
  analogWrite(PWM_Out, 0);
  previus_luminosity = analogRead(Light_Sensor);
  current_luminosity = analogRead(Light_Sensor);
  timeout_1 = millis();
  PWM_Value = 0;
  mode = 0;
//  Serial.begin(9600);

  Cayenne.begin(token, ssid, password);
}

void loop() {

  Cayenne.run();

  if (millis() - timeout_1 >= interval_1) {
    timeout_1 = millis();
    LightingChange_Det();
  }
  if (Cayenne_Button == 0) {                                                                                    //automatic mode

    if ((digitalRead(Motion_Sensor) == HIGH) && (current_luminosity < 110) && (current_luminosity > 15) && (Light_On == false)) { //motion detected, average lighting in kitchen, local lighting is off
      mode = 1;
      Mode_Set();
    }
    if ((mode == 1) && (millis() - timeout_2 > checkpoint_1) && (digitalRead(Motion_Sensor) == HIGH)) {         //at the end of 3 min interval (30 sec)
      mode = 2;                                                                                                 //if motion is detected, set mode 2
      Mode_Set();
    }
    else if ((mode == 1) && (millis() - timeout_2 > interval_2) && (digitalRead(Motion_Sensor) == LOW)) {       //if motion not detected, set mode 0
      mode = 0;
      Mode_Set();
    }

    if ((mode == 2) && (millis() - timeout_2 > interval_3)) {
      mode = 3;                                                                                                 //set mode 3 (100%->20%)
      Mode_Set();
    }
    else if ((mode == 2) && (digitalRead(Motion_Sensor) == HIGH)) {
      timeout_2 = millis();                                                                                     //reset 7 min timer if motion is detected
    }

    if ((mode == 0) && (current_luminosity >= 0) && (current_luminosity < 15) && (digitalRead(Motion_Sensor) == HIGH)) {       //night mode, set mode 4
      mode = 4;
      Mode_Set();
    }

    if ((mode == 4) && (millis() - timeout_2 > checkpoint_1) && (digitalRead(Motion_Sensor) == HIGH)) {         //night mode: at the end of 3 min interval (30 sec)
      mode = 5;                                                                                                 //night mode: if motion is detected, set mode 5
      Mode_Set();
    }
    else if ((mode == 4) && (millis() - timeout_2 > interval_2) && (digitalRead(Motion_Sensor) == LOW)) {       //if motion not detected, set mode 0
      mode = 0;
      Mode_Set();
    }

    if ((mode == 5) && (millis() - timeout_2 > interval_3)) {
      mode = 0;
      Serial.print("mode5->mode0");
      Mode_Set();
    }
    else if ((mode == 5) && (digitalRead(Motion_Sensor) == HIGH)) {
      timeout_2 = millis();                                                                                     //reset 7 min timer if motion is detected
    }
    timeout_3=millis();                                                                                         //
  }

  if ((Cayenne_Button == 1) && (millis() - timeout_3 > interval_4)) {                                           //in manual mode
    Cayenne_Button = 0;
    Cayenne.virtualWrite(V2, Cayenne_Button);                                                                   //start 2 hour interval. After 2 hour returnt to automatic mode
    timeout_3 = millis();                                                                                       //and deactivation "Enable-100%" Button on Cayenne dashboard
    mode=3;                                                                                                     //Set mode 3
  }
  yield();

}

Credits

Vadim

0 projects • 4 followers

Automatic Lighting of the Working Area in Kitchen

Things used in this project

Hardware components

Software apps and online services

Story

General information

Schematic diagram

Printed Circuit Board (PCB)

Conclusion

Downloads

References

Schematics

Schematic diagram of the Controller on NodeMCU Version

PCB Gerber Files

Code

Code snippet #1

Code snippet #2

Code snippet #3

Kitchen_Light_Controller_NodeMCU_ENG.ino

Credits

Vadim

Comments

Embed the widget on your own site

Automatic Lighting of the Working Area in Kitchen

Automatic Lighting of the Working Area in Kitchen

Things used in this project

Hardware components

Software apps and online services

Story

General information

Schematic diagram

Printed Circuit Board (PCB)

Conclusion

Downloads

References

Schematics

Schematic diagram of the Controller on NodeMCU Version

PCB Gerber Files

Code

Code snippet #1

Code snippet #2

Code snippet #3

Kitchen_Light_Controller_NodeMCU_ENG.ino

Credits

Vadim

Comments

Related channels and tags
