Arduino Based Rotating Head Obstacle Avoiding Robot

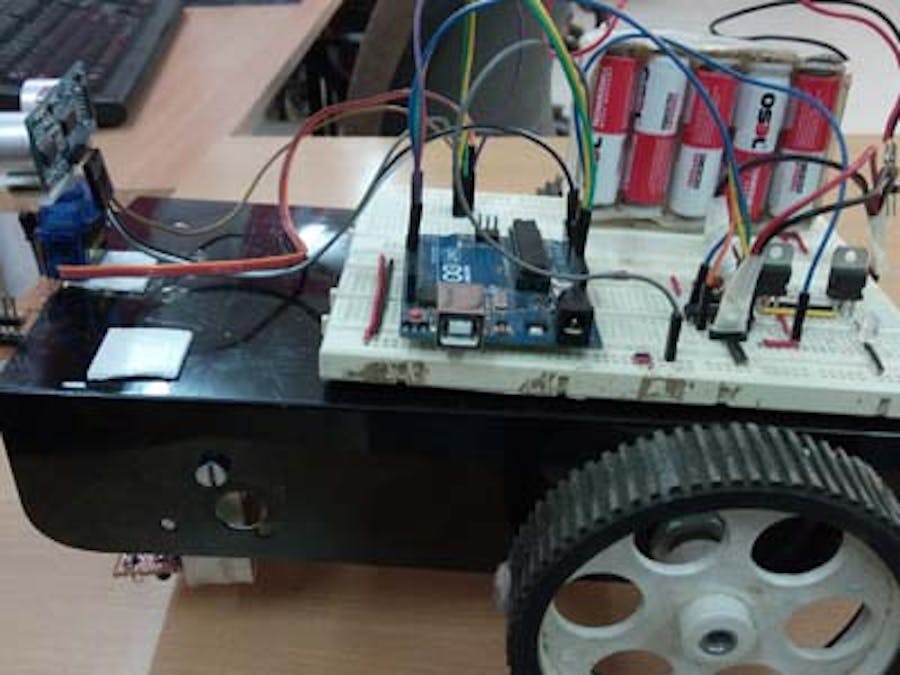

This autonomous robot is built on Arduino UNO and can sense its environment with the help of an ultrasonic sensor.

IntermediateFull instructions provided1,365
Arduino Based Rotating Head Obstacle Avoiding Robot

Story

Read more

Schematics

Arduino Atutonomous Robot

Code

Program Code

C Header File
//Program to

#include <Servo.h>

#include <NewPing.h>

Servo myservo;

//define the pins to be connected to ultrasonic sensor

#define trigPin A0

#define echoPin A1

//define the pins to be connected to ultrasonic sensor

#define LeftMotor1  4

#define LeftMotor2  5

#define RightMotor1 2

#define RightMotor2 3

#define maxdist 300

#define objdist 23

NewPing sonar(trigPin, echoPin, maxdist);

int leftDistance, rightDistance;

//setup function to define the pinmodes

void setup()

{

  pinMode(LeftMotor1,  OUTPUT);

  pinMode(LeftMotor2,  OUTPUT);

  pinMode(RightMotor1, OUTPUT);

  pinMode(RightMotor2, OUTPUT);


  pinMode(trigPin, OUTPUT);

  pinMode(echoPin, INPUT);

  myservo.attach(11);

  myservo.write(90);


  delay(1000);

}

//Loop infinite function

void loop()

{

   int read_dist;

  //Make servo to turn 90 degree

   myservo.write(90);



   delay(90);

   //calling read sensor function to read the sensor data

   read_dist = readsensors();

   //checking the distance that is measured with the predefined value

    if(read_dist < objdist)

   {

    //if low calling the decide path function

    decide_path();

   }

   //calling the move forward function to move the robot forward

   moveforward();


   delay(500);

}

//Function to read the sensor value

int readsensors()

{

  int distance;


  delay(70);

  //using the newping.h library function to measure the distance

  unsigned int uS = sonar.ping();

  distance = uS/US_ROUNDTRIP_CM;

  return distance;

}

void decide_path()

{

  robostop();

  //rotating the servo to 3 degree to right side

  myservo.write(3);

  delay(500);

  //calling read sensor function to measure the distance on right side

  rightDistance = readsensors();

  delay(500);

  myservo.write(180);

  delay(700);

  leftDistance = readsensors();

  delay(500);

  myservo.write(90);

  delay(100);

  check_distance();

}

//function to compare the distances

void check_distance()

{

  //checking whether left measured distance is lesser that right

  if (leftDistance < rightDistance)

  {

    turnright();

  }

  //checking whether left measured distance is greater that right

  else if (leftDistance > rightDistance)

  {

    turnleft();

  }

  else

  {

    turnaround();

  }

}

void moveforward()

{

  digitalWrite(LeftMotor1, HIGH);

  digitalWrite(LeftMotor2, LOW);

  digitalWrite(RightMotor1, HIGH);

  digitalWrite(RightMotor2, LOW);

}

void turnleft()

{

  digitalWrite(LeftMotor1, LOW);

  digitalWrite(LeftMotor2, LOW);

  digitalWrite(RightMotor1, HIGH);

  digitalWrite(RightMotor2, LOW);

  delay(350);

  moveforward();

}

void turnright()

{

  digitalWrite(LeftMotor1, HIGH);

  digitalWrite(LeftMotor2, LOW);

  digitalWrite(RightMotor1, LOW);

  digitalWrite(RightMotor2, LOW);

  delay(350);

  moveforward();

}

void turnaround()

{

  digitalWrite(LeftMotor1, LOW);

  digitalWrite(LeftMotor2, HIGH);

  digitalWrite(RightMotor1, HIGH);

  digitalWrite(RightMotor2, LOW);

  delay(700);

  moveforward();

}

void robostop()

{

  digitalWrite(LeftMotor1, LOW);

  digitalWrite(LeftMotor2, LOW);

  digitalWrite(RightMotor1, LOW);

  digitalWrite(RightMotor2, LOW);

}
