Hey guys, how are you? Are you ready for making an Arduino-based game using some LEDs and pushbuttons? Well in this article, We are going to make a sequence remembering game using Arduino UNO. In this game, you have to remember the sequence of the LEDs in which they are turning on one after another and once it is done, the system will ask you to enter the same sequence. You can read the full article on our website as well. Complete the connections according to the diagram and then upload the given code.

Working of Arduino electronic game

This is a sequence remembering game so it will also help to improve your memory skills. You can make your own personal high scores in it. You just have to press the pushbuttons in the order of glowing the LEDs. The buzzer beeps indicate that now it's your turn. You have a limited time to start entering the sequence after that the system repeats the sequence once again. Please note that you have only two chances for completing the sequence. In case if you enter the wrong sequence, the system will reset itself and a new random sequence will be generated automatically by the Arduino.

Components Required

• Arduino UNO
• Four LEDs and pushbuttons
• Buzzer
• 220-ohm resistors
• USB cable for uploading the code
• Jumper wires and a breadboard

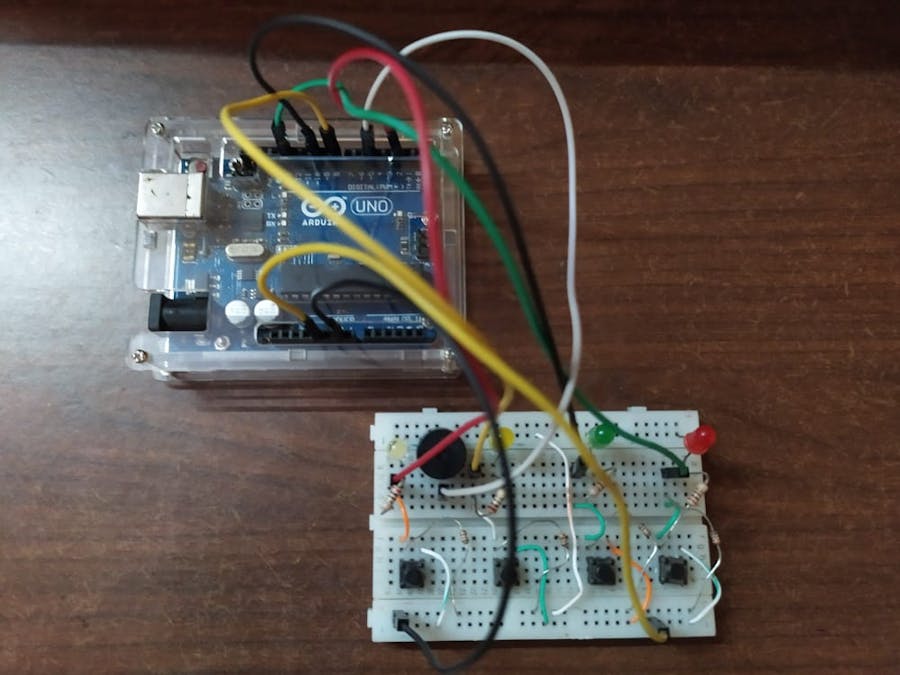

Arduino based game Circuit Diagram

Code for the Project

NOTE: Please upload the code which is given below to the Arduino.

//Techatronic.com
#define PLAYER_WAIT_TIME 2000 // The time allowed between button presses - 2s
byte sequence[100];      // Storage for the light sequence
byte curLen = 0;       // Current length of the sequence
byte inputCount = 0;     // The number of times that the player has pressed a (correct) button in a given turn
byte lastInput = 0;      // Last input from the player
byte expRd = 0;        // The LED that's suppose to be lit by the player
bool btnDwn = false;     // Used to check if a button is pressed
bool wait = false;      // Is the program waiting for the user to press a button
bool resetFlag = false;    // Used to indicate to the program that once the player lost
byte soundPin = 5;      // Speaker output
byte noPins = 4;       // Number of buttons/LEDs (While working on this, I was using only 2 LEDs)
// You could make the game harder by adding an additional LED/button/resistors combination.
byte pins[] = {2, 13, 10, 8}; // Button input pins and LED ouput pins - change these vaules if you wwant to connect yourbuttons to other pins
// The number of elements must match noPins below
long inputTime = 0;      // Timer variable for the delay between user inputs
void setup() {
delay(3000);        // This is to give me time to breathe after connection the arduino - can be removed if you want
Serial.begin(9600);     // Start Serial monitor. This can be removed too as long as you remove all references to Serial below
Reset();
}
///
/// Sets all the pins as either INPUT or OUTPUT based on the value of 'dir'
///
void setPinDirection(byte dir){
for(byte i = 0; i < noPins; i++){
pinMode(pins[i], dir);
}
}
//send the same value to all the LED pins
void writeAllPins(byte val){
for(byte i = 0; i < noPins; i++){
digitalWrite(pins[i], val);
}
}
//Makes a (very annoying 🙂 beep sound
void beep(byte freq){
analogWrite(soundPin, 2);
delay(freq);
analogWrite(soundPin, 0);
delay(freq);
}
///
/// Flashes all the LEDs together
/// freq is the blink speed - small number -> fast | big number -> slow
///
void flash(short freq){
setPinDirection(OUTPUT); /// We're activating the LEDS now
for(int i = 0; i < 5; i++){
writeAllPins(HIGH);
beep(50);
delay(freq);
writeAllPins(LOW);
delay(freq);
}
}
///
///This function resets all the game variables to their default values
///
void Reset(){
flash(500);
curLen = 0;
inputCount = 0;
lastInput = 0;
expRd = 0;
btnDwn = false;
wait = false;
resetFlag = false;
}
///
/// User lost
///
void Lose(){
flash(50);
}
///
/// The arduino shows the user what must be memorized
/// Also called after losing to show you what you last sequence was
///
void playSequence(){
//Loop through the stored sequence and light the appropriate LEDs in turn
for(int i = 0; i < curLen; i++){
Serial.print("Seq: ");
Serial.print(i);
Serial.print("Pin: ");
Serial.println(sequence[i]);
digitalWrite(sequence[i], HIGH);
delay(500);
digitalWrite(sequence[i], LOW);
delay(250);
}
}
///
/// The events that occur upon a loss
///
void DoLoseProcess(){
Lose();       // Flash all the LEDS quickly (see Lose function)
delay(1000);
playSequence();   // Shows the user the last sequence - So you can count remember your best score - Mine's 22 by the way 🙂
delay(1000);
Reset();      // Reset everything for a new game
}
///
/// Where the magic happens
///
void loop() {
if(!wait){
//****************//
// Arduino's turn //
//****************//
setPinDirection(OUTPUT);           // We're using the LEDs
randomSeed(analogRead(A0));          // https://www.arduino.cc/en/Reference/RandomSeed
sequence[curLen] = pins[random(0,noPins)];  // Put a new random value in the next position in the sequence - https://www.arduino.cc/en/Reference/random
curLen++;                   // Set the new Current length of the sequence
playSequence();                // Show the sequence to the player
beep(50);                   // Make a beep for the player to be aware
wait = true;                 // Set Wait to true as it's now going to be the turn of the player
inputTime = millis();             // Store the time to measure the player's response time
}else{
//***************//
// Player's turn //
//***************//
setPinDirection(INPUT);            // We're using the buttons
if(millis() - inputTime > PLAYER_WAIT_TIME){ // If the player takes more than the allowed time,
DoLoseProcess();              // All is lost 🙁
return;
}
if(!btnDwn){                 //
expRd = sequence[inputCount];        // Find the value we expect from the player
Serial.print("Expected: ");         // Serial Monitor Output - Should be removed if you removed the Serial.begin above
Serial.println(expRd);           // Serial Monitor Output - Should be removed if you removed the Serial.begin above
for(int i = 0; i < noPins; i++){      // Loop through the all the pins
if(pins[i]==expRd)
continue;                // Ignore the correct pin
if(digitalRead(pins[i]) == HIGH){     // Is the buttong pressed
lastInput = pins[i];
resetFlag = true;            // Set the resetFlag - this means you lost
btnDwn = true;             // This will prevent the program from doing the same thing over and over again
Serial.print("Read: ");         // Serial Monitor Output - Should be removed if you removed the Serial.begin above
Serial.println(lastInput);       // Serial Monitor Output - Should be removed if you removed the Serial.begin above
}
}
}
if(digitalRead(expRd) == 1 && !btnDwn)    // The player pressed the right button
{
inputTime = millis();            //
lastInput = expRd;
inputCount++;                // The user pressed a (correct) button again
btnDwn = true;               // This will prevent the program from doing the same thing over and over again
Serial.print("Read: ");           // Serial Monitor Output - Should be removed if you removed the Serial.begin above
Serial.println(lastInput);         // Serial Monitor Output - Should be removed if you removed the Serial.begin above
}else{
if(btnDwn && digitalRead(lastInput) == LOW){ // Check if the player released the button
btnDwn = false;
delay(20);
if(resetFlag){               // If this was set to true up above, you lost
DoLoseProcess();             // So we do the losing sequence of events
}
else{
if(inputCount == curLen){         // Has the player finished repeating the sequence
wait = false;              // If so, this will make the next turn the program's turn
inputCount = 0;             // Reset the number of times that the player has pressed a button
delay(1500);
}
}
}
}
}
}

We hope that you liked this project and for more such interesting project visit our website. Also, check more related tutorials on Arduino and Raspberry Pi.
